PCE Instruments PCE-3500-10 Hardness tester Leeb , UCI 230 - 940 HV20 - 70 HRC90 - 650 HB370 - 1740 MPa
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Accuracy:
- +/- 3 % HV
- +/- 1.5 HRC
- +/- 3 % HB
- 50 N UCI probe (10 N UCI probe optional)
- HARDNESS SCALE: HRC, HB, HV, HRB, HL, MPA
- Materials:
- UCI: Steel (ferromagnetic)
- Leeb: Steel, cast iron, stainless steel, aluminum, bronze
- Test body: 136 ° Vickers diamond
- Measurement direction 360 °
- Minimum material thickness: 1 mm (UCI probe only)
- Display: Backlit, graphical color LCD
- Measurement functions:
- Single measurement
- Min./max./average value,
- Number of measurements, mean value formation, standard deviation,
- Variation coefficient, histogram, Smart mode (filters out)
- Memory SD-card
- Interface : USB
- Environmental conditions: -20 ... +40 °C; 30 ... 80 % r.F.
- Power supply 6 V (3 x size AA batteries)
- Product type
Hardness tester
- Reading range
230 - 940 HV
20 - 70 HRC
90 - 650 HB
370 - 1740 MPa
- Display type
Digital (LCD)
- Dim
(L x W x H) 30 x 160 x 75 mm
- Weight
300 g
- Operating voltage
6 V
- Features
+ data logger
- Content
1 pc(s)
- Measuring type
Leeb
UCI
- Width
160 mm
- Height
75 mm
- Length
30 mm
- Interfaces
USB plug
Mini A USB plug
USB 1.1 connector A
USB 2.0 port A
USB
USB host
USB 2.0 connector A
Serial interface
1x USB 2.0 (device)
1x USB 2.0 (host)
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3193012 PCE Instruments PCE-3500-10 Hardness tester Leeb , UCI 230 - 940 HV20 - 70 HRC90 - 650 HB370 - 1740 MPa
User & Safety Instructions
User & Safety Instructions 3193012 PCE Instruments PCE-3500-10 Hardness tester Leeb , UCI 230 - 940 HV20 - 70 HRC90 - 650 HB370 - 1740 MPa
Description

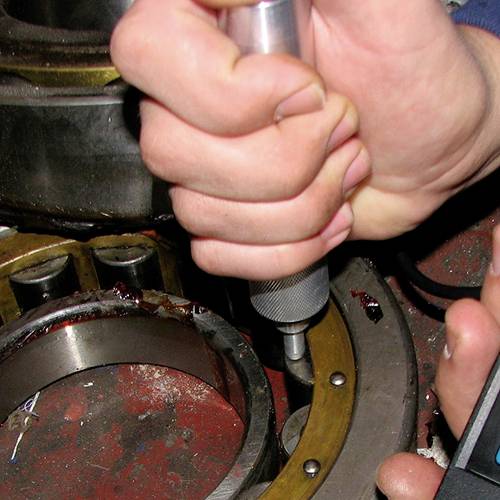

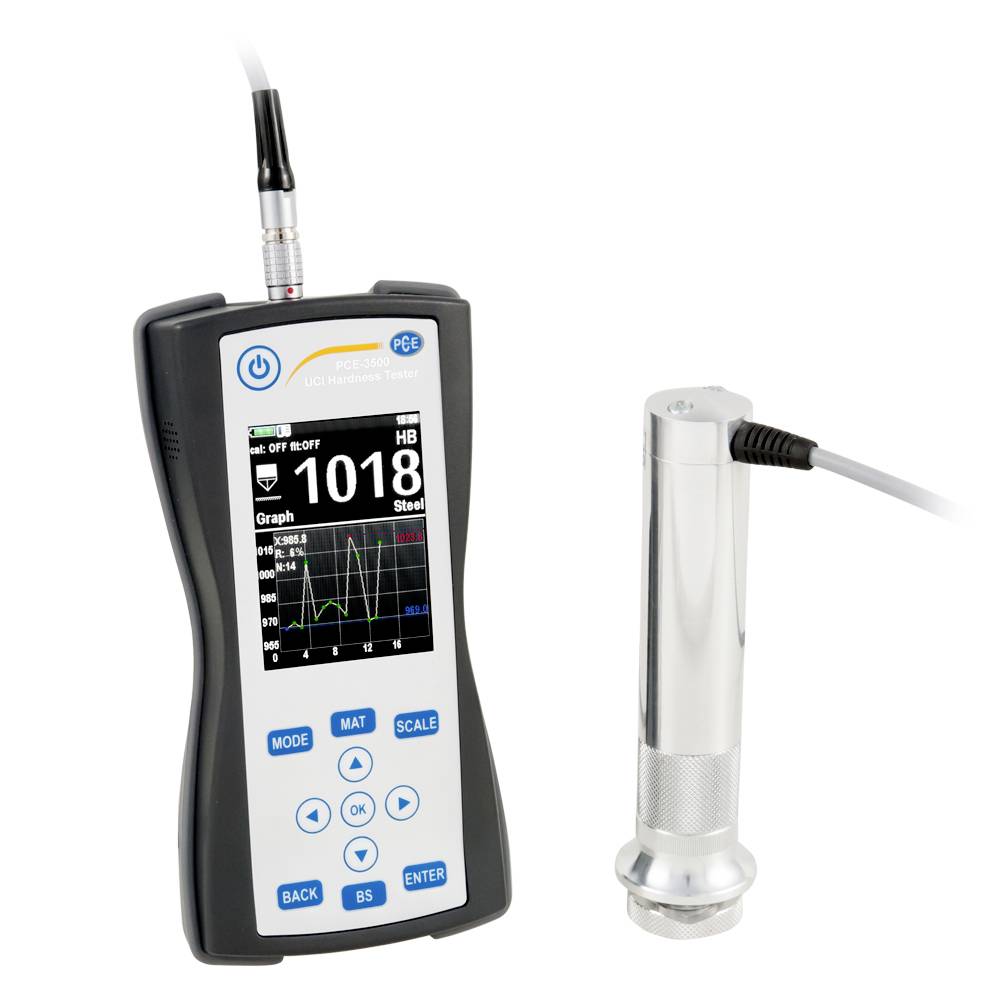

UCI Durometer PCE-3500 for non-destructive measurement of hardness/large LCD color display/with software/HV, HRC, HRB, HB and MPa scale /
With memory function / probes interchangeable / 136 ° Vickers diamond
The UCI hardening meter PCE-3500 serves for the non-destructive hardness measurement of metallic components. The UCI hardness meter works according to the Ultrasonic Contact Impedance method. The UCI method stimulates a Vickers diamond at the test probe with self-resonance. By pressing on the test probe, the oscillation frequency is attenuated according to the hardness of the surface and depending on the E-module of the material and the contact surface. Based on the resulting frequency shift, the hardness of the surface can be determined taking into account a material characteristic curve.
The UCI hardness meter works without any damage. Although a microscopic impression is created in the surface, it is not normally visible to the eye. Due to the low penetration depth of the Vickers diamond, the UCI hardness meter is particularly suitable for edge-layer hardened components such as those produced during nitriding or induction hardening. Typical applications include punching tools, presses, thin-walled components, gears, turbine blades, Camshafts or welds. However, the UCI hardness meter is also suitable for many other applications in the field of hardness testing. Different applications can be covered thanks to exchangeable probes with different contact forces.
After measuring the hardness of a component, the UCI hardness meter PCE 3500 shows various statistical values such as min./max. And average values. Standard deviation and other coefficients can also be determined, and a histogram can also be displayed. Since the UCI hardness meter has an internal memory, the measurement data can be evaluated after the measurement via a software.
This text is machine translated.
With memory function / probes interchangeable / 136 ° Vickers diamond
The UCI hardening meter PCE-3500 serves for the non-destructive hardness measurement of metallic components. The UCI hardness meter works according to the Ultrasonic Contact Impedance method. The UCI method stimulates a Vickers diamond at the test probe with self-resonance. By pressing on the test probe, the oscillation frequency is attenuated according to the hardness of the surface and depending on the E-module of the material and the contact surface. Based on the resulting frequency shift, the hardness of the surface can be determined taking into account a material characteristic curve.
The UCI hardness meter works without any damage. Although a microscopic impression is created in the surface, it is not normally visible to the eye. Due to the low penetration depth of the Vickers diamond, the UCI hardness meter is particularly suitable for edge-layer hardened components such as those produced during nitriding or induction hardening. Typical applications include punching tools, presses, thin-walled components, gears, turbine blades, Camshafts or welds. However, the UCI hardness meter is also suitable for many other applications in the field of hardness testing. Different applications can be covered thanks to exchangeable probes with different contact forces.
After measuring the hardness of a component, the UCI hardness meter PCE 3500 shows various statistical values such as min./max. And average values. Standard deviation and other coefficients can also be determined, and a histogram can also be displayed. Since the UCI hardness meter has an internal memory, the measurement data can be evaluated after the measurement via a software.
This text is machine translated.
Features
- Measurement according to UCI-method
- Testing of HRC, HRB, HV, HB, MPa
- Measurement direction 360 °
- Large LCD color display
- With memory function via SD-card

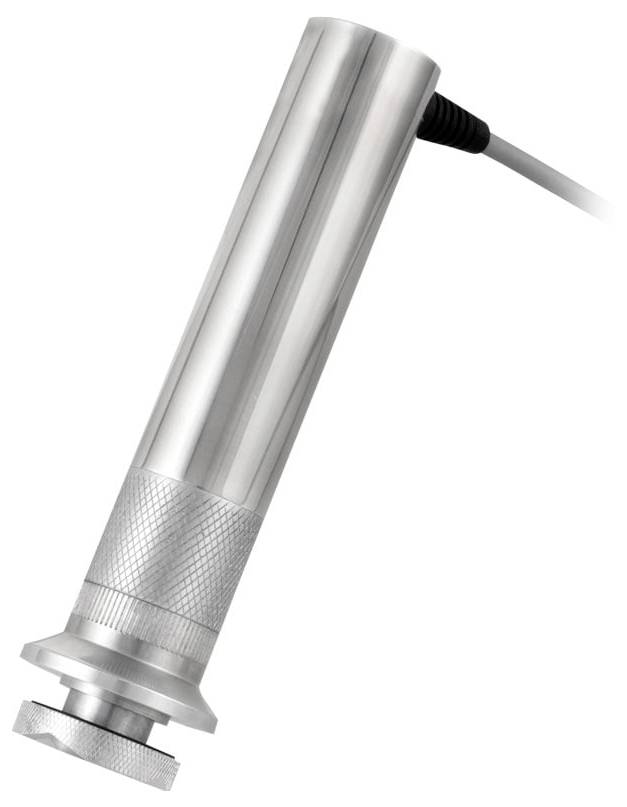

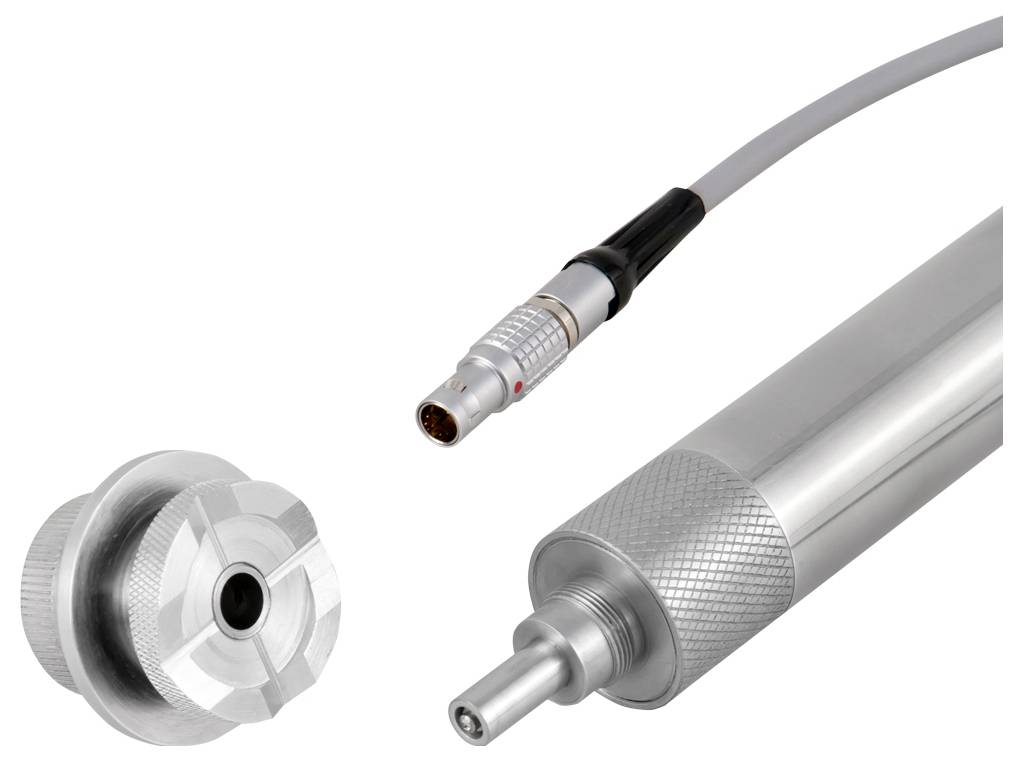

- Different test probes can be adapted
- Pre-calibrated material characteristic

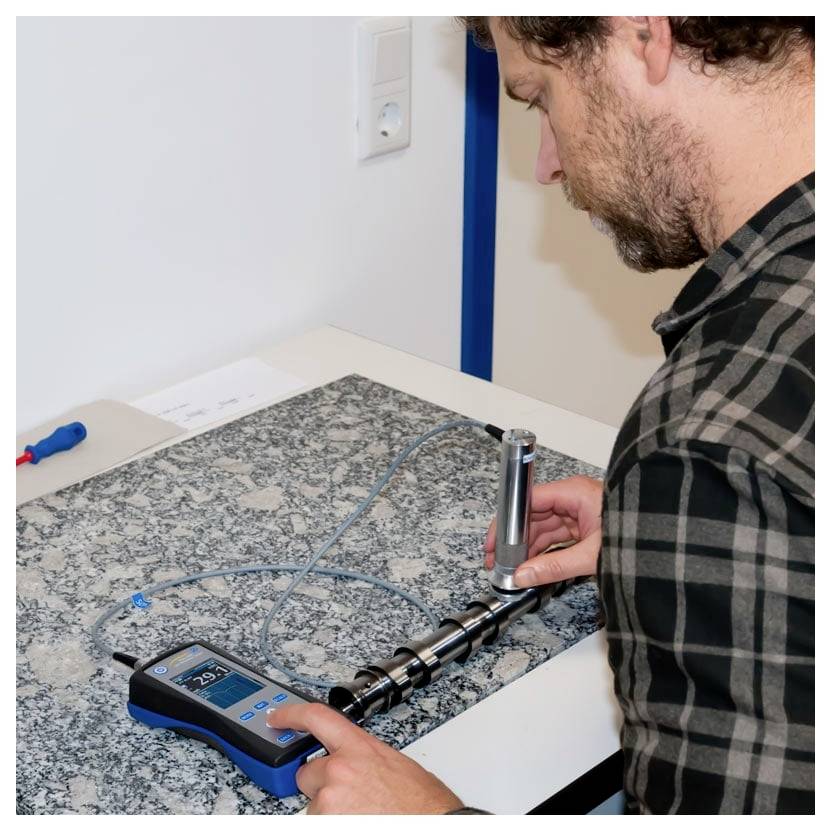

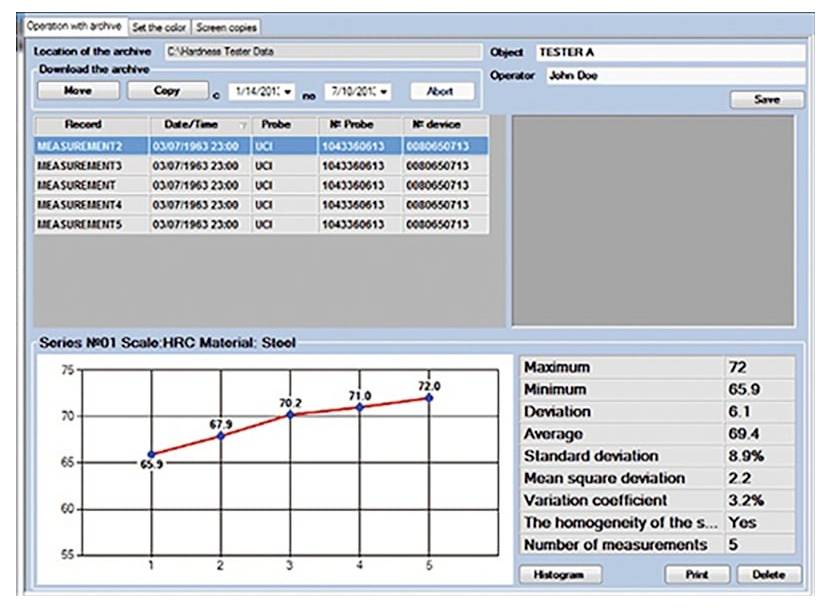

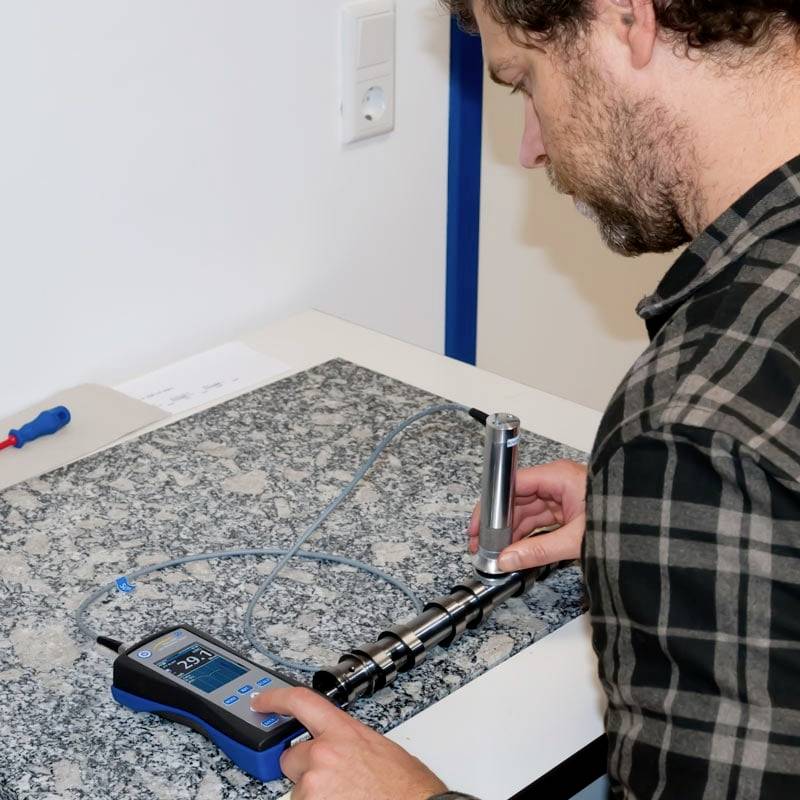

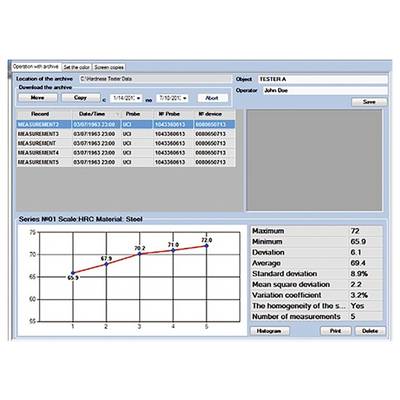

- Evaluation possible via software
Scope of delivery

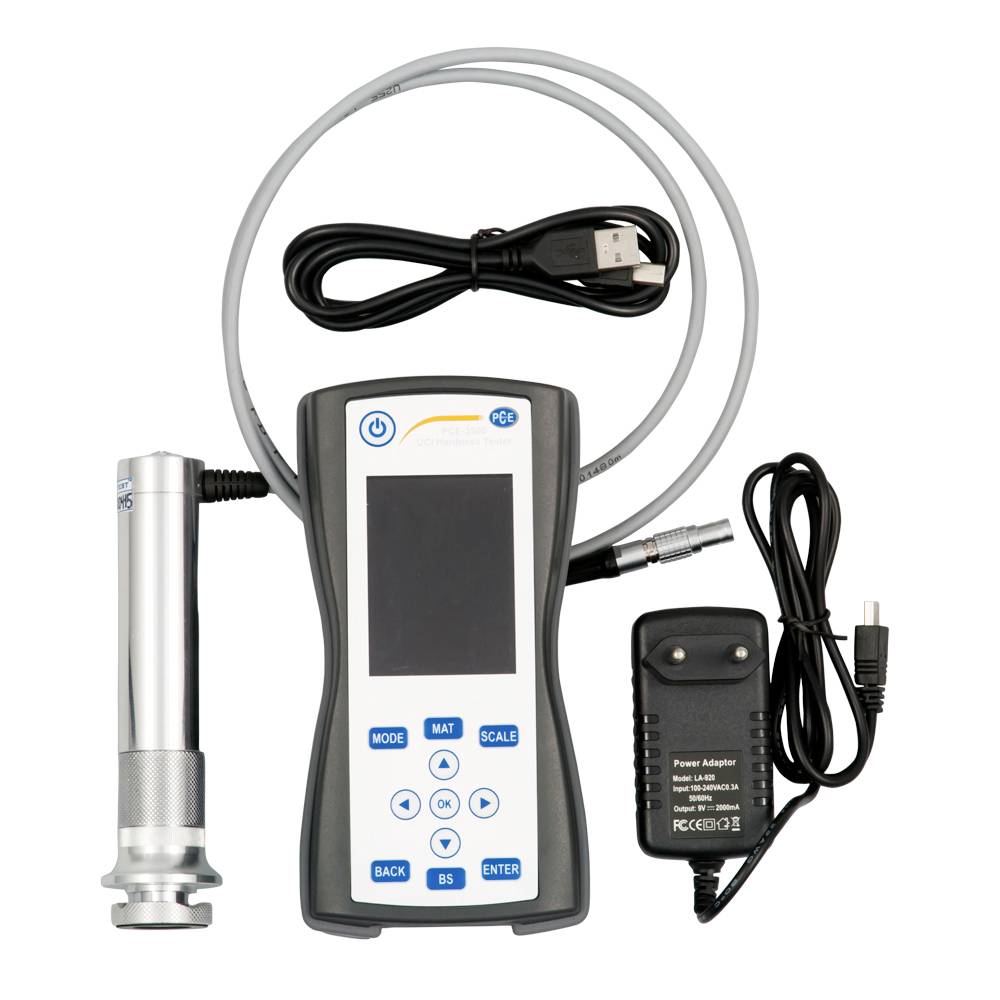

- 1 x UCI Hardness meter PCE-3500-10
- 1 x 10 N UCI-Probe
- 1 x 2 GB SD-card
- 1 x USB cable
- 1 x PC-Software
- 3 x AA batteries 6 V
- 1x user manual
