PCE Instruments PCE-432-SC 09-ICA Calibrator Calibrated to (ISO standards) SPL
EAN:
Part number:
Item no:
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-432-SC 09-ICA
- Professional sound level meter PCE-432-SC 09-ICA Class 1
- GPS built-in receiver
- Class I sound calibrator (for testing)
- Handheld sound level meter and real-time frequency analyzer
- 1/1 octave band included
- 1/3 octave band optional
- USB interface
- Integrated data logger
- Statistics function
- Displays the sound course as a graph
- A, B, C, Z FREQUENCY EVALUATION
- Fast, slow, pulse and peak time rating
- 3 measurement profiles can be set
- low inherent noise
- ICCP microphone 40 mV /PA
- Adjustable alarm level
- 1 x ISO calibration certificate
Technical specifications
- Measuring range 22 ... 136 dBA
- Accuracy class 1
- Frequency range 3 Hz ... 20 Hz
- Standards
- GB/T3785.1-2010
- GB/T3785.2-2010
- IEC60651:1979
- IEC60804:2000
- IEC61672-1:2013
- ANSI S1.4-1983
- ANSI S1.43-1997
- Frequency analysis
- Oktafilter: 8Hz ... 16kHz
- 1/3 Octavfilter: 6.3Hz ... 20kHz
- Microphone

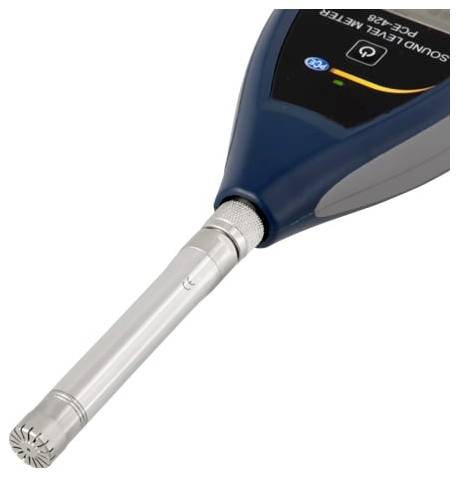

- 1/2" measurement microphone class 1
- Sensitivity 40 mV/PA
- Frequency range: 3 Hz ... 20 kHz
- TNC connection
- Power supply: ICCP Standard
- Integral time measurement
- 1 s ... 24 H (adjustable)
- Measurement functions
- LXY(SPL), LXEQ, LXYSD, LXSEL, LXE, Lexmark, LXYmin, LXPeak, LXN.
- X = FREQUENCY EVALUATION: A, B, C, Z;
- Y = TIME RATING F, S, I;
- N = statistics in %: 1 ... 99%
- 24 hour measurement
- Automatic measurement with data storage
- FREQUENCY WEIGHTING A, B, C, Z
- Evaluation time
- Fast (F), Slow (S), Impulse (I), Peak
- residual noise
- Microphone: 20 dB(A), 25 dB(C), 31 dB(Z)
- Electronics: 13 dB(A), 17 dB(C), 24 dB(Z)
- AD converter 24 Bit
- Sampling rate
- 48 kHz standard
- LN mode 20 ms
- Measurement representation
- Numeric
- Bar graph
- Graphic
- Display 160 x 160 pixel LCD with lighting
- Memory 4 GB micro SD card
- Interface USB (memory can be read out via software or directly as a mass storage device)
- RS232
- VOLTAGE OUTPUT AC 5V RMS
- DC 10 mV/dB
- Adjustable alarms
- Voltage supply
- 4 x 1.5 V AA battery
- 12 V / 1 A power supply
- 5 V/1 A USB
- Min. Operating time in battery mode 10 h
- Dimensions 70 x 300 x 36 mm (W x H x D)
- Weight
- Approx. 620 g with batteries
ISO standards
- Product type
Calibrator
- Unit of measurement
SPL
- Resolution
350 mA
- Dim
(L x W x H) 70 x 36 x 300 mm
- Weight
620 g
- Operating voltage
12 V
- Width
36 mm
- Height
300 mm
- Length
70 mm
- Power supply
3 x AA battery (included)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3812827 PCE Instruments PCE-432-SC 09-ICA Calibrator Calibrated to (ISO standards) SPL
Description
The sound level meter of the class 1 fulfills all requirements for the noise measurement and the frequency analysis. The sound level meter is equipped with a GPS receiver apart from the sound function. The GPS function allows the user to assign measured values to an exact position.

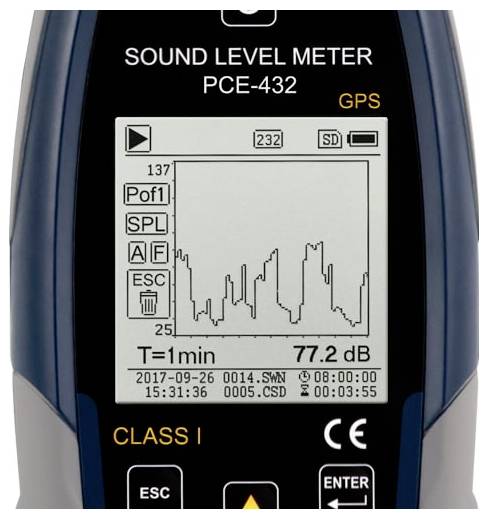

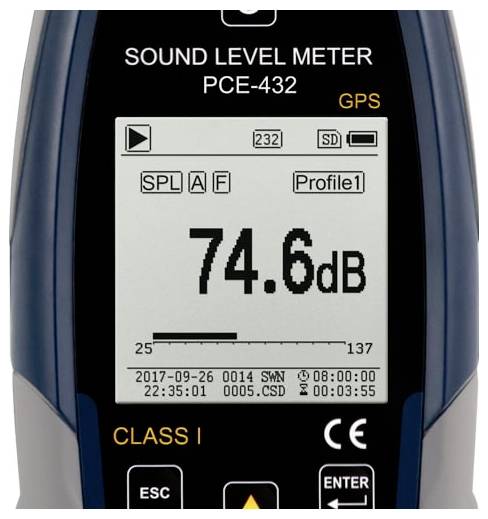

This integrated precision impulse sound level meter complies with all valid standards and guidelines (Class 1 EN/IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN/IEC61260, etc.) The sound level meter has a very large illuminated display. The display of the sound level meter displays the sound pressure level numerically and graphically in the course of real time. The professional sound level meter has an integrated data logger. Measured data are saved on a micro-SD card. This card can be read directly in the PC.
Similarly, the sound level meter can be connected via USB to the PC and the memory can be read. The post-processing software from sound level meter enables a comfortable analysis of the measured data. Typical applications for this equipment lie in the measurement of workplace noise, compliance with regulations, determination of environmental noise, selection of hearing protection Protector selection, selection of suitable noise reduction measures and estimation of exposure to noise
The impulse function of the sound level meter makes it possible to capture short-term acoustic events. By the integrated Octave band function, even here slightest differences in the frequency band can be detected. The frequency filter can be upgraded optionally via upgrade. The measuring range of this professional sound level meter ranges from 22 ... 136 db(A) at a frequency of 3 Hz ... 20 kHz bieten.
This text is machine translated.
This integrated precision impulse sound level meter complies with all valid standards and guidelines (Class 1 EN/IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN/IEC61260, etc.) The sound level meter has a very large illuminated display. The display of the sound level meter displays the sound pressure level numerically and graphically in the course of real time. The professional sound level meter has an integrated data logger. Measured data are saved on a micro-SD card. This card can be read directly in the PC.
Similarly, the sound level meter can be connected via USB to the PC and the memory can be read. The post-processing software from sound level meter enables a comfortable analysis of the measured data. Typical applications for this equipment lie in the measurement of workplace noise, compliance with regulations, determination of environmental noise, selection of hearing protection Protector selection, selection of suitable noise reduction measures and estimation of exposure to noise
The impulse function of the sound level meter makes it possible to capture short-term acoustic events. By the integrated Octave band function, even here slightest differences in the frequency band can be detected. The frequency filter can be upgraded optionally via upgrade. The measuring range of this professional sound level meter ranges from 22 ... 136 db(A) at a frequency of 3 Hz ... 20 kHz bieten.
This text is machine translated.
Features
- Pressure feeler
- Mains socket
- UHF socket
- Low voltage plugs
- TNC connector
- USB plug
- Analogue
- RS 232C
- USB 2.0 port internal 4-pin
- USB device
- XLR plugs
- Self-fixing
- Analogue and digital
- EU plug
- MicroSD slot
- SD card slot
- Mini-B USB plug
- Mains plug
- SD slot
- RS232 socket 3-pin
- USB
- Serial
- XLR socket
- USB 2.0 socket B
- USB 2.0 plug B
- USB 2.0 connector internal 4-pin
- 1 x USB 2.0 device

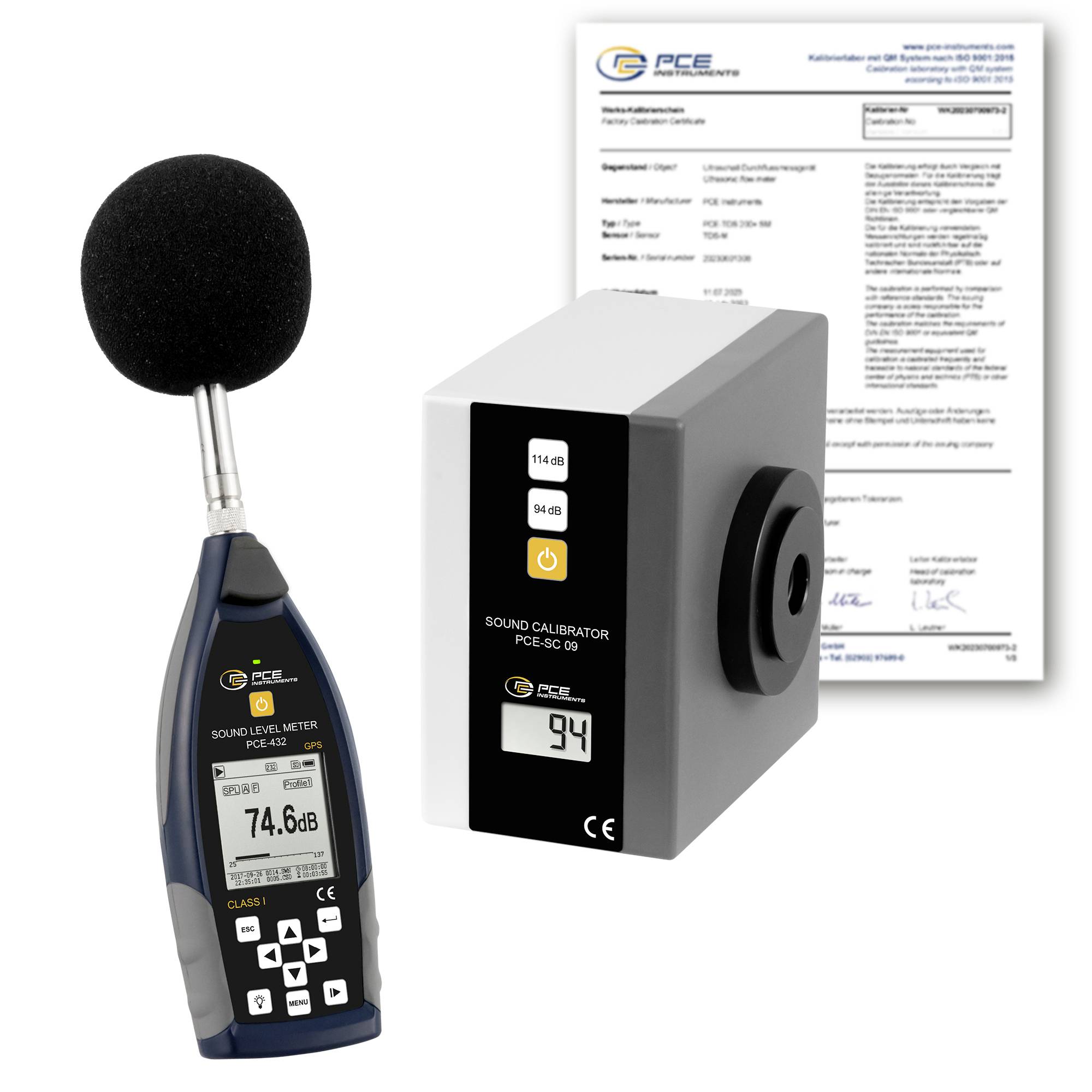

Scope of delivery
- 1 x sound level meter PCE-432-SC 09-ICA
- 1 x 1/2" measurement microphone class 1
- 1 x wind noise suppressor (foam ball)
- 1 x USB interface cables
- 1 x software
- 1 x power supply
- 1 x carry case
- 1x user manual
- 1 x Class I sound calibrator PCE-SC 09
- 1 x ISO calibration certificate
- Note: The sound level meter is supplied with an octave band filter. An optional upgrade is possible with a 1/3 octave band filter (see selection option)
