Buy PCE Instruments PCE-5000 Hardness tester UCI

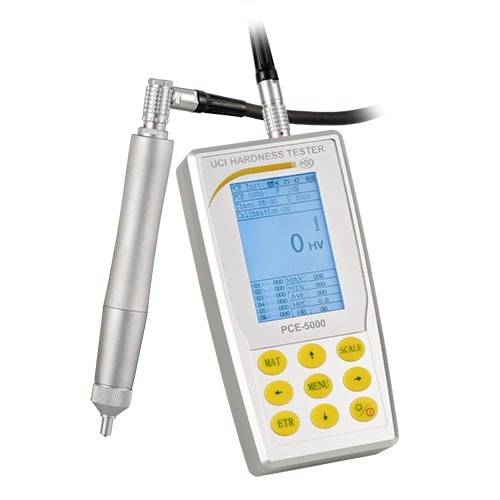

Portable UCI hardness tester with probe, showing a digital display and yellow control buttons, used to measure material hardness.

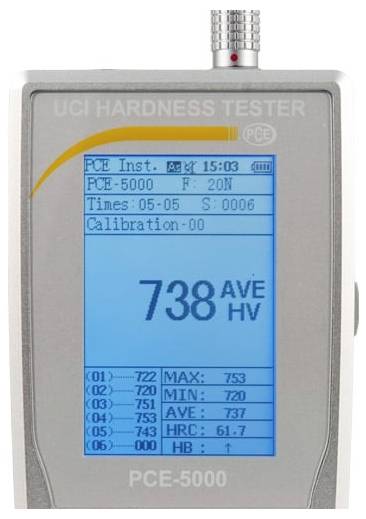

Handheld UCI hardness tester displaying a measurement of 738 HV average, with max 753, min 720, and HRC 61.7.

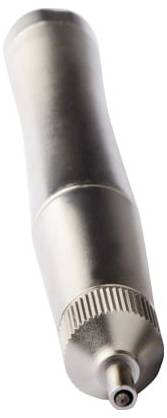

Close-up of a metal dental handpiece drill bit with a textured grip and small rotating tip.

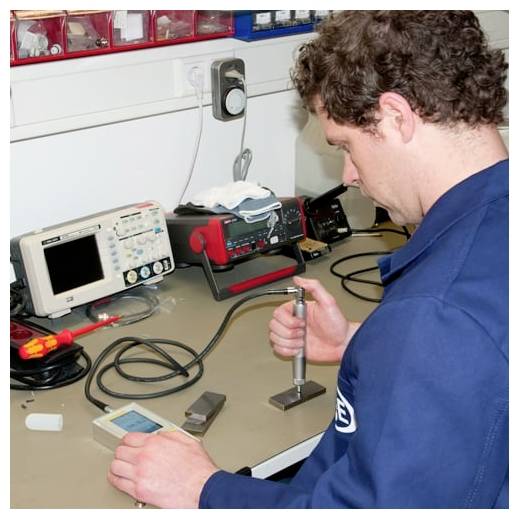

Technician tests an electronic device on a workbench, holding a probe-like tool beside lab equipment and cables.

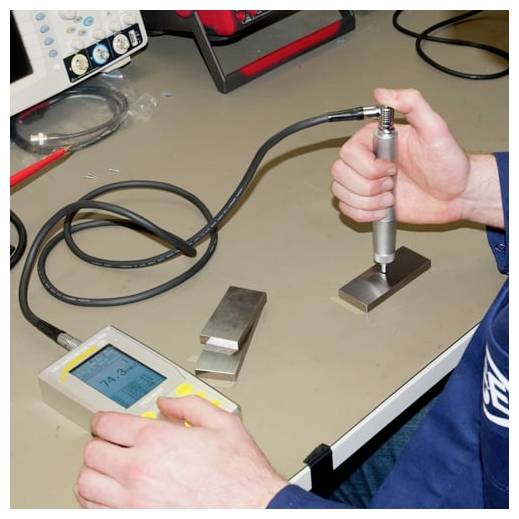

Person using a handheld probe and digital meter to measure a metal block on a workbench, likely checking surface roughness or thickness.

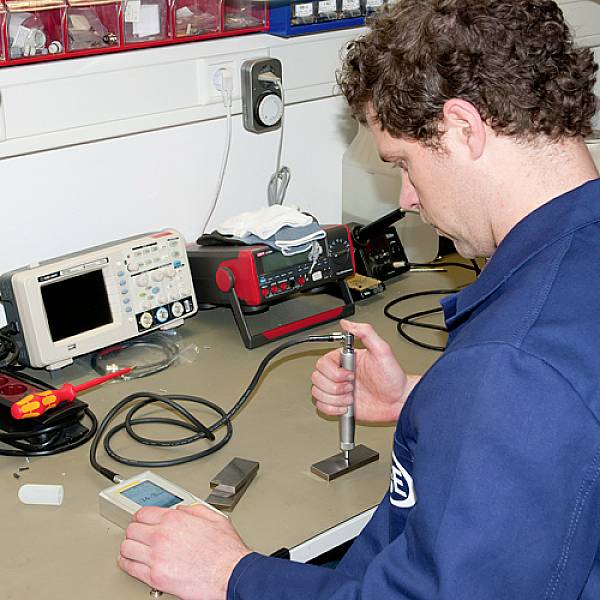

A man in blue workwear is measuring the thickness of a metal piece on a workbench in a workshop using a measuring device.

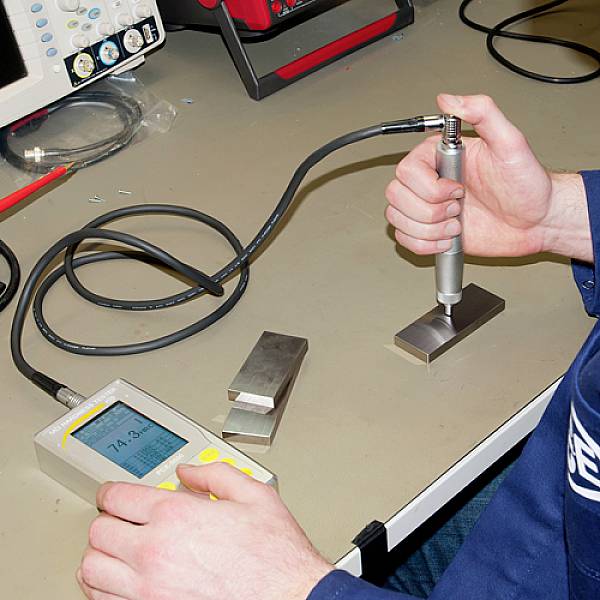

A person is measuring the hardness of a metal piece with a portable device on a table. Additional equipment can be seen in the background.

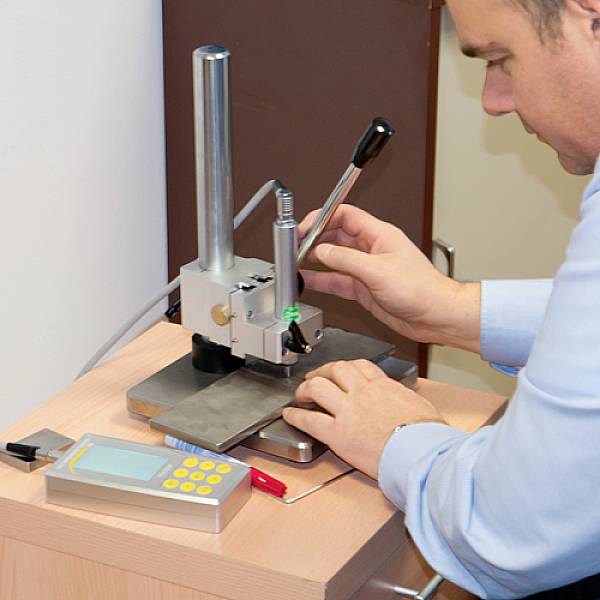

A man is operating a metallic precision instrument on a table, likely being used in a laboratory or workshop.

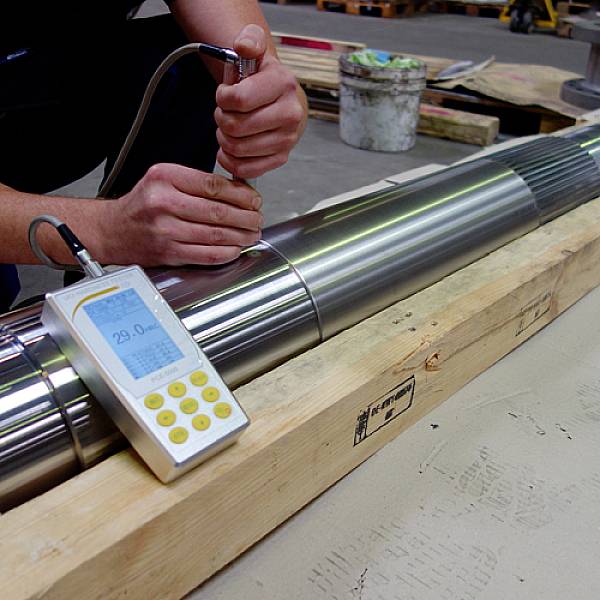

A person is measuring the hardness of a metal pipe with a digital measuring device. The pipe is resting on a wooden base in a workshop.

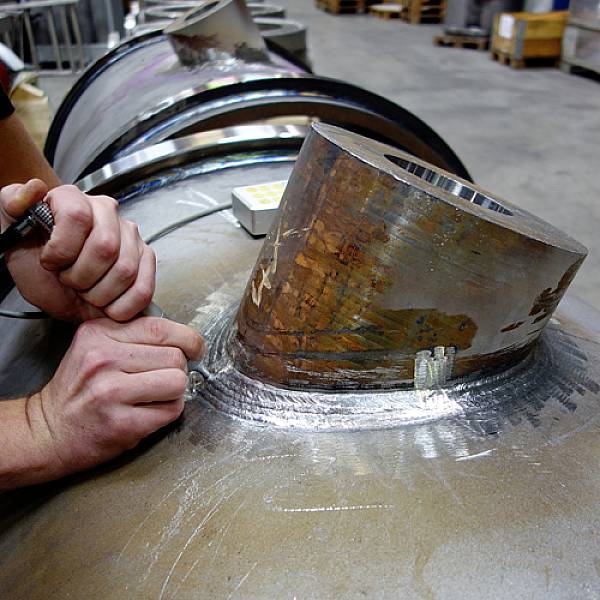

'A person is working on a metal piece in a workshop. The metal shows welding marks, and further metal parts are visible in the background.'

1/10

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ultrasonic hardness tester PCE-5000

High measuring accuracyTesting HV, HB, HRC, HRB, HRA, MPaMemory for up to 1000 measurement groupsFast measurementLarge LCD displayFor metallic materialsEnables measurements in a small spaceFor inaccessible placesEasy calibrationRS-232 Interface

Technical specifications

Measurement ranges: Rockwell20.3 ... 68.0 HRC41.0 ... 100.0 HRB61.0 ... 85.6 HRABrinell: 76 ... 618 HBVickers : 50 ... 999 HVPull resistance: 255 ... 2180 N/mm²AccuracyRockwell HRC: ±1.5 Brinell HB: ±3 %Vickers HV: ±3%General Technical DataMeasuring principle: Ultrasonic Sonic ImpedanceMeasuring direction 360 °Measurement time: 2 secondsDisplay of hardness units: HRC, HV, HB, additional: HRA, HRB, MPaDisplay: Graphic LCD monitor with backlightMinimum material thickness. 2 mmMemory: Up to 2000 measurement groupsUp to 20 calibration dataProbe: Standard probe Test force 20 N.Cable length: 1.5 mStatistics: Single value, min./max., averagePower supply: 4.2 V rechargeable battery, 4800 mAh (rechargeable)Operating time: Approx. 10 hours (without backlight)Ambient temperature: -10 ... +40 °C).Storage temperature: -20 ... +60 °CRelative humidity: ≤ 85%Weight: Incl. probe approx. 755 g

Product type: Hardness tester

Display type: Graphic LCD

Dim: (L x W x H) 162 x 31 x 81 mm

Weight: 755 g

Operating voltage: 4.2 V

Features: + data logger

Content: 1 pc(s)

Measuring type: UCI

Width: 31 mm

Height: 81 mm

Length: 162 mm

Interfaces: RS232

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2620802 PCE Instruments PCE-5000 Hardness tester UCI

User & Safety Instructions

User & Safety Instructions 2620802 PCE Instruments PCE-5000 Hardness tester UCI

Description

Ultrasonic hardness tester according to Ultrasonic Contact Impedance method / for measurement in difficult to access places / robust device in stainless steel housing / backlit LCD / non-destructive measurement at metallic objects The ultrasonic hardness tester is a measuring device based on a patent applied for in 1961. The hardness measurement is triggered by the ultrasonic hardness tester by a diamond that sits on a spring. The ultrasonic hardness tester is a measuring device through the design and measuring method, which enables a simple and non-destructive measurement on metallic objects. The ultrasonic hardness tester makes measurements possible on different parts, whereby the device is programd in such a way that it can measure different measuring units. These include the generally accepted degrees of hardness Rockwell, Brinell and Vickers. Due to the fact that the PCE-5000 ultrasonic hardness tester has an RS-232 interface, it is possible to connect the device to a computer and read out or print the measured data. As the PCE-5000 ultrasonic hardness tester measures both extreme values and average values, the user can obtain an exact overview of his measured data. The average value of the measurements is calculated automatically after the measurement by the ultrasonic hardness tester, if the measurement has been made at different measuring points. Due to the design, the PCE-5000 enables easy measurements in difficult to access places and a comfortable reading on the graphic display of the device. With the option of calibration, the ultrasonic hardness tester can always be recalibrated by the user after appropriate use. Calibration should be performed, for example, if the device has not been used for more than three months, if there is a significant change in ambient conditions, if the ultrasonic probe has performed a significant number of measurements or if there is a significant deviation in the measurement at a calibration standard.

This text is machine translated.

Scope of delivery

Delivery scope of the ultrasonic hardness tester PCE-5000 1 x ultrasonic hardness tester PCE-50001 x test probe 20 N (standard)1 x cable1 x battery block, 4.2 V1x USB cable1 x USB adapter1 x screwdriver1 x silicone protective cap for the test probe1 x RS-232 interface cable1 x sturdy service case1x user manual
