PCE Instruments PCE-555-ICA Thermo-hygrometer Blue-black PCE-555-ICA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments thermo-hygrometer PCE-555-ICA
- Fast response time
- High accuracy
- Simultaneous display of temperature and
- Moisture
- Automatic power off
- Calculation of the dew point and wet bulb temperature
- Backlight
- Storage of maximum values
- compact and light
- Incl. ISO calibration certificate
Technical specifications
- Humidity relative
- Measuring range 0 ... 20 % r.F.
- Resolution 0.01 % r.h.
- Accuracy ±2.5 % r.h.
- Humidity relative
- Measuring range 20 ... 80 % r.F.
- Resolution 0.01 % r.h.
- Accuracy ±2 % r.h.
- Humidity relative
- Measuring range 80 ... 100 % r.F.
- Resolution 0.01 % r.h.
- Accuracy ±2.5 % r.h.
- Temperature
- Measuring range -30 ... +100 °C
- Resolution 0.01 °C
- Accuracy +/1 °C
- General Technical Data
- Display type LCD with lighting
- Response time 10 s
- Automatically switches off approx. 15 min.
- Battery/Battery 1 x 9 V Block battery , Alkaline-Mangan
- Capacity 640 mAh
- Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Storage conditions -10 ... 60 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 225 x 45 x 34 mm
- Weight 200 g
- Reading range - indoor temperature
-30 - +100 °C
- Product type
Thermo-hygrometer
- Indoor humidity
0 - 100 RH
- Display
Digital
- Case colour
Blue-black
- Sample rate
0.4 s
- Station power supply
9 V battery (1x)
- Content
1 pc(s)
- Hub dimensions
225 × 45 × 34 mm
- Weight (station)
200 g
- Material
Plastic
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812423 PCE Instruments PCE-555-ICA Thermo-hygrometer Blue-black PCE-555-ICA
User & Safety Instructions
User & Safety Instructions 3812423 PCE Instruments PCE-555-ICA Thermo-hygrometer Blue-black PCE-555-ICA
Description

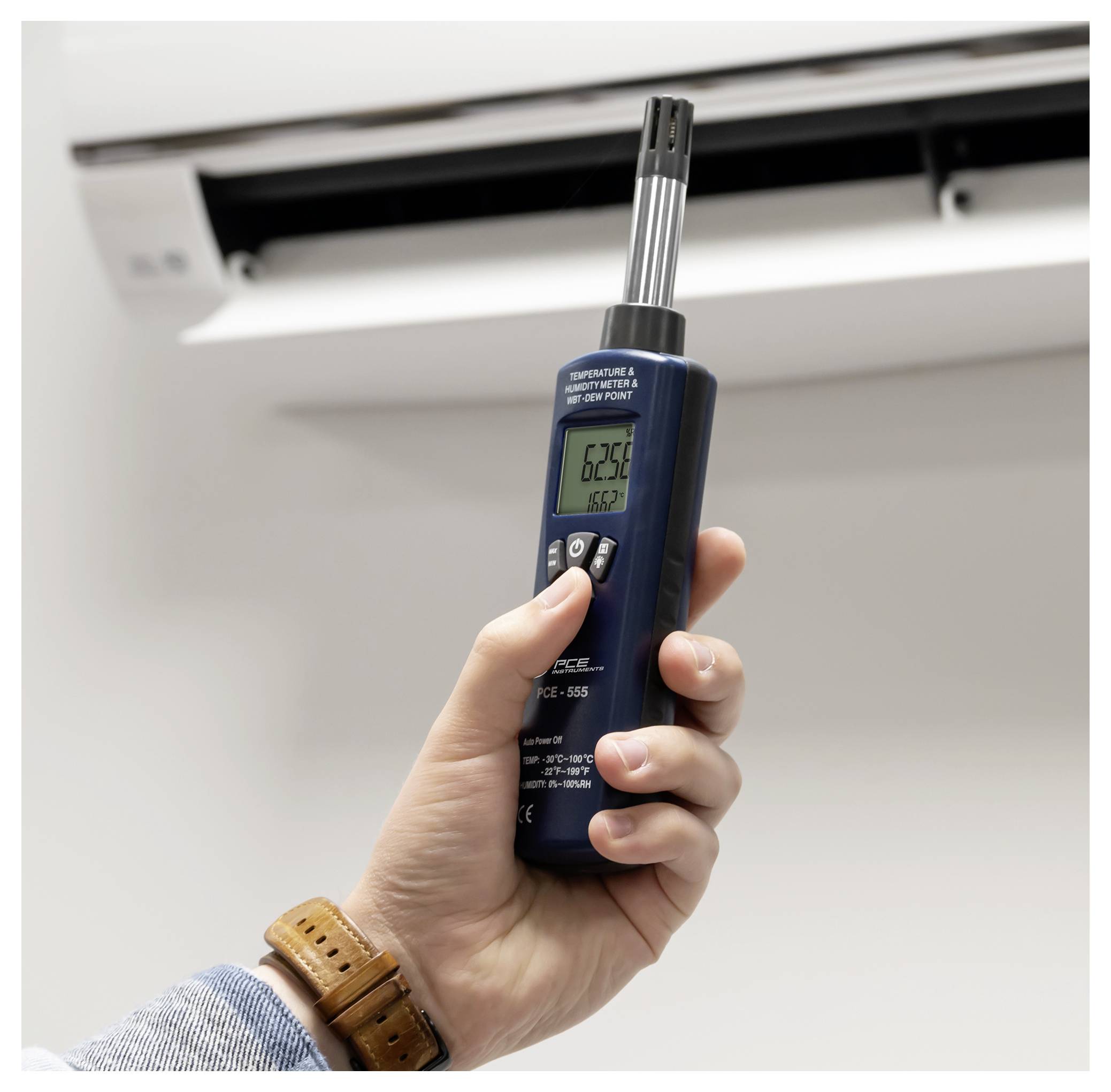

This thermo-hygrometer is designed for a quick measurement of air humidity and temperature. The thermo-hygrometer gives you additional information the dew point (dew point temperature) as well as the wet-bulb temperature.

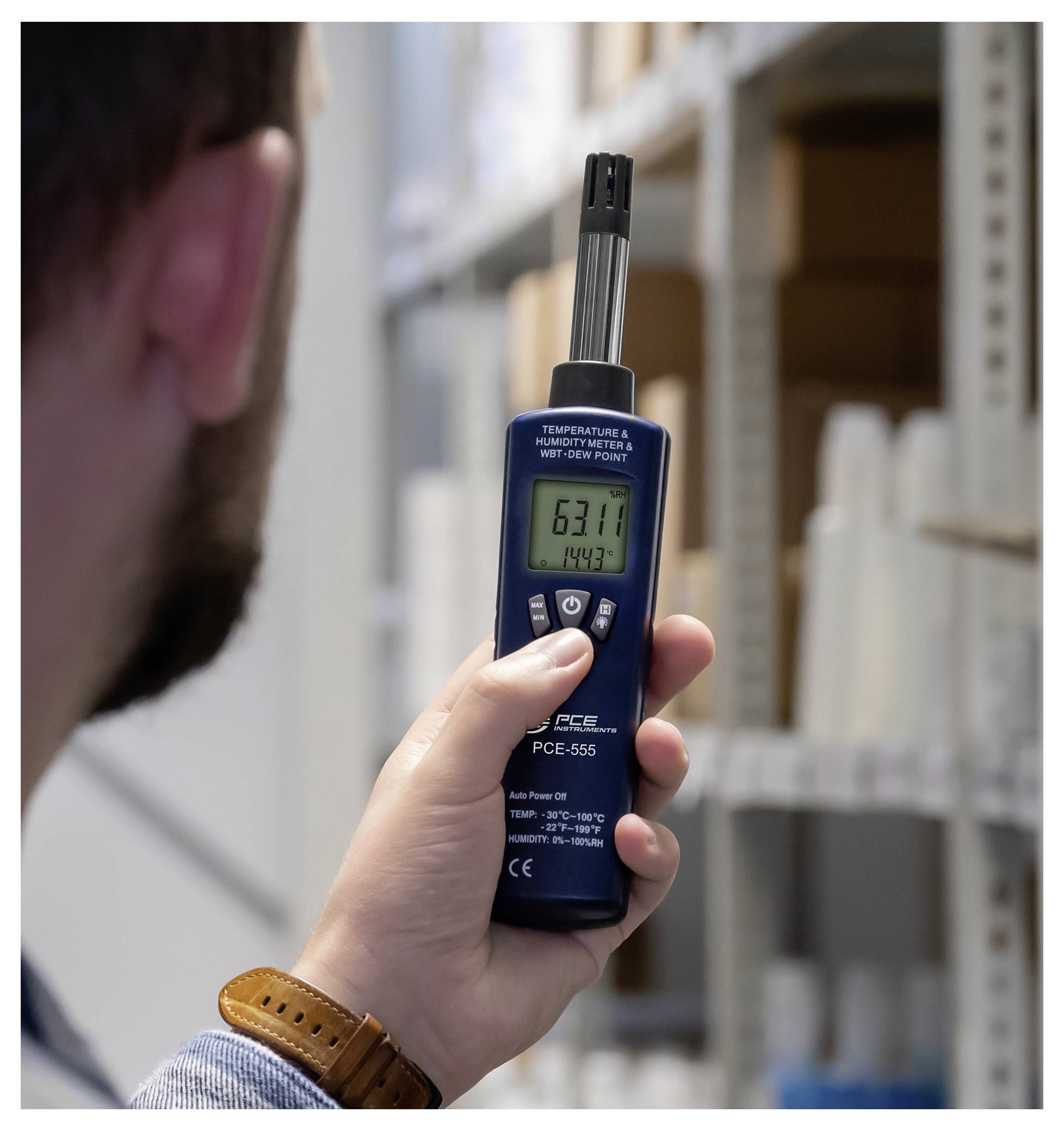

This way, you can prevent mold formation in the transport and storage area of food. The thermo/hygrometer also benefits in the construction sector and in building technology, e.g. during the determination of condensation on walls. Due to its compact dimensions, the thermo-hygrometer is especially suitable for the measurement on site.
This text is machine translated.
This way, you can prevent mold formation in the transport and storage area of food. The thermo/hygrometer also benefits in the construction sector and in building technology, e.g. during the determination of condensation on walls. Due to its compact dimensions, the thermo-hygrometer is especially suitable for the measurement on site.
This text is machine translated.

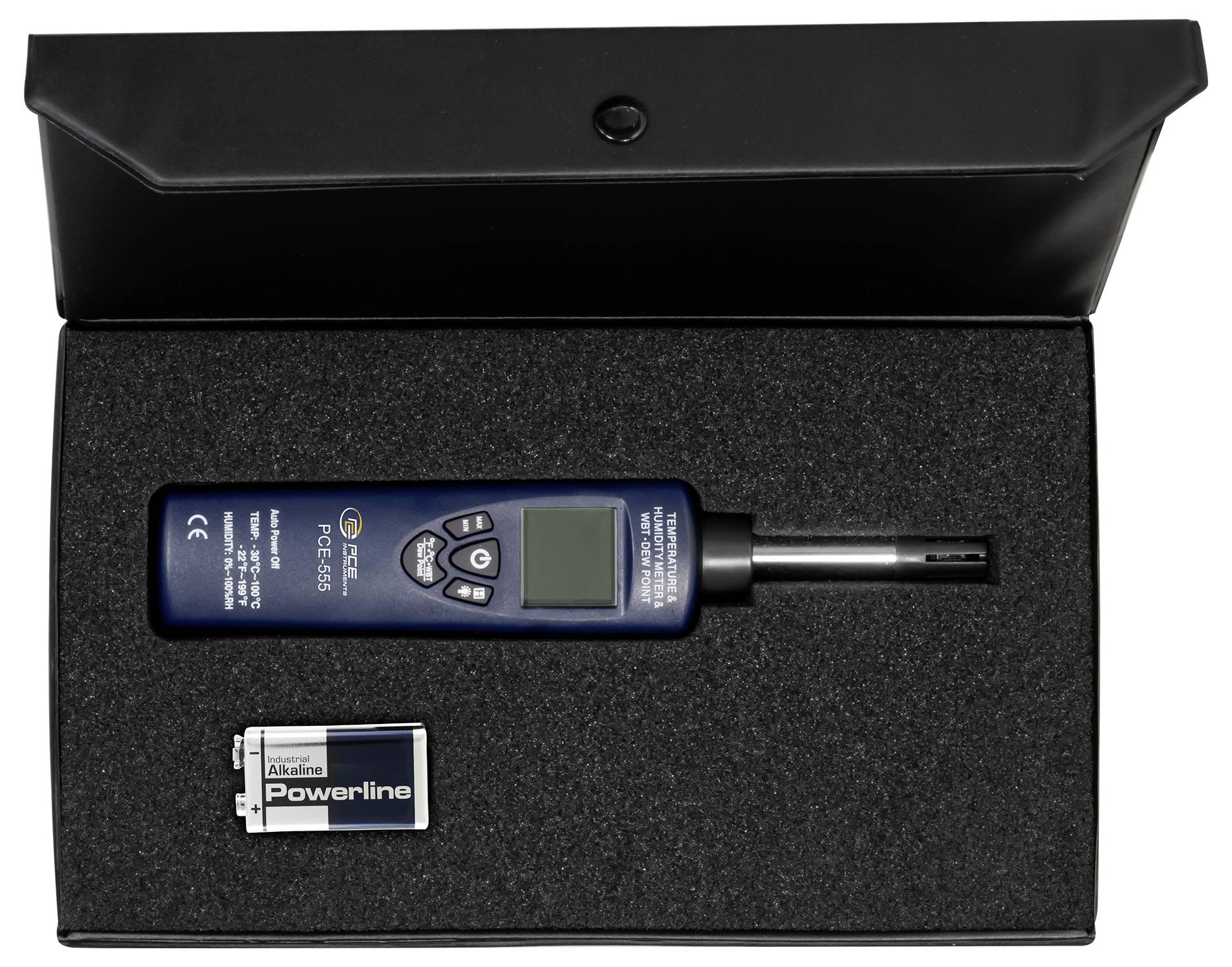

Scope of delivery
- 1 x Thermo-hygrometer PCE-555-ICA
- 1 x storage pouch
- 1 x 9 V battery
- 1x user manual

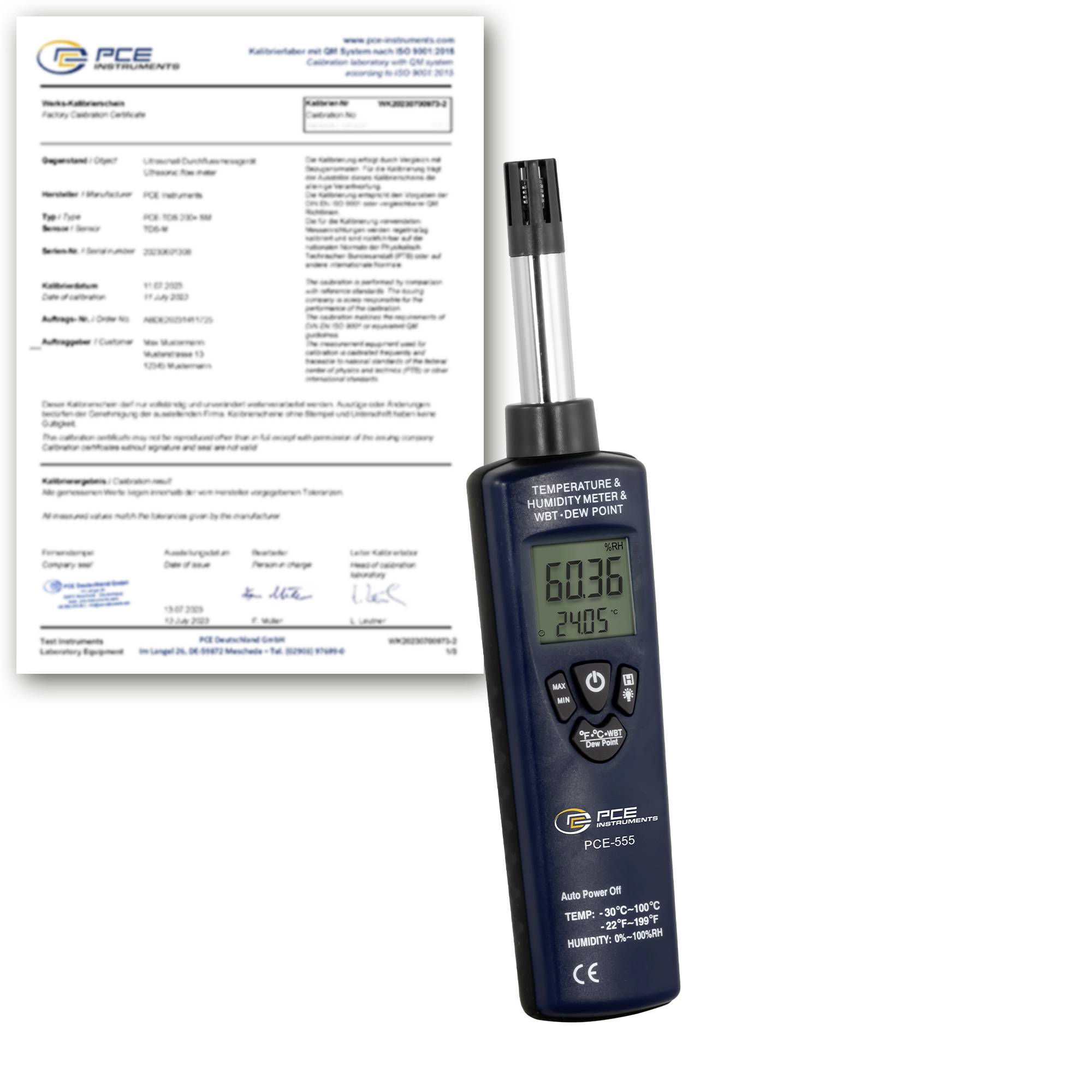

- 1 x ISO calibration certificate
