Buy PCE Instruments PCE-675 IR thermometer

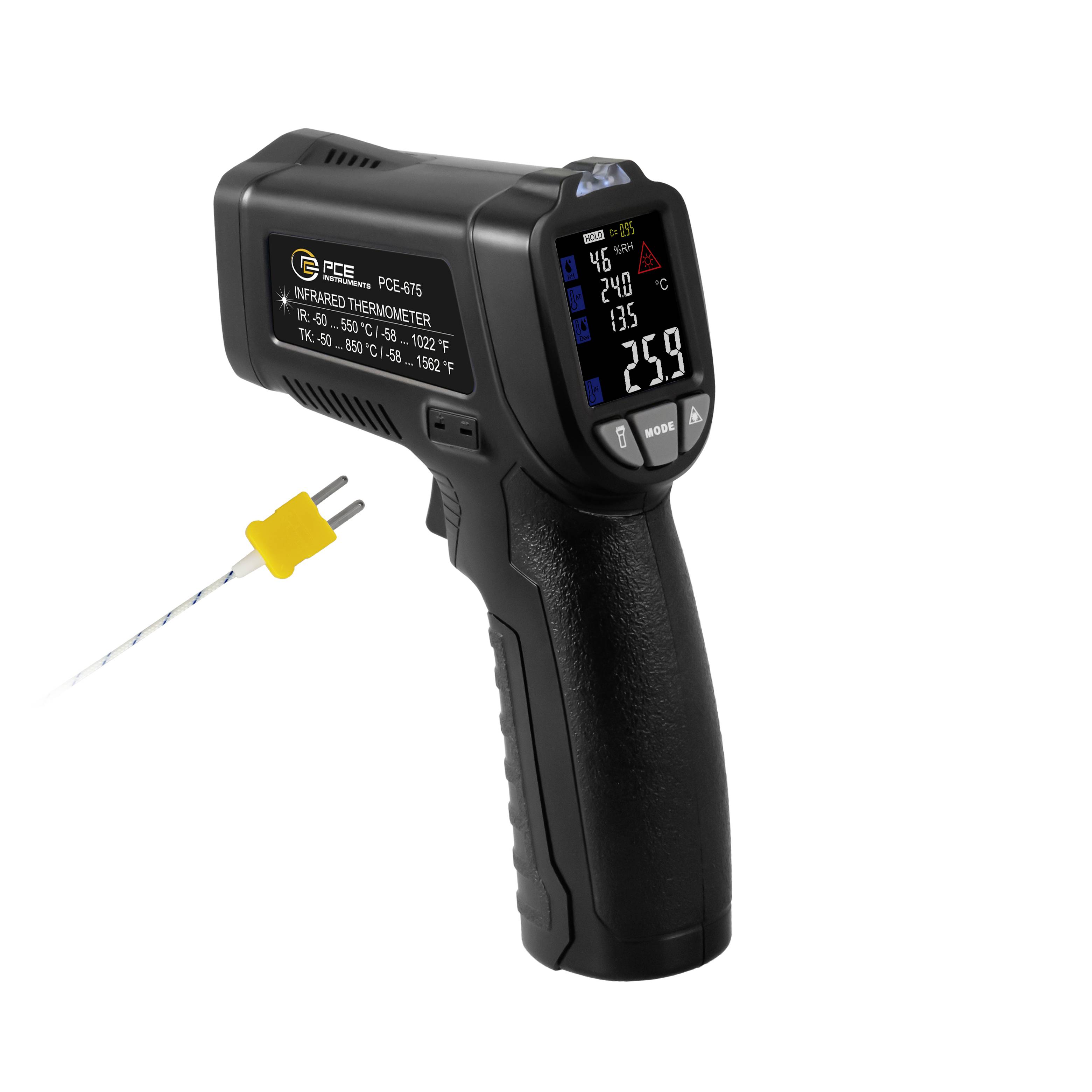

Black handheld infrared thermometer gun with digital display, shown beside a yellow thermocouple probe on a white background.

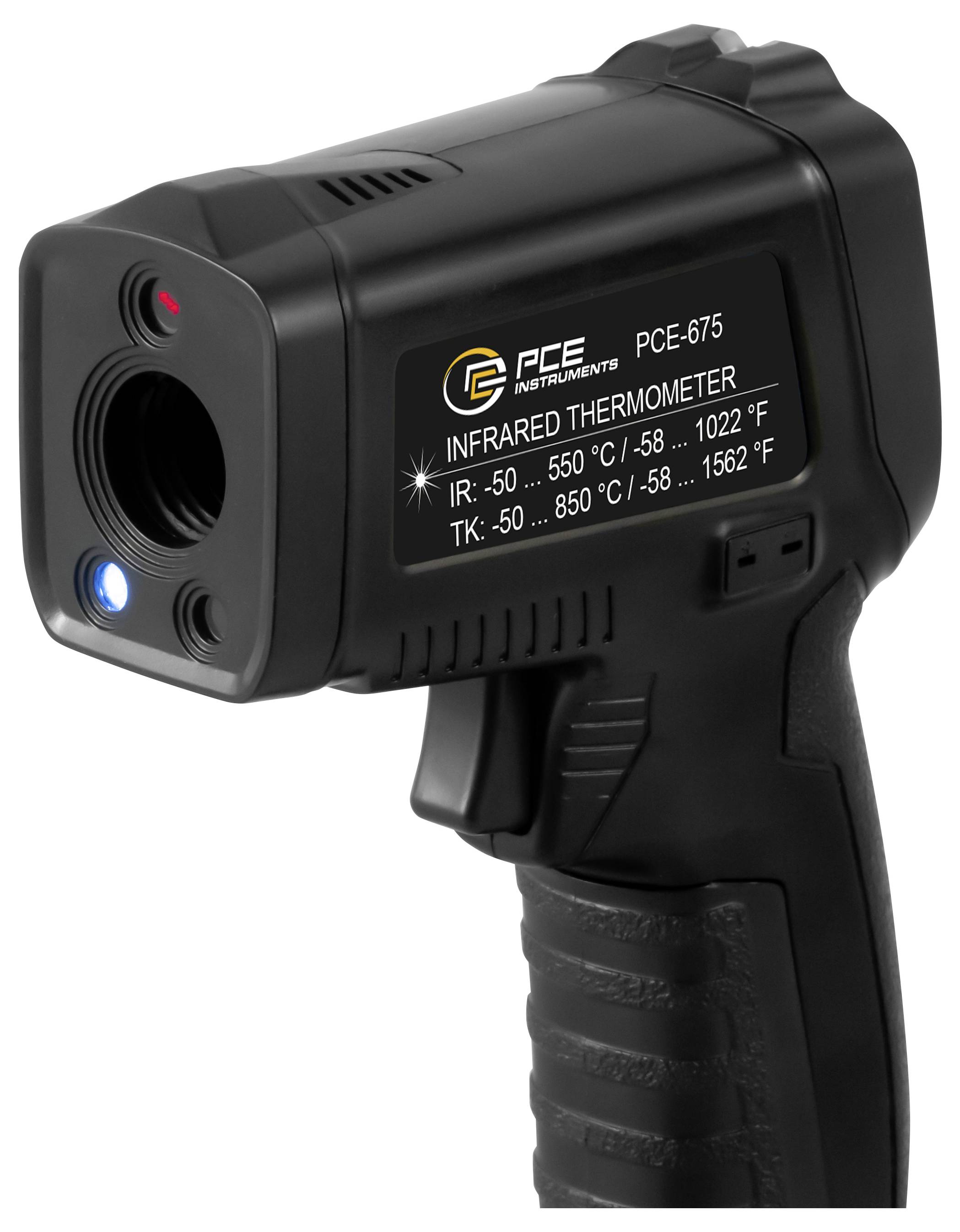

Black handheld infrared thermometer gun labeled PCE-675, showing lens and trigger grip on a white background.

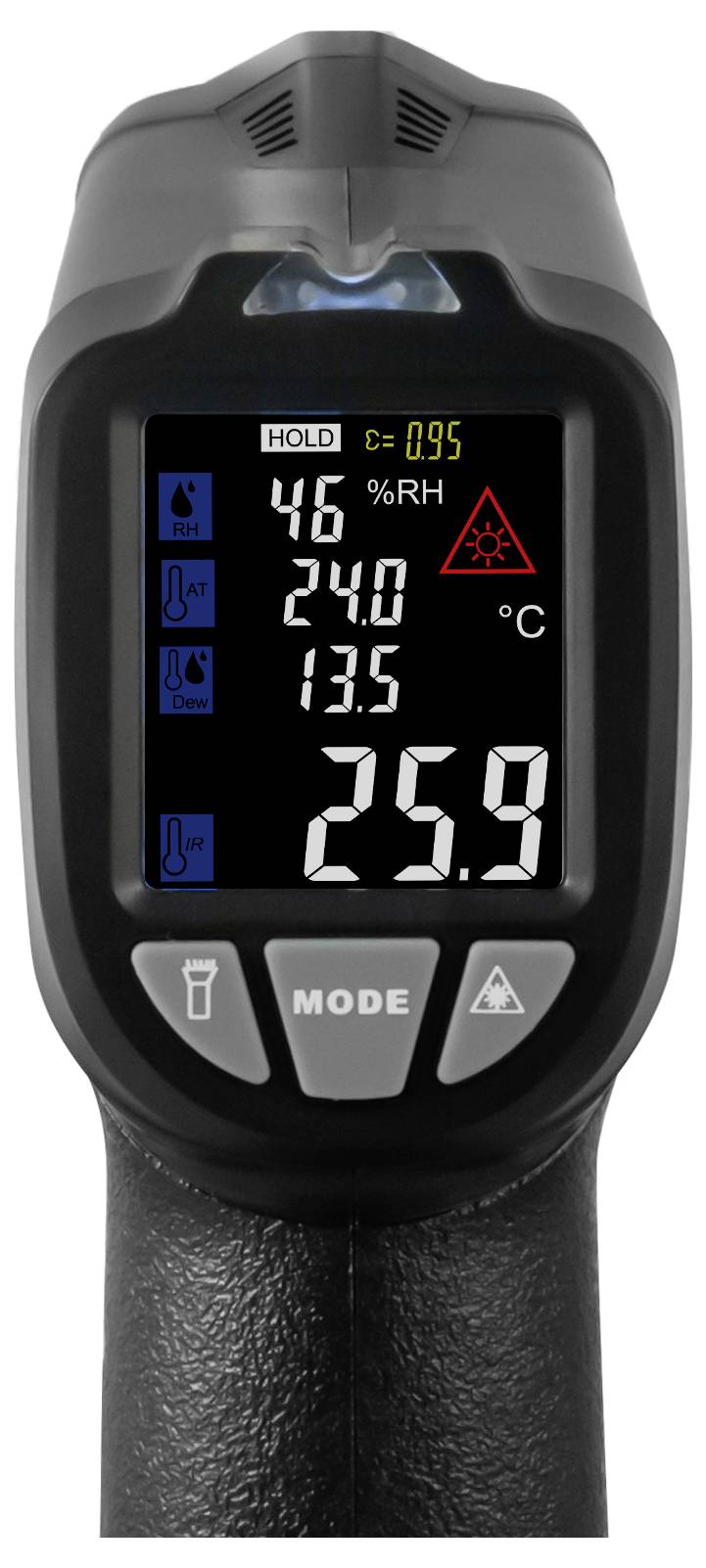

Handheld meter displaying humidity, temperature, and dew point readings: 46% RH, 24.0°C, 13.5, and 25.9°C.

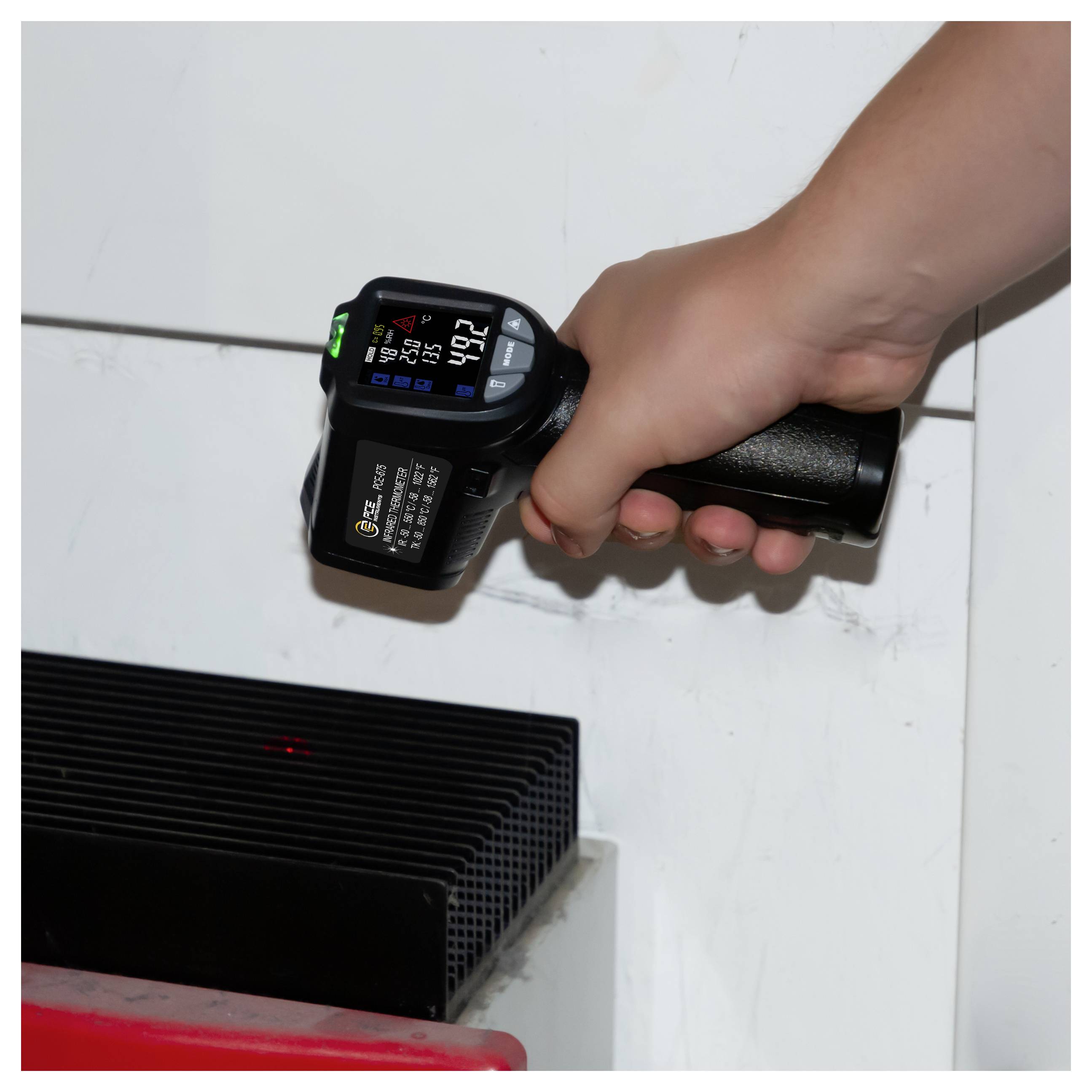

Handheld infrared thermometer measuring a black electronic device or vent on a white surface, showing a temperature reading.<br>

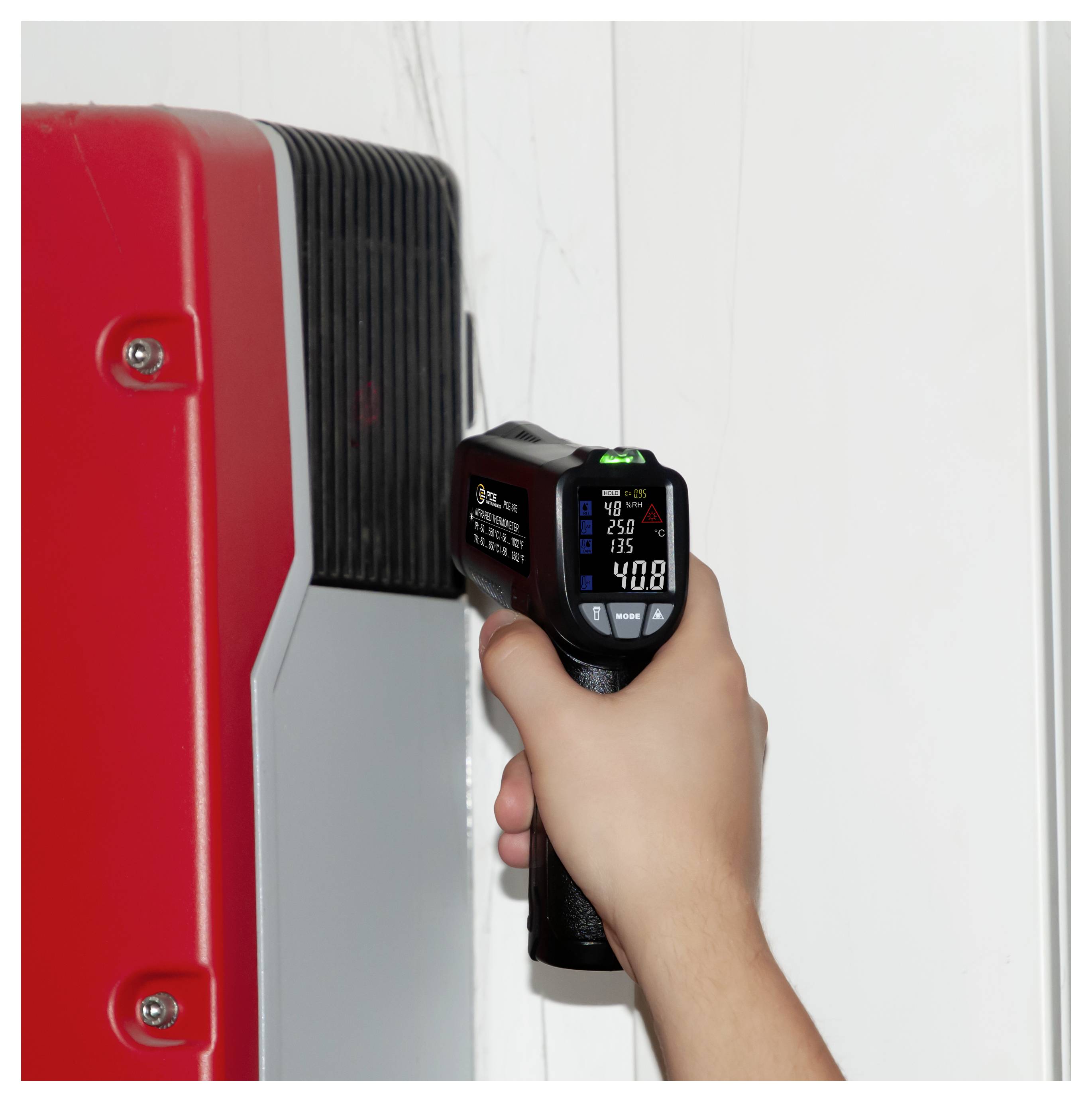

Handheld thermal scanner measuring temperature near a red wall-mounted device, with the display showing 40.8°C.

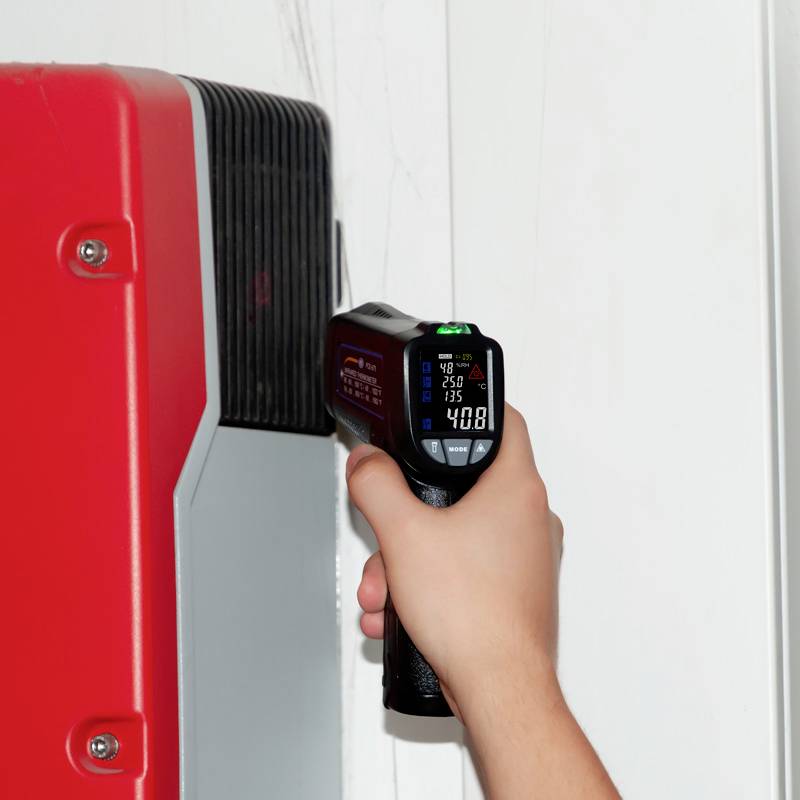

A hand is holding an infrared thermometer pointed at a red surface. The display shows a temperature of 40.8°C.

A hand is holding a digital thermometer pointing at a black ventilation slot. The display shows 27.6 degrees Celsius.

1/7

Datasheet (PDF)

Unavailable

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digital thermometer PCE-675 incl. type K

Emission level -

Technical specifications

Measuring function infrared Measurement range -50 ... 550 °C Resolution 0.1 °C 1 °C. Accuracy -50 … 0 ºC: ± 3 ºC > 0º C: ± 1.5 % or ± 2.0 °C. The greater value counts Measuring function type K. Measurement range -50 … 850 ºC Resolution 0.1 °C 1 °C. Accuracy ± 1.5 % or ± 1.5 °C. The greater value counts Measuring function air temperature Measurement range -20 … 60 ºC Resolution 0.1 °C Accuracy 0 … 40 ºC: ± 1.0 ºC Rest: ± 2 °C. Measuring function air humidity Measurement range 0 … 100 % r.h. Resolution 1% Accuracy 35 … 75% r.F.: ± 3.0% r.h. Rest: ± 5% R.F. Dew point measurement function Measurement range -20 … 60 ºC Resolution 0.1 °C Accuracy 25 ºC, 40 … 80 % r.F.: ± 1.5 ºC Measuring function for wet ball temp. Measurement range -20 … 60ºC Resolution 0.1 °C Accuracy 25 °C: ± 1.5 °C. Emission level adjustable from 0.1 … 1.0 Measuring spot ratio 13 : 1 Response time 500 ms Spectral sensitivity 8 … 14 by laser ≤ 1 mW, 630 … 670 nm, class 2 Lasers Automatic switch-off after one minute Operating conditions 0 … 50 ºC / ≤ 95% r.h. Storage conditions -20 … 70 ºC / ≤ 80 % r.h. Power supply: 9 V PP3 battery Weight approx. 130g

Product type: IR thermometer

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452269 PCE Instruments PCE-675 IR thermometer

User & Safety Instructions

User & Safety Instructions 2452269 PCE Instruments PCE-675 IR thermometer

Description

Digital thermometer PCE-675 easily operable infrared thermometer with red laser pointer / measuring input for K-type / surface temperatures / air temperature / humidity / dew point temperature The infrared thermometer PCE-675 has a measuring spot ratio of 13:1 and can accurately measure the surface temperatures as well as the ambient humidity over a very long distance. The infrared thermometer has advantages such as simple operation and a red laser sight. These properties enable the infrared thermometer to be aligned almost perfectly for accurate measurements. The infrared thermometer can be used universally. The integrated torch allows the measuring point to be illuminated in the dark. The individual settings of the infrared thermometer enable a wide range of temperatures and humidity to be measured. The infrared thermometer does not have a fixed emission value, but has a setting voltage range of 0.1 to 1.0, so it covers more than 90% of all temperature measuring tasks.

This text is machine translated.
