Buy PCE Instruments PCE-777N IR thermometer Display (thermometer) 8:1 -30 - 260 °C

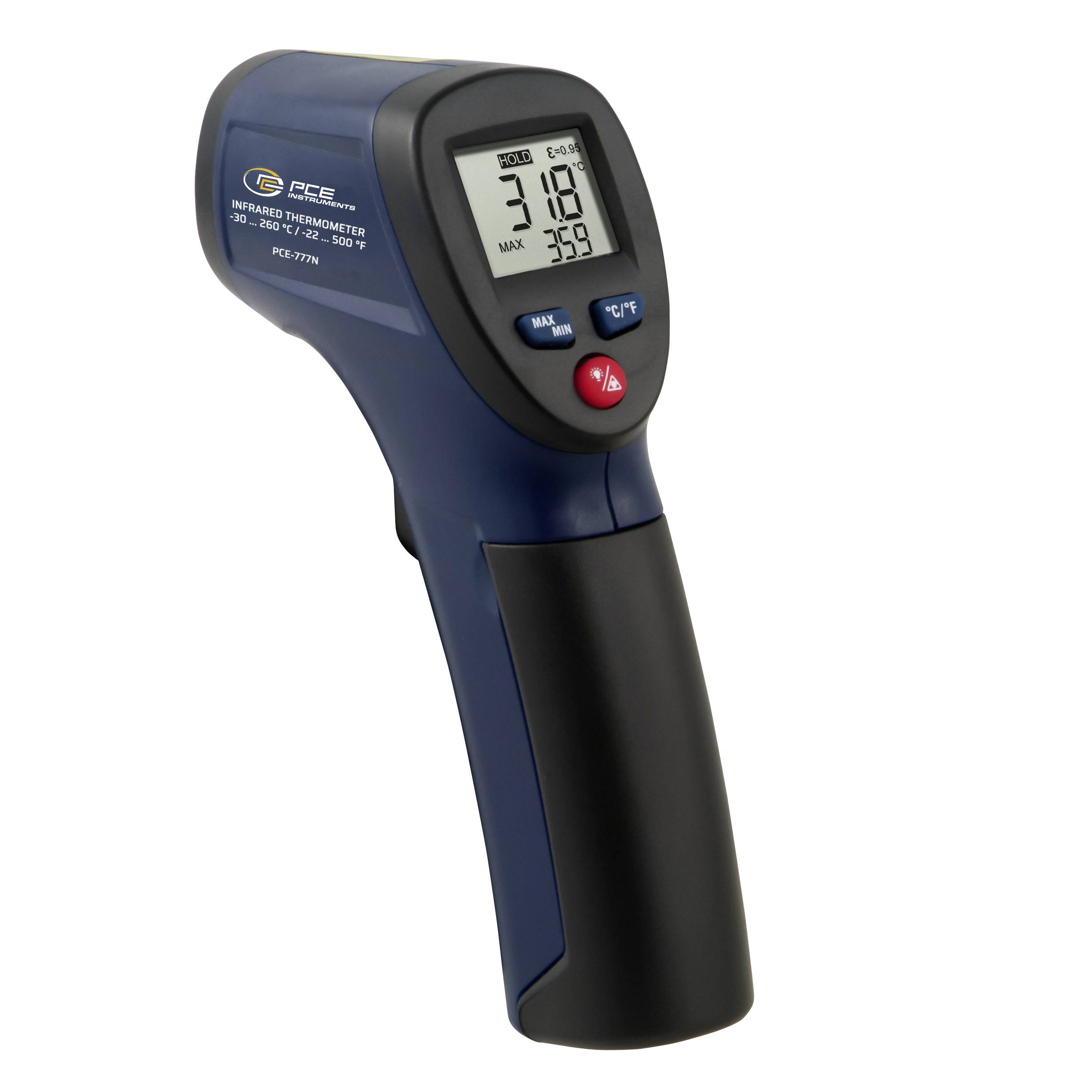

Handheld infrared thermometer gun with digital display showing 31.8 and max 35.9.<br>

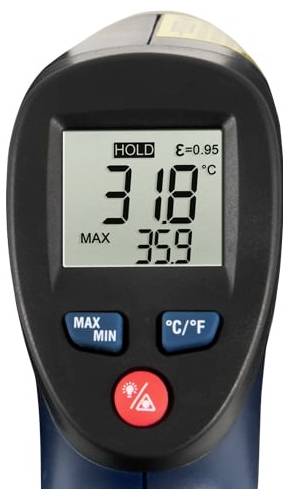

Handheld infrared thermometer showing 31.8°C on the display, with HOLD, ε=0.95, and MAX 35.9 readings visible.

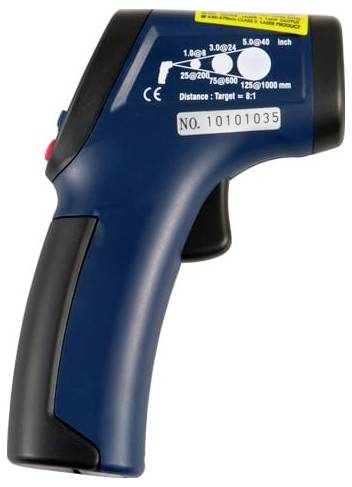

Blue handheld infrared thermometer gun with trigger, display markings, and red side button on a white background.

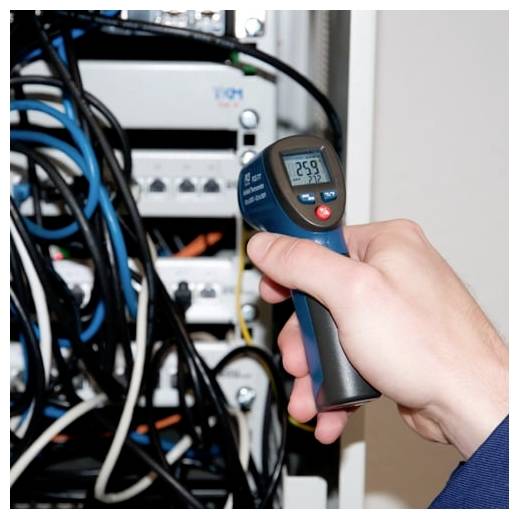

Hand holding a digital infrared thermometer aimed at electrical equipment and tangled cables inside a cabinet.

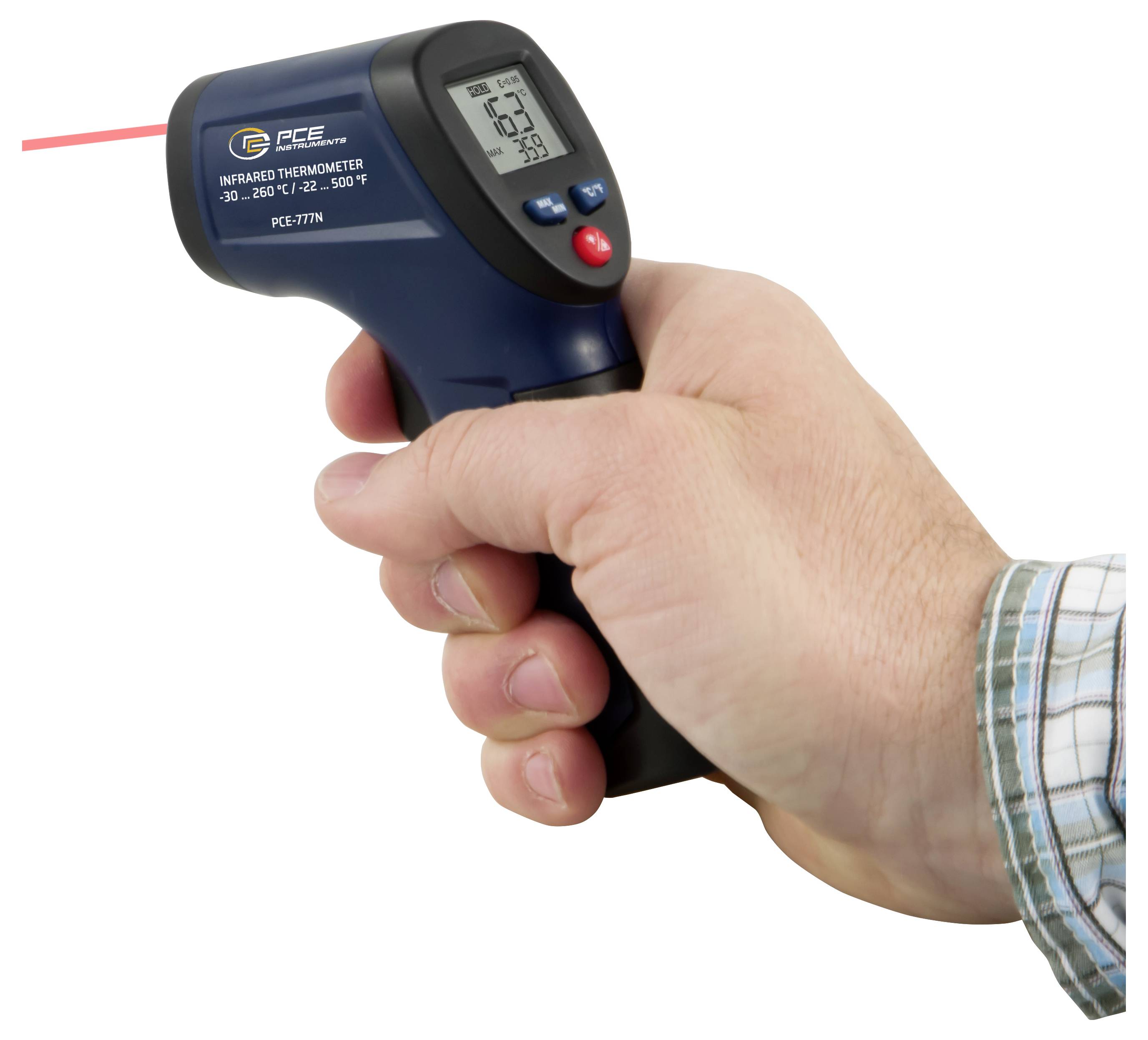

Hand holding a digital infrared thermometer aimed at a surface, with a laser beam indicating temperature measurement.

1/5

Datasheet (PDF)

Unavailable

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-777N

Display (thermometer) 8:1
-30 - 260 °C
Response time 1 s
Emission level 0.95 - 0.95

Technical specifications

Temperature measuring range -30 ... +260 °C -22 ... +500 °F
Response time < 1 s
Overload LCD shows "------- "
Automatic polarity (no display of positive polarity)
Minus (-) sign for negative polarity
Emission level (fixed) 0.95
Measuring spot ratio 8:1
Laser point visible single point laser beam, power < 1 mW, wavelength 630 ... 670 nm, class II.
Spectral range 6 ... 14 µmAutomatische switch-off after 8 seconds inactive
Operating conditions 0 ... +50 °C, 10 % ... 90 % r.F.
Storage conditions -20 °C ... +60 °C, <80 % r.F.
Power supply 9 V Block battery
Dimensions 82 x 41.5 x 160 mm
Weight 180 g
IR thermometer specifications
Measuring range -30 ... 0 °C (range 1)
0 ... +260 °C (range 2)
Resolution 0.1 °C / 0.1 °F (both ranges)
Accuracy ±4 °C / ±4 °F (in range 1)
±2 % of the measured value / ±2 °C / ±4 °F (range 2)

Product type: IR thermometer

Max. temperature: 260 °C

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Emissivity: 0.95

Display: 8:1

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 160 x 82 x 41.5 mm

Response time: 1 s

Pick-up time (details): 1 s

Resolution (temperature): 0.1 °C

Emission level (max.): 0.95

Emission level (min.): 0.95

Weight: 180 g

Width: 82 mm

Height: 41.5 mm

Length: 160 mm

Power supply (details): 9 V

Power supply: 9 V battery (1x), included

Min. temperature: -30 °C

Documents & Downloads

Datasheet

Datasheet 3193007 PCE Instruments PCE-777N IR thermometer Display (thermometer) 8:1 -30 - 260 °C

User & Safety Instructions

User & Safety Instructions 3193007 PCE Instruments PCE-777N IR thermometer Display (thermometer) 8:1 -30 - 260 °C

Description

The infrared thermometer measures the temperature of surfaces by infrared rays without any damage and from a great distance. This light-weight infrared thermometer is characterized by its easy use and the red visual aid. The infrared thermometer allows you to track the surface accurately and tap the temperature. The infrared thermometer is suitable for industry and trade, for maintenance and servicing, e.g. in the area of heating, ventilation, air conditioning systems, vehicles, for controlling electrical systems and switchboards.

The infrared thermometer can also be used under difficult conditions and gives you measurement results. The display lighting of the infrared thermometer can be switched on or off. The infrared thermometer has a visible sight seeing aid for accurate aiming, contact-free and fast temperature measurement from a safe distance on hot or moving objects or at measurement points that are difficult to access. The emission value with this infrared thermometer is set to 0.95 and thus covers 90% of all temperature measuring tasks.

This text is machine translated.
