PCE Instruments PCE-830-1 Network diagnostics

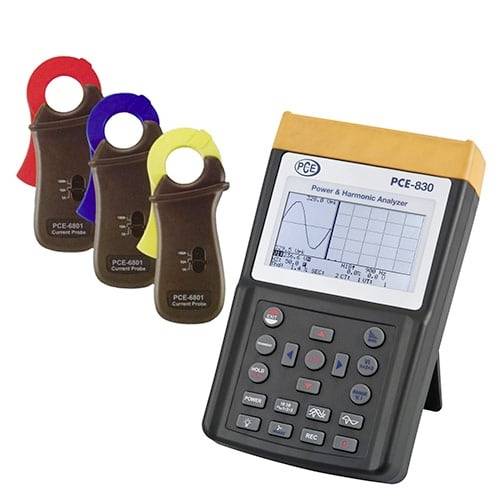

Power mains fault analyzer PCE-830-1 3 - Phase power meter / energy meter and harmonics analyzer with data memory / PC interface and software of the power mains fault analyzer PCE-830 is used for one- to three-phase measurement of electrical quantities in the AC power grid. Not only the "normal" measured variables such as voltage, current, frequency, power and energy are determined with the power supply fault analyzer, but also the values required according to EN50160 such as harmonics, interharmonics and unbalance are displayed. Faults in the network such as interruptions, dips, temporary or transient overvoltages (from 16uS duration) can be determined with their corresponding values. The very high-contrast, backlit dot matrix LCD display displays up to 35 parameters simultaneously. Up to 3 current clamps can be adapted at the same time. In the data logger mode, up to 17470 measured values (3Phasen/4Leiter) can be stored, in the simplest case up to 52400 measured values (1Phase/2Leiter), distributed over 85 data sets. This power and mains interference analyzer PCE-830 is thus optimally applicable for long-term analysis. The measured values collected in the device can be transferred to a PC at will and evaluated with the corresponding analysis software. Everything was included in the delivery, which you need for measurement and evaluation (also software and data cable). The power meter is supplied factory calibrated, but can also be optionally laboratory calibrated and certified according to ISO (for initial orders or also for recalibration, e.g. annually).

This text is machine translated.
