Buy PCE Instruments PCE-889B IR thermometer Display (thermometer) 30:1 -50 - 1000 °C

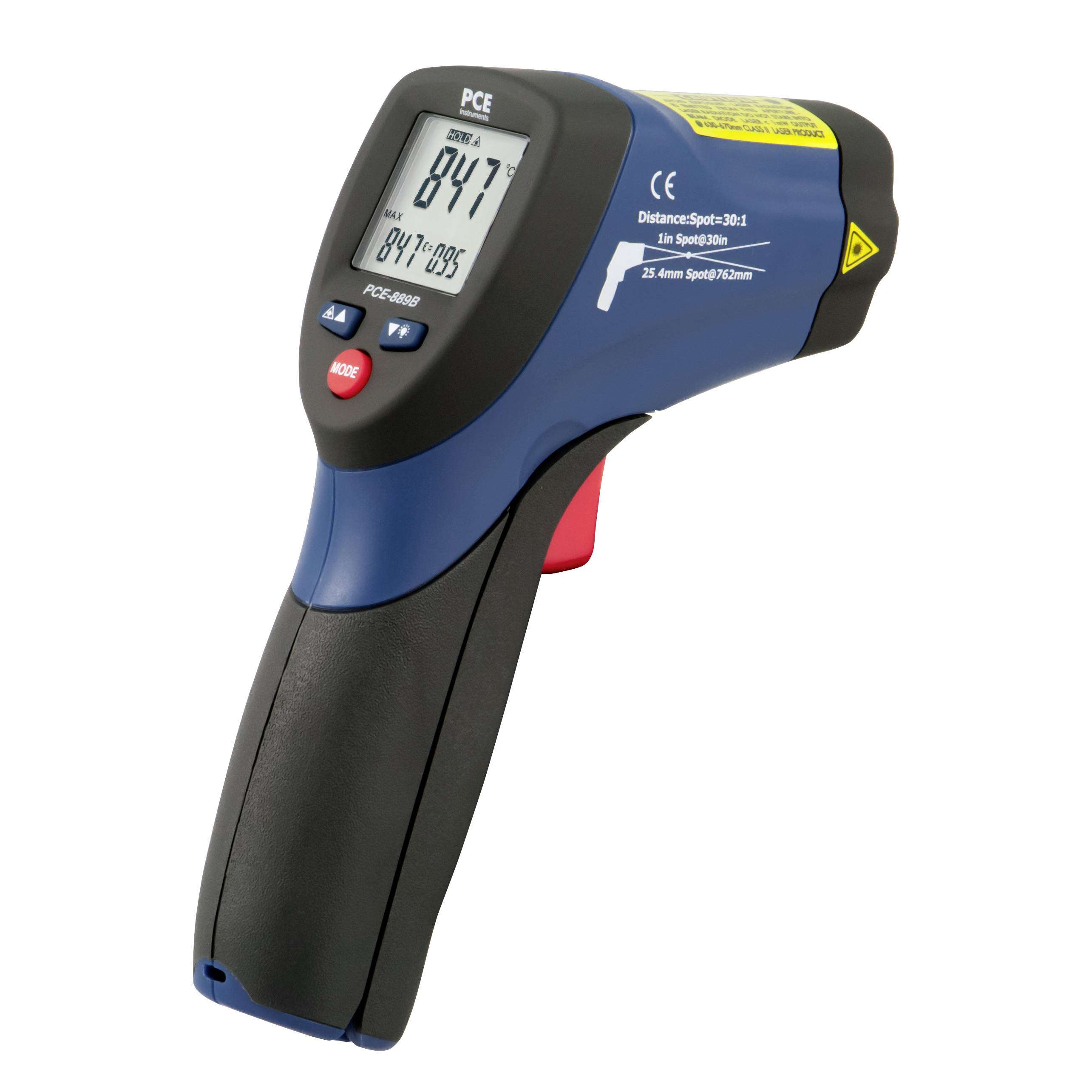

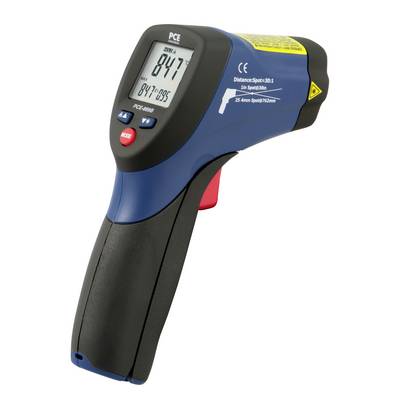

Handheld infrared thermometer gun with digital display, blue and black body, and red trigger, shown on a white background.

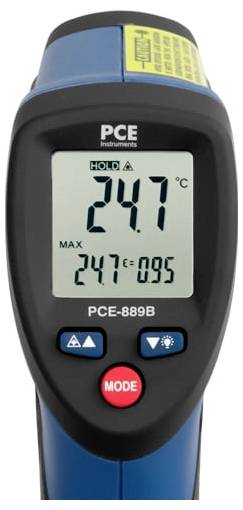

Handheld PCE 889B infrared thermometer displaying 24.7°C, with MAX 24.7°C and ε 0.95 on the screen.

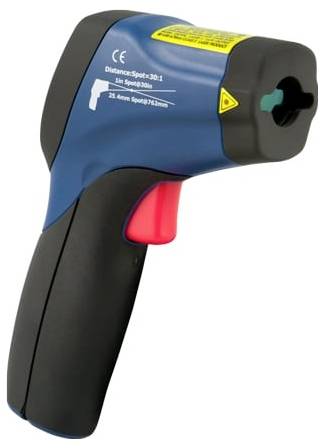

Handheld infrared thermometer gun with blue and black body and red trigger on a white background.

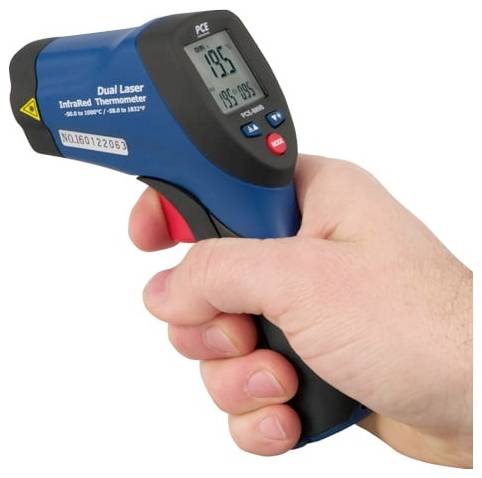

Hand holding a blue infrared dual-laser thermometer gun, showing a digital temperature reading on its display.<br>

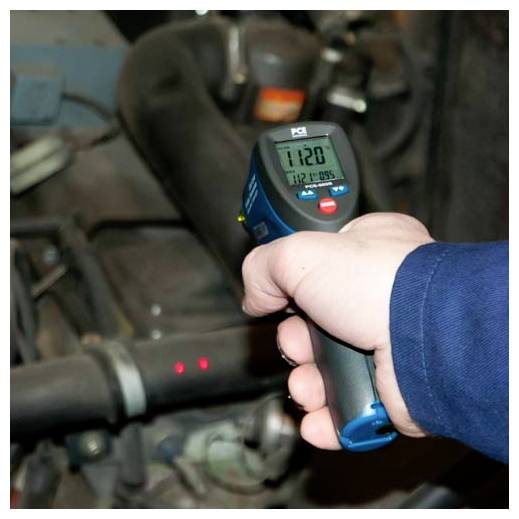

Handheld infrared thermometer aimed at engine components, showing a temperature reading of 112.7°F.

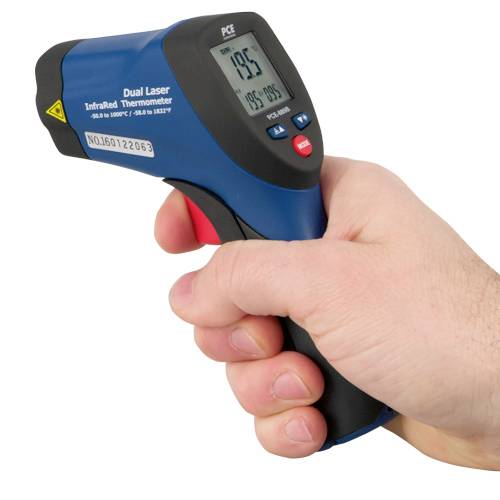

A hand-held thermometer is being held, displaying a temperature of 19.5 degrees Celsius. It is used for non-contact measurement.

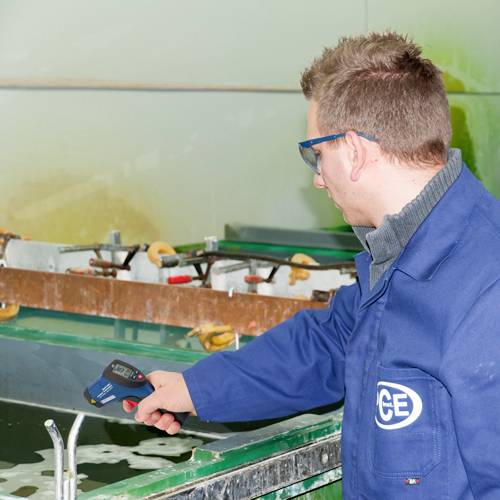

A man in a blue lab coat is measuring the temperature of a liquid in an industrial bath using a thermometer.

1/7

Datasheet (PDF)

Unavailable

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Infrared thermometer PCE-889B

Display (thermometer) 30:1
-50 - 1000 °C
Response time 150 ms
Emission level 0.1 - 1

Technical specifications

Measuring range -50 ... +1000 °C Resolution 0.1 °C Accuracy ±1 % Response time < 150 ms Ratio of measuring distance to measuring spot size 30:1 Adjustable emission value, depending on the material 0.1 ... 1.0 Spectral range 8 ... 14 µm Visible laser beams for sighting Double laser beam (Class 2) Dimensions 146 x 104 x 43 mm Weighs 163 g. Temperature units (°C/°F) Display functions HOLD functionAutomatic devouringMaximum value display Background lighting yes indicator at Temperature exceeded yes Continuous measurement function yes Alarm output yes Power supply 9 V block battery

Product type: IR thermometer

Max. temperature: 1000 °C

Basic accuracy: 1 %

Accuracy ± °C: 1 °C

Display: 30:1

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 104 x 104 x 146 mm

Response time: 150 ms

Resolution (temperature): 0.1 °C

Emission level (max.): 1

Emission level (min.): 0.1

Weight: 163 g

Width: 104 mm

Height: 146 mm

Length: 104 mm

Depth: 43 mm

Power supply: 9 V battery (1x)

Min. temperature: -50 °C

Documents & Downloads

Datasheet

Datasheet 2452277 PCE Instruments PCE-889B IR thermometer Display (thermometer) 30:1 -50 - 1000 °C

User & Safety Instructions

User & Safety Instructions 2452277 PCE Instruments PCE-889B IR thermometer Display (thermometer) 30:1 -50 - 1000 °C

Description

Infrared thermometer for contact-free temperature measurement / adjustable degree of emission / measuring spot ratio 30:1 / measuring range from -50 ... +1000 °C / double target laser / maximum value display The infrared measuring device is suitable for private and industrial use due to its price-performance ratio. This is a non-contact thermometer. The bright laser points on the infrared measuring device are easy to recognize and facilitate the temperature measurement from a distance. The measuring spot ratio allows the user to take measurements far away. The emission level of the infrared measuring device can be adjusted. The temperature range that can be measured is between -50 and +1000 °C. This covers a large area and this is also the reason why the infrared measuring device can be used so versatile. The application area of the infrared measuring device is quite large. In many processes of industry, trade, trade and hobby, these devices are used gladly. The infrared measuring device is therefore used for the maintenance of individual production plants. It also helps to ensure cooling chains and to check the temperature of workpieces.

This text is machine translated.
