Name: PCE Instruments PCE-893-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 50:1 -50 - +1200 °C Non-c
Brand: PCE Instruments
SKU: 3812431

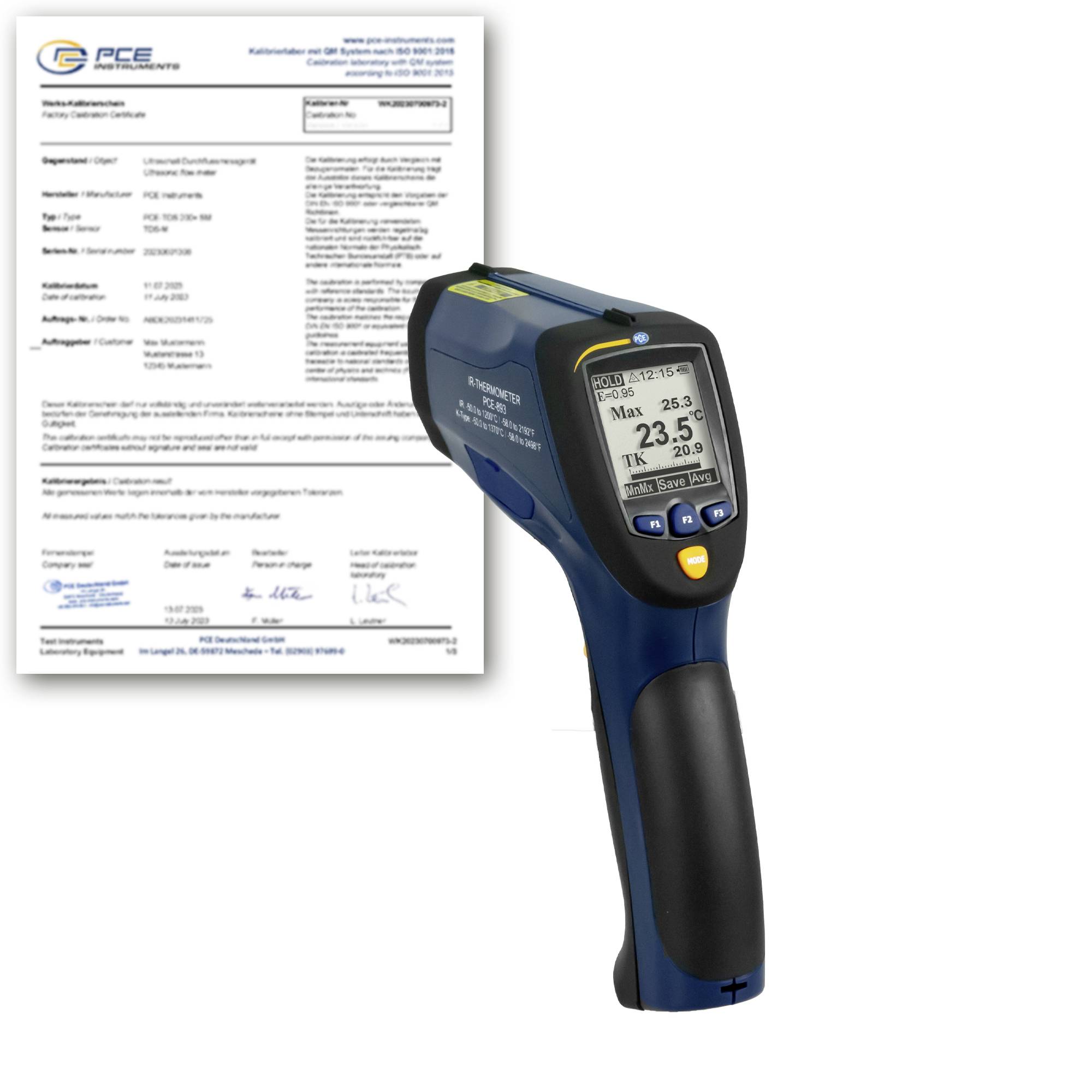

Infrared thermometer with calibration certificate, showing a temperature reading of 23.5°C beside a PCE document.

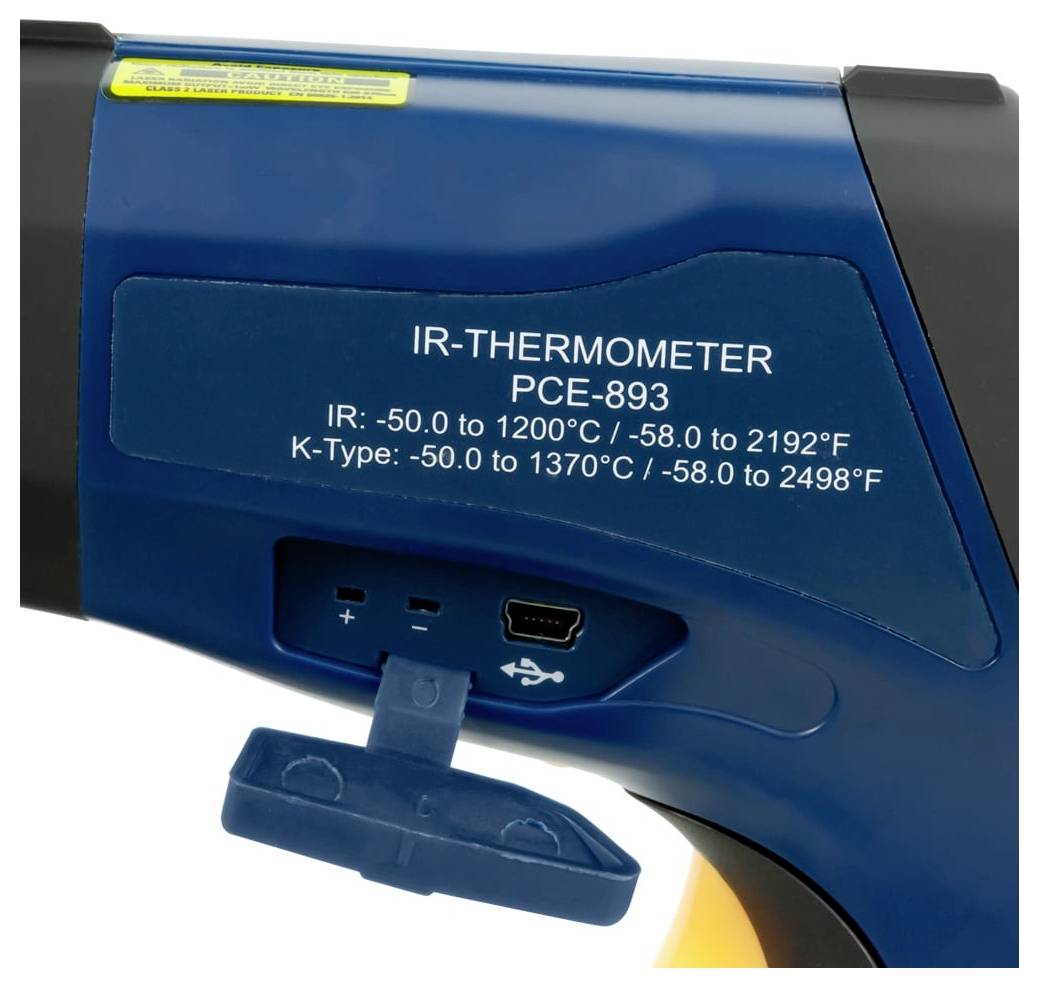

Blue handheld IR thermometer labeled 'IR-THERMOMETER PCE-893' with temperature ranges for IR and K-type measurement, shown with a USB port and battery cover open.<br>

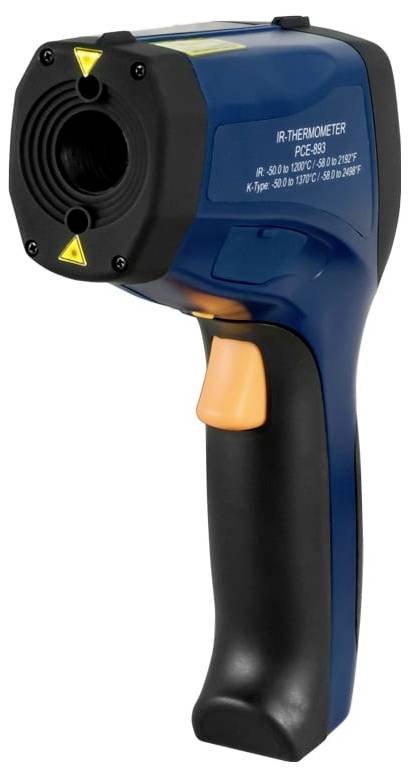

Handheld infrared thermometer gun with blue and black body and orange trigger, shown on a white background.

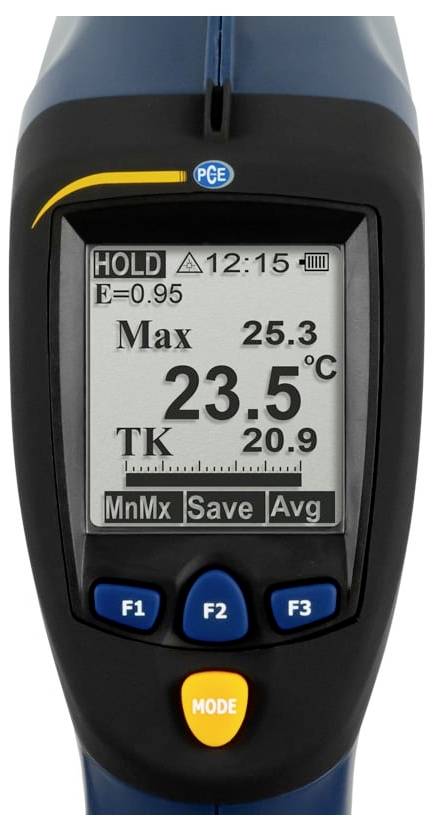

Handheld infrared thermometer displaying 23.5°C in hold mode, with max 25.3, TK 20.9, and battery/time indicators.

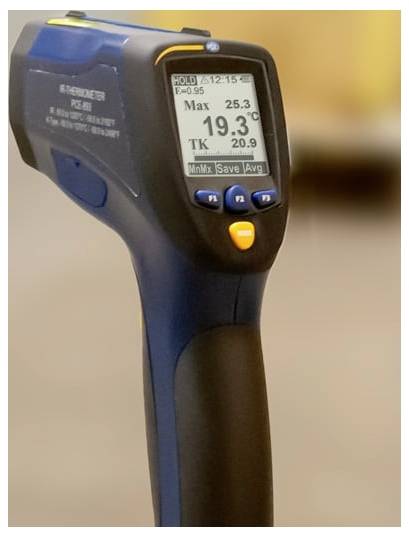

Handheld infrared thermometer displaying 19.3°C on its screen, with max and min readings shown.

Handheld digital gauge measuring a car wheel's tire tread depth on an alloy rim.

1/6

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments infrared thermometer PCE-893-ICA

Double laser shows the measuring point
Adjustable emission level
Illuminated LCD
Transfer measured values to a PC
Contact-free temperature measurement
Measuring angle ratio 50:1 infrared optics
Temperature measurement up to 1200 °C.
Thermal element type K can be connected
Typical applications for infrared thermometer
Food control
Hygiene tests
Roads
Control cabinet monitoring
Heating and air conditioning
Production monitoring
Temperature measurement at motors
Electronic components
Fuse box
Incl. ISO calibration certificate

Technical specifications

Temperature type K
Measuring range -50 ... +1370 °C
Resolution 1 °C
Accuracy ±2.5 °C (-50 ... 0 °C) / ±0.5 % ±1.5 °C (0 ... 1370 °C)
Infrared temperature
Measuring range -50 ... +1200 °C
Accuracy ±3 °C (-50 ... 20 °C) / ±1 % ±1 °C (20 ... 500 °C) / ±1.5 % (500 ... 1000 °C) / ±2 % (1000 ... 1200 °C)
General Technical Data
Outputs (additional information) Interface for K-type sensor
Measuring functions HOLD, MAX
Units(s) °C, °F
Display type LCD with lighting
Display size 2 inches
Storage medium Internal memory
Interface Mini-USB
Response time 150 ms
Automatic shut-off of 7 s.
Automatic shutdown of ... to 7 ... 60 min.
Measuring spot 50:1
Class 2 laser

Product type: IR thermometer

Max. temperature: +1200 °C

Basic accuracy: +2 %

Accuracy ± °C: 0.5 °C

Emissivity: 0.10 - 1.00

Display: 50:1

: ISO standards

Dim: (L x W x H) 200 x 55 x 150 mm

Response time: 150 ms

Pick-up time (details): 150 ms

Memory units: 100

Resolution (temperature): 0.1 °C

Features: Non-contact IR reading
Data logger
Contact measurement

Emission level (max.): 1.00

Emission level (min.): 0.10

Weight: 262 g

Calibration service: Temperature / infrared temperature

Width: 55 mm

Height: 150 mm

Length: 200 mm

Power supply (details): 9 V DC

Power supply: 6 - 12 V

Min. temperature: -50 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812431 PCE Instruments PCE-893-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 50:1 -50 - +1200 °C Non-c

User & Safety Instructions

User & Safety Instructions 3812431 PCE Instruments PCE-893-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 50:1 -50 - +1200 °C Non-c

Description

The infrared thermometer is suitable for simple temperature measurements. The emission level of the surface can be adjusted on the infrared thermometer. Thus, the infrared thermometer is suitable for almost all surfaces. The double laser of the infrared thermometer marks the exact center of the measuring spot. This helps the user in the non-contact temperature measurement. The infrared thermometer has an illuminated display. Along with adjusting the emission level, the user can set limit alarms at the infrared thermometer over the complete measuring range. The measurement range is from -50 °C to + 1200 °C. The measurement ratio of the infrared thermometer is 50:1.

In addition to the infrared measurement, a large number of type-K thermocouples can be connected to the infrared thermometer. Measurements up to 1370 °C are possible here. The software included in the delivery and the USB connection at the infrared thermometer enable the operator to analyze and store all measurement data on the PC in both graphical and table form.
