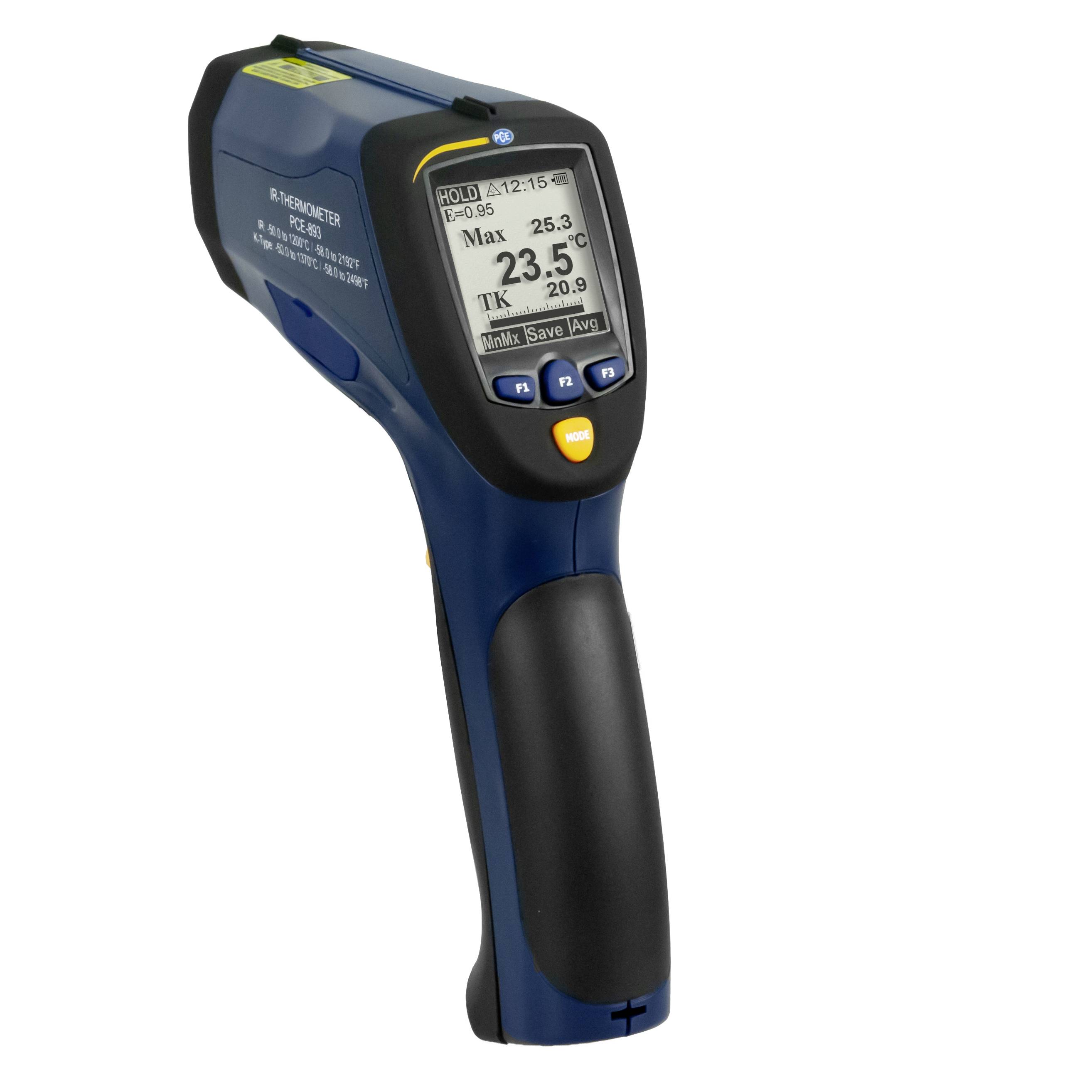

Handheld infrared thermometer gun with digital display showing a 23.5°C reading and max 25.3°C.

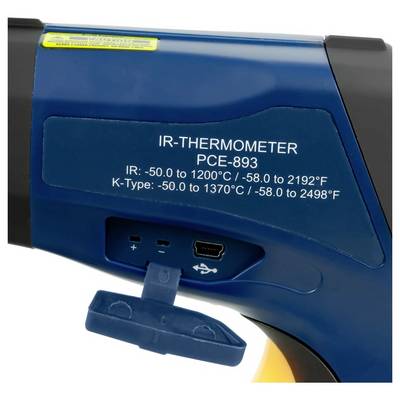

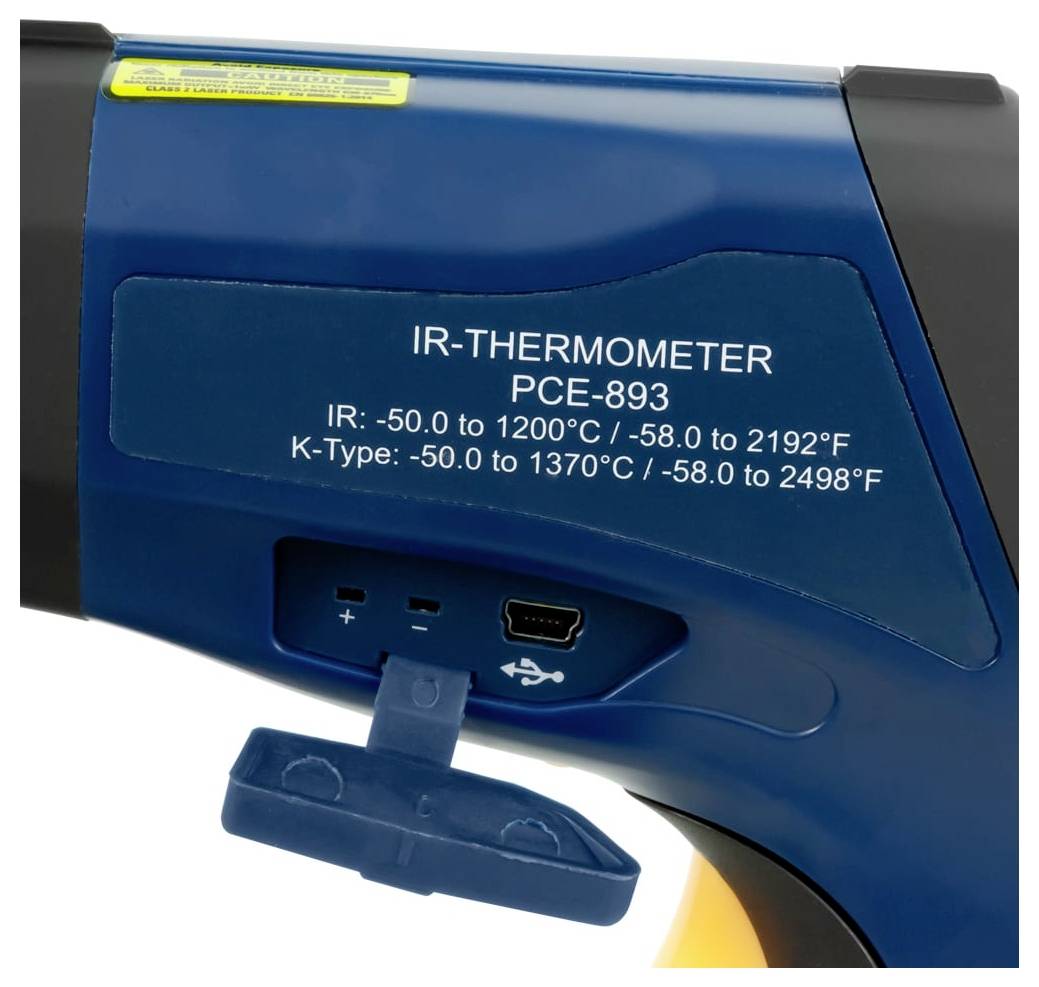

Blue PCE-893 IR thermometer showing temperature range labels and a USB port under a protective cover.

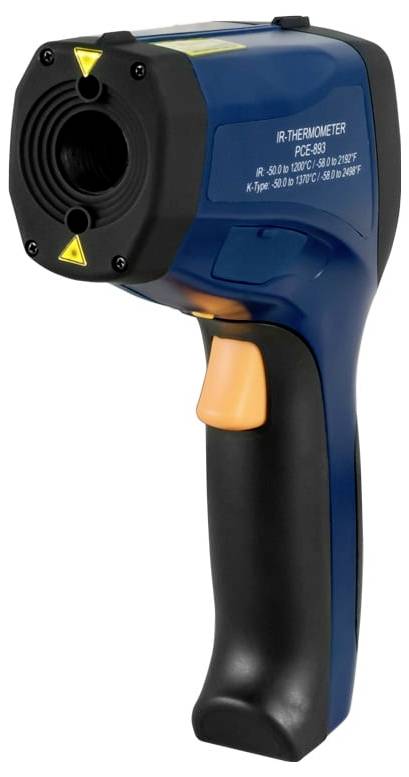

Handheld infrared thermometer gun with blue body, black grip, orange trigger, and front sensor opening.<br>

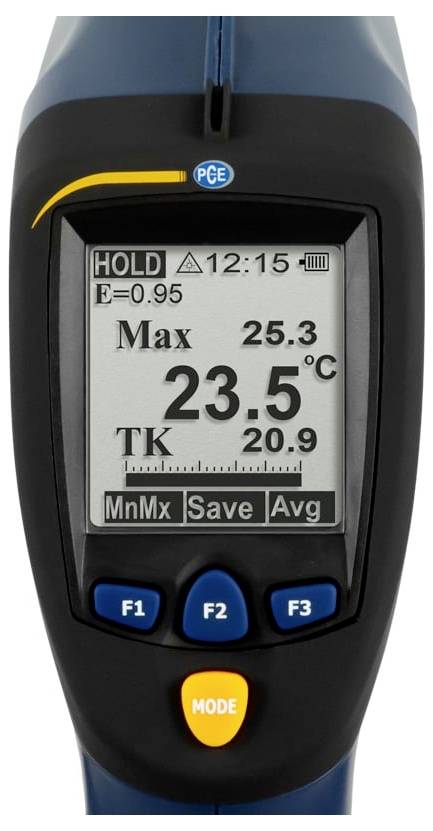

Handheld digital thermometer display shows hold mode, current temperature 23.5°C, max 25.3, and TK 20.9.

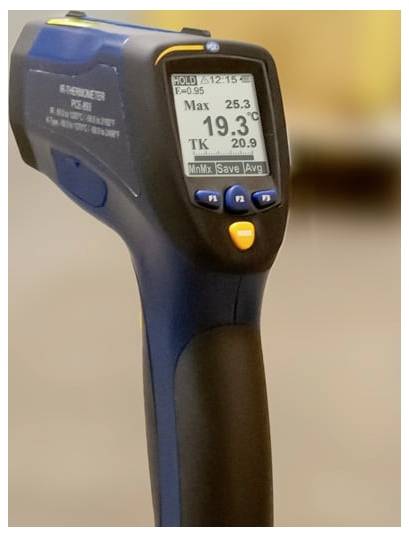

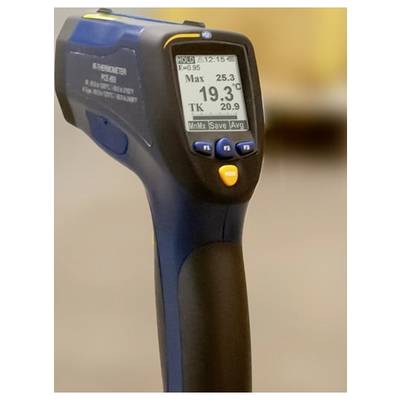

Handheld infrared thermometer showing 19.3°C on its digital display.<br>

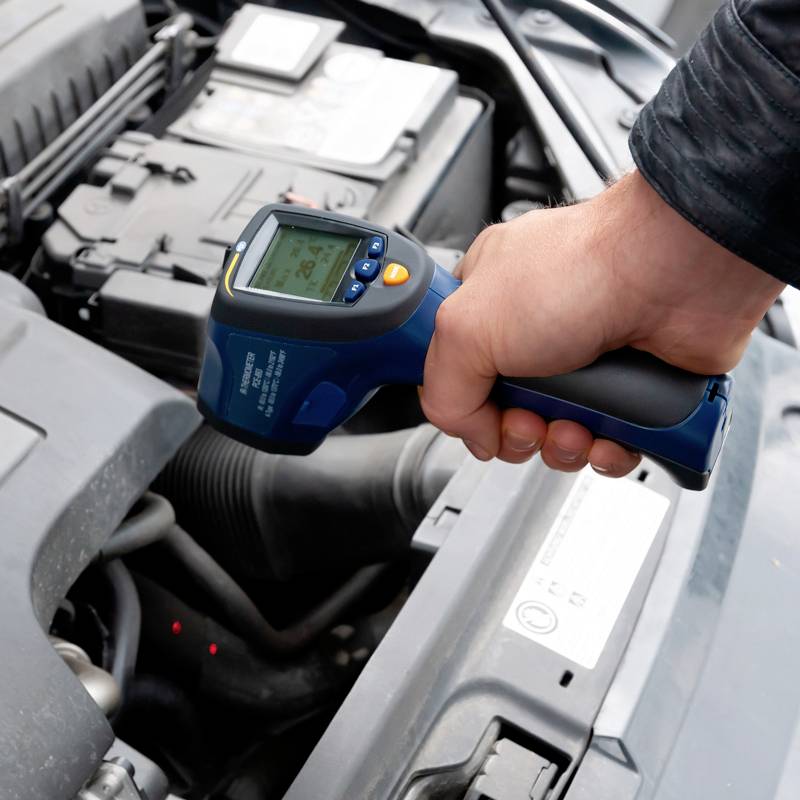

A person is checking the car's engine with a digital thermometer to measure the temperature.

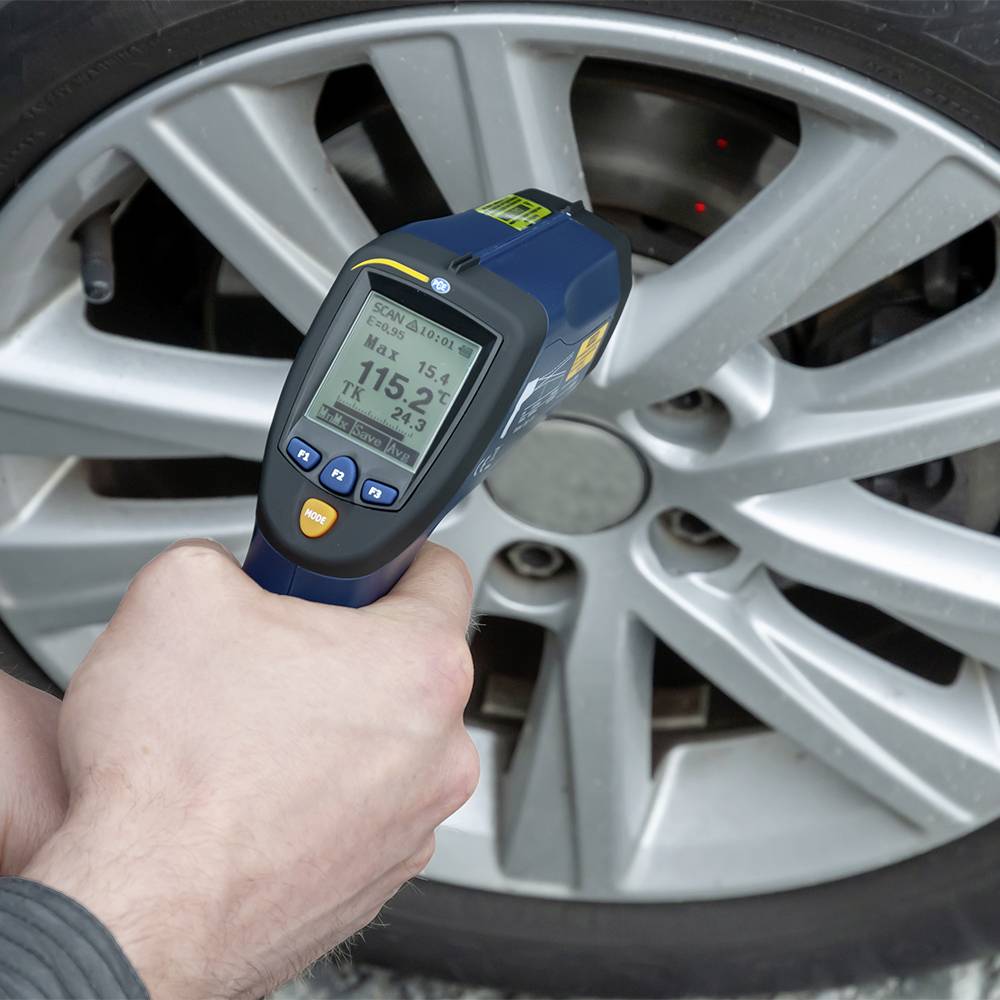

A person is measuring the temperature of a car tyre with an infrared thermometer. The display shows 115.2 degrees Fahrenheit.

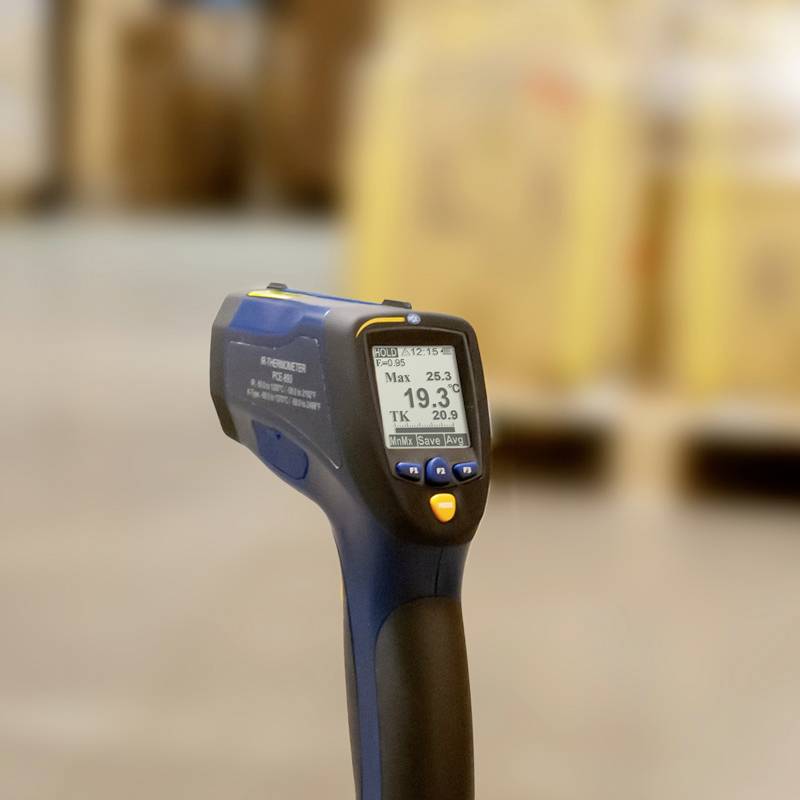

An infrared thermometer is pointing at an object. The screen displays a maximum temperature of 25.5°C. Blurred cardboard boxes are visible in the background.

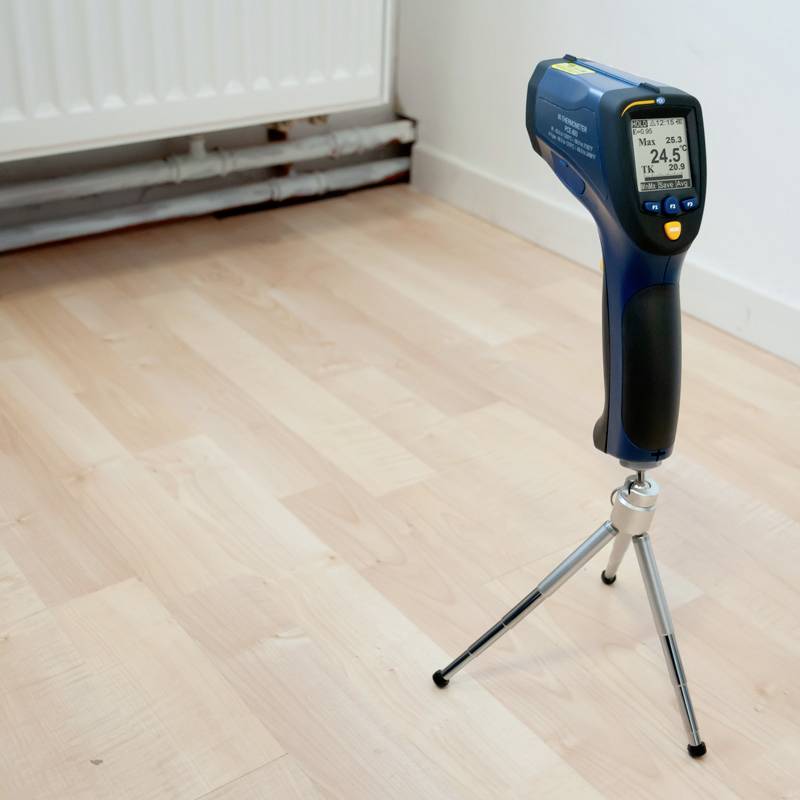

An infrared temperature measuring device with a tripod stands on a wooden floor next to a radiator. The display shows 24.5°C.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Infrared thermometer PCE-893

Display (thermometer) 50:1
-50 - 1370 °C
Response time 150 ms
Emission level 0.1 - 1

Technical specifications

Infrared measurement Measurement range -50 ... 1200 °C / -58 ... 2192 °FResolution 0.1 for display < 1000 / 1 for display > 1000Accuracy ±3 °C / 5.4 °F (-50 ... 20 °C / -58 ... 68 °F), ±1 % ±1 °C / ±1.8°F (20 ... 500 °C / 68 ... 932°F), ±1.5 % (500 ... 1000 °C / 932 ... 1832 °F), ±2 % (1000 ... 1200 °C / 1832 ... 2912 °F) The accuracies apply at an ambient temperature of 23 ... 25 °C (73 ... 77 °F)Repeatability ±1.5 °C / 2.7 °F (-50 ... 20 °C / -58 ... 68 °F), ±0.5 % OR ±0.5 °C / 0.9 °F, (20 ... 1000 °C / 68 ... 1832 °F), ±1.0 % (1000 ... 1200 °C / 1832 ... 2912 °F)Thermo elementMeasurement range -50 ... 1370 °C / -58 ... 2498 °FResolution 0.1 for display < 1000, 1 for display > 1000Accuracy ±2.5 °C / ±3.6°F (-50 ... 0 °C / -58 ... 32°F), ±0.5 % ±1.5 °C / 3 °F, (0 ... 1370 °C / 32 ... 2498 °F)Measuring spot ratio 50:1Response time 150 msSpectral range 8 ... 14 µmEmission level adjustable 0.10 ... 1.0Measuring range exceeded is indicated on the display "----"Display Laser diode LCD with background lightingOutput power 1 mWWavelength 630 ... 670 nmClass 2 classificationVoltage supply with 9 V batteryOperating conditions 0 ... +50 °C / 32 ... 122 °FStorage conditions -10 ... +60 °C / 14 ... 140 °FWeight approx. 282 g without batteryDimensions 200 x 55 x 150 mm

Product type: IR thermometer

Max. temperature: 1370 °C

Basic accuracy: 0.5 %

Accuracy ± °C: 1 °C

Display: 50:1

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 150 x 150 x 200 mm

Response time: 150 ms

Pick-up time (details): 150 ms

Memory units: 30

Resolution (temperature): 0.1 °C

Emission level (max.): 1

Emission level (min.): 0.1

Weight: 282 g

Width: 150 mm

Height: 200 mm

Length: 150 mm

Depth: 55 mm

Power supply (details): 9 V

Power supply: 9 V battery (1x)

Min. temperature: -50 °C

Documents & Downloads

Datasheet

Datasheet 2620694 PCE Instruments PCE-893 IR thermometer Display (thermometer) 50:1 -50 - 1370 °C

User & Safety Instructions

User & Safety Instructions 2620694 PCE Instruments PCE-893 IR thermometer Display (thermometer) 50:1 -50 - 1370 °C

Description

Laser temperature meter PCE-893 Laser temperature meter for simple measurement of surface temperatures / fast response time / adjustable emission level / Max-Min-Function / Alarm function / Measuring range up to 1200 °C / Thermocouples Type-K connectable / Software for PC connection The PCE-893 laser thermometer is suitable for simple temperature measurements. The emission level of the surface can be adjusted on the laser temperature meter PCE-893. Thus, the PCE-893 laser thermometer is suitable for almost all surfaces. The double laser from the PCE-893 laser thermometer marks the exact center of the measuring spot. This helps the user with contact-free temperature measurement. The PCE-893 laser thermometer has an illuminated display. In addition to setting the emission level, the user can set limit value alarms over the complete measuring range on the PCE-893 laser temperature meter. The measurement range is from -50 °C to +1200 °C. The measuring spot ratio of the laser temperature meter PCE-893 is 50:1. In addition to infrared measurement, the laser thermometer can also be connected to a variety of K-type thermocouples. Measurements of up to 1370 °C are possible here. The software included in the delivery and the USB connection on the laser thermometer enable the operator to analyze and save all measured data on the PC both graphically and in tabular form.
