Buy PCE Instruments PCE-894 IR thermometer

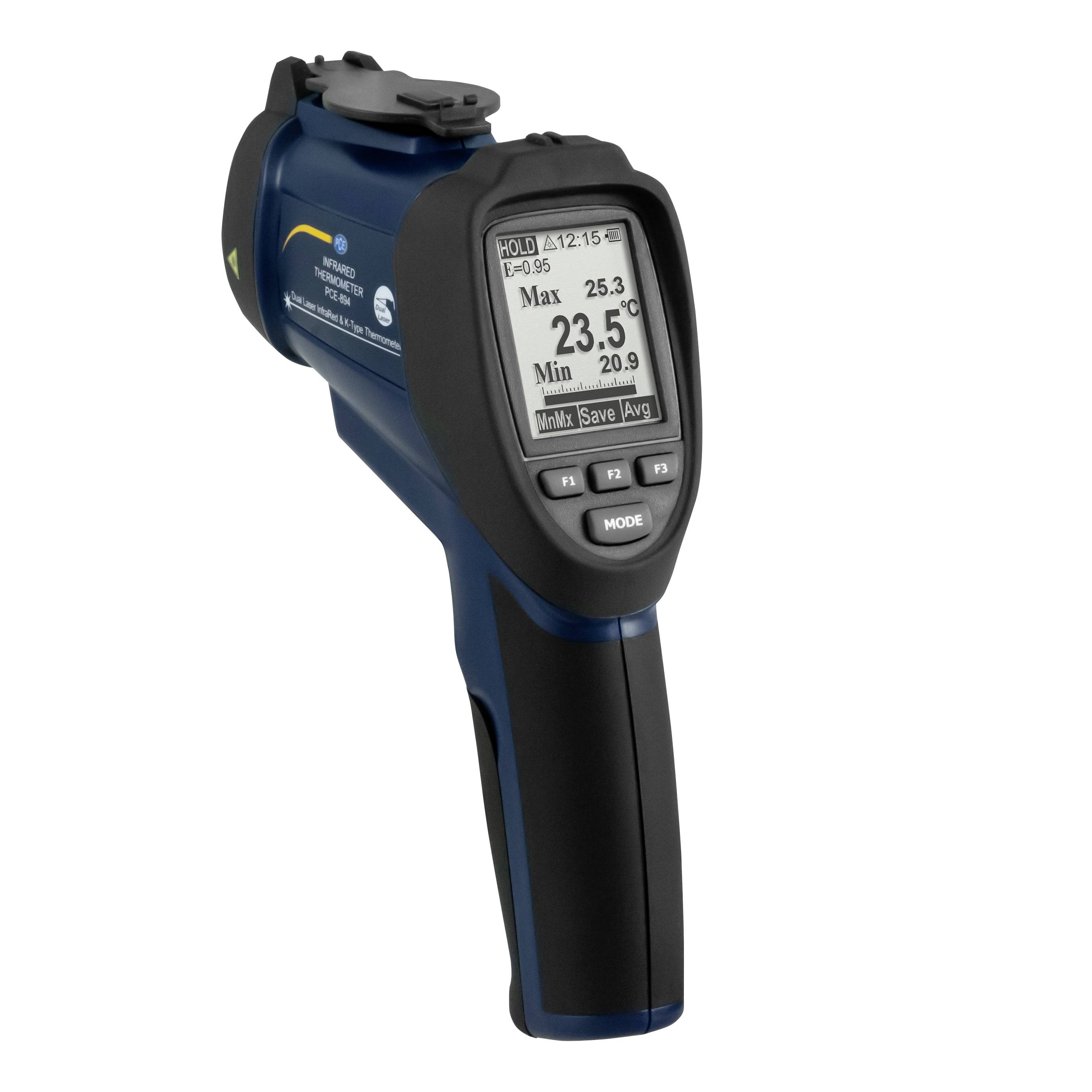

Handheld infrared thermometer gun with digital display showing 23.5°C, max 25.3 and min 20.9.

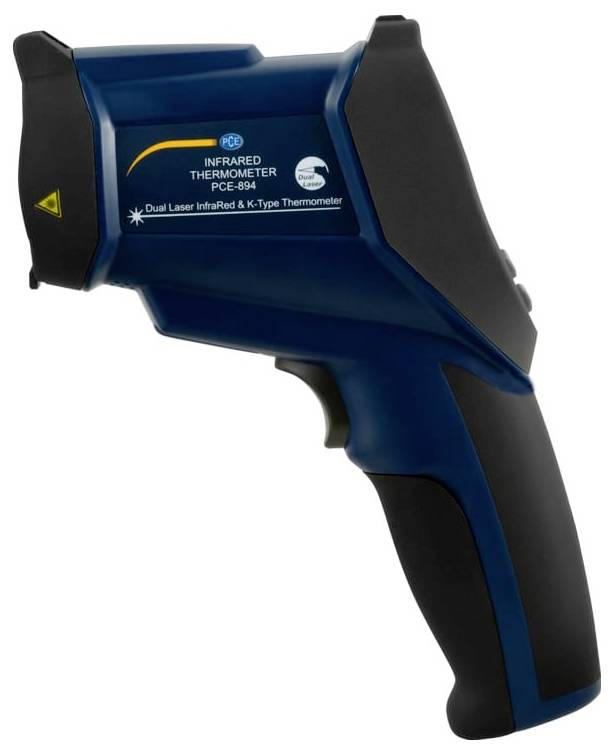

Handheld infrared thermometer with trigger grip, labeled 'Infrared Thermometer', shown on a white background.

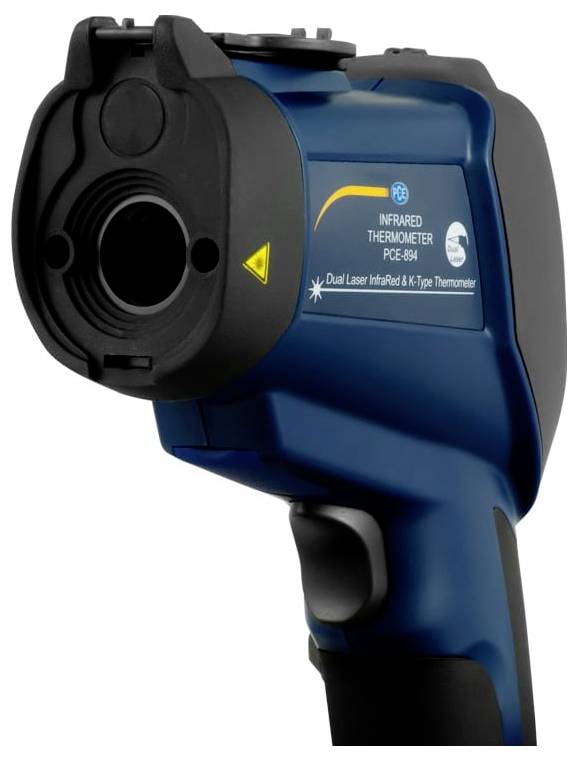

Handheld infrared thermometer gun with trigger, black front lens, and blue body labeled 'INFRARED THERMOMETER' and 'Dual Laser Infrared K Type Thermometer'.

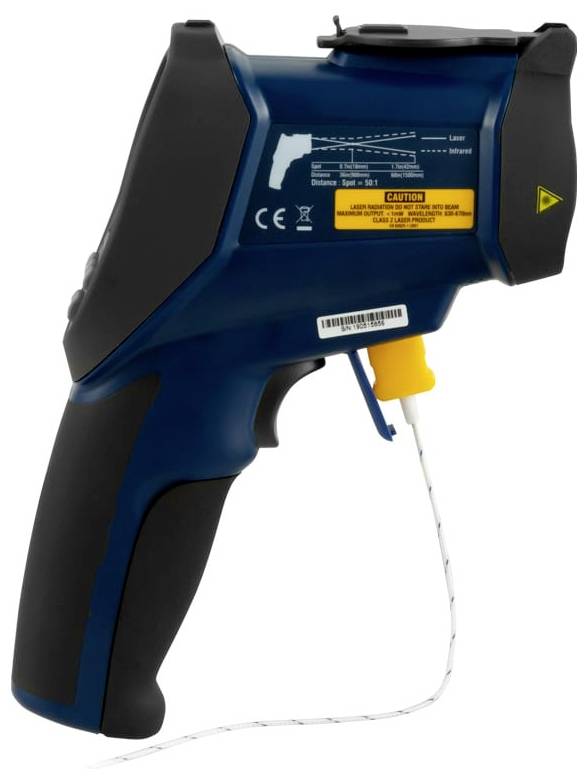

Handheld blue-and-black industrial inspection device with trigger grip, top display area, warning labels, and a thin probe extending from the front.<br>

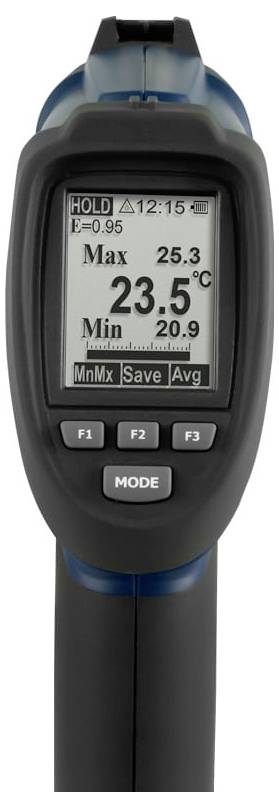

Handheld infrared thermometer showing a temperature reading of 23.5°C, with max 25.3 and min 20.9 on the display.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digital thermometer PCE-894

Emission level -

Technical specifications

Measuring function infrared Measurement range -50 ... 1850 °C Resolution < 1000 °C: 0.1 °C. > 1000 °C: 1 °C Accuracy< 20 °C: ± 3 °C < 500 °C: ±1% v.MW. < 1000 °C: ± 1.5% v.MW < 1850 °C: ± 2% v.MW Thermocouple measuring function Measurement range -50 ... 1370 °C Resolution < 1000 °C: 0.1 °C. > 1000 °C: 1 °C Accuracy < 0 °C: ± 2°C. < 1370 °C: ±0.5% of MW. +1.5 °C Measuring spot ratio 50 : 1 Emissivity 0.1 ... 1 Response time 150 ms Spectral range 8 ... 14 µm Operating conditions 0 ... 50 °C Storage conditions -10 ... 60 °C Voltage supply with 9 V battery LC display Dimensions 240mm x 130mm x 65mm Weight 425 g

Product type: IR thermometer

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452279 PCE Instruments PCE-894 IR thermometer

User & Safety Instructions

User & Safety Instructions 2452279 PCE Instruments PCE-894 IR thermometer

Description

Digital thermometer PCE-894 Infrared thermometer with thermocouple input / double laser / large display / measuring range up to +1850 °C / short response time / adjustable emission level / background lighting / Bluetooth / HOLD/MAX/MIN/DIF/AVG/LOCK function The infrared thermometer PCE-894 with double laser has a temperature range from -50 °C to +1850 °C. The laser infrared thermometer has an optical resolution of 50:1 and enables a precise, contact-free temperature measurement of very small surfaces. This allows you to use the double infrared thermometer, e.g. in heating, ventilation or air conditioning, to measure the pipe temperature without the ambient temperatures of the adjacent surfaces affecting the exact measured values of the pipe. The double laser infrared thermometer is also used in the automotive industry in a variety of ways. During a test run, the surface temperatures of the motors can be determined quickly and reliably on motor test benches. The temperature of freshly painted sheet metal and plastic parts can also be measured without leaving marks on the parts. The infrared thermometer with cross laser can also be used in other areas of industry and trade for maintenance and maintenance, whereby the infrared thermometer can ideal be used for measuring rotating or live parts. The special feature of the double laser infrared thermometer is the short response time (150 ms) without touching the object to be measured. The point infrared thermometer is also used in the food industry as the products are not contaminated. The infrared thermometer with double laser has a memory and a USB-interface to enable an online recording of the measured values. In addition to infrared measurement, the K-type thermocouple connection available on the device also allows you to connect thermocouple sensors in order to carry out various tasks with one device. The cross-laser infrared thermometer also offers the option of setting alarm functions as well as adjusting the emission level (explanation of emission level) of the measurement task. In the following links you will find a table with the emission level of different metals and a table with the emission level of different non-metals.

This text is machine translated.
