PCE Instruments Digital thermometer Display (thermometer) 60:1
EAN:
Part number:
Item no:
Number
Total (€ 612.61 / piece)
€ 612.61
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Digital thermometer PCE-895
- Display (thermometer) 60:1
- Emission level 0.10 - 1.0
Technical specifications
- InfraredMeasurement range: -35 to +1600 °C.Accuracy:-35 - 0°C: ± 2°C + 0.05*TOBJ0 - 1600 °C: ± 2 % of MW or ± 2°C.Resolution: 1 °C at 1000 to 1600 °C.Thermo elementMeasurement range: Type K, -64 to +1400 °C.Measuring accuracy: ± 1 % of MW. Or ± 1 °C.Resolution: 0.1 °C at -64 to 999.9 °C.Emission level: Adjustable 0.10 - 1.0Spectral range: 8 - 14 µmOptical resolution / measuring spot ratio: 60 : 1Internal memory: 24 memory pointsExternal memory (micro-SD card): Max. 8 GB supportedInterface: USBDisplay: LCD, illuminatedPower supply: 2 x 1.5 V AA batteries
- Dim
(L x W x H) 203 x 89 x 176 mm
- Height
176 mm
- Length
203 mm
- Width
89 mm
- Emission level (max.)
1.0
- Emission level (min.)
0.10
Manufacturer's standards (no certificate)
- Display
60:1
- Power supply (details)
2 x 1.5 V AA batteries
- Weight
400 g
- Product type
Digital thermometer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2583824 PCE Instruments Digital thermometer Display (thermometer) 60:1
Description

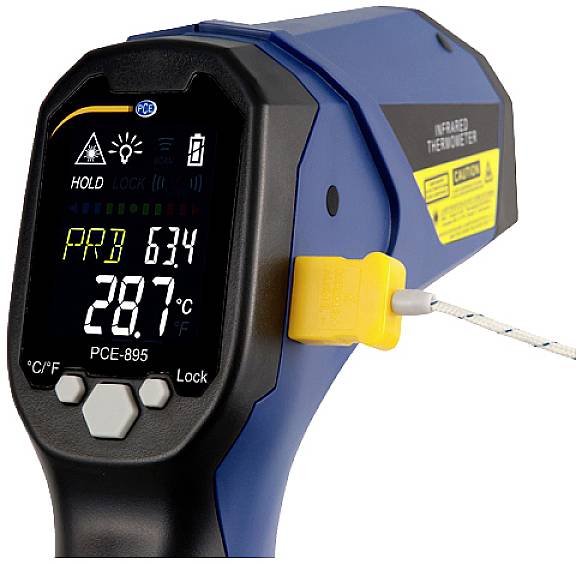

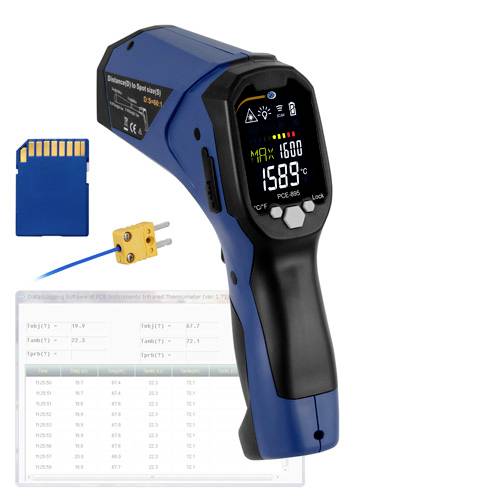

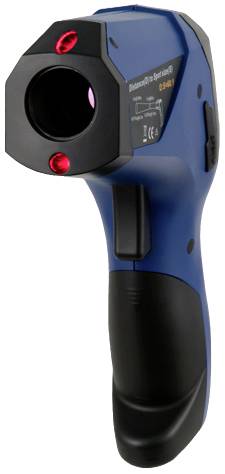

The dual laser thermometer PCE-895 is used for fast surface temperature measurement. The two laser points of the dual laser thermometer PCE-895 mark the exact measuring point and thus offer a very good help with the temperature measurement. By means of the cross laser function, the two laser points show exactly how large the actual IR measuring spot is. The emission level on the dual laser thermometer PCE-895 can be adjusted in the range of 0.10 - 1.0. Thus, the dual laser thermometer PCE-895 is suitable for almost all surfaces. The temperature measuring range is from -35 to 1600 °C. In addition to the IR function, a K-type thermocouple can also be connected to the dual laser thermometer. A USB interface and an SD memory card slot complete the range of functions of this professional thermometer. The SD card enables data logging of several hours on machines and systems. With the help of the PC software, the stored temperature curves can be read out and exported. This makes the dual laser thermometer ideal for long-term temperature measurements.
This text is machine translated.
This text is machine translated.
Features
- Typical applications of the dual digital thermometer PCE-895:Food monitoringHygiene testsRoad constructionControl cabinet monitoringHeating and air conditioning technologyProduction monitoringTemperature measurement on motors
Scope of delivery
- 1x Digital thermometer PCE-895 1x USB cable 1x Micro-SD card 8 GB 1x PC software 2x 1.5 V AA battery 1x thermocouple type K ( 0 ... 250 °C) 1x user manual
