Name: PCE Instruments PCE-895-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 60:1 -64 - 1600 °C Data l
Brand: PCE Instruments
SKU: 3812432

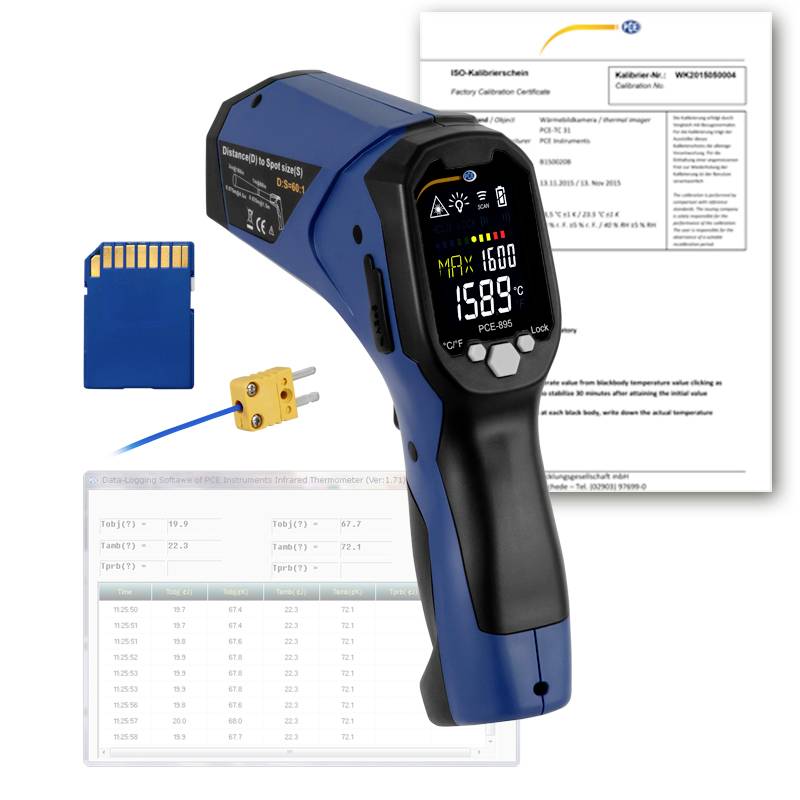

Handheld infrared thermometer with SD card, thermocouple, and calibration certificate, shown with temperature readings and data log sheet.

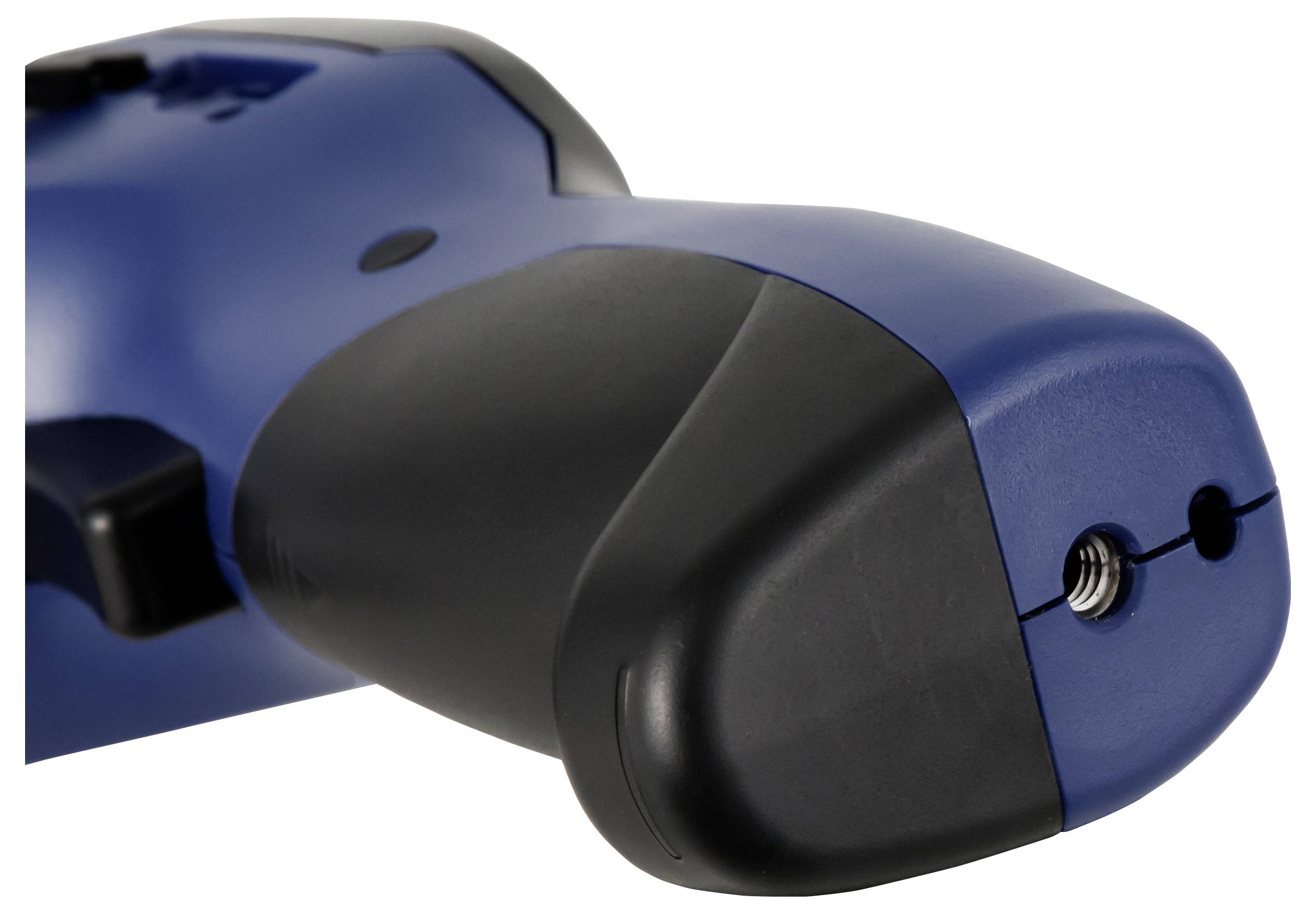

Close-up of a blue and black handheld device with a rounded front end and visible side screw or port.

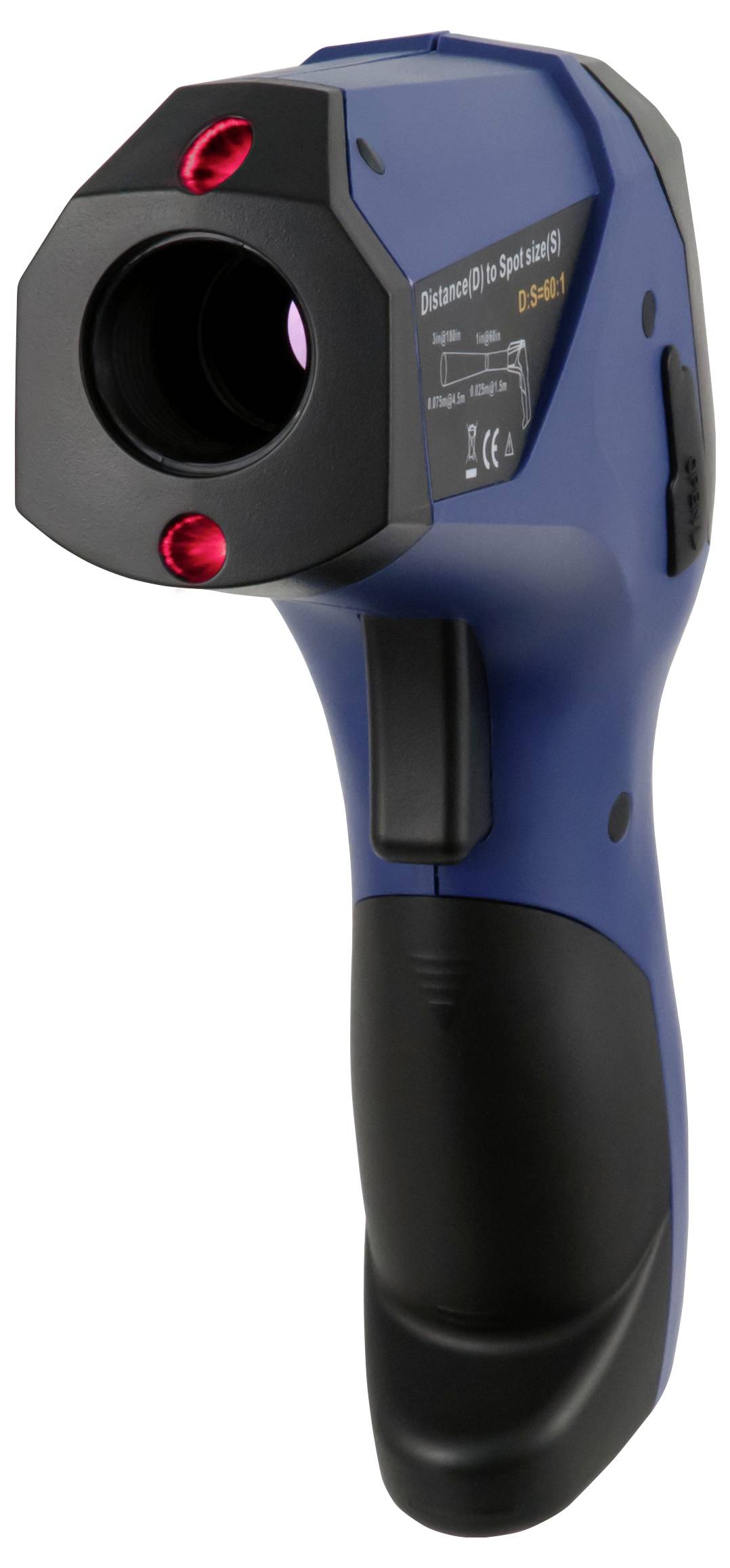

Handheld infrared thermometer gun with blue and black body, front lens and display panel for measuring temperature at a distance.

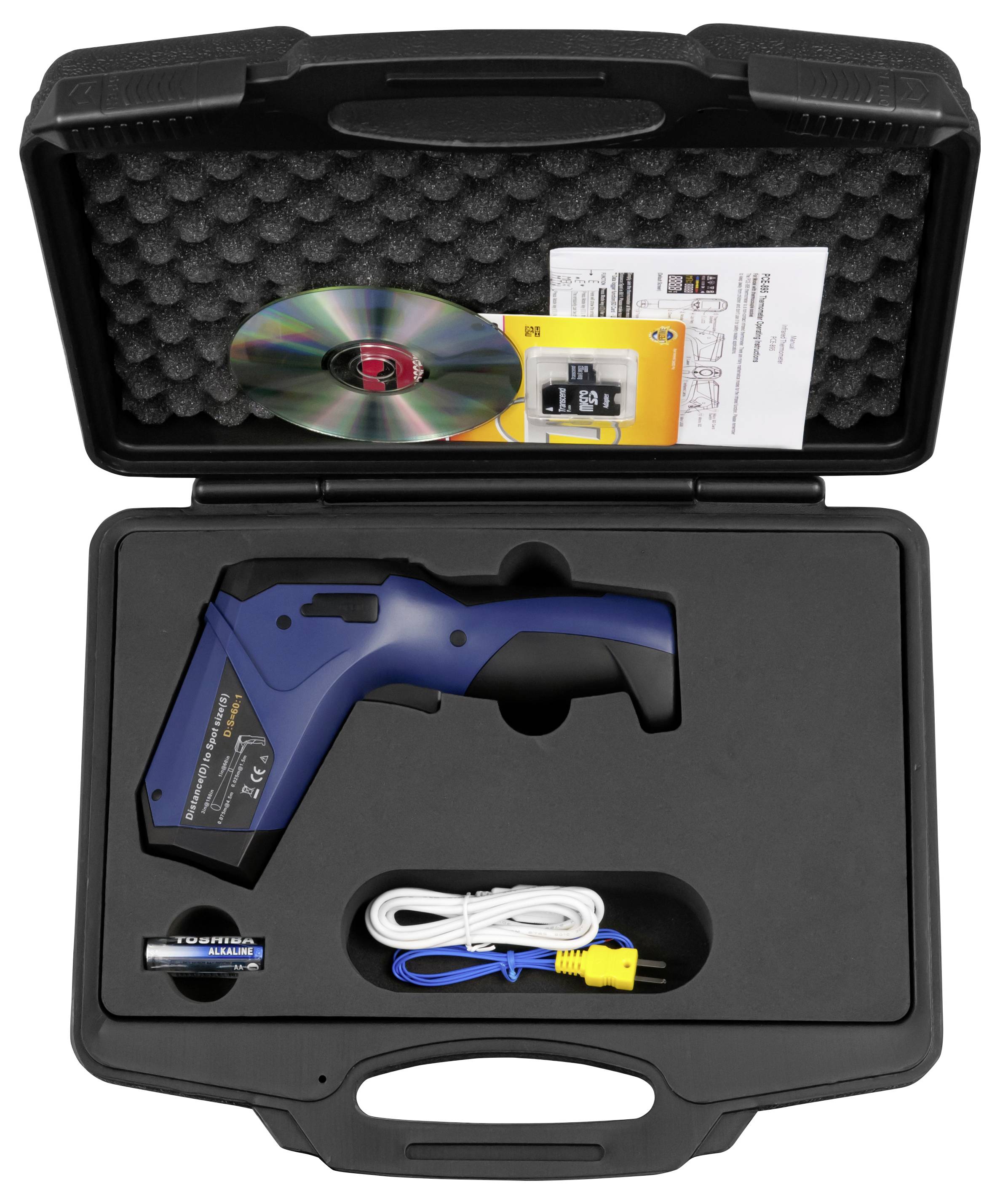

Cordless blue handheld tool in a hard carrying case with charger cable, battery, manual, CD, and accessory, all neatly fitted inside.<br>

1/5

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments infrared thermometer PCE-895-ICA

Contact-free temperature measurement
60 : 1 Optic
Temperature measurement up to 1600 °C.
Compact cross-laser thermometer
Double laser shows the measuring spot diameter
Adjustable emission level
Illuminated LCD
Notification
Typical applications for infrared thermometer
Food control
Hygiene tests
Roads
Control cabinet monitoring
Heating and air conditioning
Production monitoring
Temperature measurement at motors
Incl. ISO calibration certificate

Technical specifications

Temperature type K
Measuring range -64 ... +1400 °C
Resolution 1 °C
Accuracy ±1 % of MW. Or ±1 °C
Infrared temperature
Measuring range -35 ... +1600 °C
Accuracy -35 ... 0 °C: ±2 °C +0.05*TOBJ / 0 ... 1600 °C: ±2 % from MW. Or ±2 °C.
General Technical Data
Measuring FUNCTIONS MIN, MAX
Units(s) °C, °F
Display type LCD with lighting
Storage medium Internal memory
Memory capacity: 24 values
External storage capacity (additional information): 8 GB
Interface Mini-USB
Response time < 1 s
Operating time 14 h
Operating time Additional information During continuous operation 10 h
Automatically switches off approx. 1 min.
Automatic shutdown of ... to 1 ... 12 min.
Measuring spot 60:1
Emission level from/to 0.1 ... 1
Spectral range 8 ... 14 µm
Menu language English (US), English (GB)
Protection class (device) IP20
Battery 2 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Operating conditions 0 ... 50 °C , 0 ... 90 % r.F.
Storage conditions 0 ... 50 °C , 0 ... 90 % r.F.
Dimensions ( L x W x H ) 203 x 176 x 89 mm
Weight 400 g

Product type: IR thermometer

Max. temperature: 1600 °C

Basic accuracy: 1 %

Accuracy ± °C: 2 °C

Emissivity: 8 – 14 µm

Display: 60:1

: ISO standards

Dim: (L x W x H) 203 x 176 x 89 mm

Response time: 1 s

Pick-up time (details): 1 s

Memory units: 24

Resolution (temperature): 0.1 °C

Features: Data logger
Contact measurement
Non-contact IR reading
Pyrometer
within seconds

Emission level (max.): 1.00

Emission level (min.): 0.10

Weight: 400 g

Calibration service: ISO calibration certificate for infrared temperature measurement

Width: 176 mm

Height: 89 mm

Length: 203 mm

Depth: 89 mm

Power supply (details): 3 V

Power supply: AA battery (2x)

Min. temperature: -64 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812432 PCE Instruments PCE-895-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 60:1 -64 - 1600 °C Data l

User & Safety Instructions

User & Safety Instructions 3812432 PCE Instruments PCE-895-ICA IR thermometer Calibrated to (ISO standards) Display (thermometer) 60:1 -64 - 1600 °C Data l

Description

The infrared thermometer is used for fast surface temperature measurement. The two laser points of the infrared thermometer indicate the exact measuring point and therefore offer excellent help with the temperature measurement. Thanks to the cross-laser function, the two laser spots show exactly how large the actual IR measuring spot is. The emission level of the infrared thermometer is within the range of 0.10 ... 1.0 adjustable This makes the infrared thermometer suitable for almost all surfaces.

The temperature measurement range is -35 ... 1600 °C. Along with the IR-function an infrared thermometer of the type K thermo element can also be connected. A USB interface and an SD memory card slot completes the range of functions for this infrared thermometer. The SD-card enables a data logging of several hours to be done at machines and systems. With the help of the PC software, the stored temperature trends can be read and exported. This makes the infrared thermometer ideally suited for long-term temperature measurements.

This text is machine translated.
