PCE Instruments PCE-917-ICA Pressure gauge Calibrated to (ISO standards) Pressure -7000 - +7000 mbar
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments pressure meter PCE-917-ICA
- Different units can be selected
- Display of under, over and differential pressure
- Min, Max and Data Hold functions

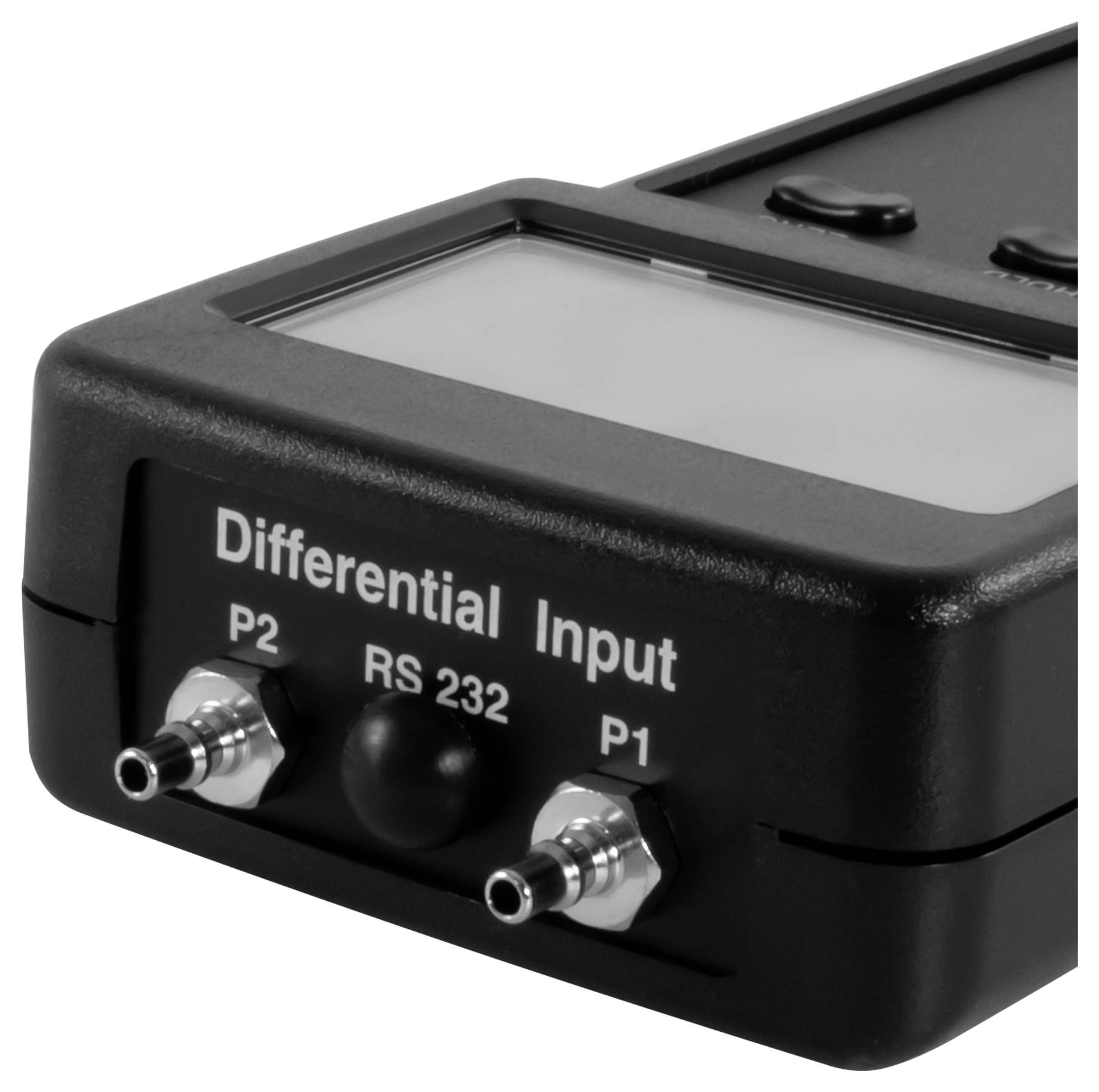

- RS-232 interface
- For air and all non-aggressive gases and liquids

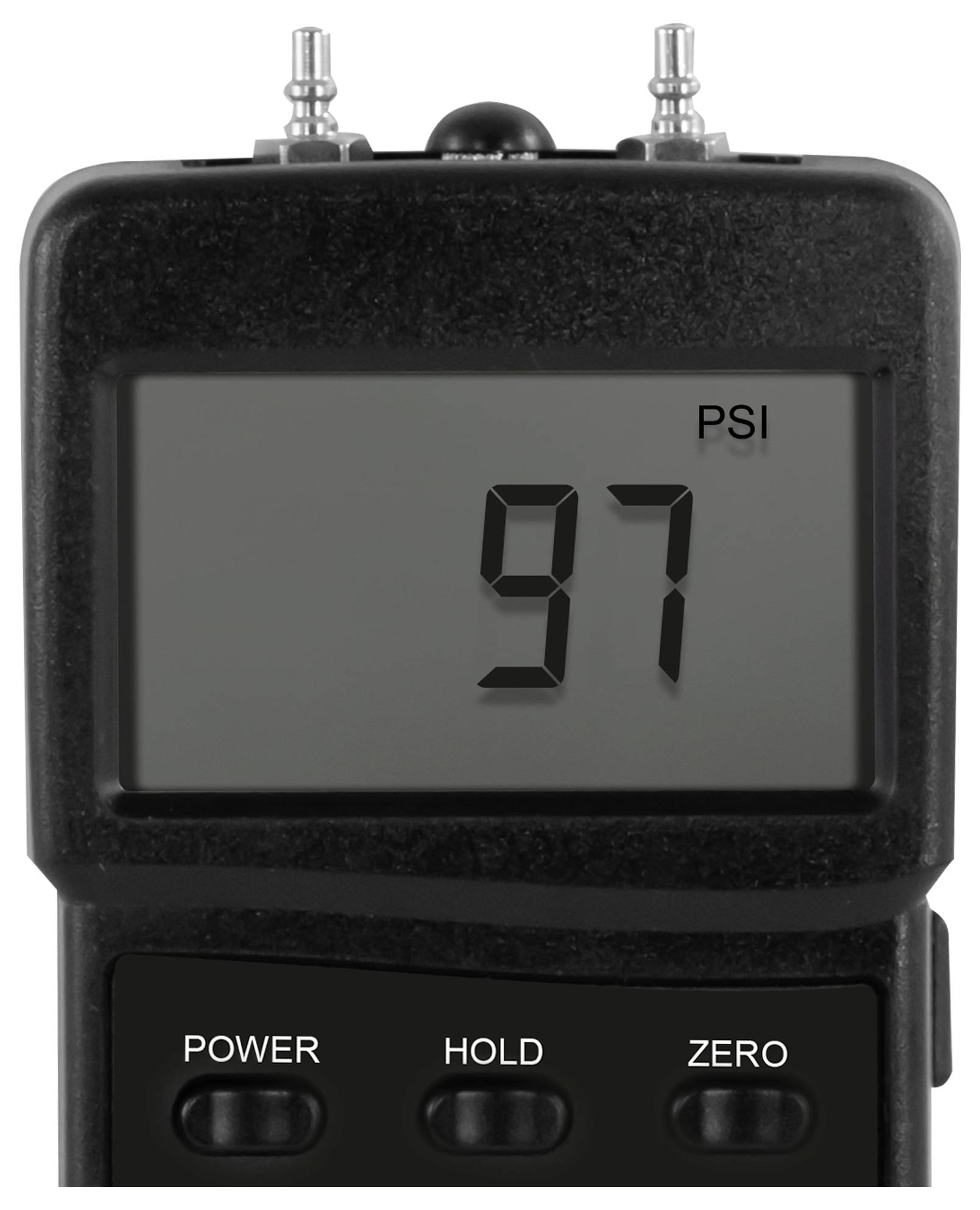

- 15 mm LCD-Display
- Stainless steel hose adapter and hoses included

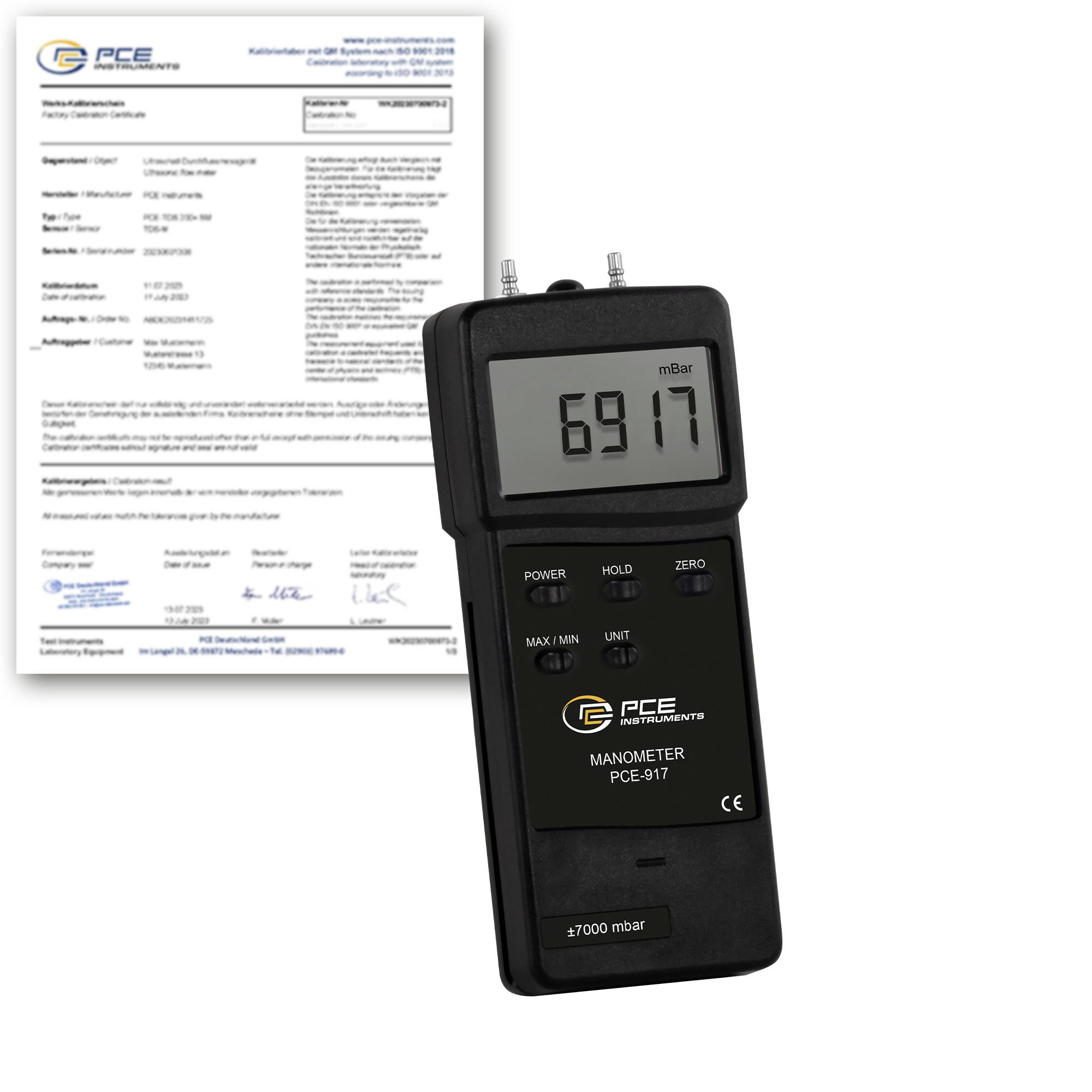

- Incl. ISO calibration certificate
Technical specifications
- Pressure
- Measuring range -7000 ... +7000 mbar
- Resolution: 5 mbar
- Accuracy ±2 % FS %
- Pressure
- Measuring range -101.5 ... +101.5 psi
- Resolution 0.1 psi
- Accuracy ±2 % FS %
- Pressure
- Measuring range -2800 ... +2800 inHVision O
- Resolution 2 in Hext O
- Accuracy ±2 % FS
- Pressure
- Measuring range -70 ... +70 mHight O
- Resolution 0.05 mHVision O
- Accuracy ±2 % FS
- Pressure
- Measuring range -206 ... +206 inHg
- Resolution 0.1 inHg
- Accuracy ±2 % FS
- Pressure
- Measuring range -5250 ... +5250 mmHg
- Resolution 5 mmHg
- Accuracy ±2 % FS
- Pressure
- Measuring range -6.905 ... +6.905 atm
- Resolution 0.005 ATM
- Accuracy ±2 % FS
- Pressure
- Measuring range -7 ... +7 kg/cm²
- Resolution 0.005 kg/cm2
- Accuracy ±2 % FS
- General Technical Data
- Measurement functions MIN, MAX, HOLD, Peak
- Display type LCD
- Display size 2.8 inches
- Interface RS232
- Automatically switches off approx. 10 min.
- Repeatability 1%
- Plastic case
- Measurement interval 0.8 s.
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply battery

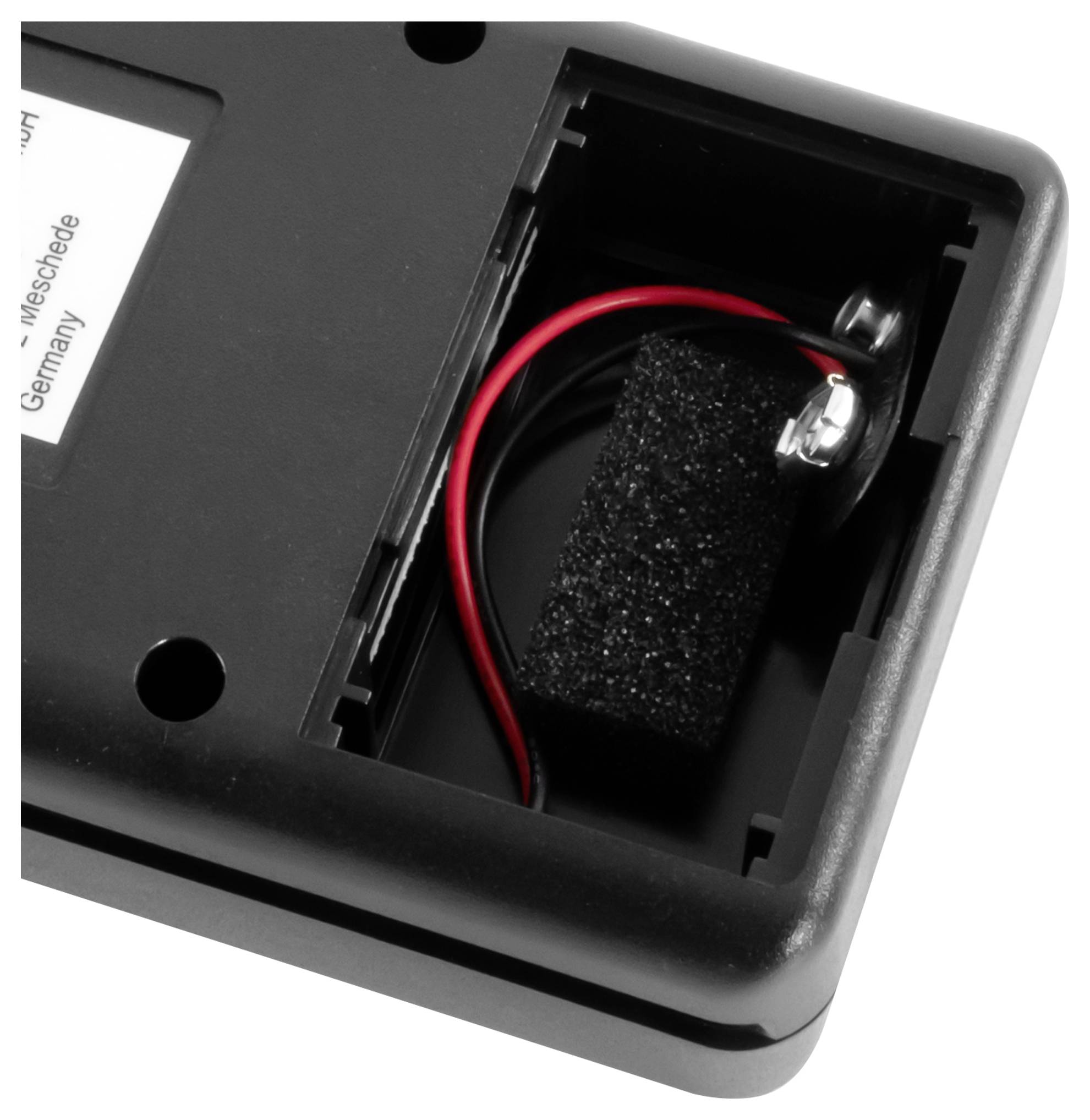

- Battery/Battery 1 x 9 V Block battery , Alkaline-Mangan
- Capacity 550 mAh
- Operating conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 190 x 76 x 32 mm
- Weight 205 g
- Power supply (details)
9 V DC
- Product type
Pressure gauge
- Reading range
-7000 - +7000 mbar
- Unit of measurement
Pressure
- Pneumatic connection
1/4 inches
- Reading range
-7000 - +7000 mbar, -101.5 - +101.5 psi, -2800 - +2800 in Hwindow O, -70 - +70 mHwindow O, -206 - +206 inHg, -5250 - +5250 mmHg, -6.905 .- +6.905 ATM, -7 - +7 kg/cm2
- Reading range - air pressure
-7000 - +7000 mbar
- Pick-up time (details)
0.8 ns
ISO standards
- Display range
-7000 - +7000 mbar
- Print resolution
5 mbar
- Basic accuracy
2 %
- Temp.
0 - 50 °C
- Accuracy
+ 2 %
- Excess pressure resistance
7000 mbar
IP20
- Type
Digital
- Dim
(L x W x H) 190 x 76 x 32 mm
- Weight
205 g
- Resolution
2 %
- Accuracy
2 %
- Calibration service
Pressure
- Reading range (max.)
+7000 mbar
- Reading range (min.)
-7000 mbar
- Width
76 mm
- Height
32 mm
- Length
190 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812434 PCE Instruments PCE-917-ICA Pressure gauge Calibrated to (ISO standards) Pressure -7000 - +7000 mbar
User & Safety Instructions
User & Safety Instructions 3812434 PCE Instruments PCE-917-ICA Pressure gauge Calibrated to (ISO standards) Pressure -7000 - +7000 mbar
Description
The pressure meter is designed for use in difficult environments. This professional pressure gauge is particularly suitable for measuring hydraulic or pneumatic systems. The pressure gauge with microprocessor - control guarantees highest accuracy and high reliability. With short response time, and dust and splash-proof casing, the Ideal pressure gauge can be used in preventive maintenance.
All models have a silicone insert, which protects the pressure gauge and/or its sensor system against penetration of liquids. The pressure gauge is delivered factory calibrated, but can be laboratory calibrated and equipped with an ISO 9000 certificate. The calibration includes a test log, which is issued on the name of your company. This allows you to include the pressure measuring device in your in-house test equipment pool in accordance with ISO.
This text is machine translated.
All models have a silicone insert, which protects the pressure gauge and/or its sensor system against penetration of liquids. The pressure gauge is delivered factory calibrated, but can be laboratory calibrated and equipped with an ISO 9000 certificate. The calibration includes a test log, which is issued on the name of your company. This allows you to include the pressure measuring device in your in-house test equipment pool in accordance with ISO.
This text is machine translated.

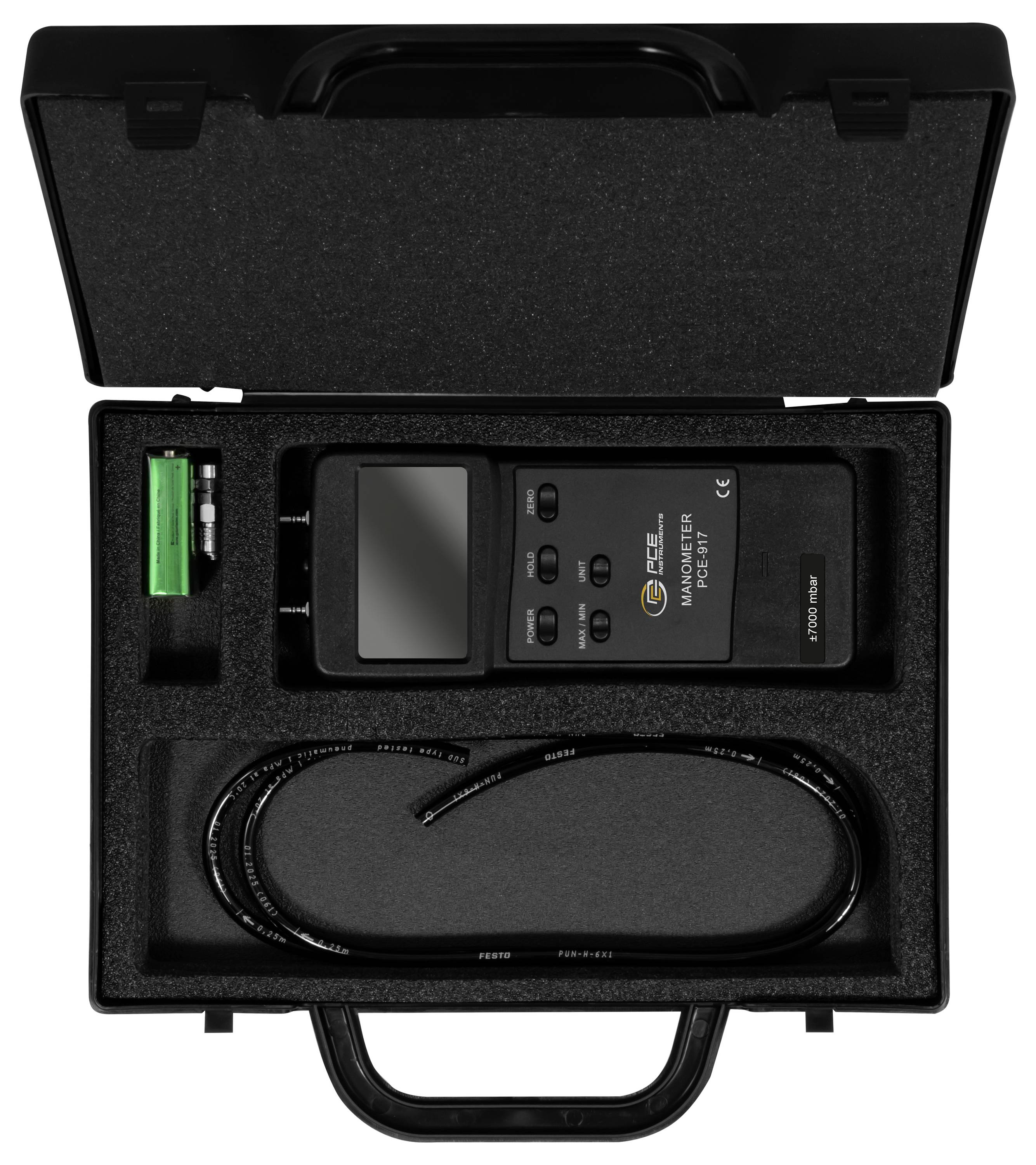

Scope of delivery
- 1 x pressure gauge PCE-917-ICA
- 1 x 9 V battery
- 2 x special stainless steel hose adapter
- 1 x 1m hose
- 1 x transport case
- 1x user manual
- 1 x ISO calibration certificate
