Buy PCE Instruments PCE-ADL 11 Anemometer 1.2 up to 30 m/s Datalogger function

Handheld digital anemometer with three-cup wind sensor and USB connector on a white background.

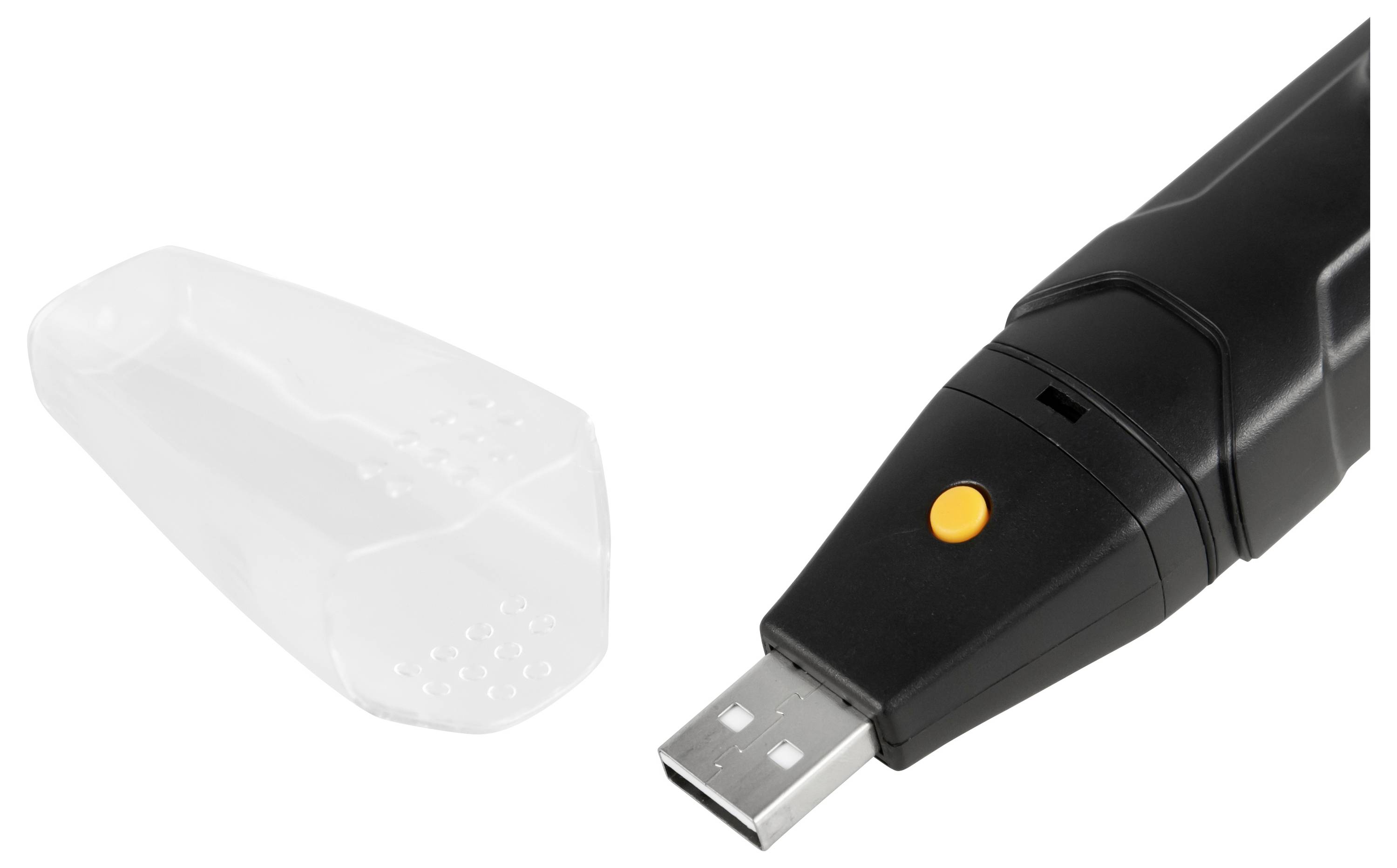

USB rechargeable black flashlight with an orange button and a translucent white diffuser cap shown beside it.

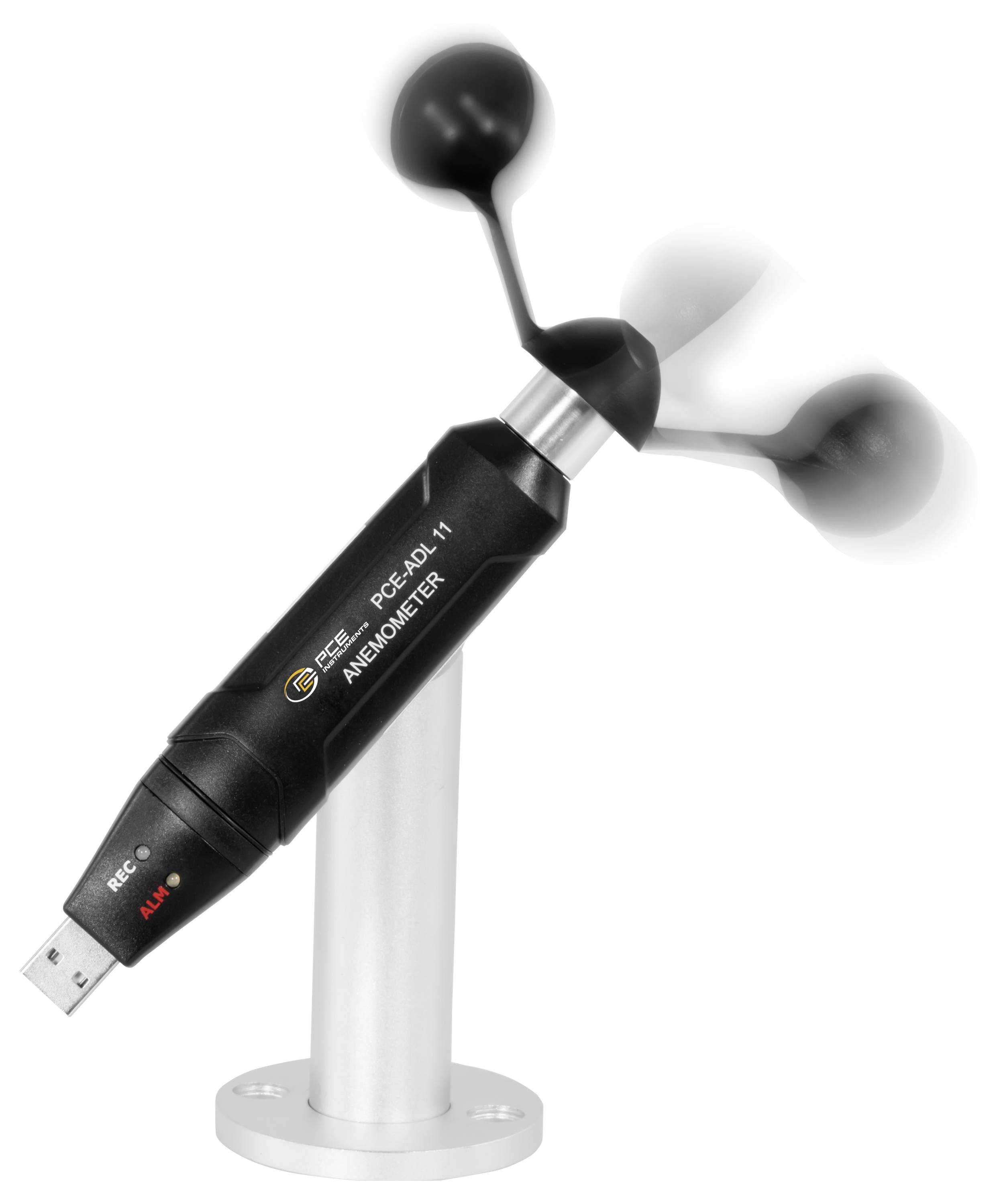

Handheld anemometer on a stand, with spinning three-cup sensor for measuring wind speed.

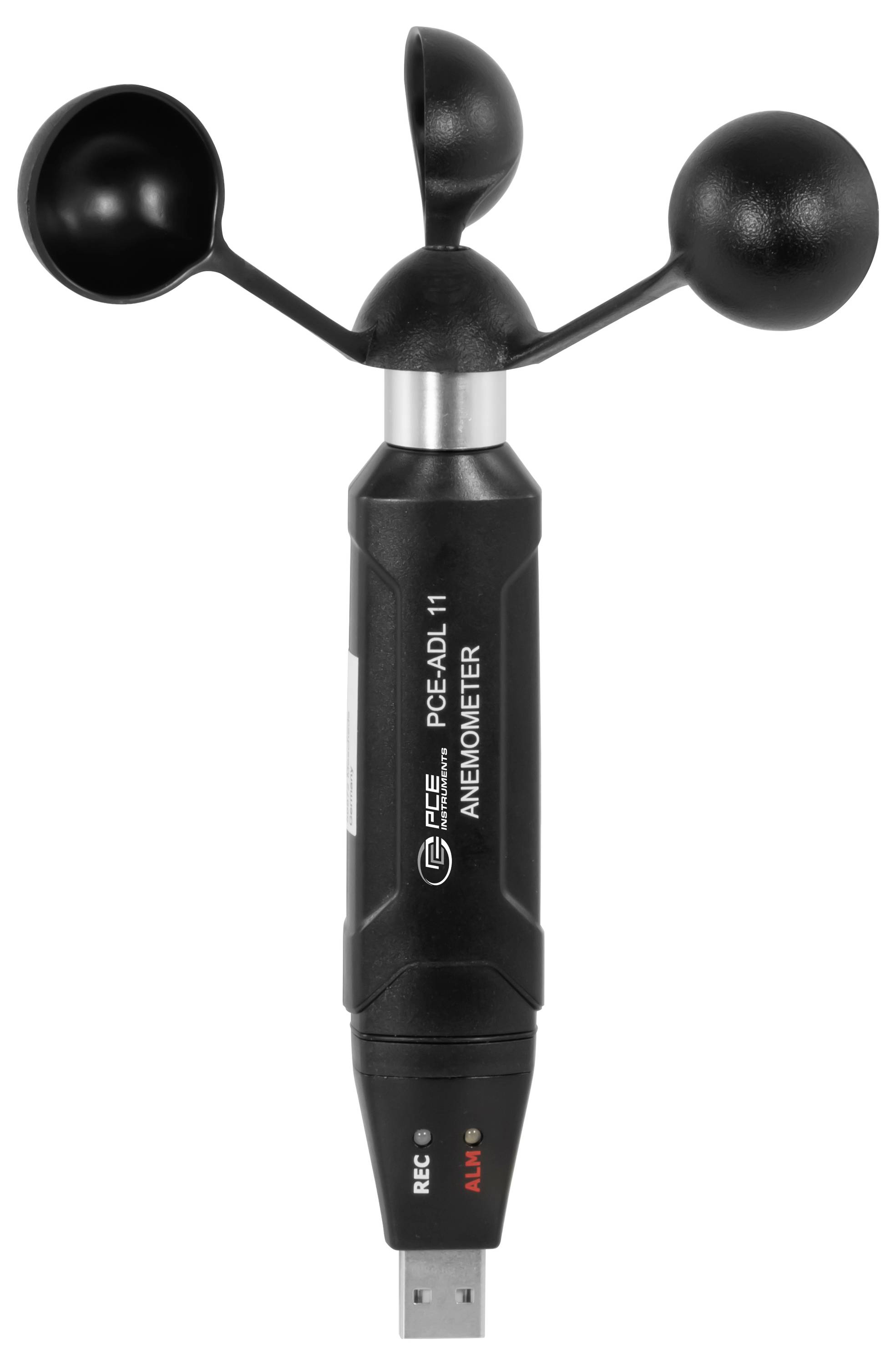

Handheld USB anemometer with three cup rotor for measuring wind speed.

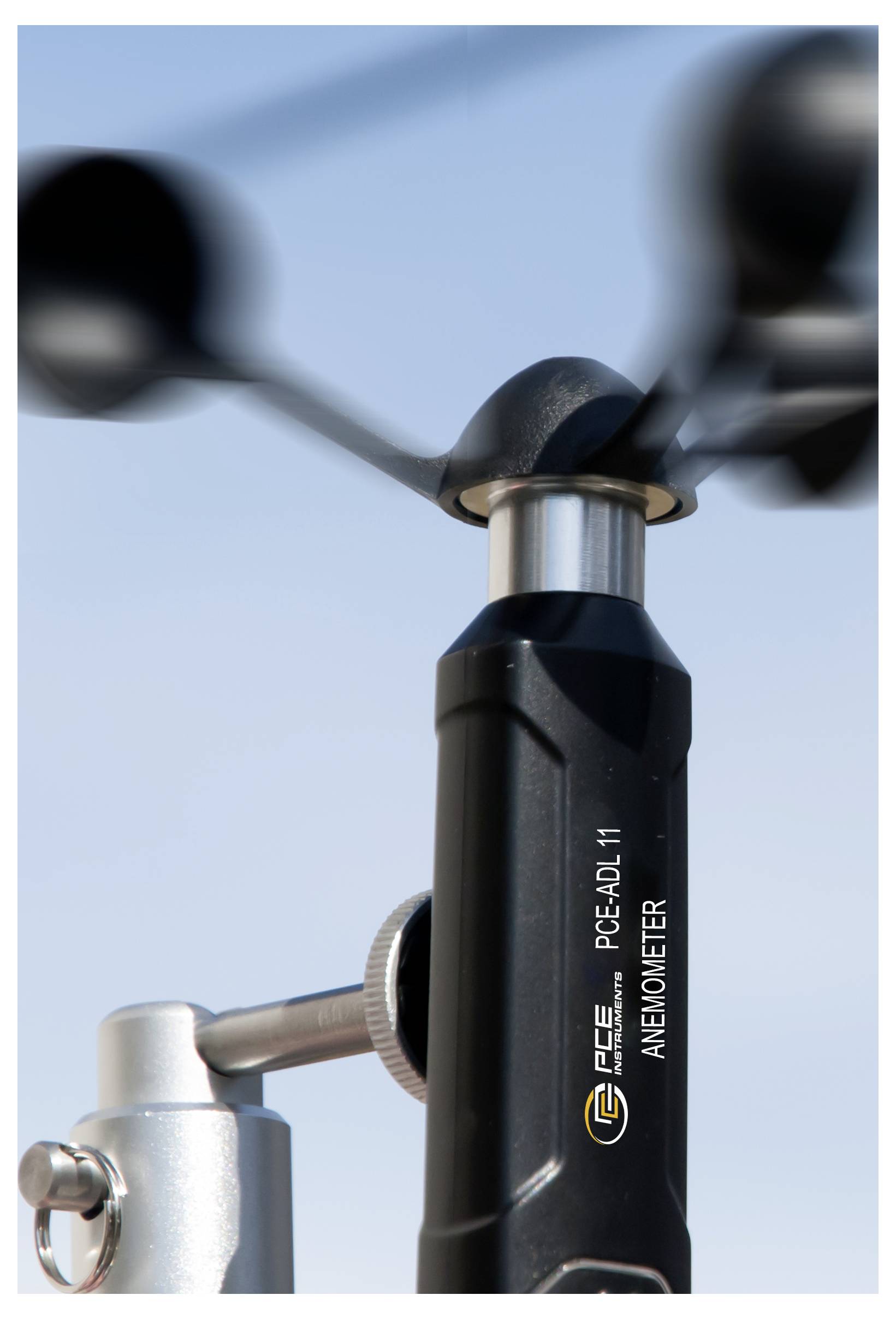

Close-up of a cup anemometer with spinning black rotor on a weather station against a blue sky.

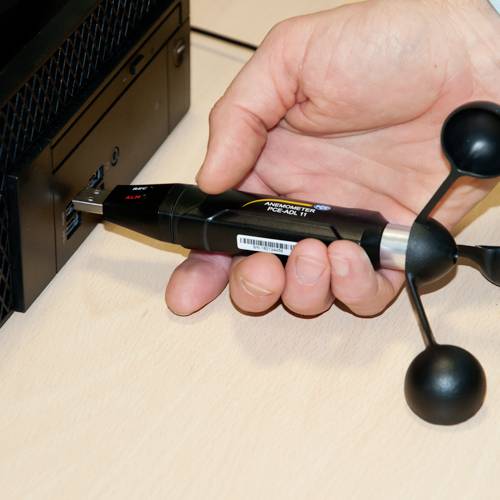

A hand is holding a measuring device with two black spheres, connected to a computer. It is likely measuring radiation.

1/6

Datasheet (PDF)

Unavailable

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Vane-wheel-emometer PCE-ADL 11

Threaded hole on the device
Configuration via the software
easy to use
Directly reacting, smooth-moving impeller
Different measurement units can be selected
Evaluation on the PC (graphic display)
Alarm when limit value is exceeded

Technical specifications

Measurement ranges: 1.2 ... 30.0 m/sec. 4.3 … 108.0 km/h 2.33 … 58.32 nodes 2.69 ... 67.2 miles/h 236 ... 5906 ft/min Resolution 0.01 m/s 0.1 km/h 0.1 knots 0.1 mph 1 ft/min Accuracy m/s: ± (3% + 0.20 m/s) km/h: ± (3% + 1.0 km/h) Node: ± (3% + 0.4 nodes) miles/h: ± (3% + 0.4 miles/h) ft/min: ± (3% + 40 ft/m) Memory for up to 60000 measured values Data interface USB for data transfer PC software for data evaluation with graphical representation Selectable recording intervals 3 sec, 5 sec, 10 sec, 30 sec, 1 m, 5 m, 10 m, 30 m, 1 h, 2 h, 3 hrs, 6 hrs, 12 hrs Operating status indicated by red, yellow and green LEDs Alarm when extreme values are exceeded yes Measurement modes automatic and manual start of the measurement Anemometer sensor Power supply Lithium thionyl chloride battery, 3.6 V AA Low battery alarm yes Operating conditions 0 ... +50 °C,< 80 % relative humidity Max. height above NN 2000 m. Weight 49 g Dimensions 145 x 35 x 30 mm

Product type: Anemometer

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 140 x 30 x 25 mm

Features: Datalogger function

Accuracy: 3 %

Weight: 60 g

Air speed reading range (max.): 30 m/s

Air speed reading range (min.): 1.2 m/s

Width: 30 mm

Height: 25 mm

Length: 140 mm

Documents & Downloads

Datasheet

Datasheet 2452288 PCE Instruments PCE-ADL 11 Anemometer 1.2 up to 30 m/s Datalogger function

User & Safety Instructions

User & Safety Instructions 2452288 PCE Instruments PCE-ADL 11 Anemometer 1.2 up to 30 m/s Datalogger function

Description

Wind gauge for different units (m/s, knots, km/h) / Data logger function / Measured value storage for up to 60,000 values / USB interface / Software for evaluation / configurable via PC software / Threaded hole for mounting the vane-wheel-emometer PCE-ADL 11 is a data logger for wind speeds. The configuration on the wind meter is done via the software included in the delivery. There are many settings options here. The wind gauge measures various parameters. This includes m/sec, km/h, knots, mph and ft/min In addition to the measurement parameters, the wind gauge software can be used to set the measurement intervals. The data logger function offers space for 60,000 measured values. Once the measurement series has been completed, the data can be read from the wind gauge on the computer via the software. The measurement results are displayed either graphically as a curve or in table form. The impeller installed on the wind gauge already responds to low flow speeds. The wind gauge can be attached by means of a mounting device. There is a threaded hole at the bottom of the wind gauge so that the device can be fixed to the mounting fixture.

This text is machine translated.
