Buy PCE Instruments PCE-AM 30 Anemometer 0.1 up to 30 m/s Thermometer

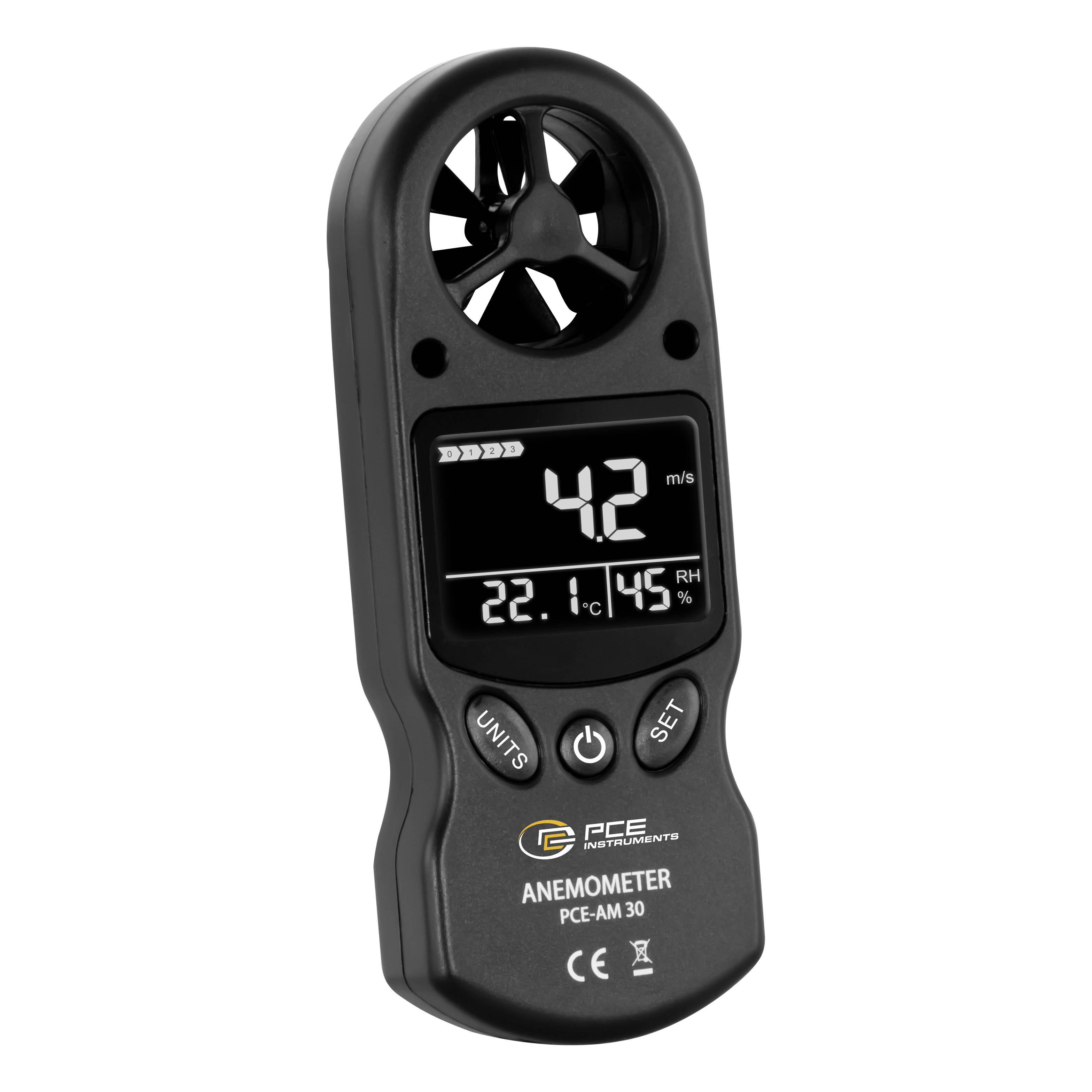

Digital handheld anemometer showing wind speed 4.2 m/s, temperature 22.1°C, and humidity 45% RH on its display.<br>

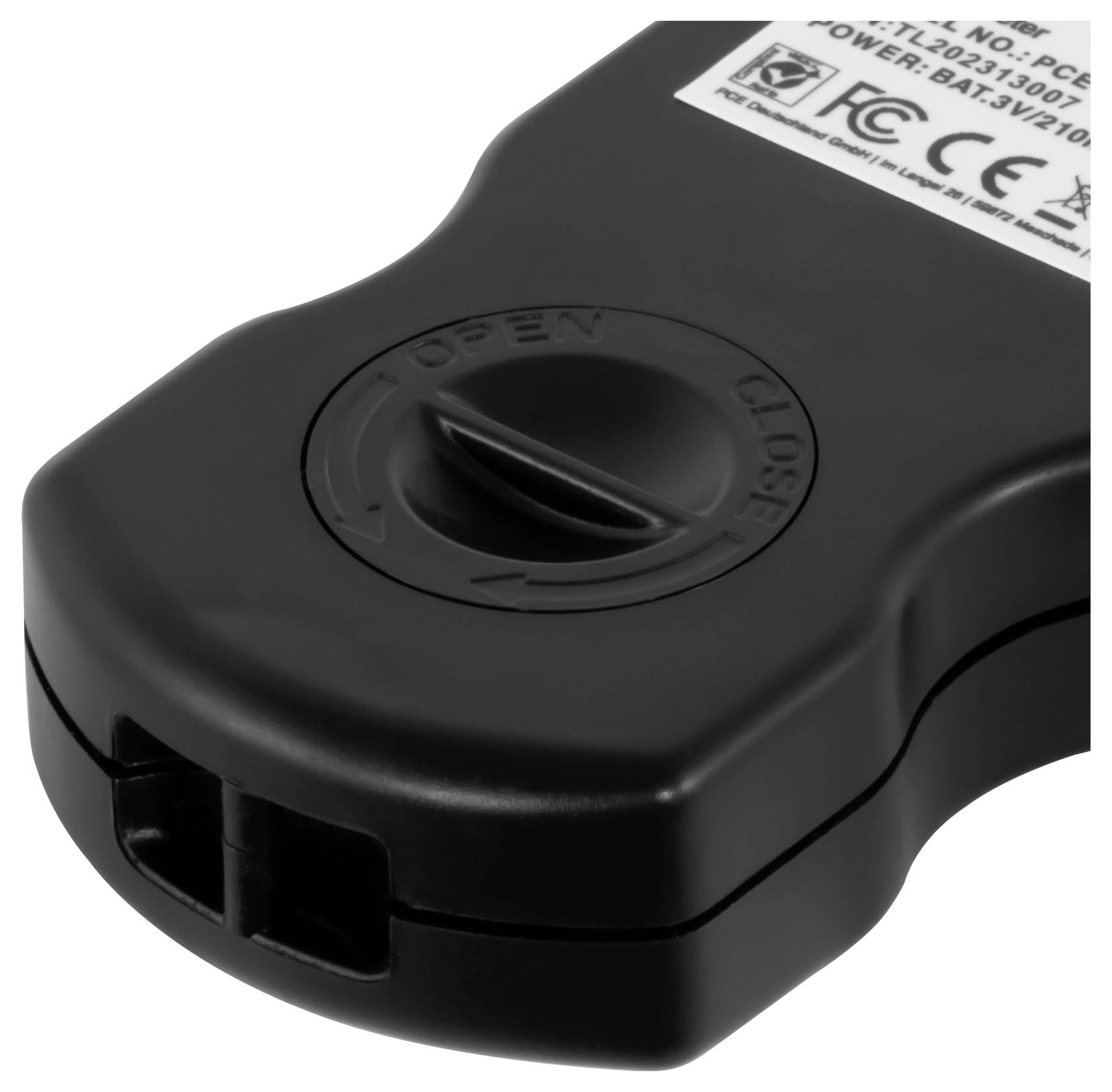

Close-up of a black battery compartment cover with an 'OPEN/CLOSE' twist lock and product label.

Man outdoors measuring wind speed with a handheld anemometer, holding it up toward bare trees under a cloudy sky.

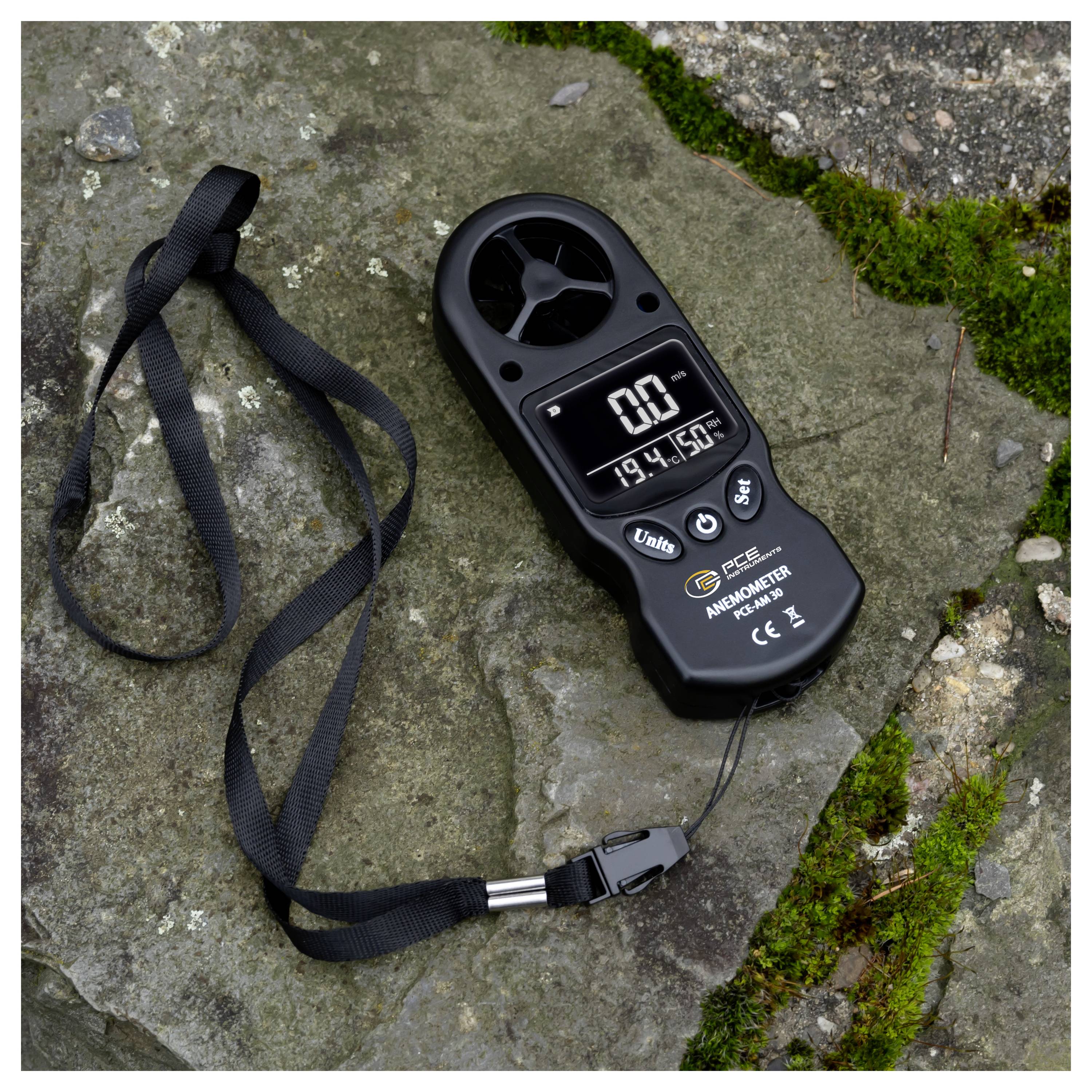

Handheld anemometer on a rock with a strap attached; display shows 0.0 and 19.4°C, indicating wind speed measurement.<br>

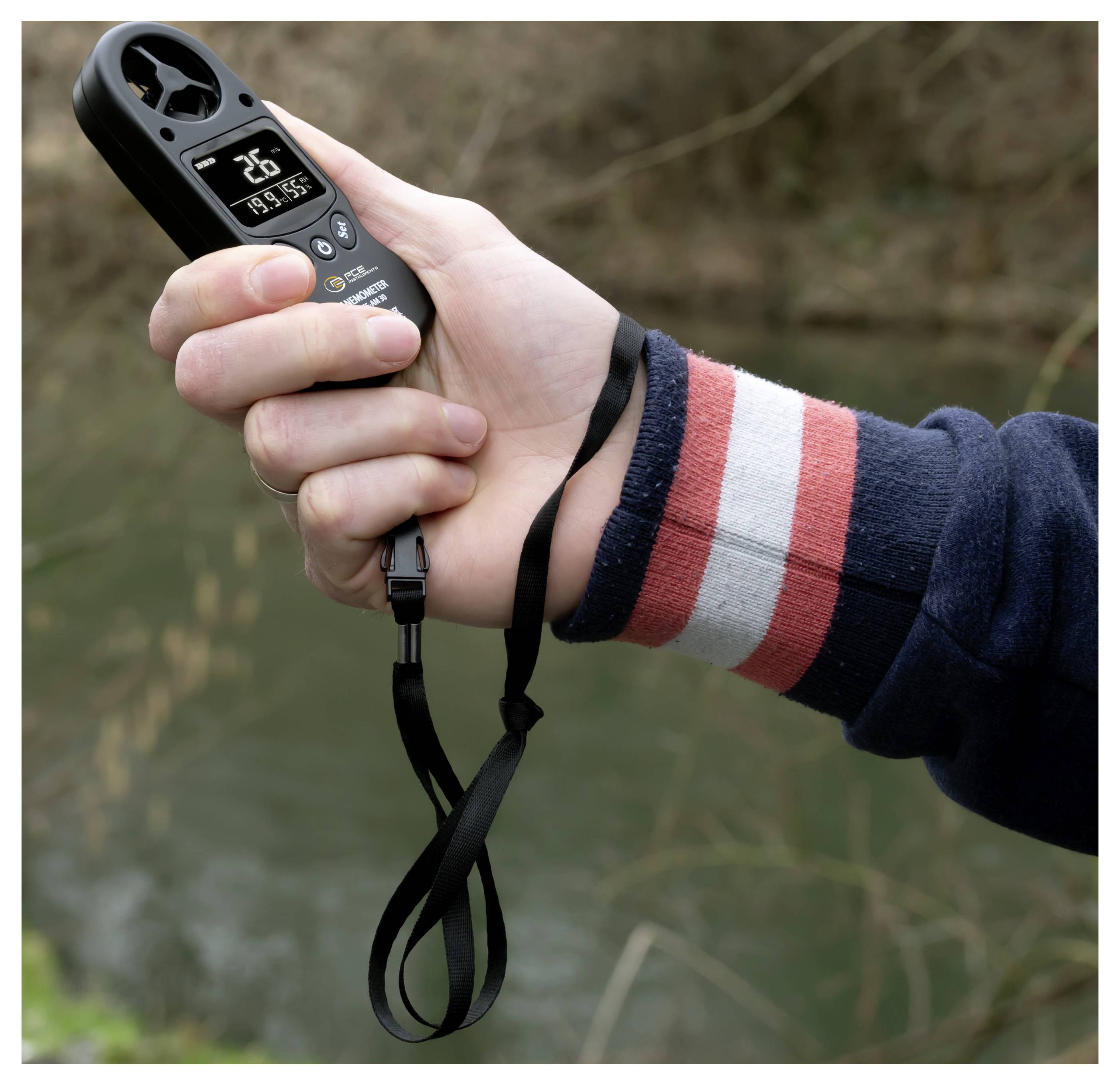

Hand holding a digital handheld anemometer outdoors, showing a wind speed reading of 2.6 on the display.

1/5

Datasheet (PDF)

Unavailable

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-AM 30

Wind speed measurement up to 55 km/h
m/s, km/h, kn, mph, ft/min
Beaufort scale
Temperature reading
Humidity measuring range
MAX, MIN, HOLD, AVG display
Vane-sensor

Technical specifications

Humidity relative
Measuring range 20 % ... 90 %
Resolution , 1%
Accuracy 5 %
Speed
Measuring range 0.1 m/s ... 30 m/s
Resolution 0.1 m/s
Accuracy ± 5 %
Speed
Measuring range 39 ft/min ... 5860 ft/min
Resolution 19 ft/min
Accuracy ± 5 %
Speed
Measuring range 0.1 knots ... 55 knots
Resolution: 0.2 nodes
Accuracy ± 5 %
Speed
Measuring range 0.3 km/h ... 55 km/h
Resolution 0.2 km/h
Accuracy ± 5 %
Speed
Measuring range 0.2 mph ... 65 mph
Resolution 0.2 mph
Accuracy ± 5 %
Temperature
Measurement range -10 °C ... +50 °C
Resolution 0.1 °C
Accuracy +/1 °C
General Technical Data
Measurement functions MIN, MAX, HOLD, average value
Units m/s, km/h, KN, mph, ft/min
Display type LCD with lighting
Sensor impeller wheel
Automatically switches off approx. 10 min.
Automatic switch-off deactivated Yes
Menu language English
Protection class (device) IP20
Weight 48 g
Dimensions (L x W x H) 115 x 40 x 18 mm
Operating conditions -10 ... 50 °C , 0 ... 90 % r.F.
Storage conditions -10 ... 50 °C , 0 ... 90 % r.F.

Wind speed resolution: 0.1 m/s

Product type: Anemometer

Temperature reading range: -10 up to 50 °C

Wind speed: 30 m/s

Accuracy: 1 °C

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 115 x 40 x 18 mm

Features: Thermometer

Accuracy: 5 %

Weight: 48 g

Temperature reading range (max.): 50 °C

Temperature reading range (min.): -10 °C

Air speed reading range (max.): 30 m/s

Air speed reading range (min.): 0.1 m/s

Width: 40 mm

Height: 18 mm

Length: 115 mm

Power supply (details): 3 V

Documents & Downloads

Datasheet

Datasheet 3192913 PCE Instruments PCE-AM 30 Anemometer 0.1 up to 30 m/s Thermometer

User & Safety Instructions

User & Safety Instructions 3192913 PCE Instruments PCE-AM 30 Anemometer 0.1 up to 30 m/s Thermometer

Description

The anemometer is an ideal solution for measuring wind speeds, whether in low breezes or strong wind currents, and can detect speeds of up to 55 km/h. Can be used in a versatile way, it enables the measurement in different units like m/s, km/h, KN, mph and ft/min and also integrates the Beaufort scale to enable a quick assessment of the wind force.
In addition to measuring the wind speed, the anemometer also offers functions for measuring temperature and humidity. These three parameters are shown simultaneously on the display, WAS offers the user a clear and simple display.
With additional functions such as MAX, MIN, HOLD and AVG the anemometer facilitates the recording of important data. The automatic shutdown function contributes to extending the battery life, whereby the device is operated with a commercially available CR2032 battery, which guarantees an operating time of approx. 88 hours. The anemometer is supplied with a wrist strap and a carrying case.

This text is machine translated.
