PCE Instruments PCE-AM 31 Anemometer 2 up to 90 km/h Thermometer
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-AM 31
- Wind speed measurement
- Temperature reading
- Volume flow
- Measurement functions: Min, max, real time measurement
- Backlighting can be switched off
- Auto switch-off

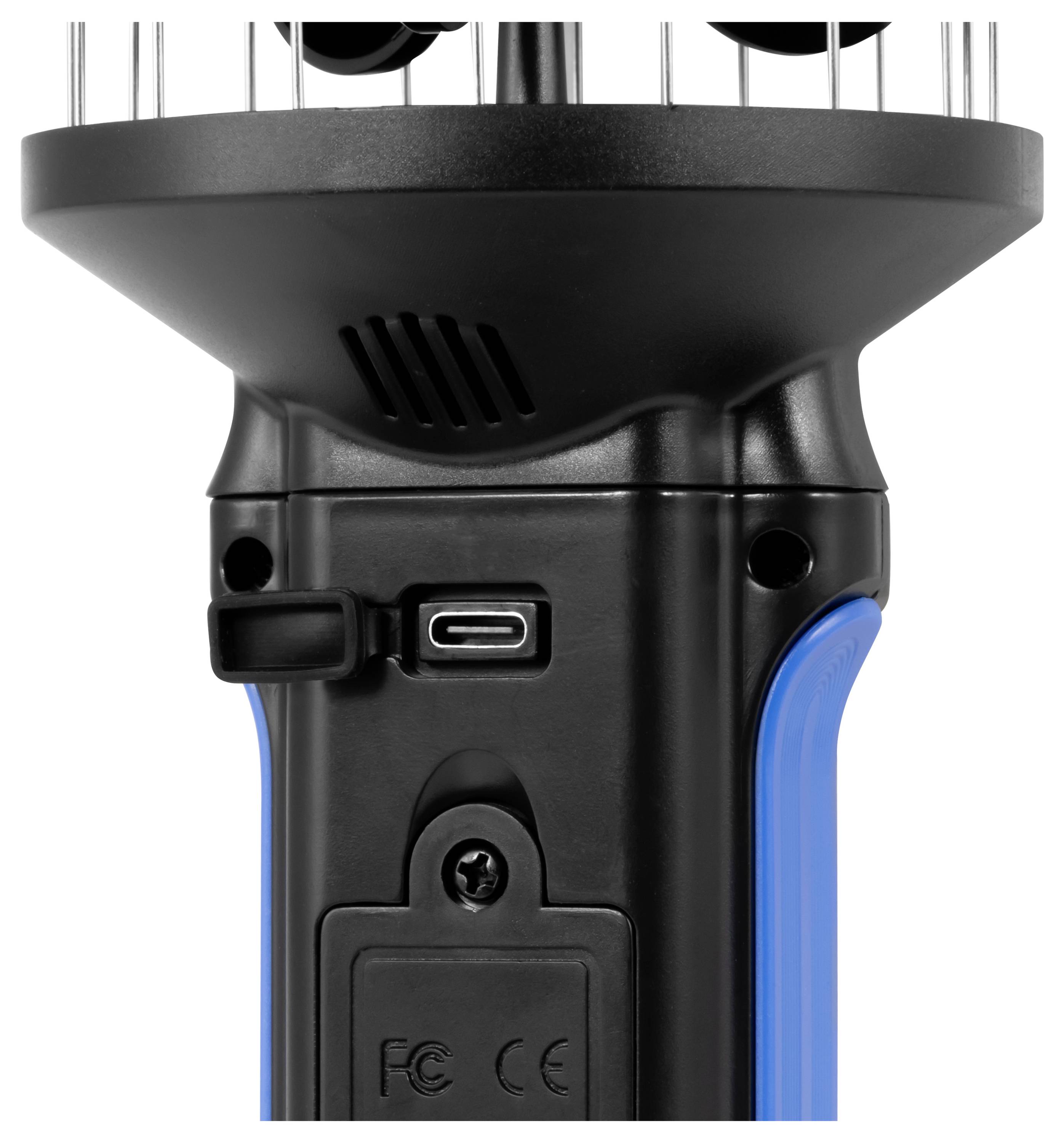

- USB-C interface
- Compact, waterproof casing
- Rechargeable lithium battery
- With built-in compass
Technical specifications
- Speed
- Measuring range 0.3 ... 40 m/s
- Resolution 0.1 m/s
- Accuracy ±5 % from MW.
- Speed
- Measuring range 2 ... 90 km/h
- Resolution 0.3 km/h
- Accuracy ±5 % from MW.
- Speed
- Measuring range 59 ... 5905 ft/min
- Resolution 19 ft/min
- Accuracy ±5 % from MW.
- Speed
- Measuring range 1 ... 55 knots
- Resolution: 0.2 nodes
- Accuracy ±5 % from MW.
- Speed
- Measuring range 1 ... 65 mph
- Resolution 0.2 mph
- Accuracy ±5 % from MW.
- Volume flow
- Measuring range 0 ... 999900 m³/min.
- Resolution 0.001 m³/min.
- Accuracy ±5 % from MW.
- Volume flow
- Measuring range 0 ... 999900 m³/s
- Resolution 0.001 m³/s
- Accuracy ±5 % from MW.
- Volume flow
- Measuring range 0 ... 999900 ft ³/min.
- Resolution 0.001 ft ³/min.
- Accuracy ±5 % from MW.
- Temperature
- Measuring range -10 ... +45 °C
- Resolution 0.2 °C
- Accuracy: ±2 °C
- Temperature
- Measuring range 14 ... 113 °F
- Resolution 0.36 °F
- Accuracy: ±3.6 °F
- Sensor
- Type X shell
- Housing plastic
- Dimensions Ø 63 mm
- General Technical Data
- Measuring FUNCTIONS MIN, MAX
- Unit(s) °C, °F, m/s, km/h, mph, ft/min, knots, m³/min, m³/s, ft³/min.
- Display type LCD with lighting
- Display size 2.3 inches
- Interface USB-C
- Charging time 3 hours
- Automatically switches off approx. 5 min.
- Automatic switch-off deactivated Yes
- Menu language English (US), English (GB)
- Protection class (device) IP43
- Voltage supply: 5 V DC
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity 400 mAh
- Operating conditions -10 ... 45 °C , 0 ... 90 % r.F.
- Storage conditions -20 ... 50 °C , 0 ... 90 % r.F.
- Dimensions ( L x W x H ) 210 x 87 x 87 mm
- Weighs 188 g.
- Product type
Anemometer
- Temperature reading range
-10 up to 45 °C
- Wind speed
2 … 90 km/h
- Accuracy
2 °C
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 210 x 87 x 87 mm
- Features
Thermometer
- Accuracy
5 %
- Weight
188 g
- Temperature reading range (max.)
45 °C
- Temperature reading range (min.)
-10 °C
- Air speed reading range (max.)
90 km/h
- Air speed reading range (min.)
2 km/h
- Width
87 mm
- Height
87 mm
- Length
210 mm
- Power supply (details)
5 V DC
Documents & Downloads
Datasheet
Datasheet 3812942 PCE Instruments PCE-AM 31 Anemometer 2 up to 90 km/h Thermometer
User & Safety Instructions
User & Safety Instructions 3812942 PCE Instruments PCE-AM 31 Anemometer 2 up to 90 km/h Thermometer
Description
The anemometer provides accurate measurements of wind speed and temperature. It reliably and conveniently measures wind speeds of 0.3 to 40 m/s. The integrated temperature sensor makes measurements possible in the range of -10 to +45 °C and thus, offers the optimum conditions for applications in the ventilation, air conditioning and environmental technology. In addition to pure flow measurement, the device automatically calculates the volume flow based on the measured air speed and an individually adjustable surface. The volume flow can be displayed in a range from 0 to 999 900 m³/min.
Key technical features of the anemometer include min/max/real-time measurement, and display in several units (°C, °F, knots, m/s, km/h, mph, ft/min, ft³/min, m³/min, m³/s), Switchable background lighting, compact, waterproof casing, integrated compass, USB-C interface as well as a rechargeable lithium battery, which provides for long operating times. The anemometer also offers various measurement modes and convenient operation via touch buttons that allow intuitive control of all functions.
A special highlight of the anemometer is its integrated compass which provides accurate directions. This is particularly useful in outdoor measurements, in environmental research or in ventilation applications, in which the direction of the air flow is crucial. With the built-in compass, users can immediately detect the direction of the wind, conduct measurements purposefully and interpret data accurately – an advantage that sets the device apart from the conventional anemometer.
This anemometer is suitable for Ideal use in air conditioning and ventilation technology, in laboratories, for environmental measurements or in the outdoor area, where precise measurements of wind speed, temperature, the calculated volume flow and the wind direction are required. The anemometer provides both professionals and hobbyists with a reliable and versatile solution for accurate measurements in a wide range of conditions.
This text is machine translated.
Key technical features of the anemometer include min/max/real-time measurement, and display in several units (°C, °F, knots, m/s, km/h, mph, ft/min, ft³/min, m³/min, m³/s), Switchable background lighting, compact, waterproof casing, integrated compass, USB-C interface as well as a rechargeable lithium battery, which provides for long operating times. The anemometer also offers various measurement modes and convenient operation via touch buttons that allow intuitive control of all functions.
A special highlight of the anemometer is its integrated compass which provides accurate directions. This is particularly useful in outdoor measurements, in environmental research or in ventilation applications, in which the direction of the air flow is crucial. With the built-in compass, users can immediately detect the direction of the wind, conduct measurements purposefully and interpret data accurately – an advantage that sets the device apart from the conventional anemometer.
This anemometer is suitable for Ideal use in air conditioning and ventilation technology, in laboratories, for environmental measurements or in the outdoor area, where precise measurements of wind speed, temperature, the calculated volume flow and the wind direction are required. The anemometer provides both professionals and hobbyists with a reliable and versatile solution for accurate measurements in a wide range of conditions.
This text is machine translated.
Scope of delivery
- 1 x anemometer PCE-AM 31
- 1 x USB-C cable
- 1x user manual
- 1 x wrist strap
