Buy PCE Instruments PCE-AQD 10 PCE-AQD 10 Multi-channel data logger Unit of measurement Humidity, CO2, Gas, Temperature

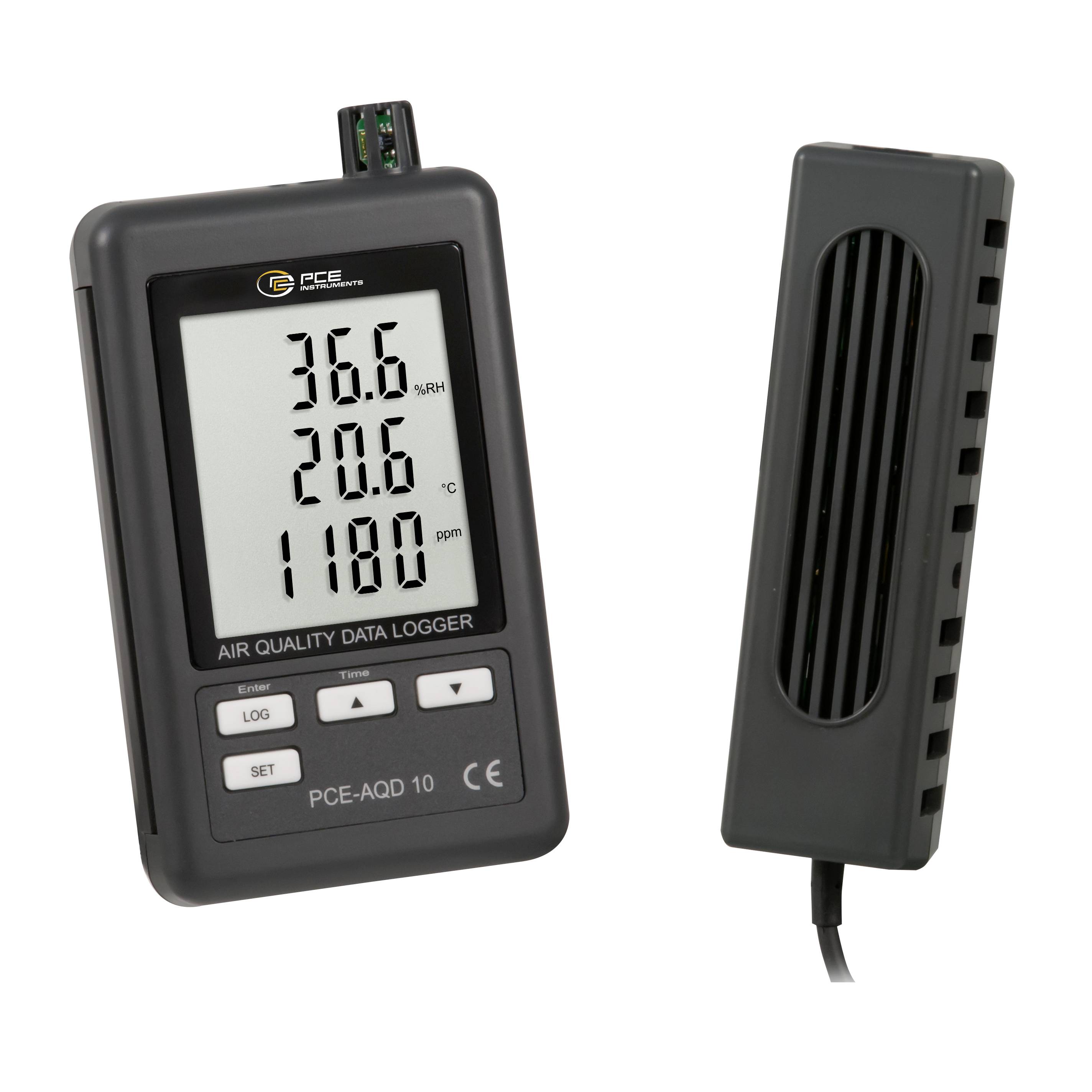

Portable air quality data logger with digital display showing 36.6%RH, 20.6°C, and 1180 ppm, plus a side sensor unit.

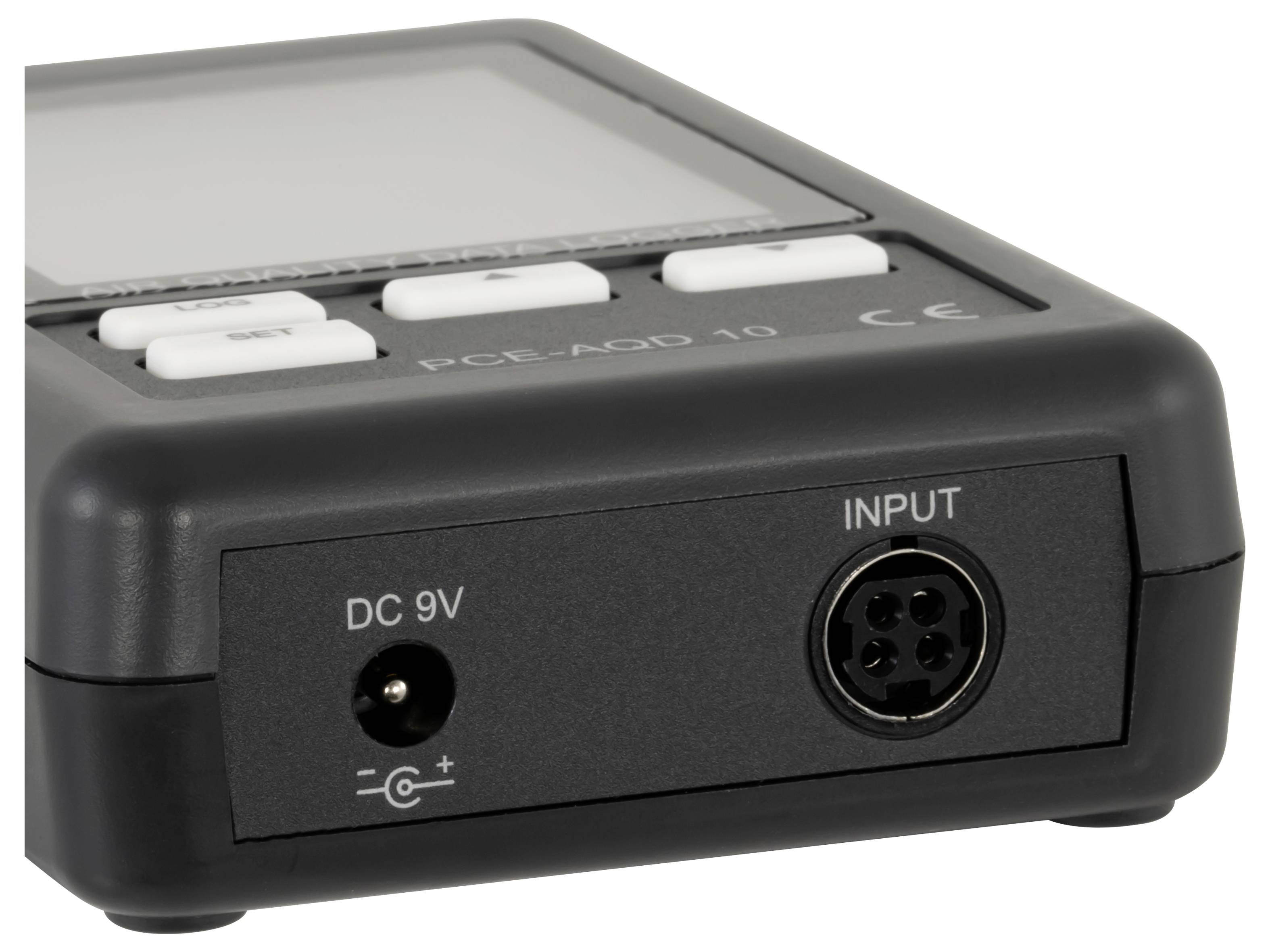

Close-up of a handheld electronic meter showing a DC 9V power input and round input port on the front panel.

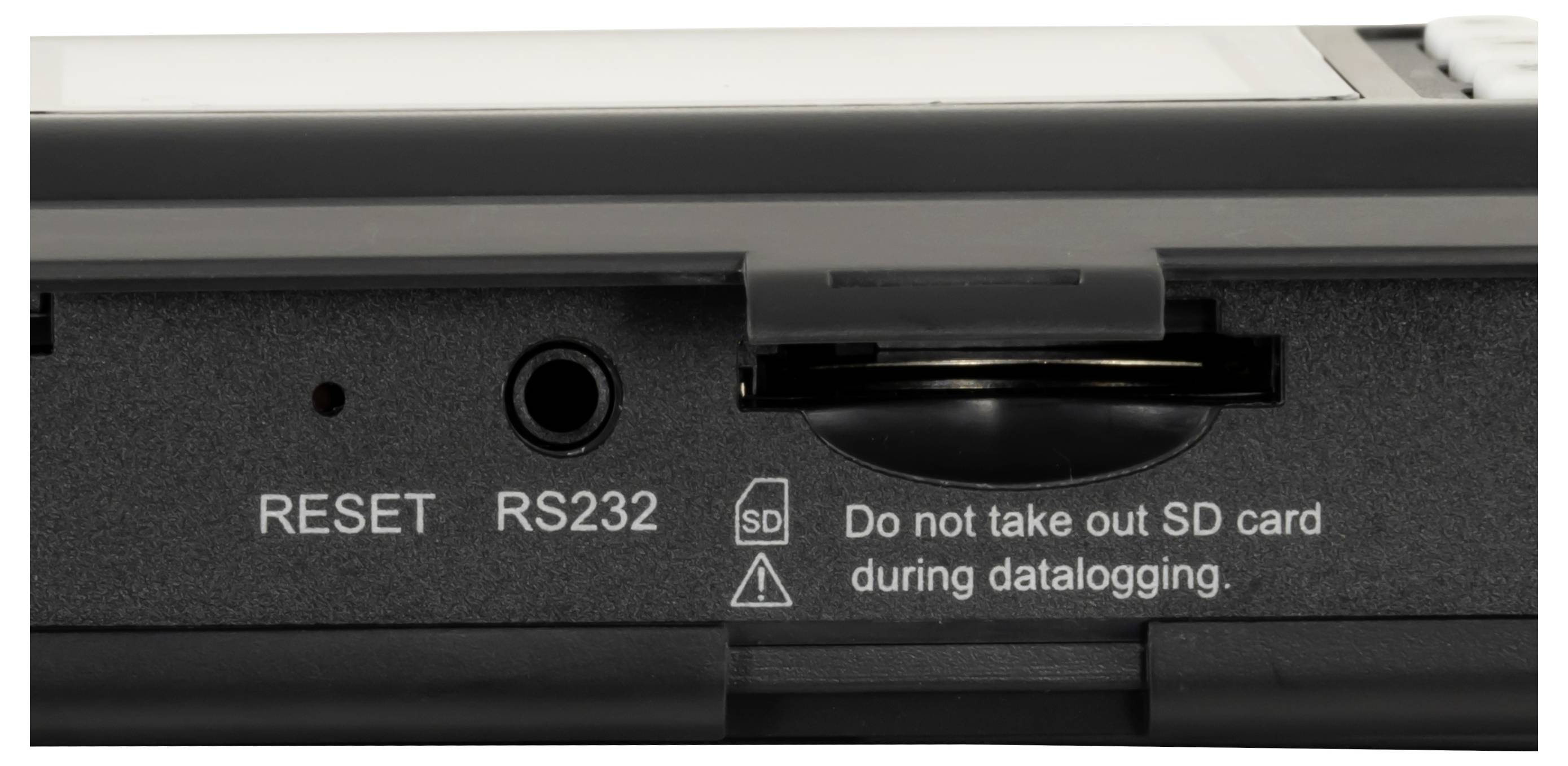

Close-up of a device panel with a RESET button, RS232 port, SD card slot, and warning text: 'Do not take out SD card during datalogging.'

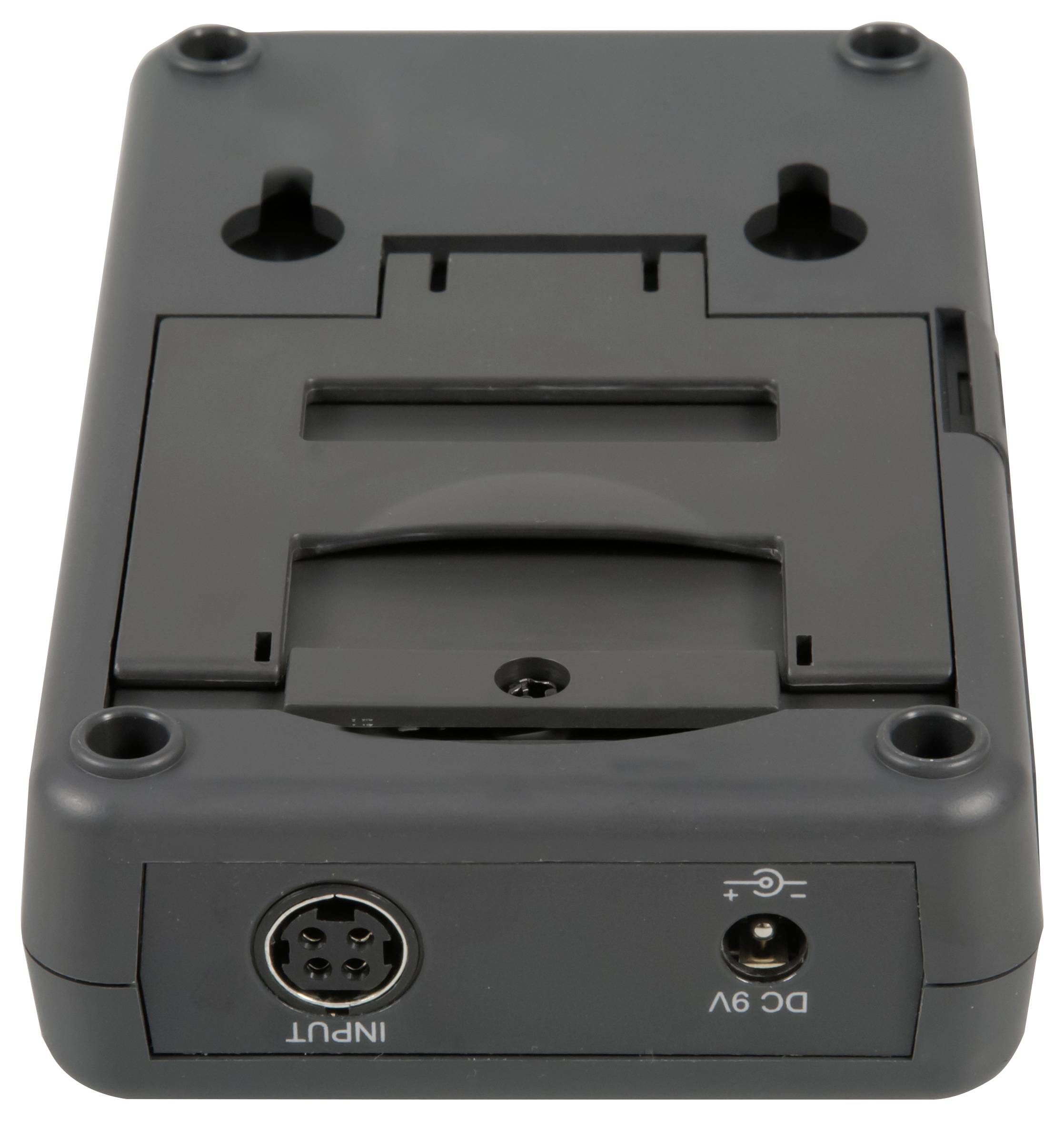

Black electronic device dock/adapter with mounting holes, circular INPUT connector, and DC 9V power jack on a white background.

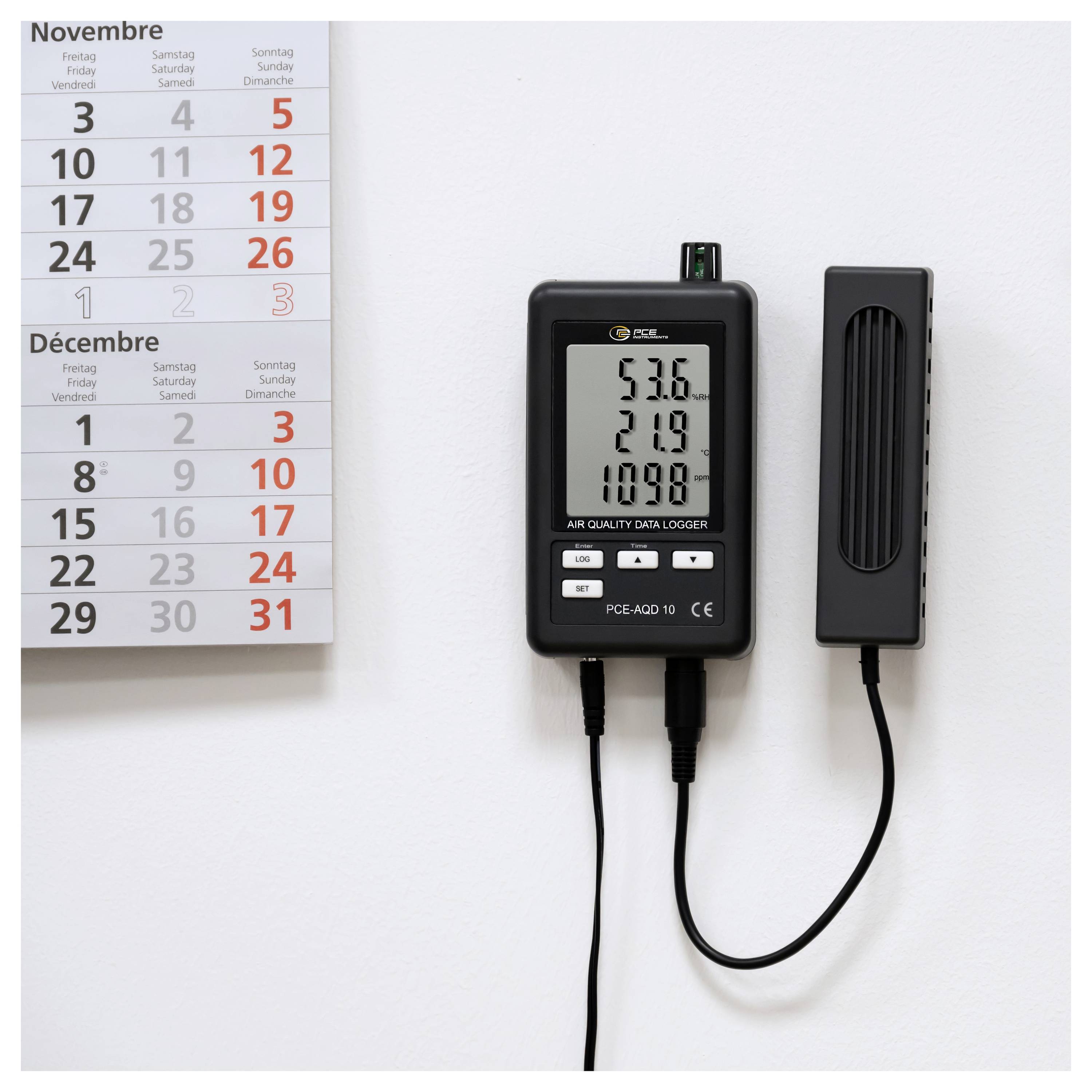

Wall-mounted air quality data logger displays readings 53.6, 21.9, and 109.8 beside a November-December calendar.

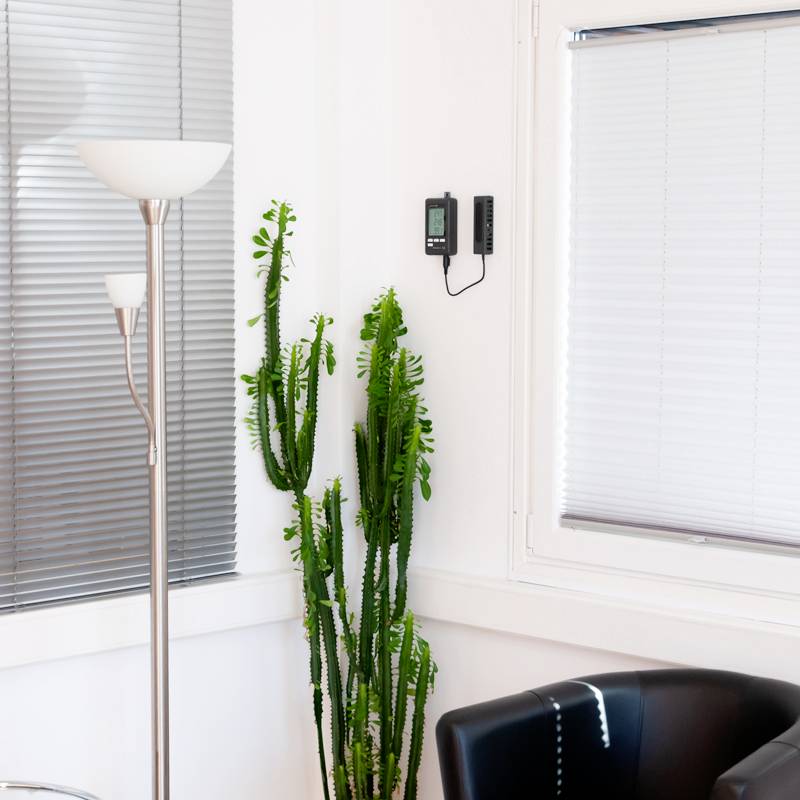

A bright room with a standard lamp, a cactus in the corner and a black leather armchair. Walls are white with venetian blinds on the window.

An indoor air quality monitor displays the time, CO2 levels, temperature, and humidity. Next to it, a plant indicator is mounted on the wall.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-AQD 10 PCE-AQD 10 Multi-channel data logger Unit of measurement Humidity, CO2, Gas, Temperature

Memory on SD card
3 parameters of air quality
CO2, air temperature and humidity
Mains powered
Save as XLS file
Large display with lighting

Technical specifications

Measured variable CO2 Measurement range 0 ... 4000 ppm Resolution 1 ppm Accuracy ± 70 ppm (&t 1000 ppm) ±5% v.MW (< 3000ppm) ±250 ppm ( > 3000 ppm) Humidity measurement Measurement range 10 ... 90 % r.F. Resolution 0.1 % r.h. Accuracy ±(4%v.MW + 1% r.F.) ( > 70% r.h. ) 4% r.F. (< 70% r.F.) Temperature measurement Measurement range 0 ... 50 °C Resolution 0.1 °C Accuracy: ±0.8 °C Memory rate 1, 2, 5, 10, 30, 60, 120, 300, 600 seconds Memory SD card up to 16 GB Display LCD with lighting Update rate display 1s Power supply plug power supply 9 V / 800 mA Operating conditions 0 ... 50 °C /< 85 % r.h. Main unit dimensions 132 x 80 x 32 mm CO2 Sensor 132 x 38 x 32 mm Weight approx. 390 g (total)

Product type: Multi-channel data logger

Unit of measurement: Humidity
CO2
Gas
Temperature

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 132 x 80 x 32 mm

Weight: 390 g

Weight, information: without batteries

CO2 reading range (max.): 4000 ppm

CO2 reading range (min.): 0 ppm

Width: 80 mm

Height: 32 mm

Length: 132 mm

Type: PCE-AQD 10

Electrode length: 132 mm

Features: Thermometer
Datalogger function

Accuracy: 250 ppm

Reading range (max.): 4000 ppm

Reading range (min.): 0 ppm

Documents & Downloads

Datasheet

Datasheet 2452290 PCE Instruments PCE-AQD 10 PCE-AQD 10 Multi-channel data logger Unit of measurement Humidity, CO2, Gas, Temperature

User & Safety Instructions

User & Safety Instructions 2452290 PCE Instruments PCE-AQD 10 PCE-AQD 10 Multi-channel data logger Unit of measurement Humidity, CO2, Gas, Temperature

Description

Industrial safety measuring device PCE-AQD 10 CO2 data logger for air quality testing / adjustable memory rate / illuminated LCD / storage on SD card / storage as XLS of CO2 data logger PCE-AQD 10 is used for measuring the air quality. The CO2 data logger measures carbon dioxide, temperature and humidity. The CO2 sensor from the CO2 data logger is separated from the main device with a connection cable. The measured values are shown on the large display of the CO2 data logger. The air quality measurement data is stored on an SD card. The CO2 data logger can measure data at adjustable intervals of 1 ... 600 seconds. The CO2 data logger is used to monitor the room air quality in living rooms, offices, schools, etc. The SD memory allows the CO2 measurement data to be monitored over a long period of time in order to initiate further measures to improve the air quality of the room.

This text is machine translated.
