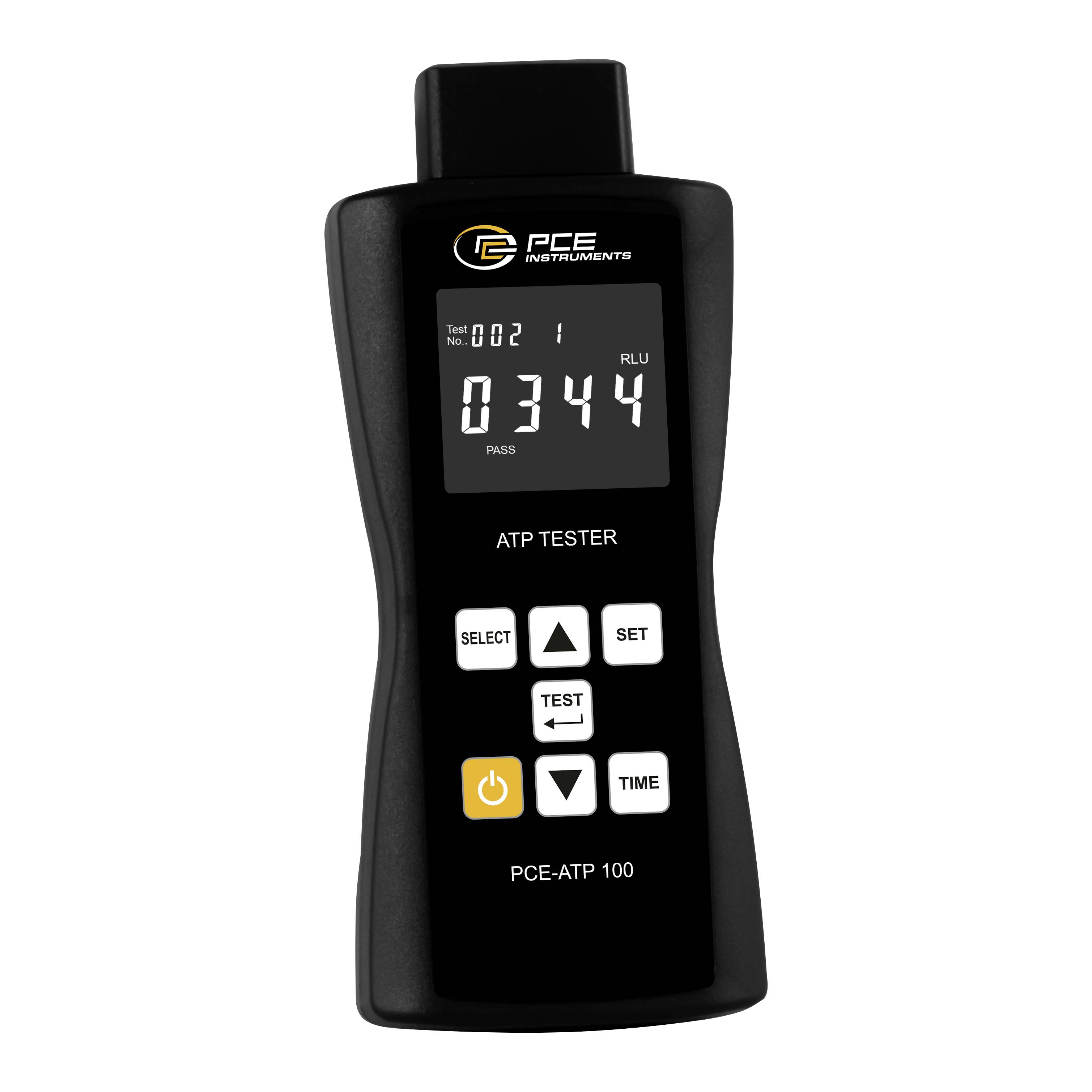

PCE Instruments PCE-ATP 100 ATP tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE ATP 100
- Measurement range up to 9999 RLU
- Memory for 3000 measurements
- Limit values can be set individually
- Automatic calibration
- Energy saver mode
- LCD display
Technical specifications
- ATP
- Measuring range 0 ... 9999 RU
- Resolution 1 RLU
- Accuracy 1 × 10⁻¹⁶ mol ATP
- General Technical Data
- Display type LCD
- Display size 2.4 inches
- Storage medium Internal memory
- Memory capacity: 3000 measurements
- Interface USB-C
- ATP bioluminescence measurement method
- Measurement time 15 s.
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply batteries

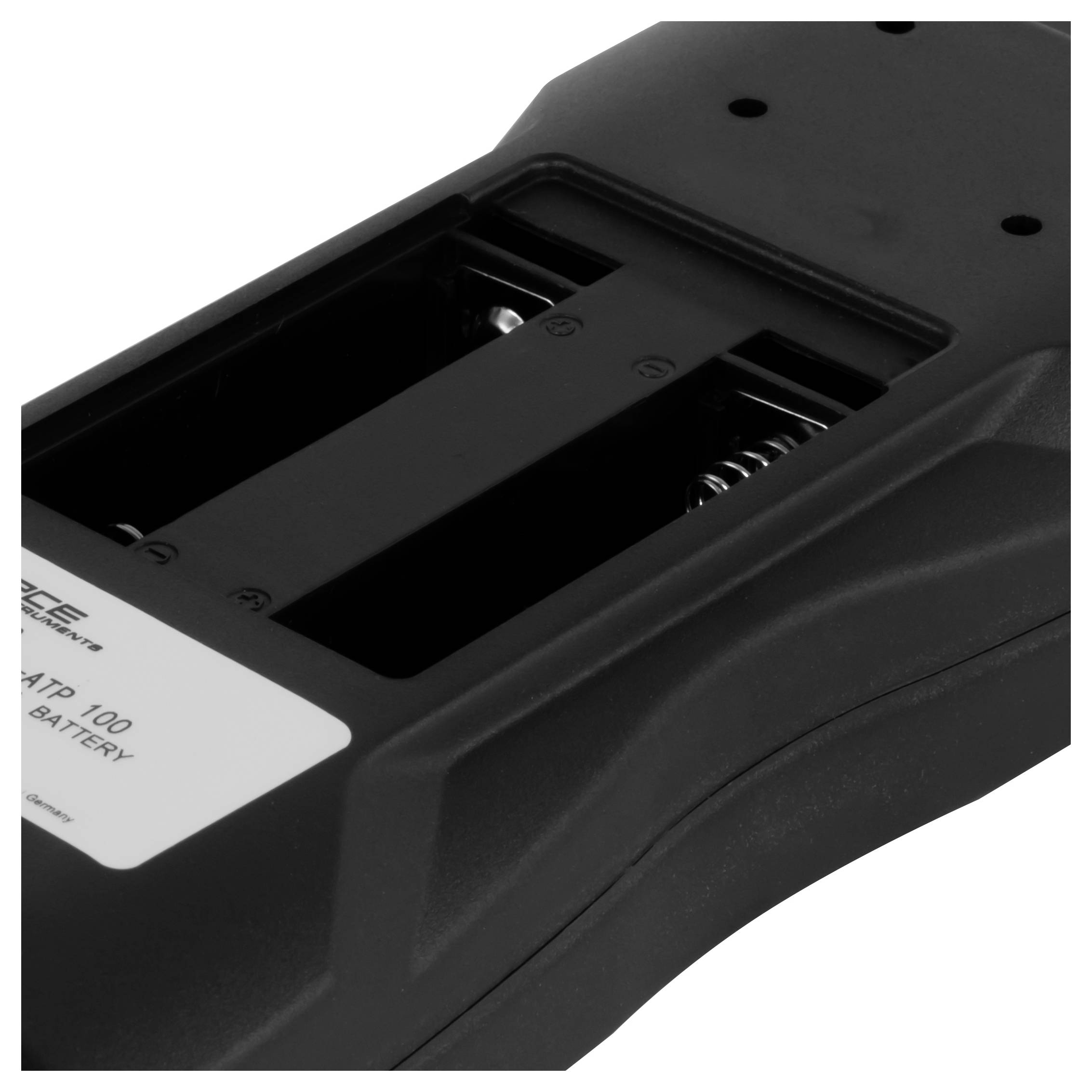

- Battery 2 x 1.5 V AA battery , alkaline-manganese
- Capacity 2970 mAh
- Operating conditions 0 ... 40 °C , 20 ... 85 % r.F.
- Storage conditions -10 ... 40 °C , 0 ... 60 % r.F.
- Dimensions ( L x W x H ) 198 x 85 x 38 mm
- Weighs 224 g.
- Product type
ATP tester
- Basic accuracy
2 %
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 198 x 85 x 38 mm
- Weight
224 g
- Reading range
RLU
- Width
85 mm
- Height
38 mm
- Length
198 mm
- Power supply (details)
2 x 1.5 V
Documents & Downloads
Datasheet
Datasheet 3812943 PCE Instruments PCE-ATP 100 ATP tester
User & Safety Instructions
User & Safety Instructions 3812943 PCE Instruments PCE-ATP 100 ATP tester
Description

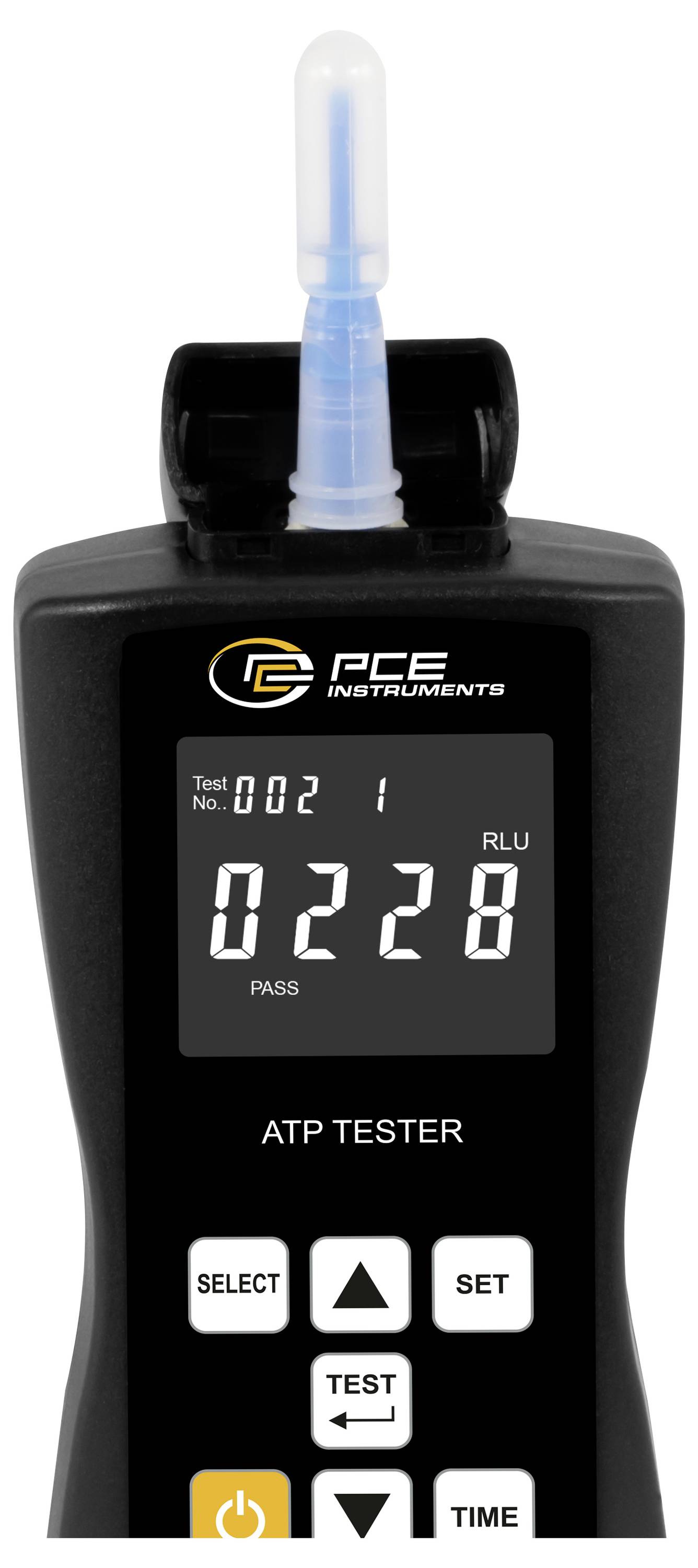

The ATP-Tester is a compact and powerful measuring device for a quick review of surface hygiene in various areas of application. Using biochemical luminescence technology, the ATP tester converts the invisible ATP concentration into visible light signals and outputs the results as relative light units (RLU). The measured values range from 0 ... 9999 RLU and enable a precise and quantitative assessment of microbial exposure. The resolution is 1 RLU, the accuracy is 1 × 10⁻¹⁶ mol ATP.
The ATP tester has an internal memory for 3000 measurements and supports the storage of up to 100 limit numbers with individually adjustable limit values. The measurement results are displayed on a well-readable LCD. The internal calibration function ensures reliable results while the energy saving mode optimizes battery life.
The operation of the ATP tester is effected via a clear keypad with functions such as date and time setting, limit value management and data storage management. The ATP tester is suitable for Ideal for use in the food industry, healthcare, public facilities and for monitoring cleaning and disinfection processes. Typical application areas are the control of work areas, medical devices, production facilities and other hygiene-relevant surfaces.
This text is machine translated.
The ATP tester has an internal memory for 3000 measurements and supports the storage of up to 100 limit numbers with individually adjustable limit values. The measurement results are displayed on a well-readable LCD. The internal calibration function ensures reliable results while the energy saving mode optimizes battery life.
The operation of the ATP tester is effected via a clear keypad with functions such as date and time setting, limit value management and data storage management. The ATP tester is suitable for Ideal for use in the food industry, healthcare, public facilities and for monitoring cleaning and disinfection processes. Typical application areas are the control of work areas, medical devices, production facilities and other hygiene-relevant surfaces.
This text is machine translated.
Scope of delivery

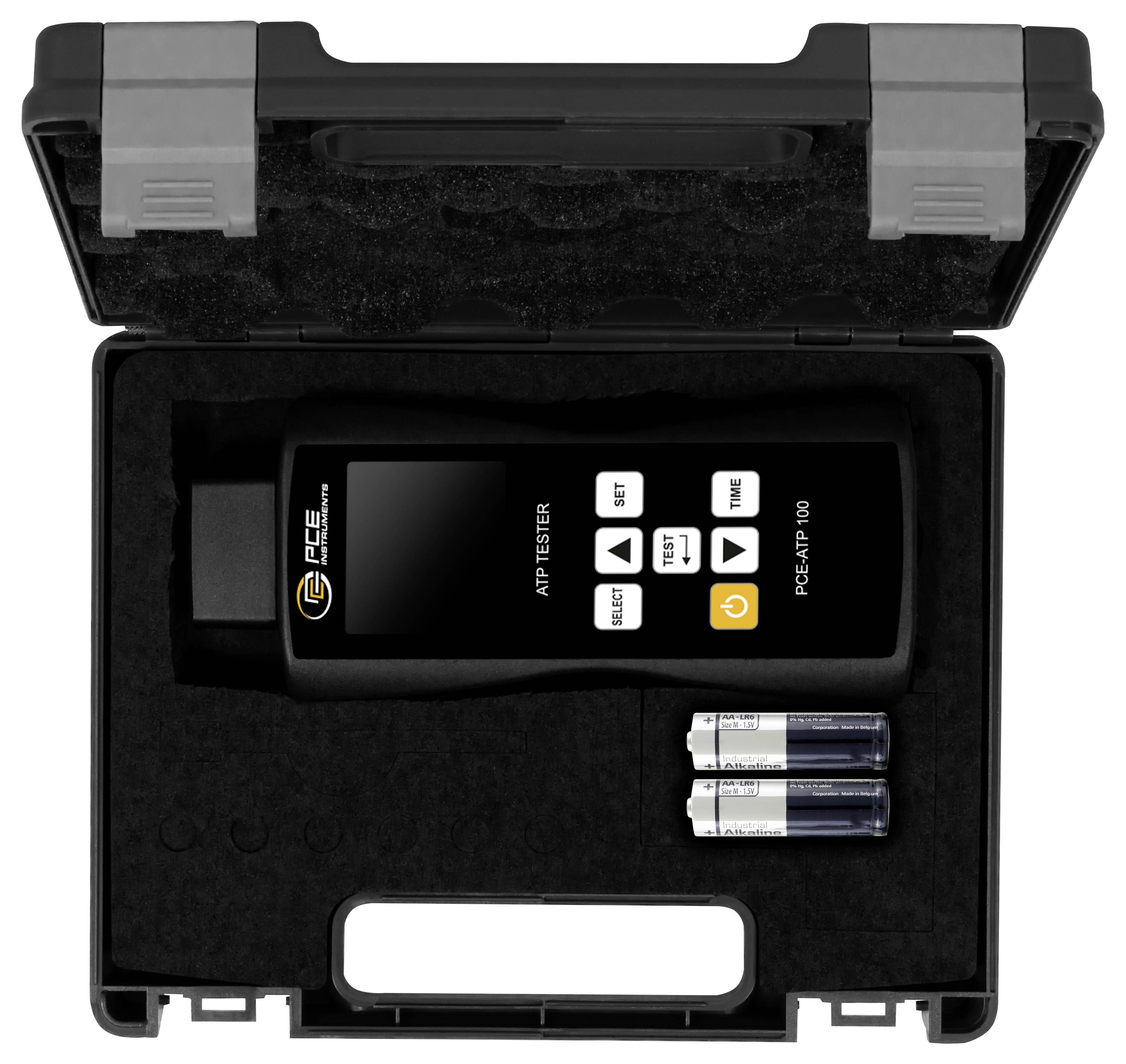

- 1 x ATP tester PCE ATP 100
- 1 x transport case
- 2 x 1.5 V AA batteries
- 1x user manual
- **Test tubes not supplied**
