PCE Instruments PCE-BPD-U-41D Digital rack-mount meter
EAN:
Part number:
Item no:
Highlights & Details
INSTALLATION DISPLAY PCE-BPD-U-41D
- Display with metal housing Wall and switchboard mounting IP65Bright red LED displayindividually programmableDigit height of up to 100 mmDifferent output signalsDisplay can be read from a large distance
Technical specifications

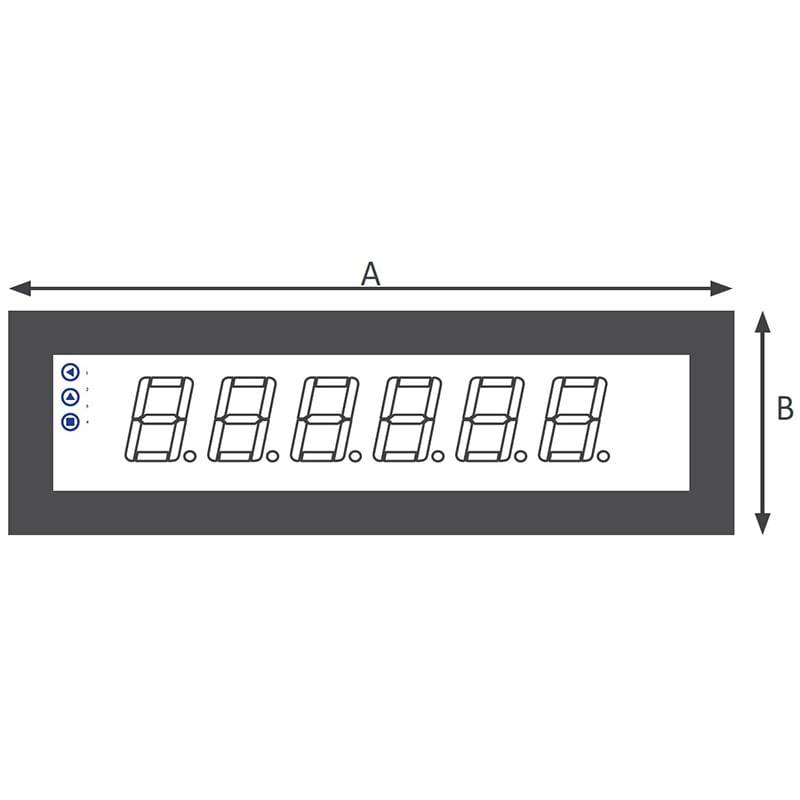

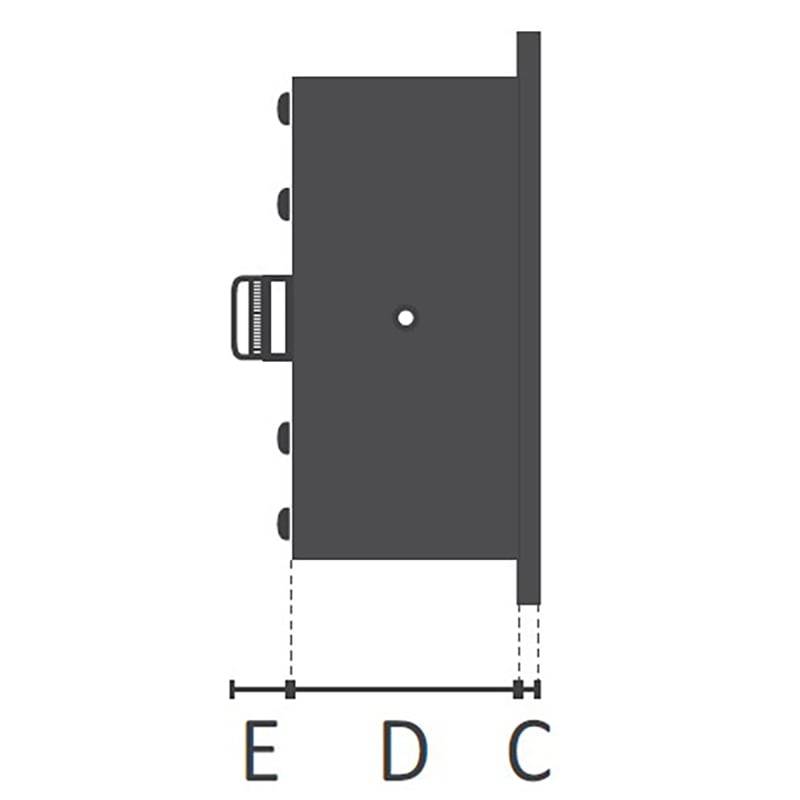

- Convert analog signal function to a usable valueInput signal 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DCMaximum input signal 100 mA or 100 V DCInput impedance (current measurement) 11 ΩInput impedance (voltage measurement) 932 kΩNumber of digits 4Digit height 100 mmMaximum reading distance 50 m.Accuracy 0.05% from MB.Measurement rate 15 HzReaction time with changing values from 0 to 99 % of the signal 120 msDisplay area -1999 ... 9999Number of outputs 2Power input <5.25 W(Without optional accessories) Power consumption 6.75 W (with optional accessories)Sensor power supply 20, 15, 10, 5 VDCAccuracy of sensor voltage supply ±5 %Maximum current Sensor supply 35 mA (with short-circuit protection)Power supply 11 ... 36 V DCWeight 2500 gOther specificationsCable cross-section for the input and output signal <0.5 mm²Cable cross-section for <2.5 mm²Supply voltage Display 7 segment displayViewing angle 120 °Warm-up time 15 minutesOperating conditions 0 ... 50 °C, <90 % r. F., not condensingStorage conditions -20 ... 70 °C, <90 % r. F., not condensingDimensions (sketch above for the pictures) A 542 mm B 166 mm C 3 mm D 55 mm E 25 mm
- Product type
Digital rack-mount meter
- Reading type
Amperage
- Reading range (min.)
4 mA
- Type
PCE-BPD-U-41D
- Reading range (max.)
20 mA
- Display technology
LED
IP65
- Recess width
542 mm
- Display (counts)
999999
- Recess height
166 mm
- Operating voltage
265 V AC
- Dim
(L x W x H) 542 x 55 x 166 mm
- Weight
3500 g
- Max. operating voltage
265 V AC
- Min. operating voltage
85 V AC
- Display lighting
red
- Features
selectable units
- Recess depth
55 mm
- Width
55 mm
- Height
166 mm
- Length
542 mm
- Digit height
100 mm
Manufacturer's standards (no certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2813562 PCE Instruments PCE-BPD-U-41D Digital rack-mount meter
Description
The display is designed so that the displayed measured values can be read from a large distance. With a digit height of 60 mm or 100 mm, the reading distance on the display is 25 m or 50 m. The red LEDs of the display enable the reading of the measured values even in a very Heller environment. The display housing consists of metal and is protected against IP65 splash water. Thus, the display can be used under harsh environmental conditions. Many different display variants are available as input signal. Among other things, the display supports 4 … 20 mA and pulses. The display is configured directly via the keypad. Output interfaces are available as an option for the display. This makes it possible to switch process signals and pulses via the display when, for example, a limit value is reached. For the best alignment during wall mounting, the display can be aligned vertically. Besides the wall mounting, the display can be attached to a control cabinet. The insulation on the display housing ensures that no water enters the control cabinet.
This text is machine translated.
This text is machine translated.
Features
- Display with metal housing Wall and switchboard mounting IP65Bright red LED displayindividually programmableDigit height of up to 100 mmDifferent output signalsDisplay can be read from a large distance
Scope of delivery
- 1 x displays PCE-BPD-U-41D1x user manual
