PCE Instruments PCE-BPD-U-46A Digital rack-mount meter
EAN:
Part number:
Item no:
Highlights & Details
INSTALLATION DISPLAY PCE-BPD-U-46A
- Industrial digital display with metal housing Wall and switchboard mounting IP65Bright red LED displayindividually programmableDigit height of up to 100 mmDifferent output signalsDisplay can be read from a large distance
Technical specifications

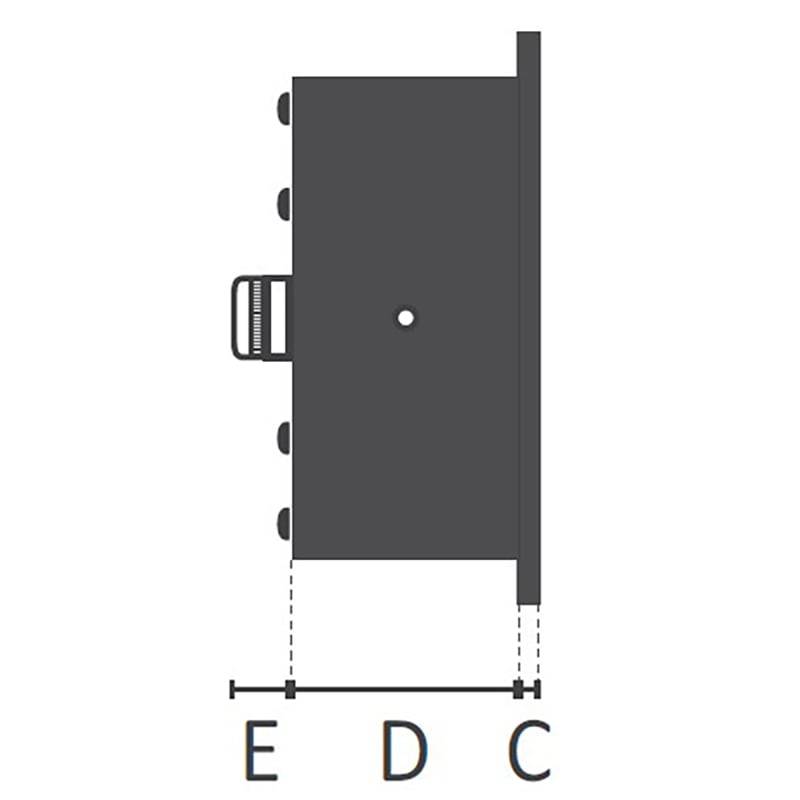

- Convert analog signal function to a usable valueInput signal 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DCMaximum input signal 100 mA or 100 V DCInput impedance (current measurement) 11 ΩInput impedance (voltage measurement) 932 kΩNumber of digits 4Digit height 60 mmMaximum reading distance 25 m.Accuracy 0.05% from MB.Measurement rate 15 HzReaction time with changing values 120 msFrom 0 to 99% of the signalDisplay area -1999 ... 9999Number of outputs 2Power consumption 3 W (without optional accessories) Power consumption 5 W (with optional accessories)Sensor power supply 20, 15, 10, 5 VDCAccuracy of sensor voltage supply ±5 %Maximum current Sensor supply 35 mA (with short-circuit protection)Power supply 85 ... 265 V AC / 120 ... 370 V DCWeighs 2200 g.Other specifications Cable cross-section for the input and output signal <0.5 mm²Cable cross-section for the supply voltage <2.5 mm²Display 7 segment displayViewing angle 120 °Warm-up time 15 minutesOperating conditions 0 ... 50 °C, <90 % r. F., not condensingStorage conditions -20 ... 70 °C, <90 % r. F., not condensingDimensions (sketch above for the pictures) A 542 mm B 166 mm C 3 mm D 55 mm E 25 mm
- Product type
Digital rack-mount meter
- Reading type
Amperage
- Type
PCE-BPD-U-46A
- Display technology
LED
IP65
- Display (counts)
999999
- Operating voltage
265 V AC
- Dim
(L x W x H) 542 x 55 x 166 mm
- Weight
3500 g
- Max. operating voltage
265 V AC
- Min. operating voltage
85 V AC
- Display lighting
red
- Features
selectable units
- Width
55 mm
- Height
166 mm
- Length
542 mm
- Digit height
100 mm
Manufacturer's standards (no certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2813563 PCE Instruments PCE-BPD-U-46A Digital rack-mount meter
Description
The Industrial Digital Display is designed so that the displayed measurement values can be read from a large distance. With a digit height of 60 mm or 100 mm, the industrial digital display reading distance is 25 m or 50 m. The red LEDs of the industrial digital display enable the reading of the measured values even in very Heller environment. The housing of the industry digital display is made of metal and is protected with IP65 splash water. Thus, the industrial digital display can be used under harsh environmental conditions. As input signal many different versions are available in the industry digital display. Among other things, the industry supports digital display 4 … 20 mA and pulses. The industry digital display is configured directly via the keypad. Optionally output interfaces are available in the industry with digital display. This makes it possible to switch process signals and pulses via the digital display industry, for example when a limit value is reached. For optimum alignment when mounting on the wall, the industrial digital display can be vertically aligned. In addition to wall mounting, the digital industry display can be attached to a control cabinet. The insulation on the housing of the digital display industry ensures that no water enters the control cabinet.
This text is machine translated.
This text is machine translated.
Features
- Industrial digital display with metal housing Wall and switchboard mounting IP65Bright red LED displayindividually programmableDigit height of up to 100 mmDifferent output signalsDisplay can be read from a large distance
Scope of delivery
- 1 x installation display PCE-BPD-U-46A1x user manual
