Buy PCE Instruments PCE-BSH 10000 Industrial scales Weight range 10000 g Readability 0.2 g battery-powered

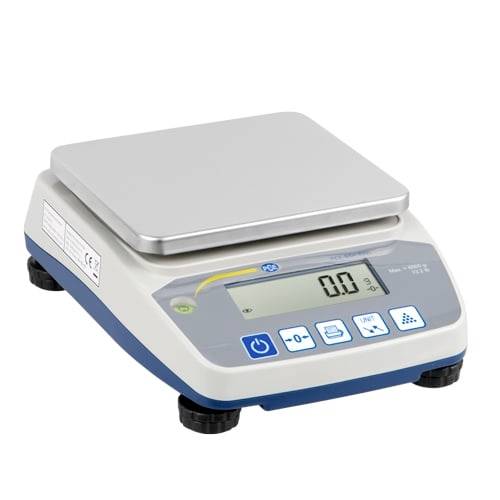

Digital tabletop scale with stainless steel weighing platform and front LCD display showing 0.0.<br>

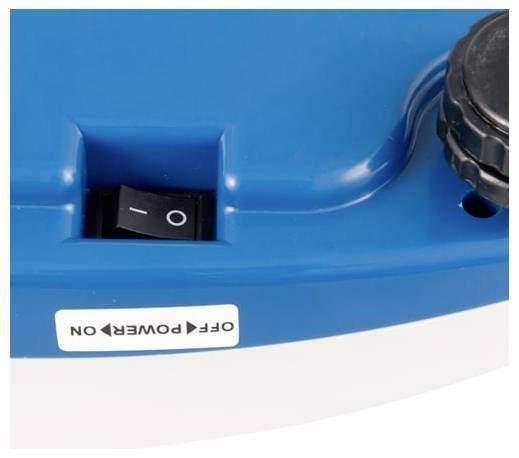

Close-up of a blue device showing an on/off rocker switch, with the 'OFF' label visible beside a dial or knob.<br>

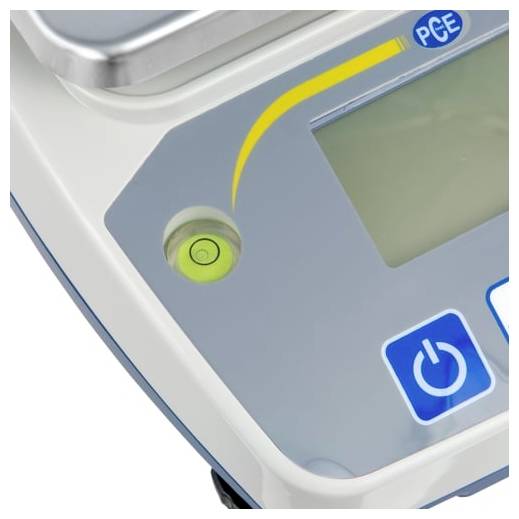

Close-up of a PCE device control panel with a blank display, green round button, and blue power button.

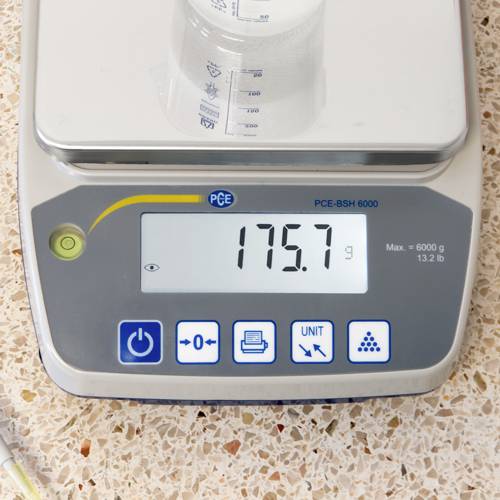

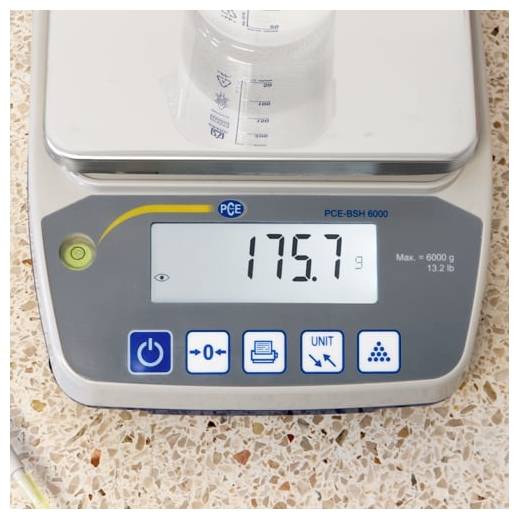

Digital scale display showing 175.7 g, with a container on the weighing platform and control buttons below.<br>

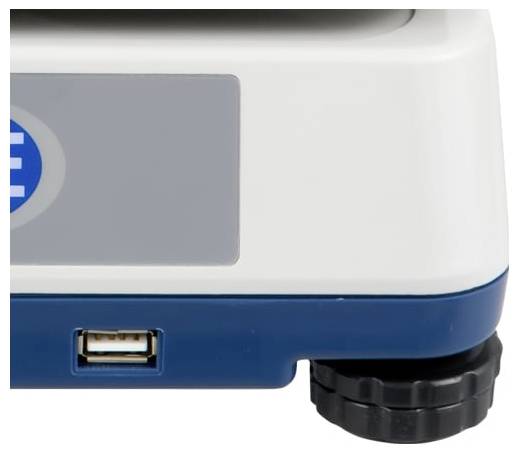

Close-up of a white-and-blue electronic device showing a USB port and black rubber foot on the lower right.

An electronic device with a USB port on the front and a greyish-blue casing colour.

PCE Instruments PCE-BSH 10000 Industrial scales Weight range 10000 g Readability 0.2 g battery-powered-6

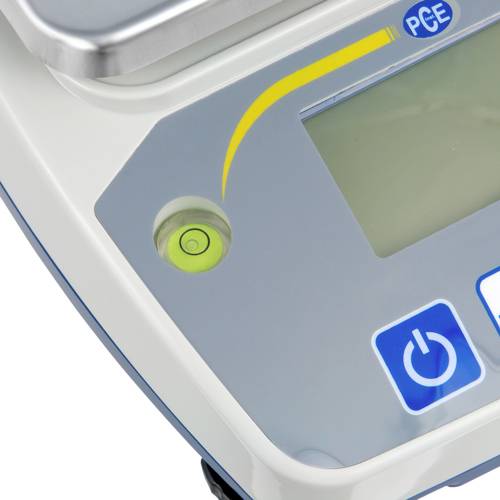

Close-up of a technical device with a screen and controls; yellow arrow and power on/off symbols visible.

1/8

Datasheet (PDF)

Unavailable

24 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-BSH 10000 Industrial scales Weight range 10000 g Readability 0.2 g battery-powered

USB interface
Weighs up to 10 kg
High resolution starting from 0.2 g
Piece-counting function
Multi-factara up to 100% F.S.
Multi-point calibration possible
Calibration weight can be selected freely
Variety of different weighing units
Mains or battery power

Technical specifications

Weighing range 10,000 g Readability d:0.2 g; Measurement uncertainty ± 0.6 g Platform size 160 x 180 mm Multiple tare of the full scale range Display LCD with 20 mm digit height Background lighting can be set Weighing units g, lb, oz, dwt, ozt, gn, ct, TLT, TLH, TLJ, GN, dr, MM, tola, GSM Interface USB Power supply 12 V / 500 mA power supply (internal / external +) (included) or by means of 6 x 1.5 V AA batteries Power Consumption: max. 47 mA Dimensions 200 x 265 x 100 mm Weight approx. 1.8 kg (without batteries). Shipping data 370 x 260 x 170 mm / 2.5 kg

Weight range: 10000 g

Product type: Industrial scales

Weight resolution: 0.2 g

Readability: 0.2 g

Weighing plate dimensions: 180

Load capacity: 10000 g

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 200 x 265 x 100 mm

Weight: 1800 g

Calibratable: No

Weighing plate: Stainless steel

Width: 265 mm

Height: 100 mm

Length: 200 mm

Reproducibility: 100 g

Type: PCE-BSH 10000

Features: Calibratable
Counting

Top plate (width): 160 mm

Top plate (length): 180 mm

Documents & Downloads

Datasheet

Datasheet 2452299 PCE Instruments PCE-BSH 10000 Industrial scales Weight range 10000 g Readability 0.2 g battery-powered

User & Safety Instructions

User & Safety Instructions 2452299 PCE Instruments PCE-BSH 10000 Industrial scales Weight range 10000 g Readability 0.2 g battery-powered

Description

Calibration-capable industrial scales up to 10 kg / resolution starting from 0.2 g / USB interface Piece counting function / different weighing units: g, kg, lb, ct, gn, gsm and much more. / Battery and mains operation possible / optional PC software The low-priced industrial scale impresses through a fairly high resolution even in higher weighing ranges. The industrial scale has a removable, easy-to-clean stainless steel weighing plate. The standard equipment of the industrial scale also includes a piece counting function for counting equally heavy objects. The power supply of the industrial scale is provided by a 12V power supply or by 6x 1.5 V AA batteries, which enable a flexible use. The industrial scale has adjustable feet for leveling. Another plus of the industrial scale is the USB interface, in conjunction with the optionally available software the weighing data can be transferred to a PC. The industrial scale can be quickly checked and adjusted at any time using the adjustment weight, which is also available as an option. In order to offer the highest possible accuracy, the industrial scale has two calibration options. On the one hand, the industrial scale can be adjusted with a freely adjustable calibration weight and on the other hand, a multi-point calibration can also be carried out. The industrial scale is the ideal device for use in production, in the laboratory, in the input and output control as well as for mobile use.

This text is machine translated.
