Buy PCE Instruments PCE-BSK 1100 Table top scales PCE-BSK 1100 Weight range 1100 g Readability 0.01 g battery-powered

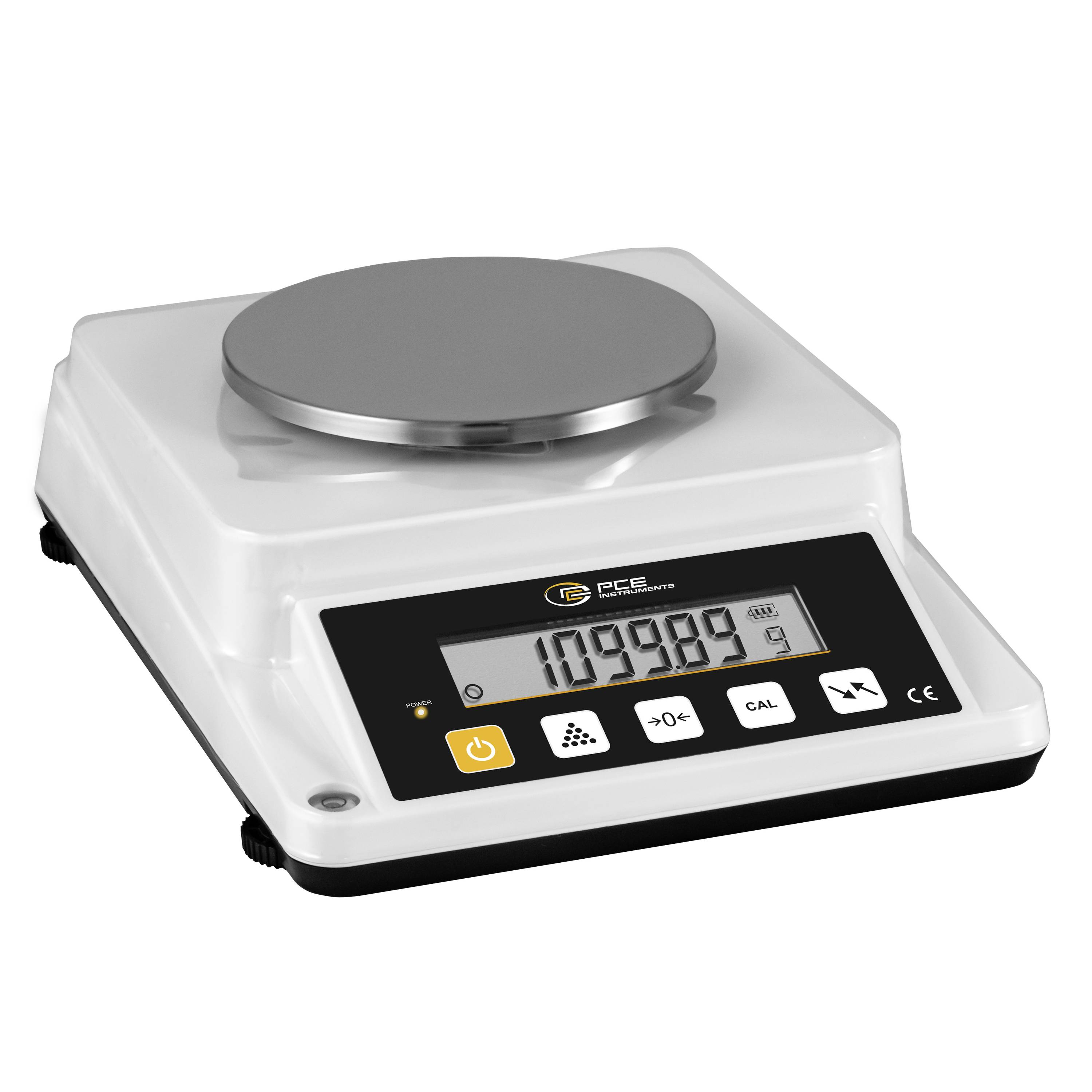

Digital laboratory balance scale with round weighing platform, LCD display, and control buttons on a white base.<br>

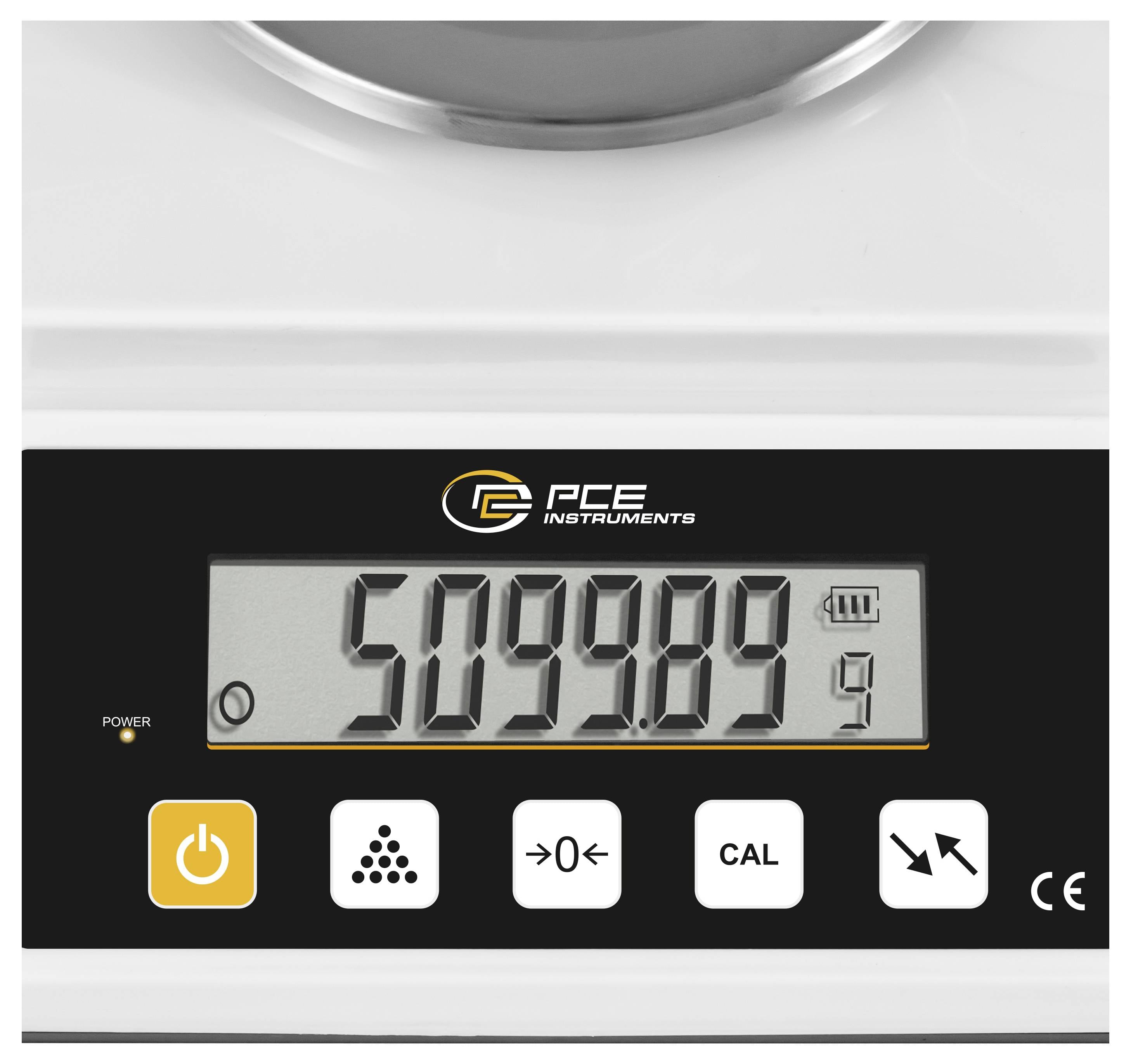

Digital scale display showing 50.989 with battery indicator and power, zero, CAL, and function buttons on a PCE Instruments device.

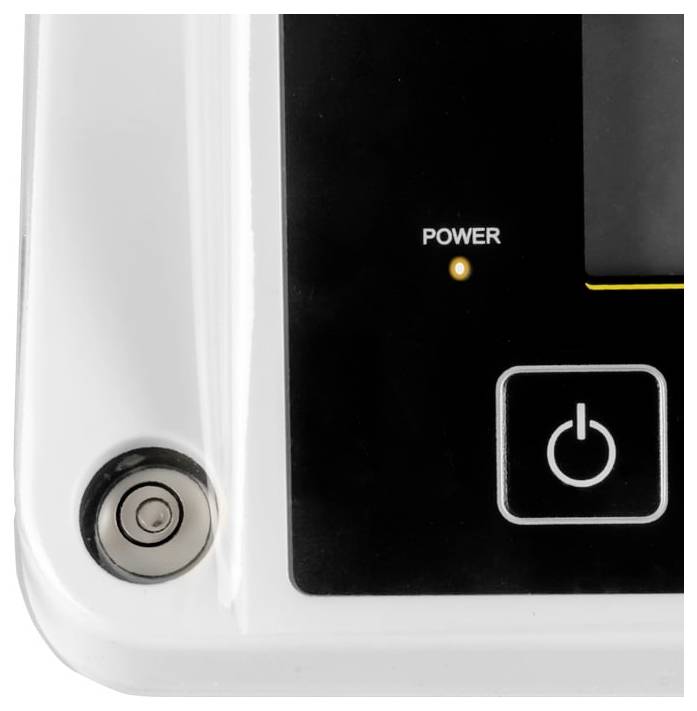

Close-up of a white appliance control panel with a round connector on the left, a lit 'POWER' indicator, and a power button icon on the right.

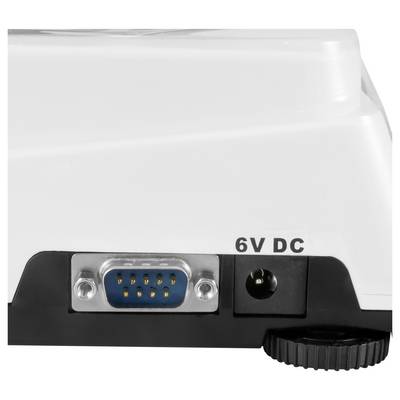

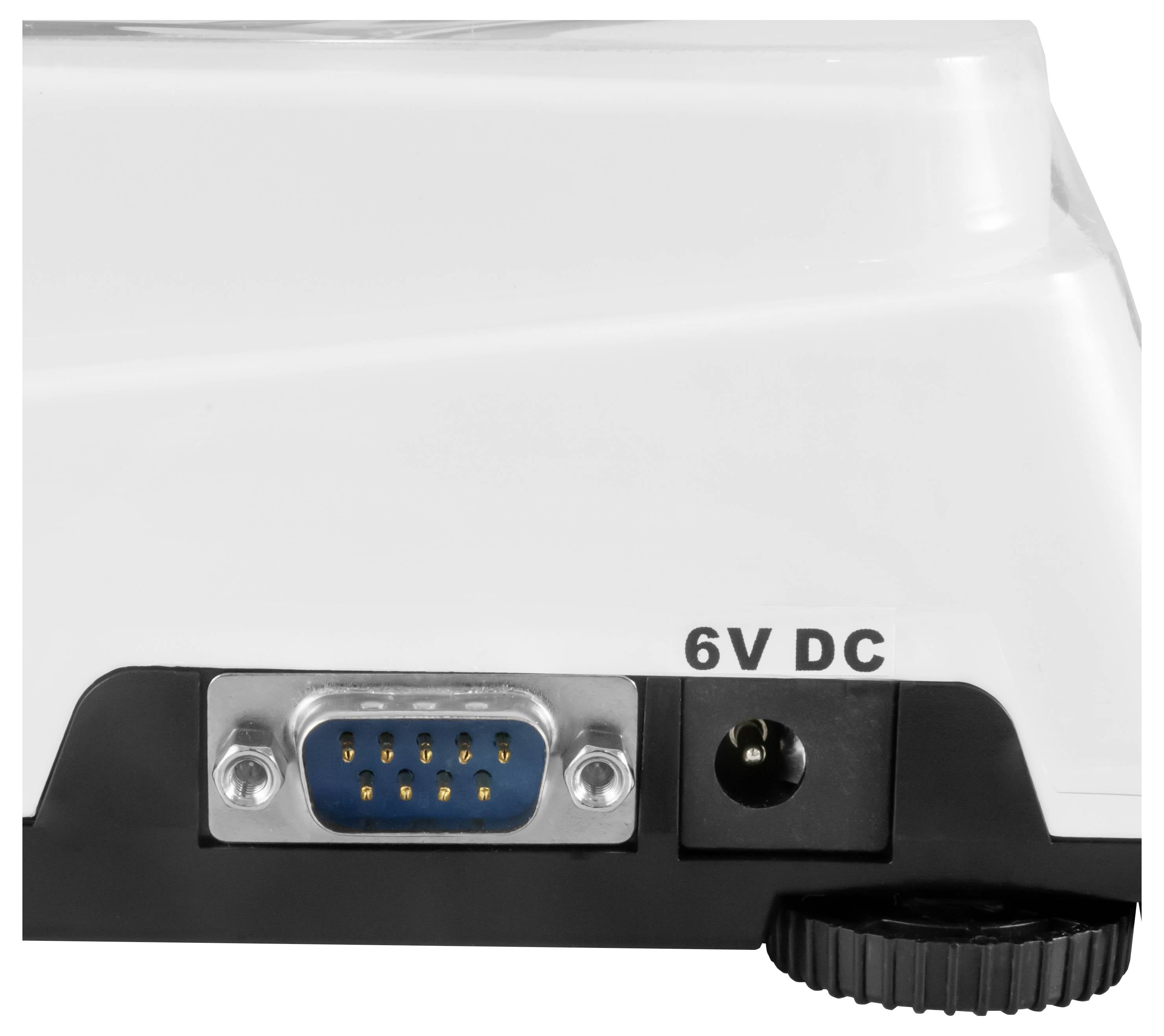

Close-up of a device's rear panel showing a 6V DC power jack and a blue serial connector labeled '6V DC'.

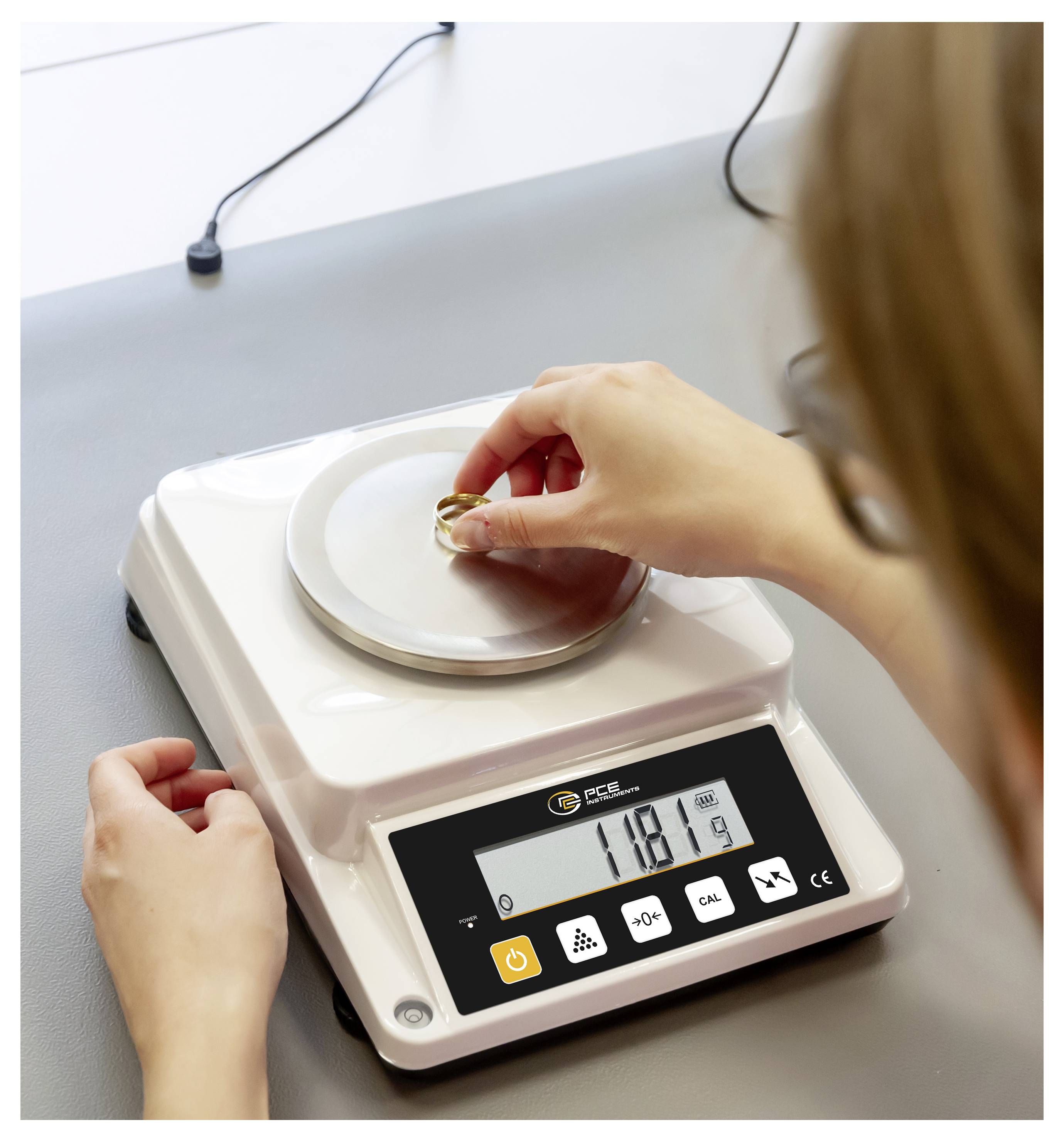

Person weighing a small ring on a digital scale in a laboratory or workbench setting, with the display reading 11.81.

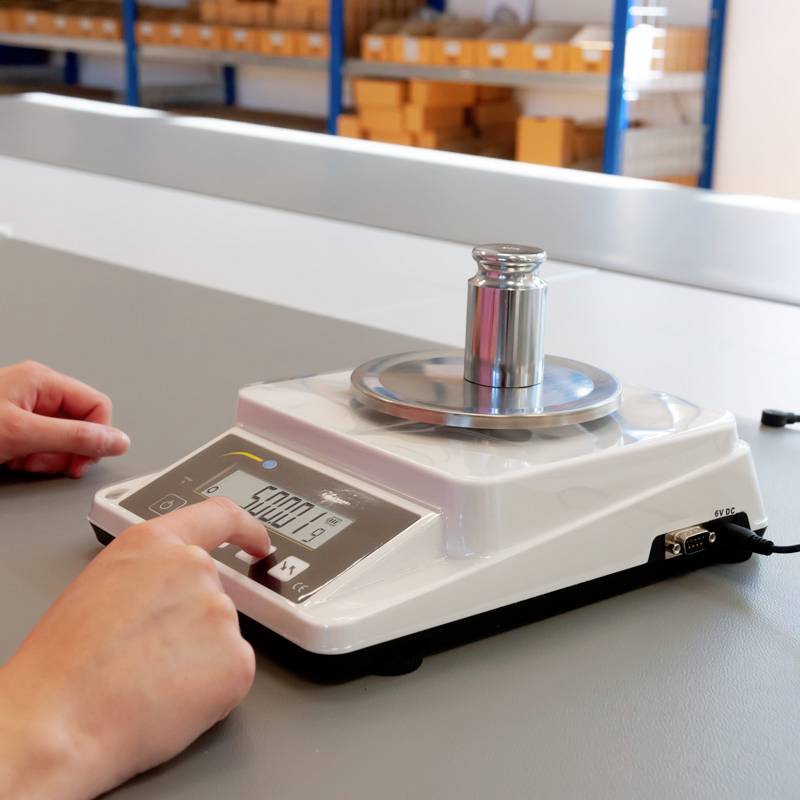

Digital scale with weight on the platform showing '5000.19' grams. Two hands are visible; focus on measuring device.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Filling scales PCE-BSK 1100

Piece-counting function
RS-232 interface
Backlight
Battery operation for mobile use
Spirit level for aligning the scales
High accuracy

Technical specifications

Measurement range 0 ... 1100 g Resolution 0.01 g Repeat accuracy ± 0.02 g Linearity: ± 0.03 g Calibration external Dimensions weighing plate Ø 130 mm Dimensions 270 x 200 x 80 mm Weight 2 kg. Operating conditions 17.5 ... 22.5 °C, 85% RH, non-condensing Interface RS232 Power supply battery / 3 x 1.5 V AA Power supply unit Primary: 100 ... 240 V, 50 / 60 Hz Secondary 6 V, 500 mA Plastic housing

Weight range: 1100 g

Product type: Table top scales

Readability: 0.01 g

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 270 x 200 x 80 mm

Weight: 2 kg

Weight resolution: 0.01 g

Calibratable: No

Width: 200 mm

Height: 80 mm

Length: 270 mm

Reproducibility: 0.02 g

Type: PCE-BSK 1100

Features: Calibratable
Counting

Top plate (width): 130 mm

Top plate (Ø): 130 mm

Documents & Downloads

Datasheet

Datasheet 2452301 PCE Instruments PCE-BSK 1100 Table top scales PCE-BSK 1100 Weight range 1100 g Readability 0.01 g battery-powered

User & Safety Instructions

User & Safety Instructions 2452301 PCE Instruments PCE-BSK 1100 Table top scales PCE-BSK 1100 Weight range 1100 g Readability 0.01 g battery-powered

Description

Filling scale Filling scale with counting function / batteries that can be used for mobile operation / RS-232 interface / spirit level for aligning the scales / also for mobile use The filling scale is a balance for daily laboratory use. Another function besides the normal measuring function for the filling scale is the piece counting function. This function allows the filling scale to determine the number of screws, for example. This means that the filling scale can also be used, for example, in logistics. The display of the filling scale has a background light so that the display can be read even under poor light conditions. In addition to the measurement functions, the filling scale also has an RS 232 interface. Thanks to this interface, the measured values can be transferred to a PC, for example. This filling scale can be used for stationary as well as for mobile use. For mobile use, the filling scale requires 3 x 1.5 V AA batteries, which can be used quickly and easily.
