PCE Instruments PCE-BSK 310-ICA Table top scales Calibrated to (ISO standards) Weight range 310 g Readability 0.001 g ba
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments desktop scale PCE-BSK 310-ICA
- Piece-counting function
- RS-232 interface

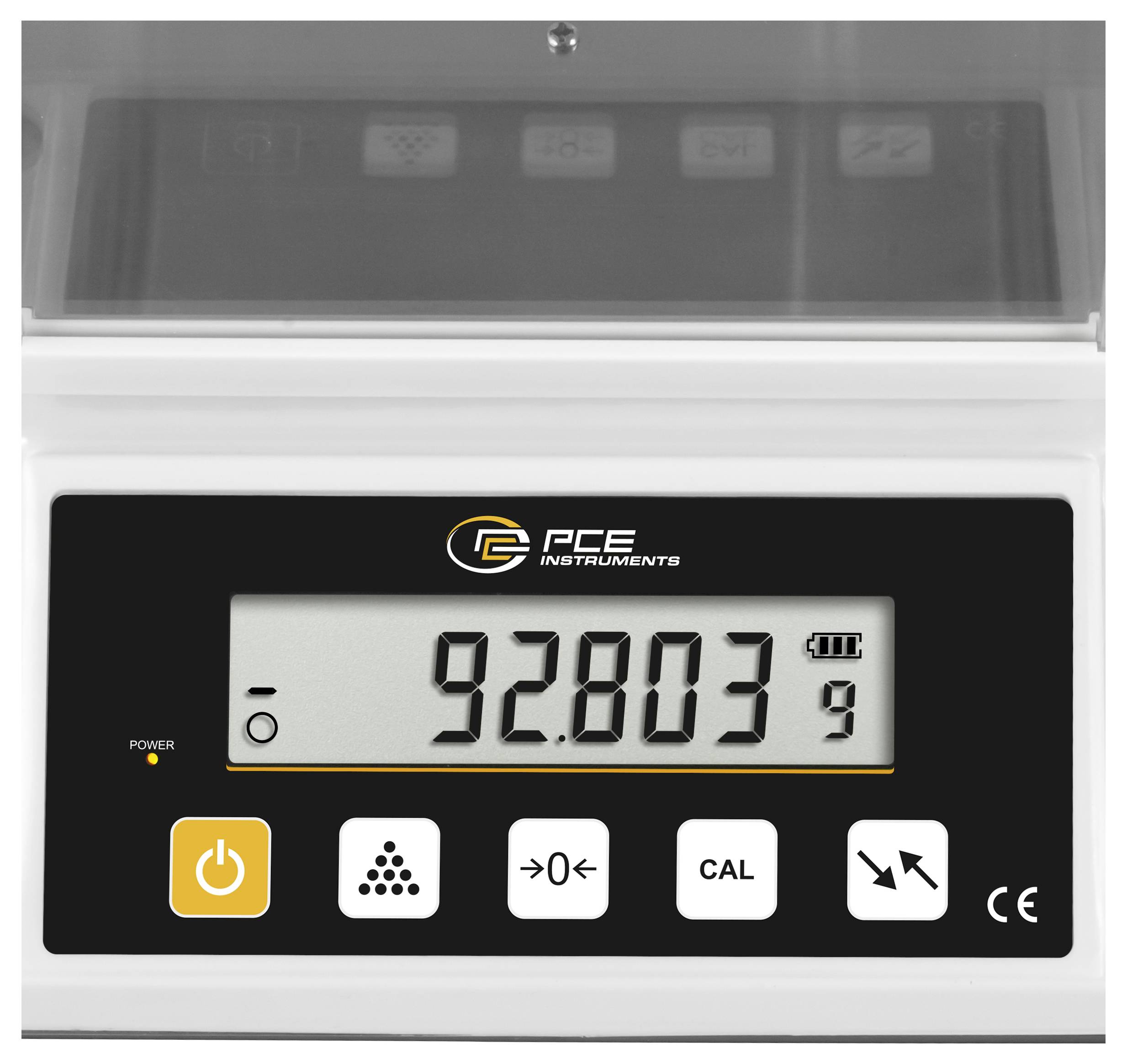

- Backlight
- Battery for mobile use

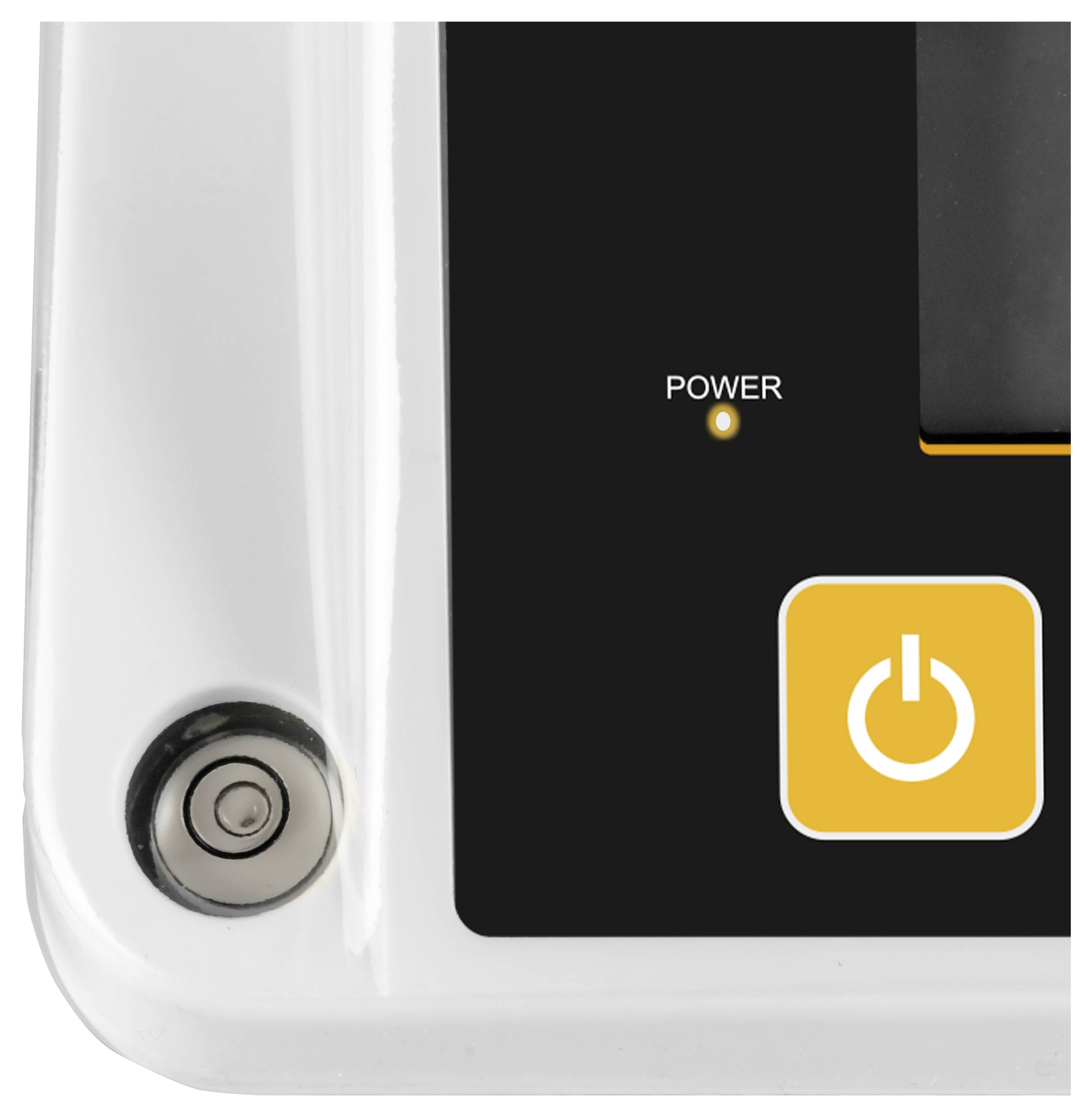

- Spirit level for the alignment of the scales
- High accuracy

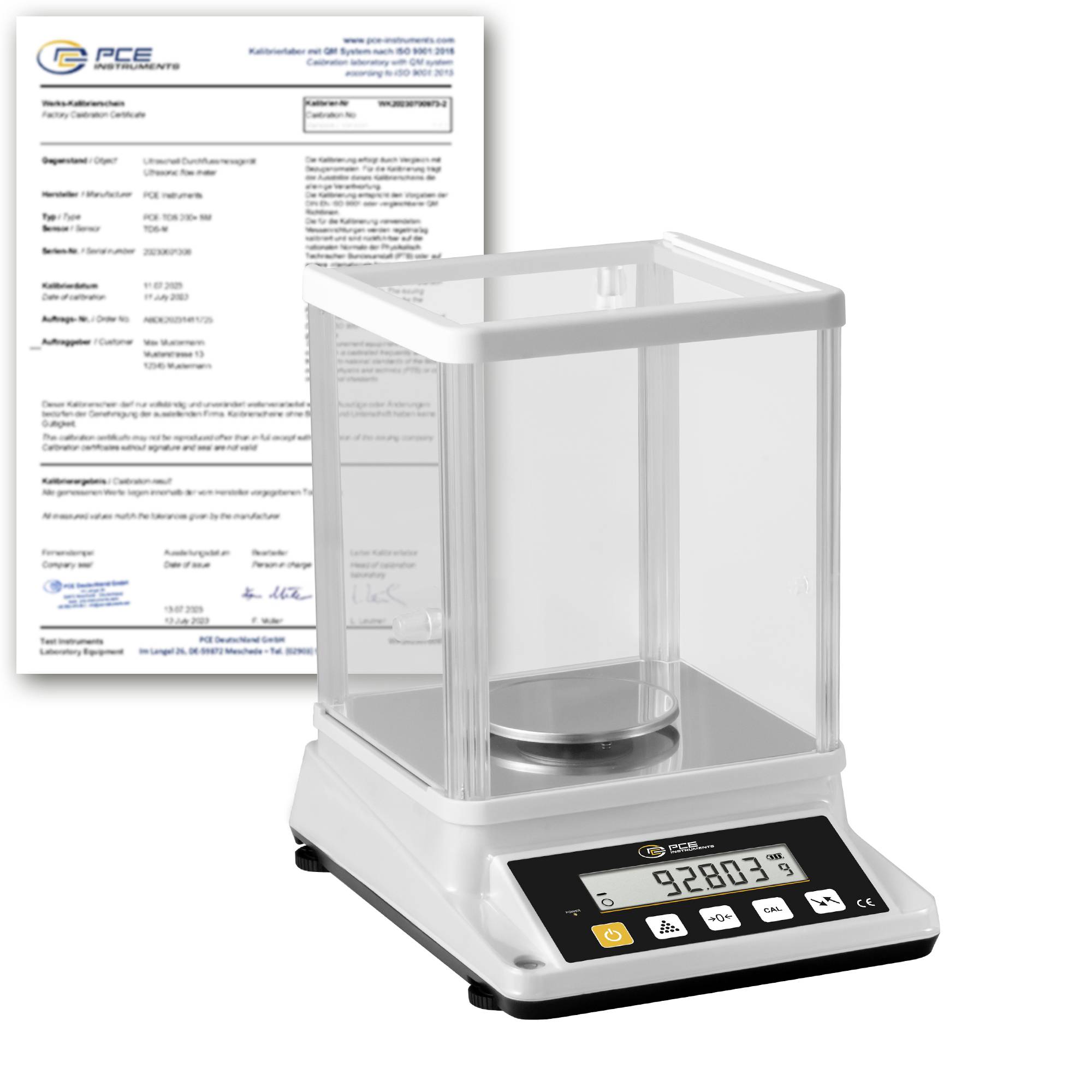

- Incl. ISO calibration certificate
Technical specifications
- Weighing range
- Measuring range [Max] 310 g
- Resolution [d] 0.001 g
- Accuracy class II.
- General Technical Data
- Measurement functions (additional information) Piece counting function

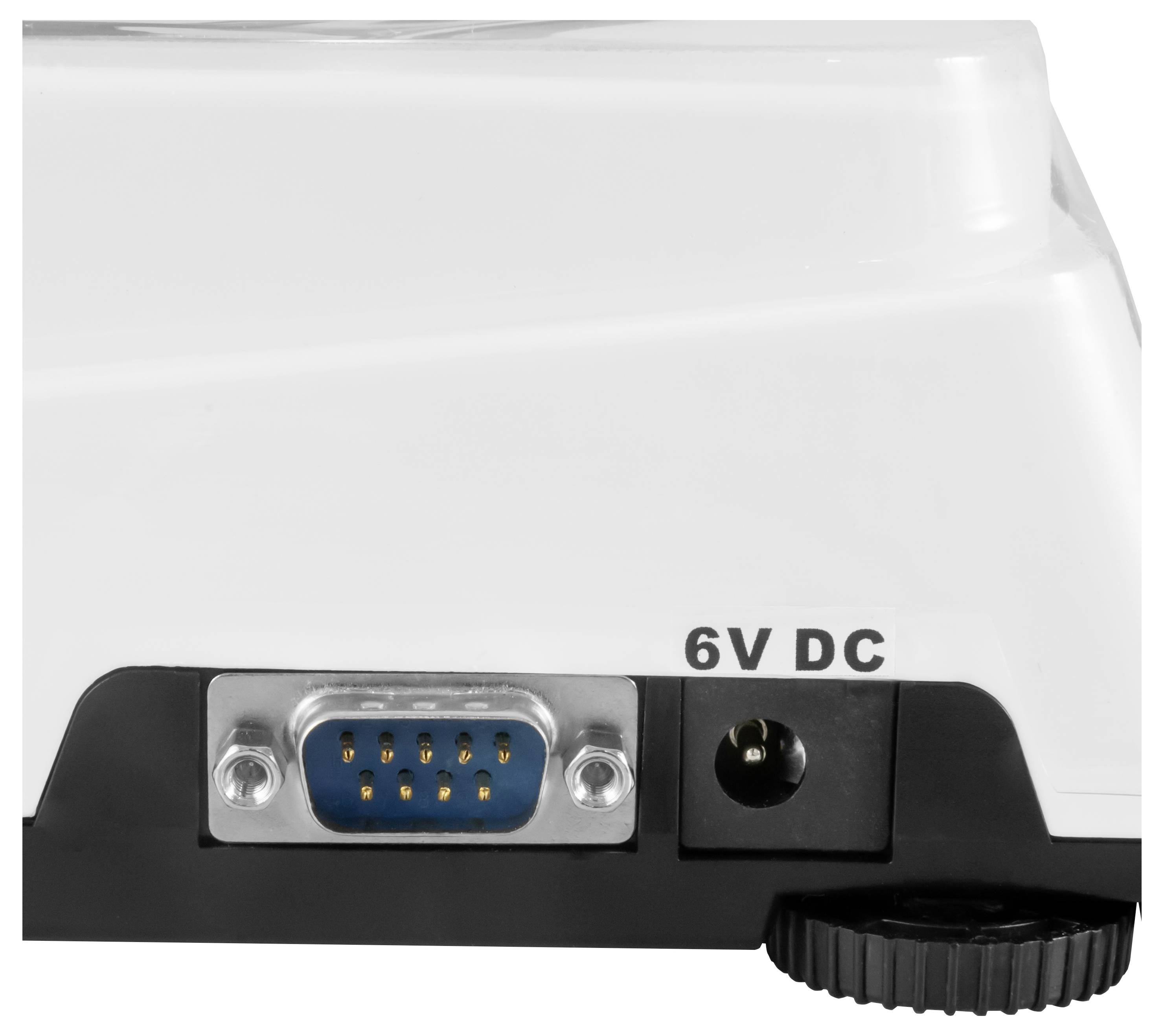

- Interface RS232
- Repeatability 0.002 g
- Plastic case
- External calibration
- Weighing plate dimensions: Ø 90 mm
- Start-up time under 3 seconds
- Linearity ±0.003 g
- Protection class (device) IP20
- Power supply 100 to 240 V AC | 50 / 60 Hz, 6 V DC, 500 mA
- Connector type for device Euro plug
- Operating conditions 0 to 40 °C, 50 to 85 % r.h.
- Storage conditions 0 to 50 °C, 50 to 85 % r.h.
- Dimensions (L x W x H) 270 x 265 x 190 mm
- Weight 3100 g
- Weight range
310 g
- Product type
Table top scales
- Weight resolution
0,001 g
- Readability
0.001 g
- Weighing plate dimensions
90 mm
- Load capacity
310 g
- Display
Digital
- Power supply (LOV)
battery-powered
mains-powered
- Type
Fine scale / Precision balance
- Type
Digital / industrial weighing technology with piece counting function
ISO standards
- Factory colour
White
- Power supply (details)
100-240 V / AC
- Dim
(L x W x H) 270 x 265 x 190 mm
- Weight
3100 g
- Calibratable
Yes
- Calibration service
ISO calibration certificate included
- Width
265 mm
- Height
190 mm
- Length
270 mm
- Reproducibility
0.02 g
- Type
PCE-BSK 310-ICA
- Features
Counting
- Top plate (width)
90 mm
- Top plate (length)
90 mm
- Top plate (Ø)
90 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812445 PCE Instruments PCE-BSK 310-ICA Table top scales Calibrated to (ISO standards) Weight range 310 g Readability 0.001 g ba
User & Safety Instructions
User & Safety Instructions 3812445 PCE Instruments PCE-BSK 310-ICA Table top scales Calibrated to (ISO standards) Weight range 310 g Readability 0.001 g ba
Description

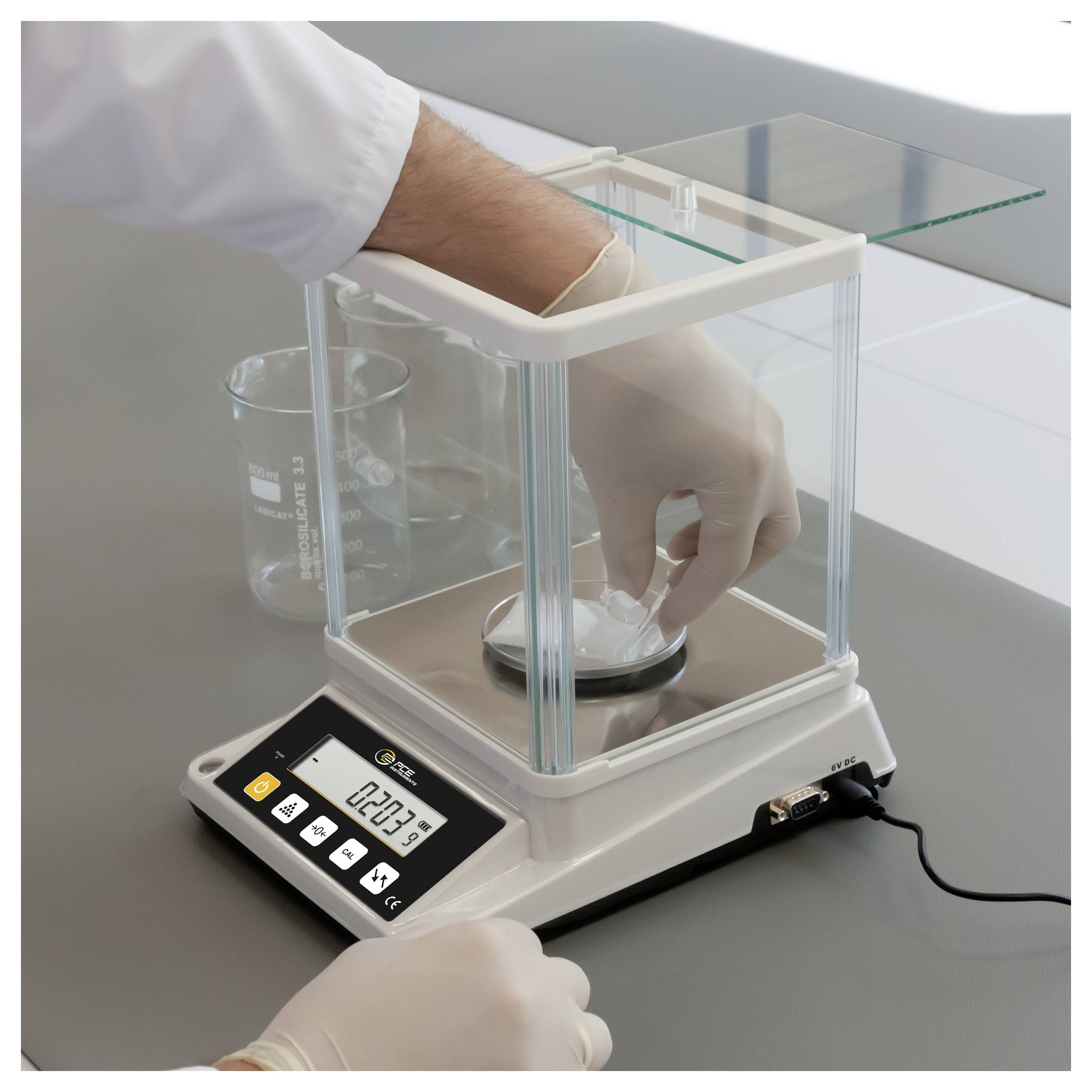

The bench scales are ideal for day-to-day laboratory use. In addition to the normal measurement function on a bench scale, the unit counting function is also used. Using this function, the bench scale can determine the number of screws, for example. As such, the bench scale can also be used in logistics, for example. So that the display can be read even in poor lighting conditions, the display of the table scale has a background lighting.
Along with the measurement functions the table scale also possesses an RS 232 interface. Thanks to this interface, the measured values can be transferred, for example, to a PC. This table scale can be used for stationary as well as mobile applications. For mobile use, the bench scale requires 3 x 1.5 V AA batteries that can be used quickly and easily. Batteries are not included.
This text is machine translated.
Along with the measurement functions the table scale also possesses an RS 232 interface. Thanks to this interface, the measured values can be transferred, for example, to a PC. This table scale can be used for stationary as well as mobile applications. For mobile use, the bench scale requires 3 x 1.5 V AA batteries that can be used quickly and easily. Batteries are not included.
This text is machine translated.

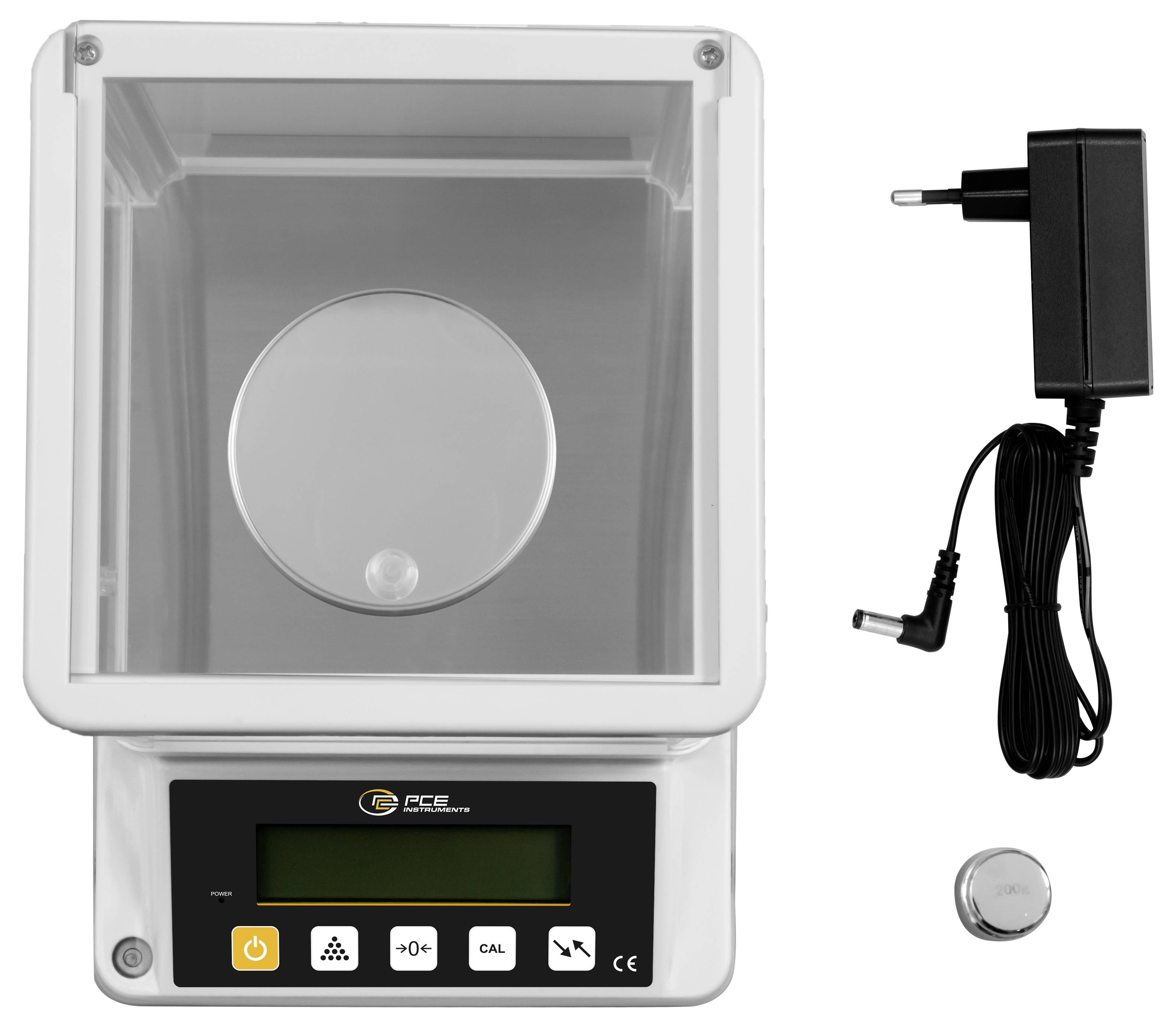

Scope of delivery
- 1 x Table scales PCE-BSK 310-ICA
- 1 x test weight 200 G
- 1 x power supply 6 V DC
- 1x user manual
- 1 x ISO calibration certificate
