Buy PCE Instruments PCE-BSK 310 Table top scales PCE-BSK 310 Weight range 310 g battery-powered

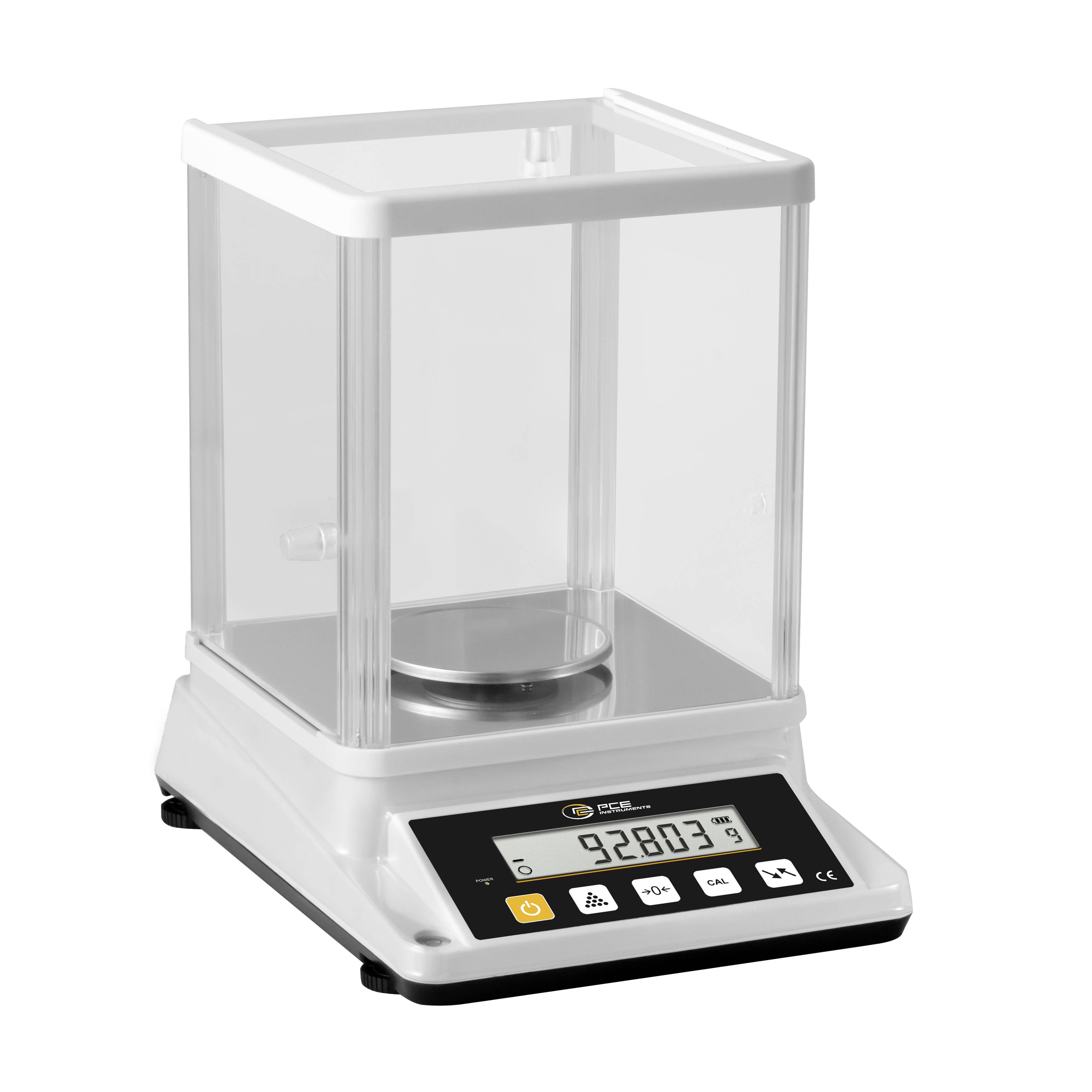

Laboratory analytical balance with draft shield and digital display showing 92.803 g.

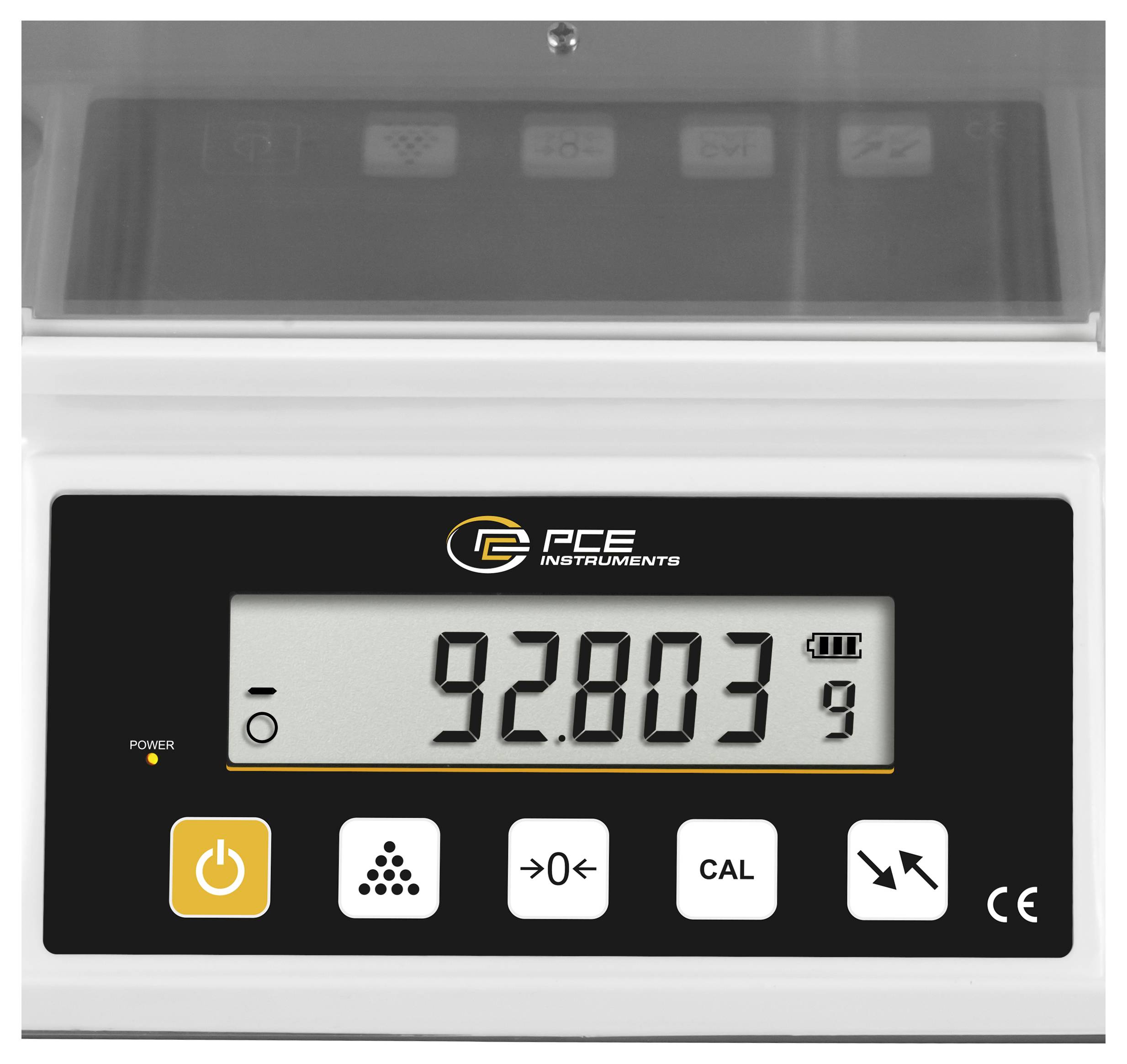

Digital scale display showing 92.803 g on a PCE Instruments panel with power, zero, cal, and mode buttons.

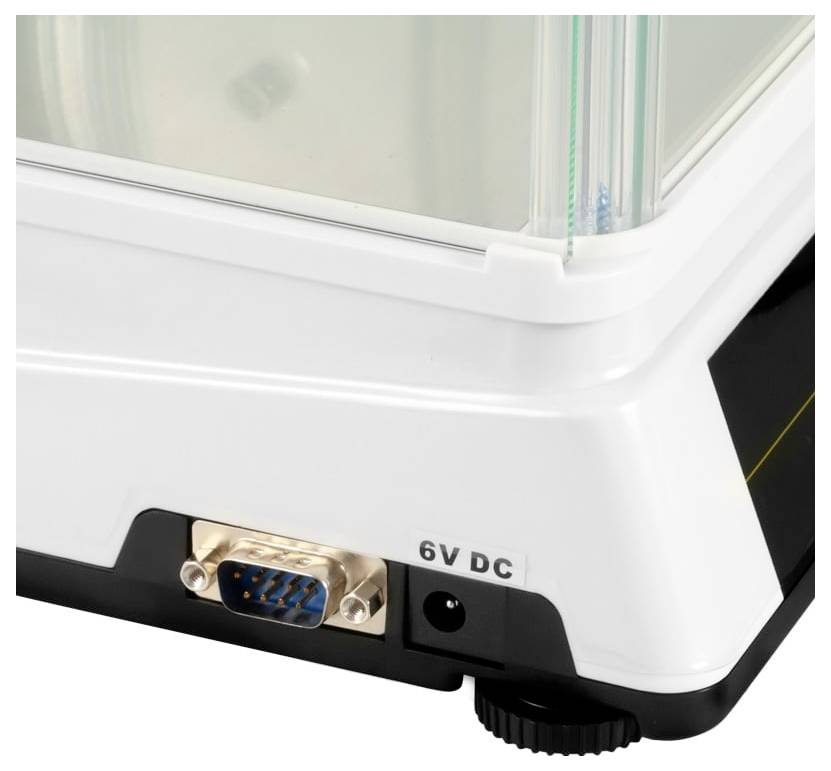

Close-up of a device base showing a 6V DC power input and a blue VGA port, with a clear plastic housing above.

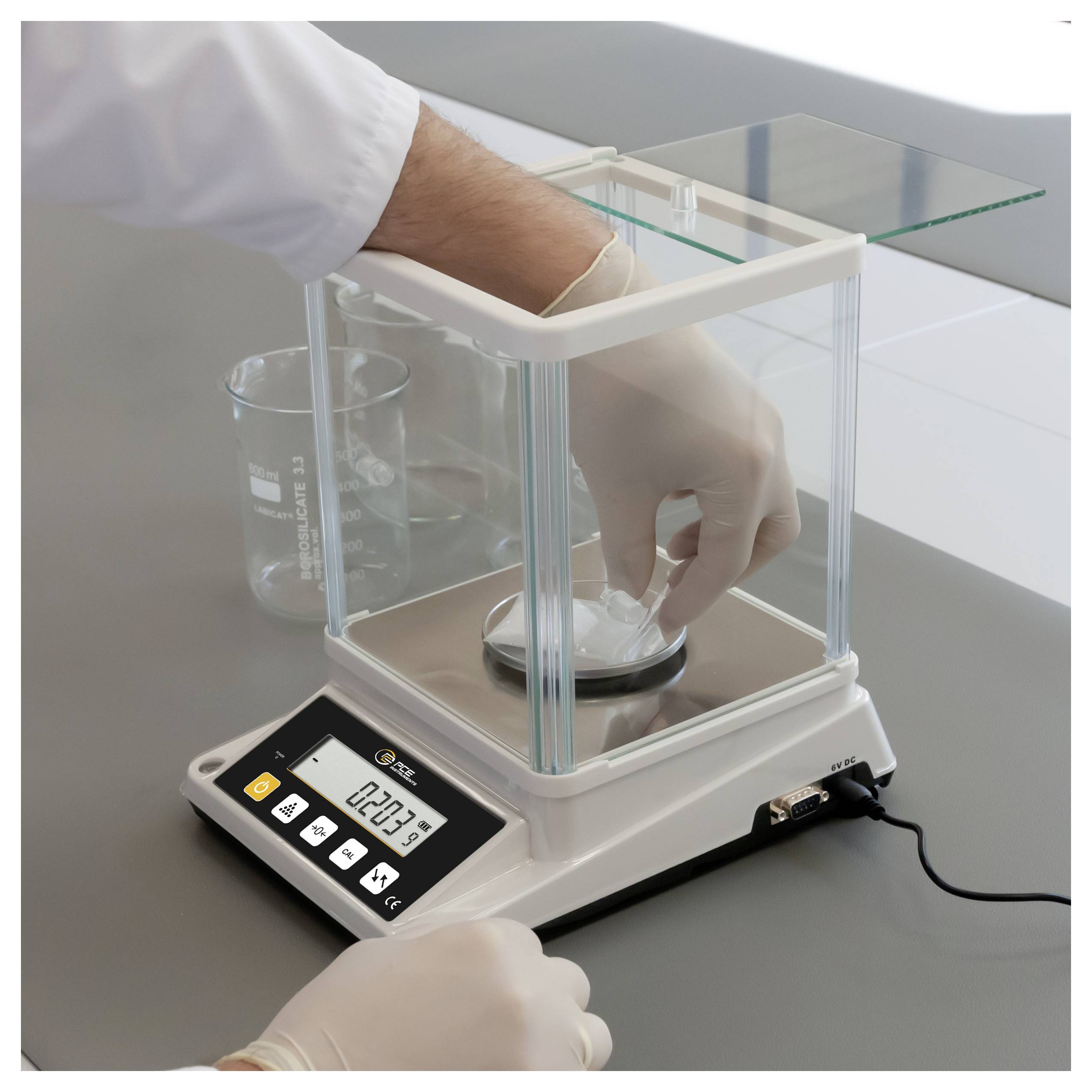

Gloved hand placing a sample on an analytical balance inside a draft shield, with the digital display showing a measured weight.

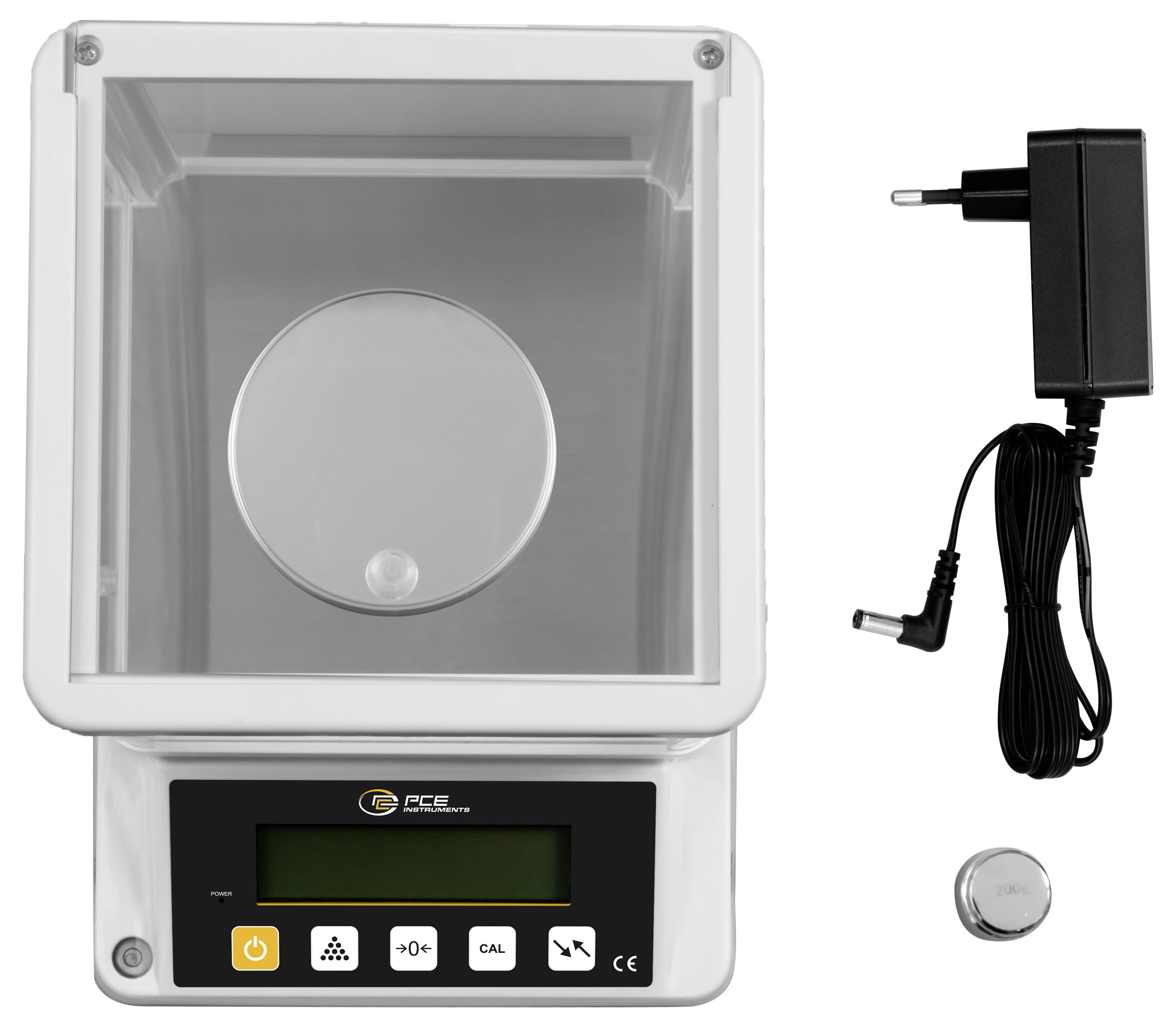

Digital weighing scale with transparent draft shield, power adapter, and calibration weight shown on white background.

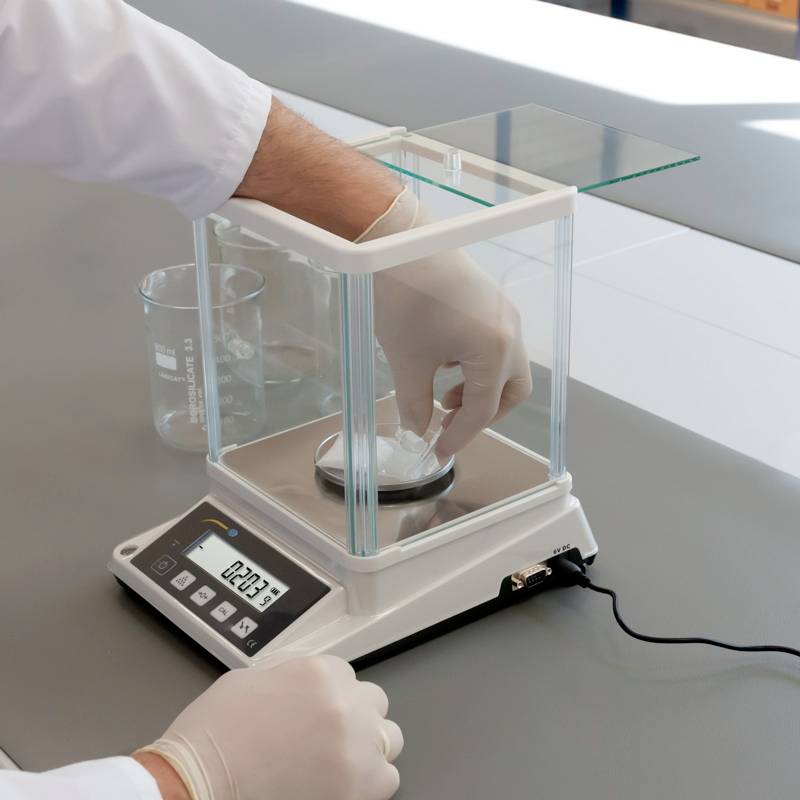

A person is weighing a substance on a digital laboratory balance. A beaker is placed next to the balance.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Filling scales PCE-BSK 310

Piece-counting function
RS-232 interface
Backlight
Battery operation for mobile use
Spirit level for aligning the scales
High accuracy

Technical specifications

Measurement range 0 ... 310 g Resolution 0.001 g Repeatability ± 0.002 g Linearity ± 0.003 g External calibration Wind protection yes Dimensions weighing plate Ø 90 mm Dimensions 270 x 265 x 190 mm Weight 3.5 kg Operating conditions 17.5 ... 22.5 °C, 85% RH, non-condensing Interface RS232 Power supply battery / 3 x 1.5 V AA Power supply unit Primary: 100 ... 240 V, 50 / 60 Hz Secondary 6 V, 500 mA

Weight range: 310 g

Product type: Table top scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 270 x 265 x 190 mm

Weight: 3230 g

Weight resolution: 0.001 g

Calibratable: No

Width: 265 mm

Height: 190 mm

Length: 270 mm

Type: PCE-BSK 310

Features: Calibratable
Counting

Top plate (width): 90 mm

Top plate (Ø): 90 mm

Documents & Downloads

Datasheet

Datasheet 2452302 PCE Instruments PCE-BSK 310 Table top scales PCE-BSK 310 Weight range 310 g battery-powered

User & Safety Instructions

User & Safety Instructions 2452302 PCE Instruments PCE-BSK 310 Table top scales PCE-BSK 310 Weight range 310 g battery-powered

Description

Filling scale Filling scale with counting function / batteries that can be used for mobile operation / RS-232 interface / spirit level for aligning the scales / also for mobile use The filling scale is a balance for daily laboratory use. Another function besides the normal measuring function for the filling scale is the piece counting function. This function allows the filling scale to determine the number of screws, for example. This means that the filling scale can also be used, for example, in logistics. The display of the filling scale has a background light so that the display can be read even under poor light conditions. In addition to the measurement functions, the filling scale also has an RS 232 interface. Thanks to this interface, the measured values can be transferred to a PC, for example. This filling scale can be used for stationary as well as for mobile use. For mobile use, the filling scale requires 3 x 1.5 V AA batteries, which can be used quickly and easily.

This text is machine translated.
