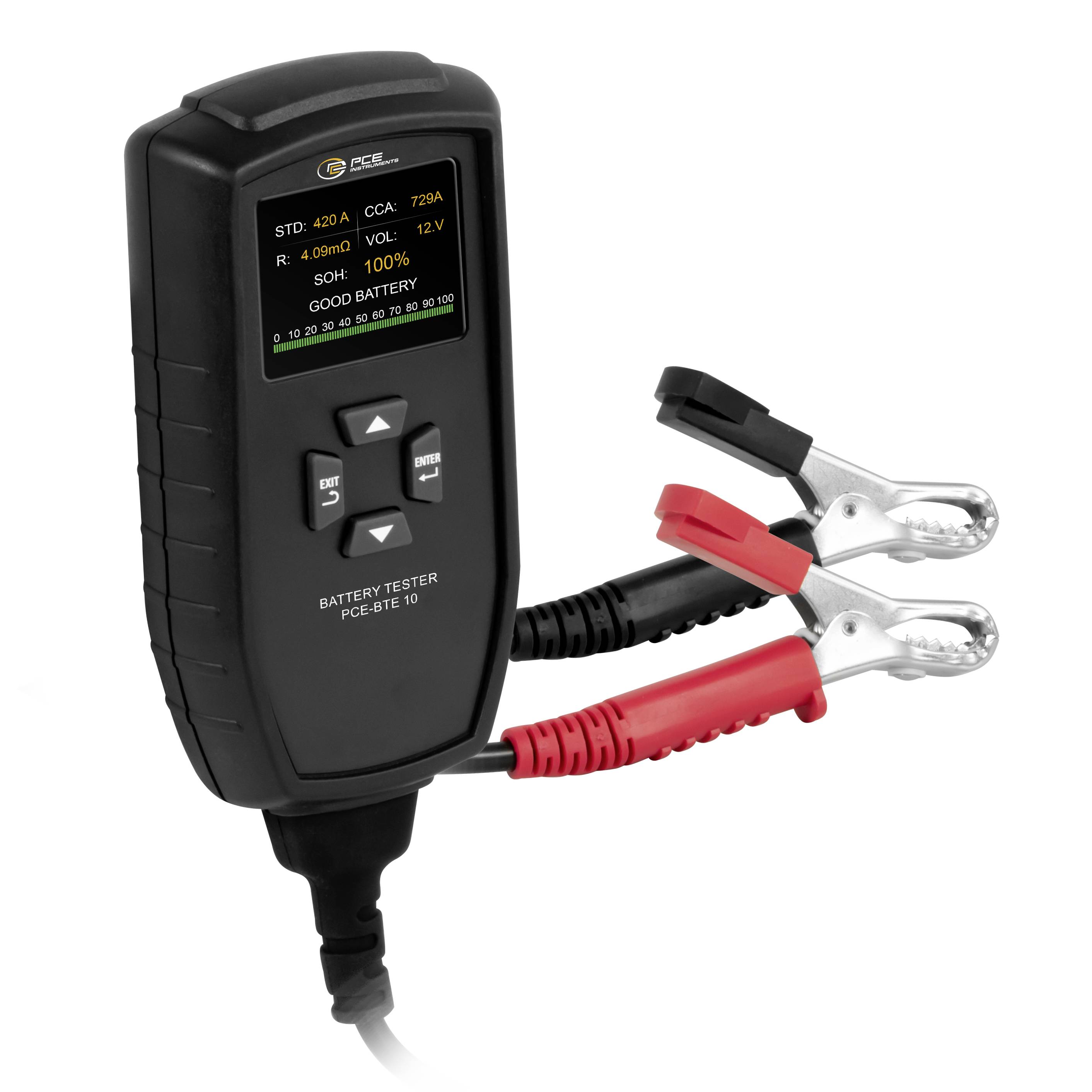

PCE Instruments PCE-BTE 10 Car battery tester Voltmeter, Battery tester, USB port 150 mm x 80 mm x 35 mm

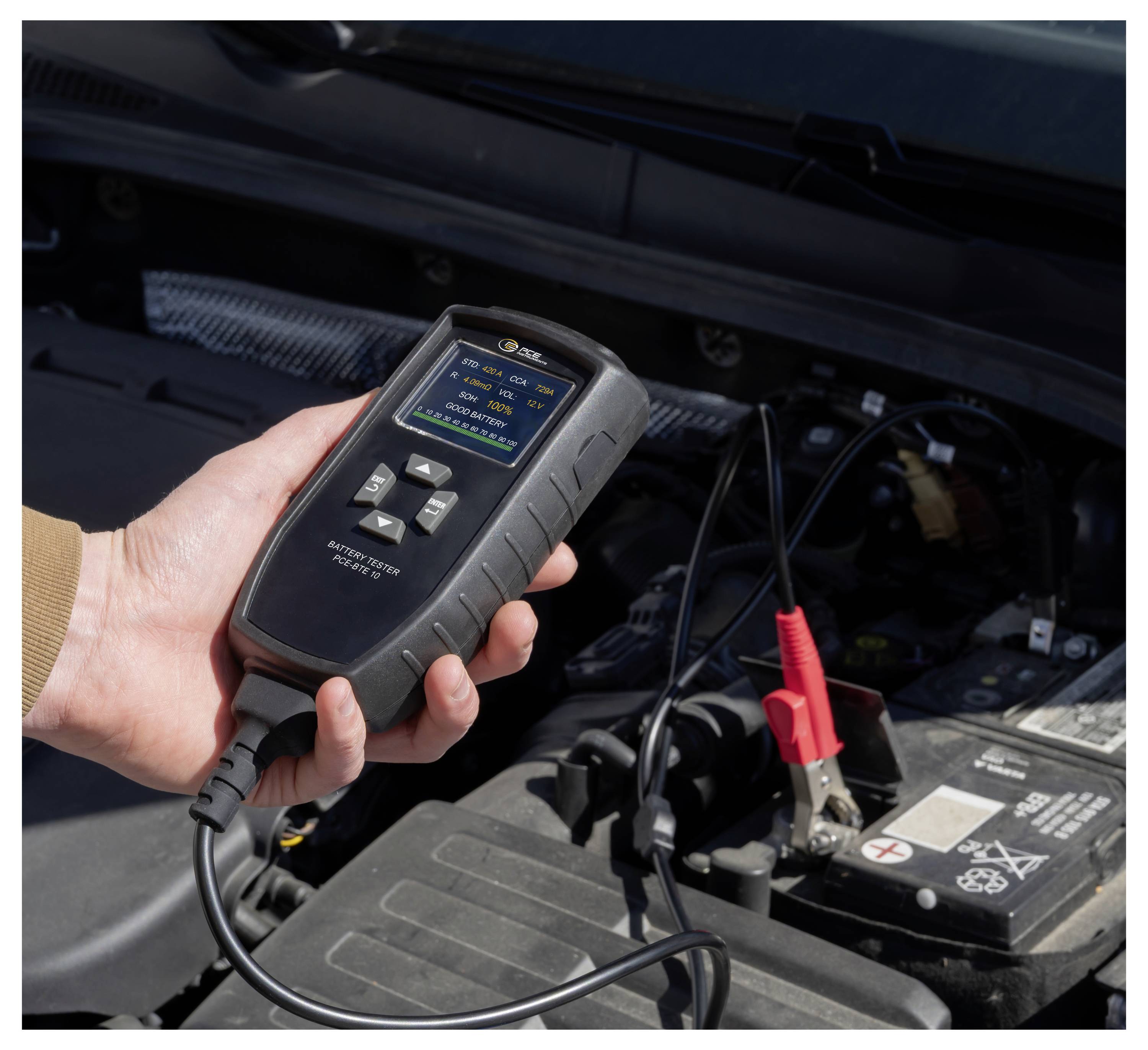

The battery tester uses an advanced conductivity measurement to determine the state of vehicle batteries quickly and precisely. This battery tester is suitable for all standard lead-acid batteries, including standard, AGM, gel and EFB batteries, and enables direct recognition of defective batteries without prior full charging. In addition to the classic battery test, the battery tester offers comprehensive testing of the start and charging system for 12 V and 24 V applications, including a reliable ripple measurement for analyzing the charge quality.

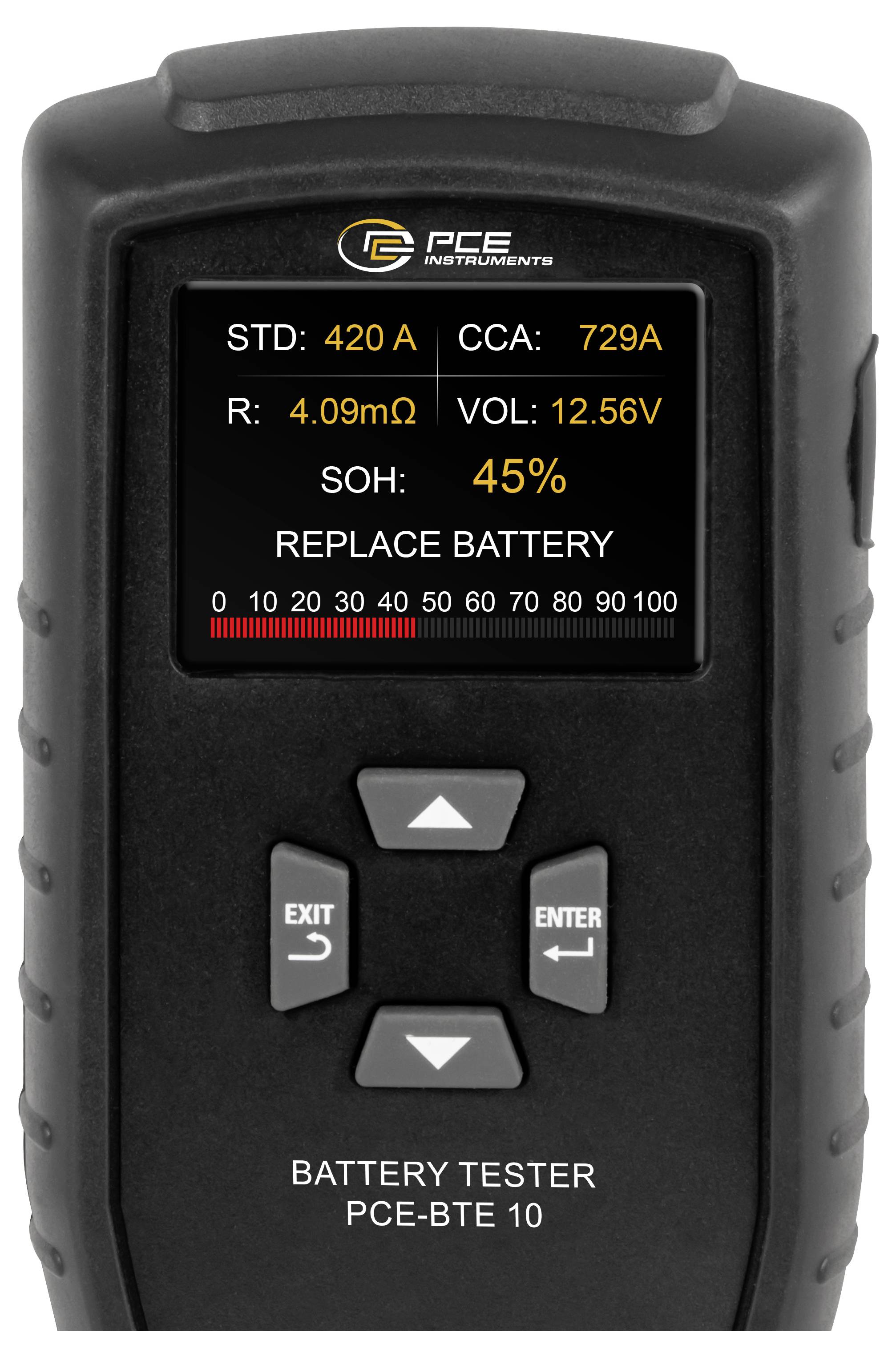

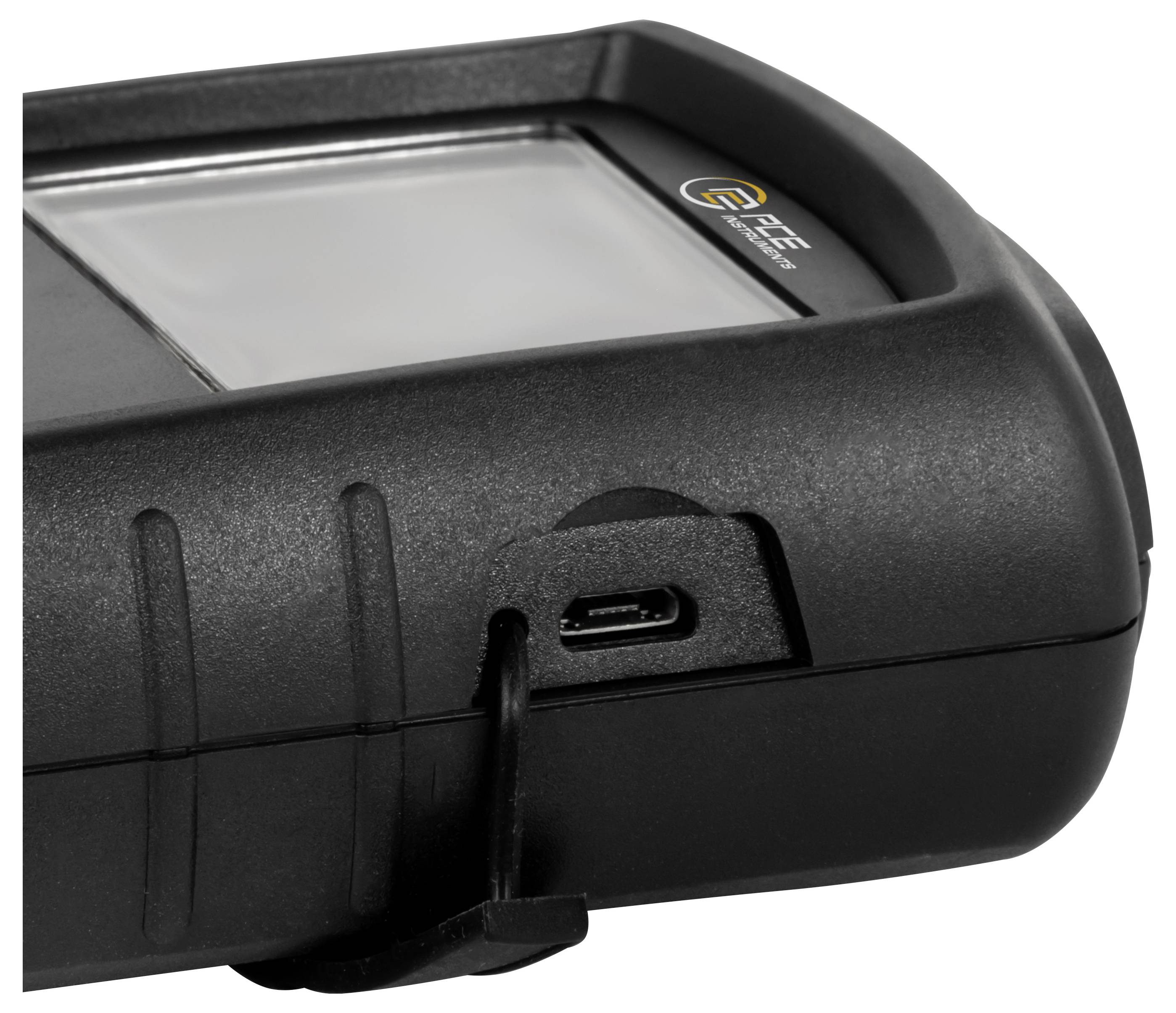

The measurement results are clearly displayed on a 2.4 inch TFT color display with a resolution of 240 × 320 pixels, so that all relevant data can be read clearly. The battery tester has a measuring range of 8 V ... 30 V DC and 100 ... 2000 A and supports a wide range of international battery testing standards such as CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB. For efficient documentation, the test results can be transferred via the integrated USB interface and stored as a csv file. The measured value can also be transferred to an Android device via a QR code.

The waveform display enables the monitoring of the battery voltage and can also be transferred to the PC software. The battery tester is equipped with an integrated reverse polarity protection, which ensures a safe use and prevents damage to the device. Designed for professional use in workshops, battery factories and in vehicle service, the device works reliably.

This text is machine translated.
