PCE Instruments PCE-BTM 1000 Force gauge Manufacturer's standards (no certificate)

Measurement of the belt's oscillation frequency
Calculation of the belt tension (tension) from the frequency
Enter belt length, belt mass, belt width max. 999.9 mm

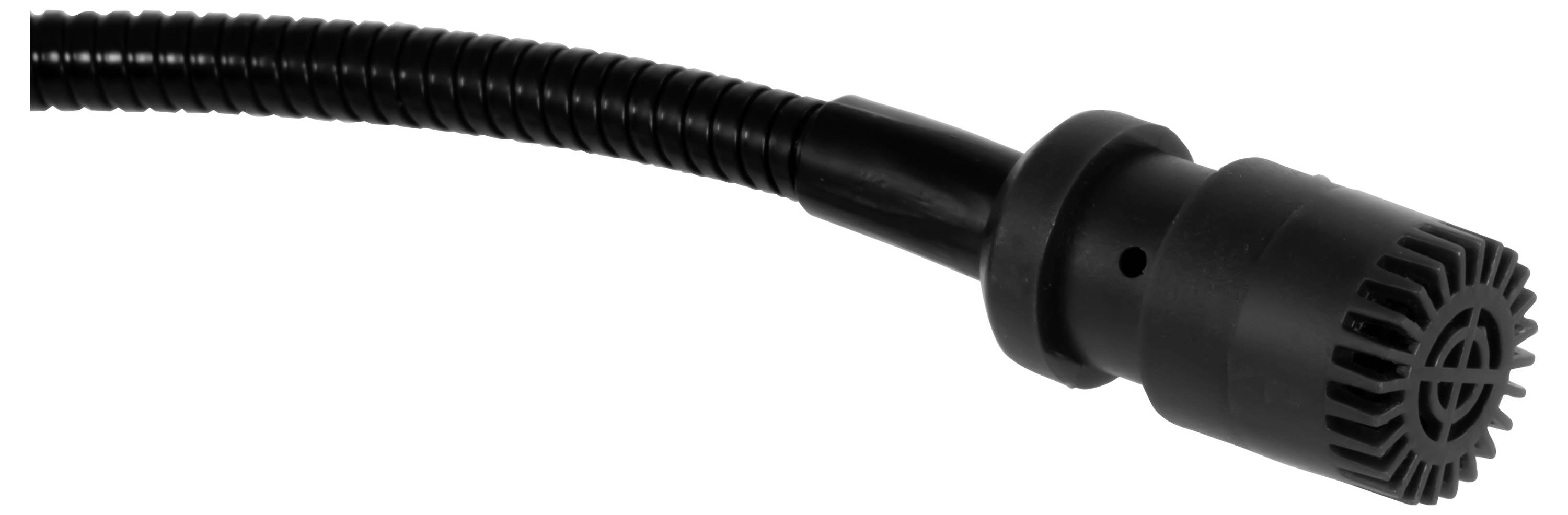

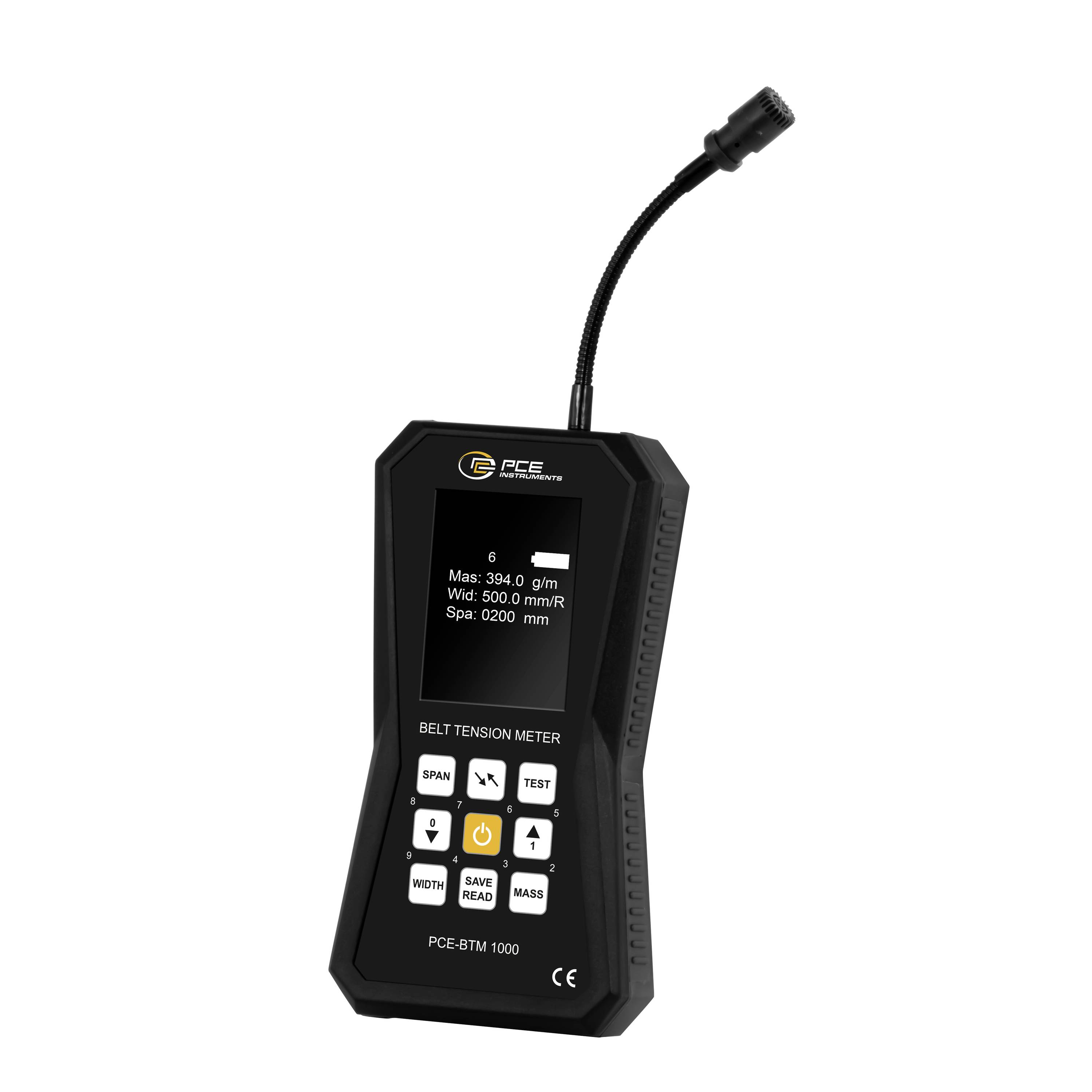

Flexible gooseneck sensor for hard-to-reach areas

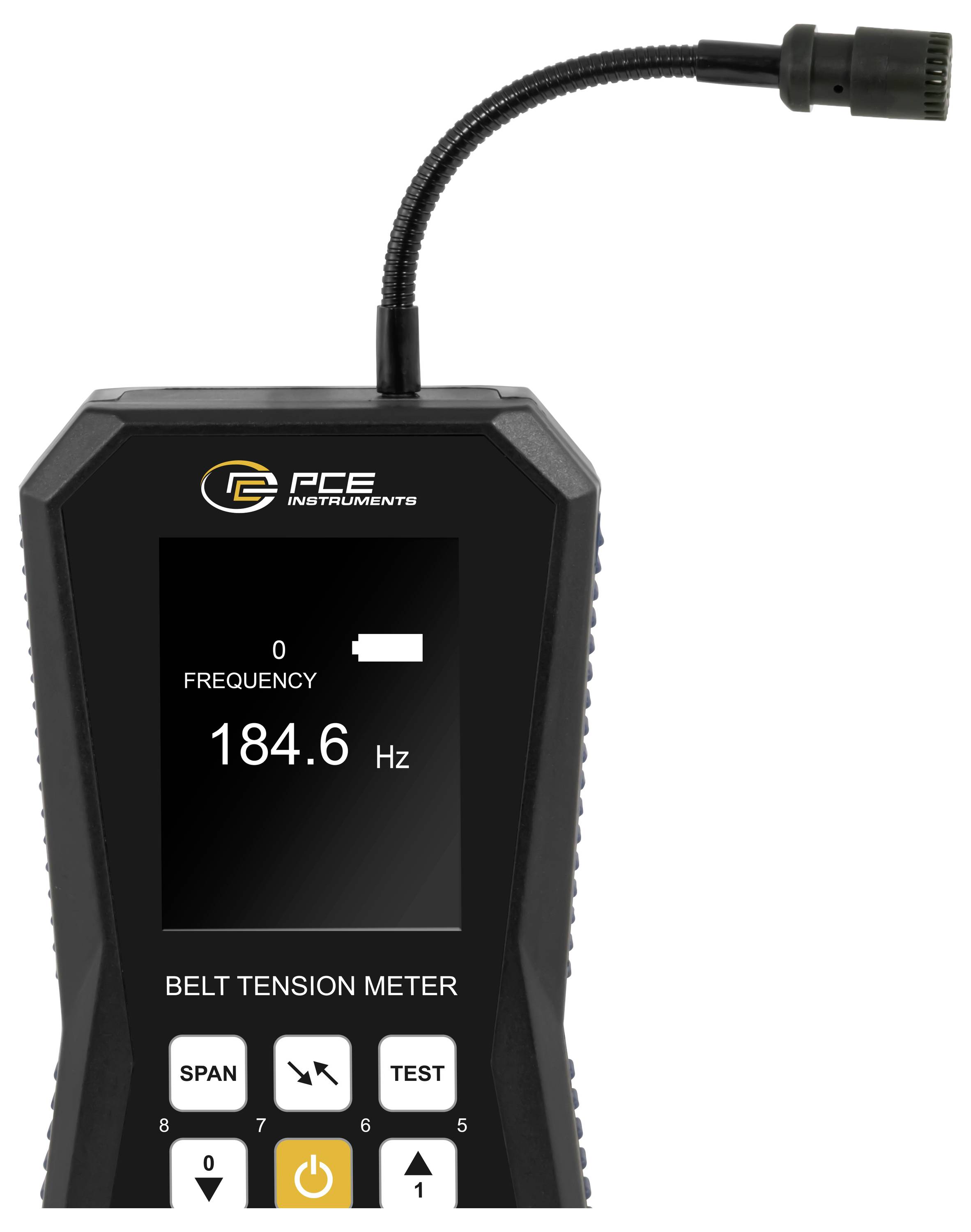

Display optionally in Hz or N.
Memory for 20 records
Auto switch-off after 5 minutes

Technical specifications

Frequency
Measuring range 10 ... 100 Hz
Resolution 0.1 Hz
Accuracy 1 Hz
Frequency
Measuring range 100 ... 680 Hz
Resolution 0.1 Hz
Accuracy ±1 %
General Technical Data
Unit(s) Hz, N
Display type LCD
Display size 2.8 inches
Storage medium Internal memory
Storage capacity of 20 records
Automatically switches off approx. 5 min.
Strap length 999.9 mm
Dimensions of probe: L 115 mm x ⌀13 mm
Belt mass 999.9 g/m
Belt width 999.9 mm/R
Menu language English (US), English (GB)
Protection class (device) IP52

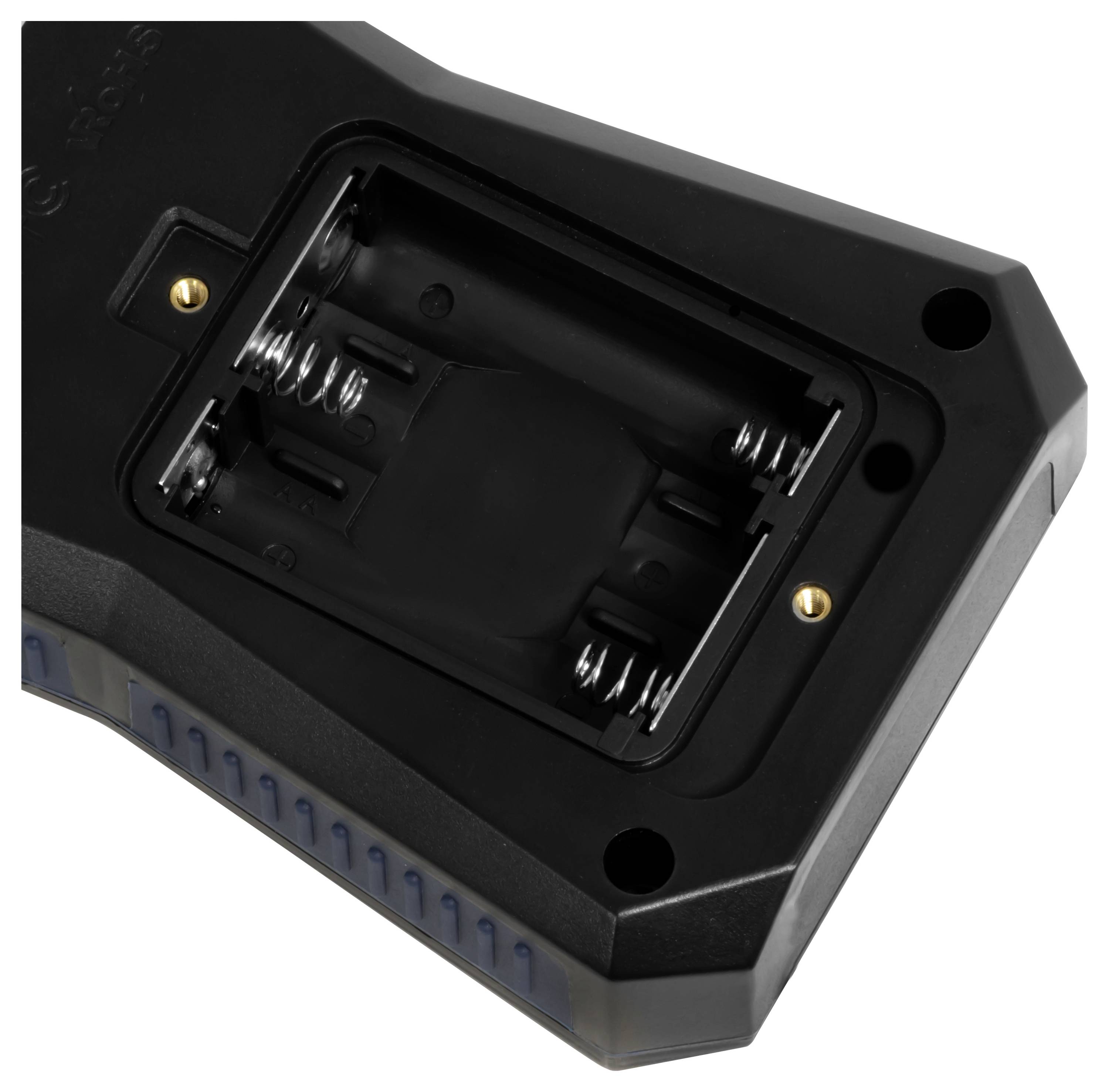

Battery 3 x 1.5 V AA battery , alkaline-manganese
Capacity 2970 mAh
Operating conditions 10 ... 50 °C , 0 ... 95 % r.F.
Storage conditions -5 ... 70 °C , 0 ... 95 % r.F.
Dimensions ( L x W x H ) 165 x 85 x 32 mm
Weight 230 g

Product type: Force gauge

Display: LCD

: Manufacturer's standards (no certificate)

Power supply (details): 3 x 1.5 V

Dim: (L x W x H) 165 x 85 x 32 mm

Weight: 230 g

Basic accuracy: 1 %

Width: 85 mm

Height: 32 mm

Length: 165 mm

Documents & Downloads

Datasheet

Datasheet 3812945 PCE Instruments PCE-BTM 1000 Force gauge Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 3812945 PCE Instruments PCE-BTM 1000 Force gauge Manufacturer's standards (no certificate)

Description

The belt tension meter is used to accurately check belt tension in machines and equipment to ensure optimum power transmission. This belt tension meter measures the belt's oscillation frequency and immediately calculates the belt tension displayed directly in Newton.
The measuring range is between 10 ... 680 Hz, with an accuracy of ±1 Hz for frequencies below 100 Hz and ±1 % for frequencies above 100 Hz, for a total error of less than 5 %.
Special features of the device include the flexible goose neck sensor for difficult accessible places as well as the possibility of directly entering the belt length, belt mass and belt width (max. 999.9 mm), as a result of which the belt tension is calculated particularly precisely. The belt tension meter can be switched between the display of the oscillation frequency in Hz and the calculated belt tension in N. It is operated with 3 × AA batteries and is thus flexible in use.
This belt tension meter is used primarily in the maintenance of conveyor systems, mechanical engineering, the automotive industry and everywhere where belts must be tensioned precisely to ensure the performance, safety and durability of the equipment.
