Buy PCE Instruments PCE-CHT 10 Chlorine photometer

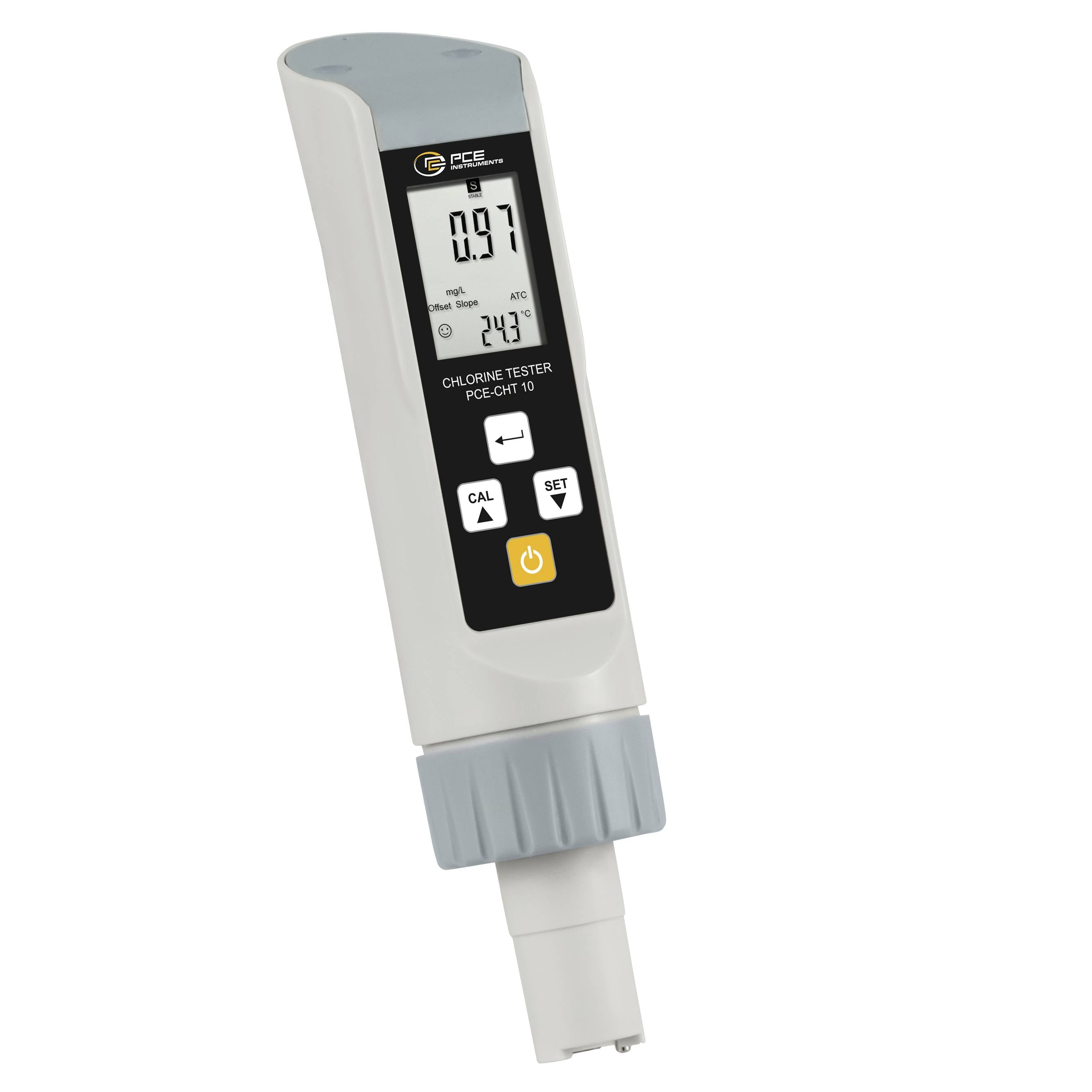

Handheld chlorine tester meter displaying 0.97 and 24.3° on a digital screen, with CAL, SET, and power buttons.

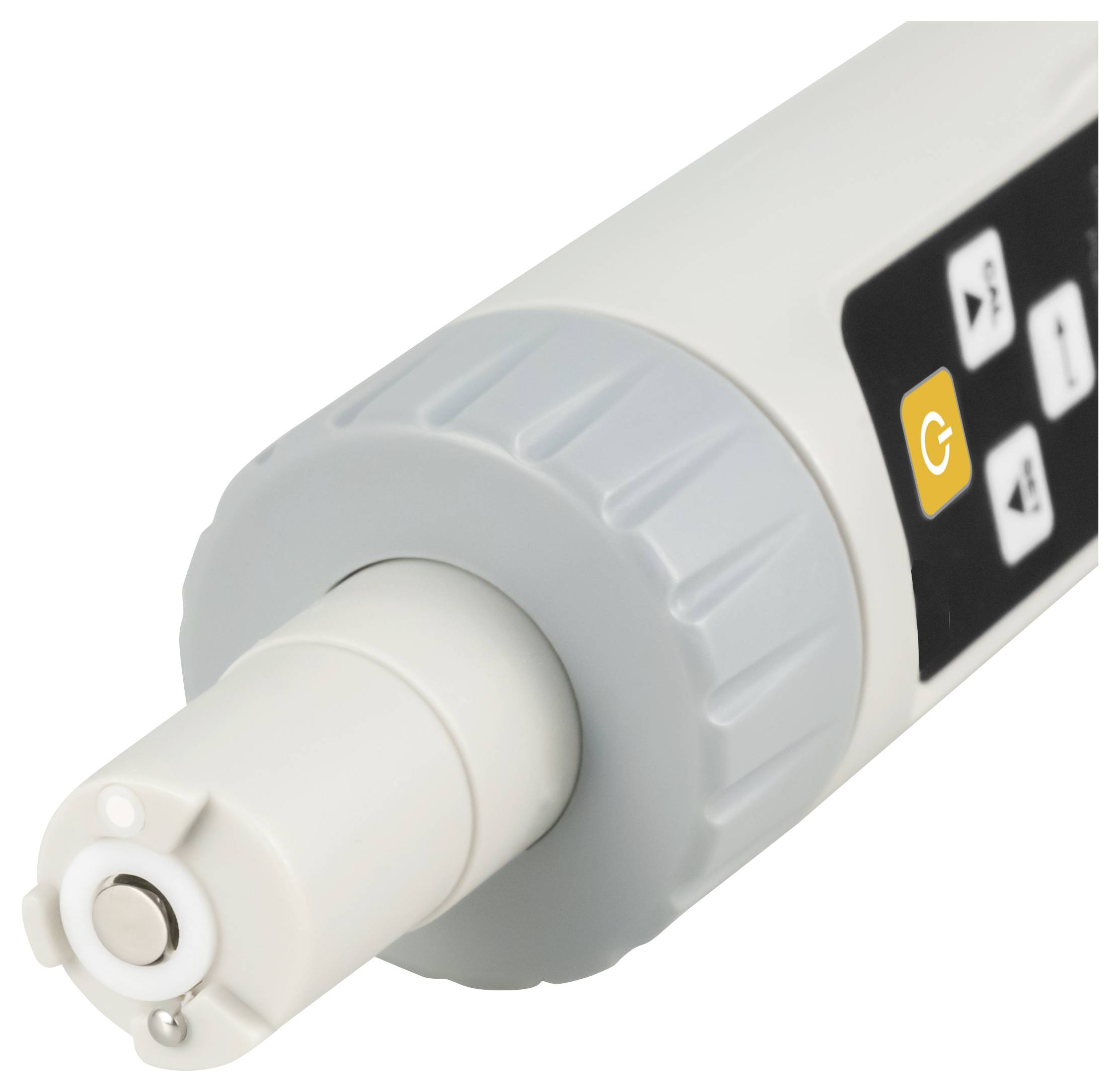

Close-up of a handheld medical device with a white tip, gray adjustment ring, and black control panel with buttons.<br>

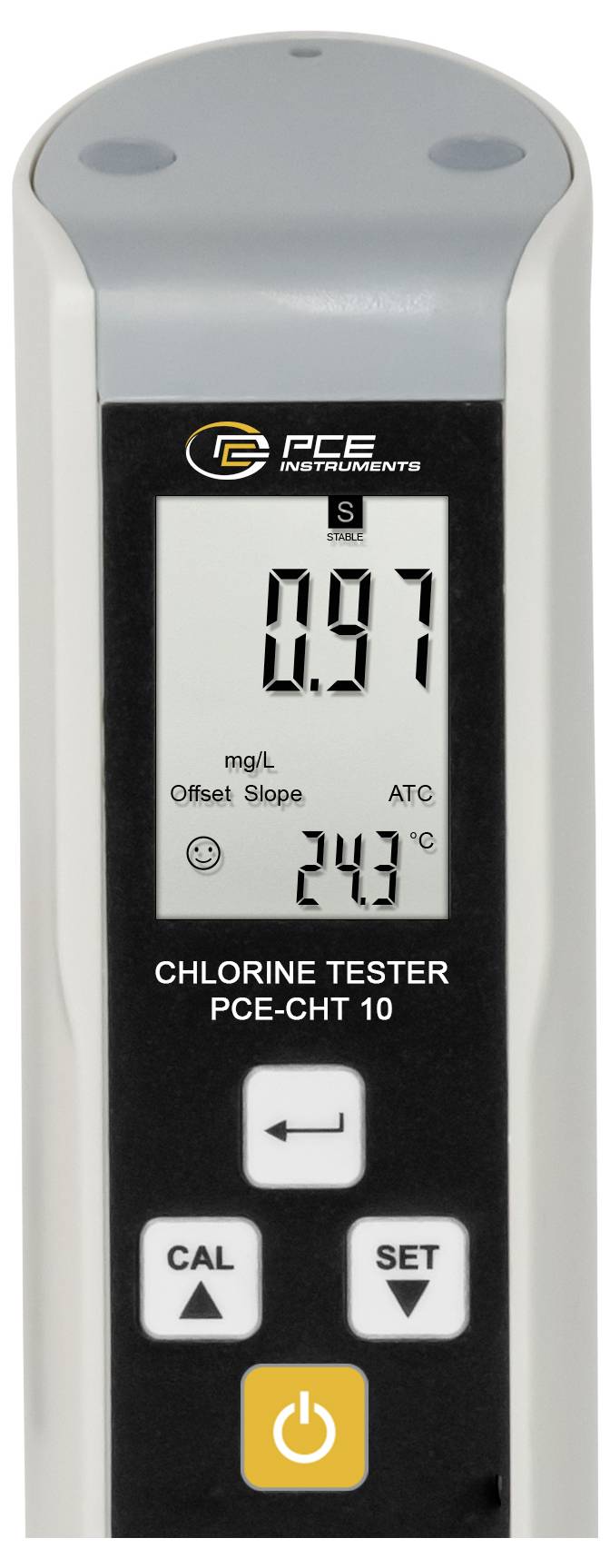

Handheld chlorine tester showing 0.97 mg/L and 24.3°C on its digital display, with CAL, SET, and power buttons.

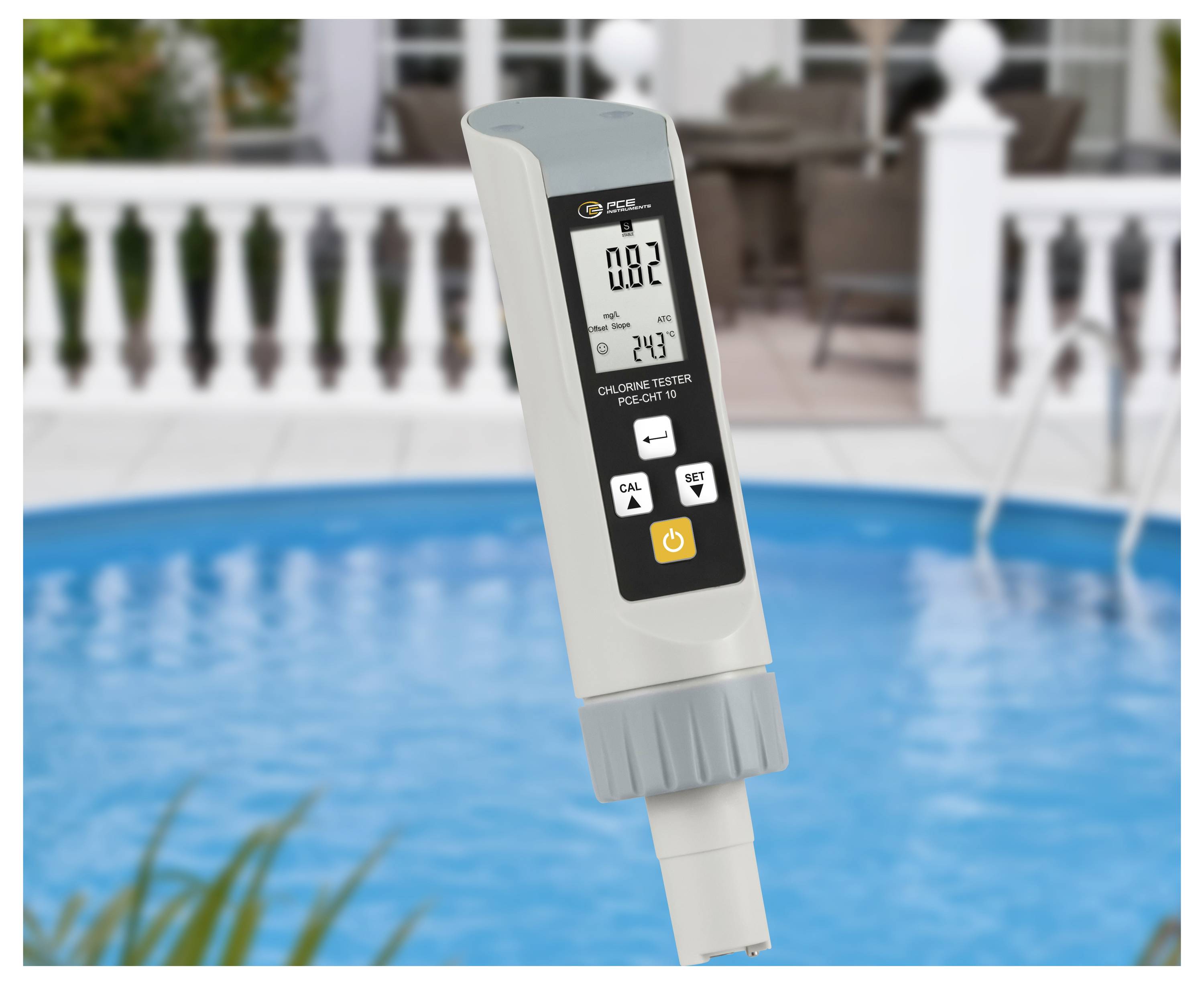

Digital pool water tester showing readings of 0.02 and 24.3, held above a backyard swimming pool.

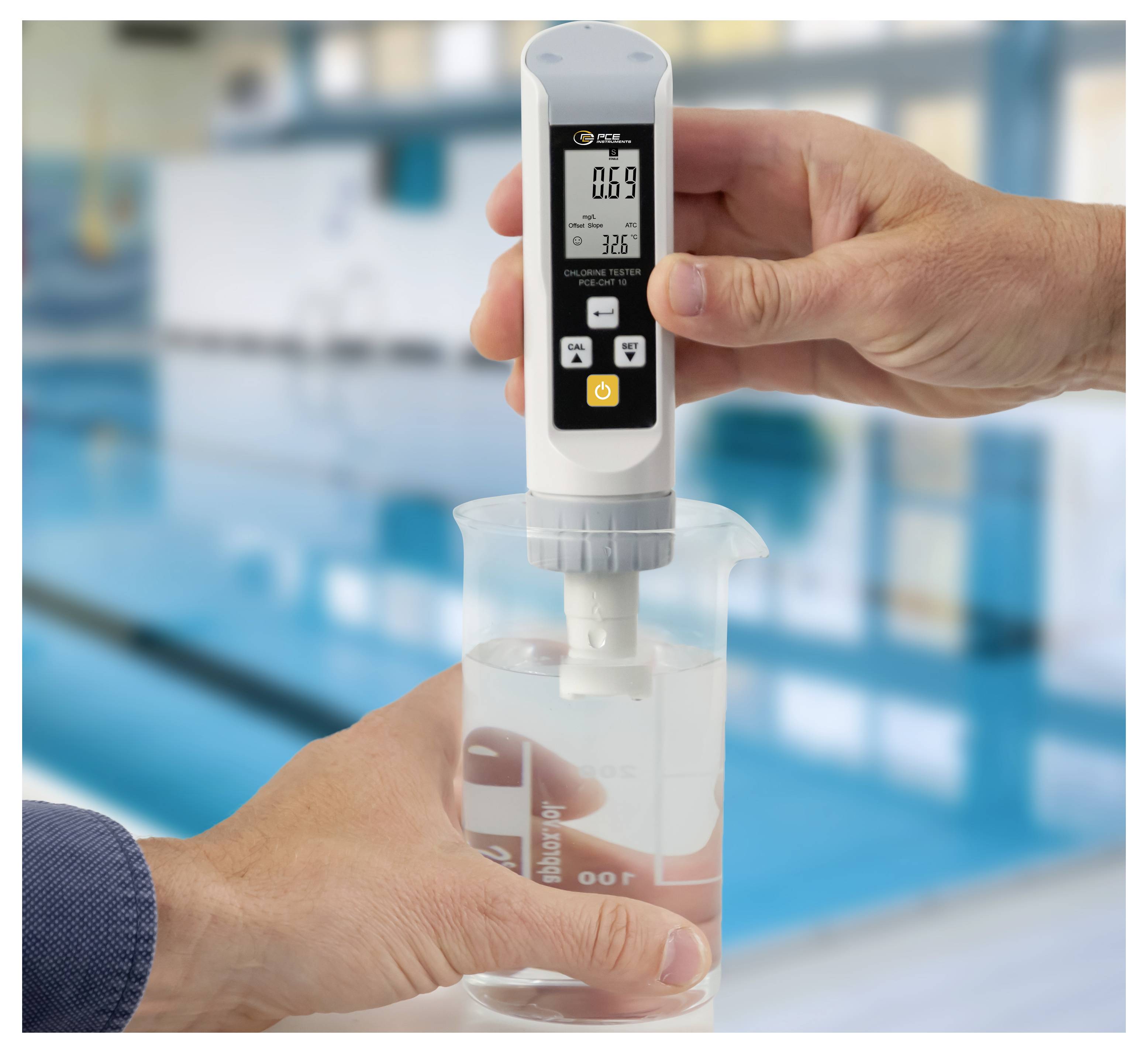

Person measuring water quality with a digital meter in a beaker, reading 0.69 and 32.6 in a laboratory setting.

A person in blue clothing is kneeling at the edge of a swimming pool and testing the water with their hand.

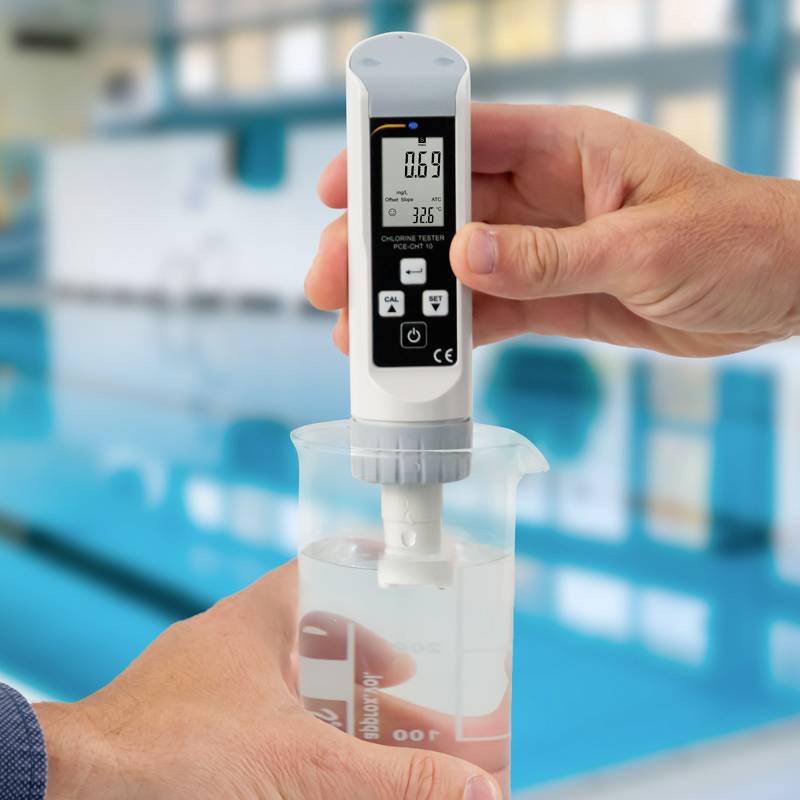

A hand holds a digital measuring device displaying 0.69 pH and 32.5°C. A pool is blurred in the background.

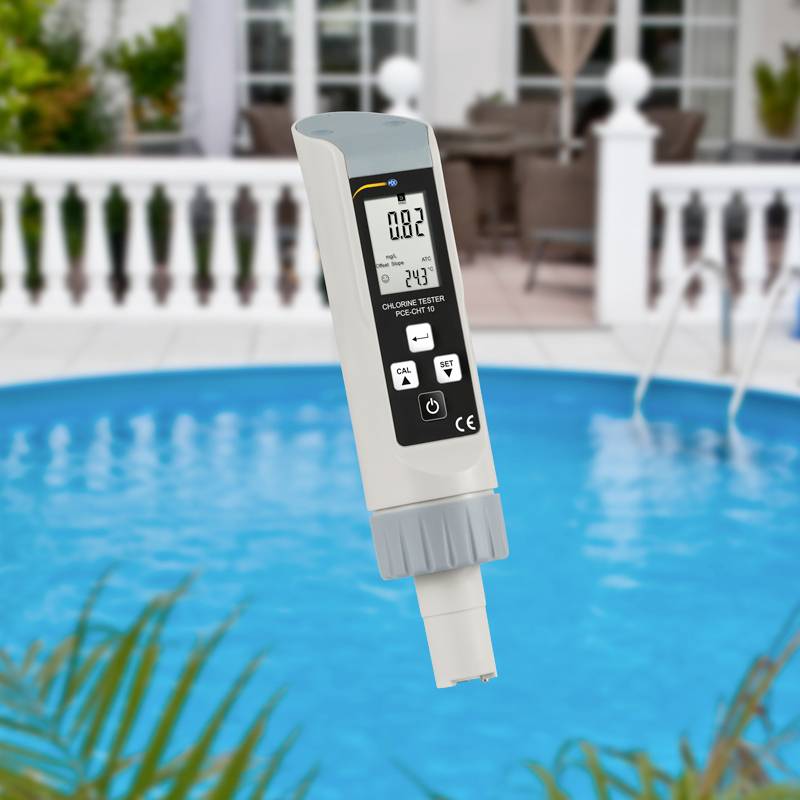

A digital pool tester device positioned above a blue swimming pool. Displays measurements for chlorine and pH levels. Background featuring pool surroundings.

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Chlorine Tester PCE-CHT 10

ideal for swimming pool or poolManual 2-point calibrationMeasured value stabilizationExchangeable chlorine electrodeAutomatic temperature compensationBacklight

Technical specifications

Chlorine measurement range 0...10.00 mg/lMeasurement accuracy: ±2 % of MB.Resolution: 0.01 mg/lIP67 protection classTemperature measuring range:0 ...100 °C.Calibration:Manual 2-point calibrationOperating conditions:0 ... 60 °C 20 ... 90 % RH non-condensingPower supply: 1 x 1.5V AAA batteryDimensions 185 x 40 x 48 mmElectrode dimensions 35 x Ø 20 mm

Product type: Chlorine photometer

: Manufacturer's standards (no certificate)

Power supply (details): 1 x 1.5V AAA battery

Dim: (L x W x H) 185 x 40 x 48 mm

Weight: 95 g

Chlorine reading range: 0.00 - 10.00 mg/l

Chlorine reading range (max.): 10.00 mg/l

Chlorine reading range (min.): 0.00 mg/l

Temperature reading range: 0 up to +100 °C

Temperature reading range (max.): +100 °C

Temperature reading range (min.): 0 °C

Width: 40 mm

Height: 48 mm

Length: 185 mm

Documents & Downloads

Datasheet

Datasheet 2620698 PCE Instruments PCE-CHT 10 Chlorine photometer

User & Safety Instructions

User & Safety Instructions 2620698 PCE Instruments PCE-CHT 10 Chlorine photometer

Description

Water analyzer for swimming pool / Measuring range 0 ... 10 mg/l easy operation / calibration function / background lighting The water analyzer with a measuring range of 0 ... 10 mg/l has been developed for a quick chlorine measurement in water. The display of the chlorine water analyzer shows the chlorine content and the temperature. The measurement result appears on the display within a few seconds after the test and can also be frozen. In addition, the water analyzer displays an icon on the display when the measured value is stable. Automatic temperature compensation increases the measurement accuracy of the water analyzer. The automatic shut-off function after 20 minutes extends the battery life of the water analyzer. Because the water analyzer is small and handy, it is ideally suited for mobile use. Thus, the water analyzer can be used very well in the pool and in the swimming pool. The water analyzer is very simple and easy to use, since all buttons are marked with the respective parameter.

This text is machine translated.
