PCE Instruments PCE-CIC 10-LED Colour viewing booth
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CIC 10-LED
- Colour evaluation under various light types
- With hour counter
- Rapid warm-up time
- COMPLIES WITH ASTM D1729, ISO3664, DIN, ANSI, BSI
- Easy-to-clean housing
- Large illumination area of the objects
Technical specifications
- House light a / F
- Artificial daylight D50
- Department light TL84 / F11
- Ultra violet UV
- Office/business/storage room light CWF
- Business / office lighting in USA TL83 / U30
- External dimensions 1310 x 600 x 800 mm
- Internal dimensions 1280 x 590 x 590 mm
- Weight 65 kg.
- STANDARDS ASTM D1729, ISO3664DIN, ANSI, BSI
- Product type
Colour viewing booth
- Width
590 mm
- Height
590 mm
- Length
1280 mm
- Dim
(L x W x H) 1280 x 590 x 590 mm
- Factory colour
Grey
- Packaging type
Carton
- Operating voltage
230 V AC
Documents & Downloads
Datasheet
Datasheet 3324676 PCE Instruments PCE-CIC 10-LED Colour viewing booth
User & Safety Instructions
User & Safety Instructions 3324676 PCE Instruments PCE-CIC 10-LED Colour viewing booth
Description
Colour illumination chamber for color comparison/for use in quality control/hour counter/large viewing area/easy-care interior/simulation of six types of light
A color sample cabin is used wherever products must have the same color characteristics during manufacture. A color pattern cabin thus contributes to quality control. The color pattern booth is a simulation instrument that is capable of presenting certain situations by different light types to analyze the color characteristics of individual samples. The color pattern booth supports six possible light types. The color types "A/F", "D50", "TL84/F11", "UV", "CWF" and "TL83/U30" are supplied as standard.

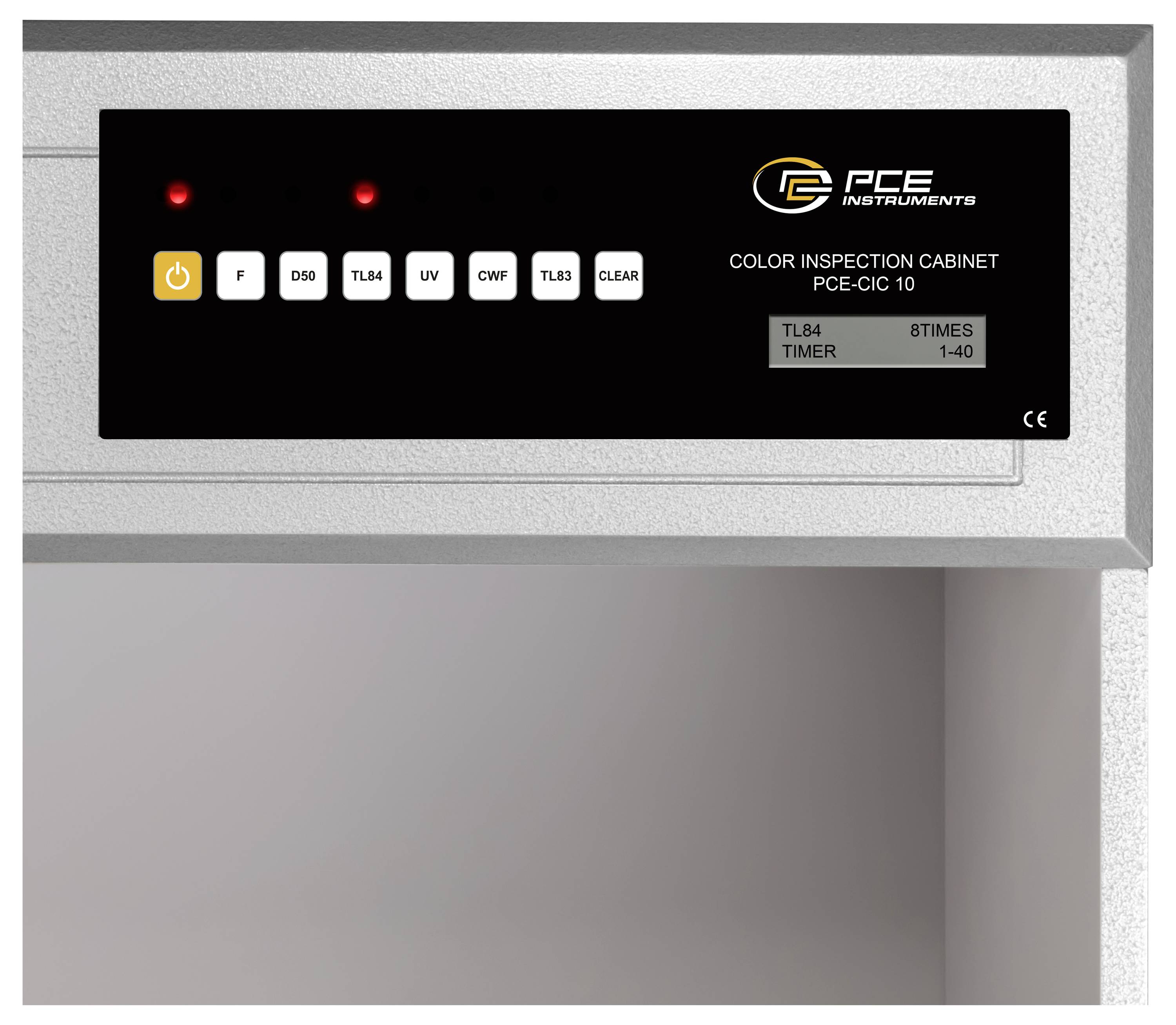

Metamerie can thus be avoided by the use of a color pattern cabin. In support of the measurement, the color sampling booth has installed an hour counter which makes it easier for the user to keep to the recommended duration of the lamps. The corresponding light type is independent of the user to select by pressing a button. The switch panel is located on the front side of the color pattern booth. If desired, several light types can also be switched on at the same time on the color pattern cabin. This is done by pressing the corresponding buttons at the same time.
This text is machine translated.
A color sample cabin is used wherever products must have the same color characteristics during manufacture. A color pattern cabin thus contributes to quality control. The color pattern booth is a simulation instrument that is capable of presenting certain situations by different light types to analyze the color characteristics of individual samples. The color pattern booth supports six possible light types. The color types "A/F", "D50", "TL84/F11", "UV", "CWF" and "TL83/U30" are supplied as standard.
Metamerie can thus be avoided by the use of a color pattern cabin. In support of the measurement, the color sampling booth has installed an hour counter which makes it easier for the user to keep to the recommended duration of the lamps. The corresponding light type is independent of the user to select by pressing a button. The switch panel is located on the front side of the color pattern booth. If desired, several light types can also be switched on at the same time on the color pattern cabin. This is done by pressing the corresponding buttons at the same time.
This text is machine translated.
Features
- Various types of light
- Rapid warm-up time
- COMPLIES WITH ASTM D1729, ISO3664, DIN, ANSI, BSI

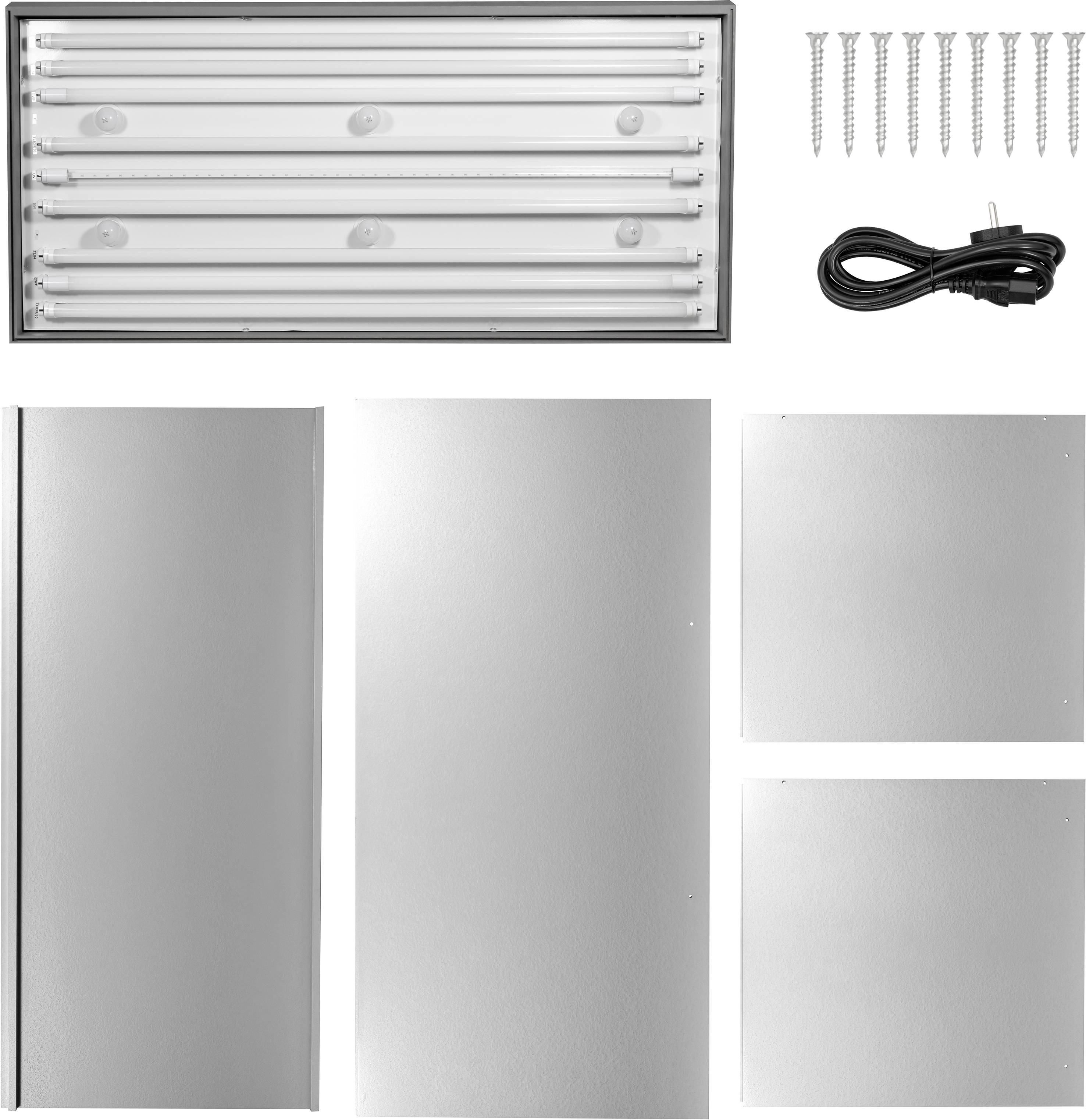

Scope of delivery
- 1 x color lighting chamber PCE-CIC 10-LED
- 1x user manual
