PCE Instruments PCE-CIC 11-LED Colour viewing booth
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CIC 11-LED
- Simulation of different light types
- Hour counter for each type of light
- Rapid warm-up time
- COMPLIES WITH ASTM D1729, ISO3664, DIN, ANSI, BSI
- Easy-to-clean housing
- Optimal illumination of the cab
Technical specifications
- House light a / F
- Artificial daylight D65
- Department light TL84 / F11
- Ultra violet UV
- Office/business/storage room light CWF
- Business / office lighting in USA TL83 / U30
- External dimensions 695 x 552 x 502 mm
- Internal dimensions 665 x 490 x 360 mm
- STANDARDS ASTM D1729, ISO3664, DIN, ANSI, BSI
- Product type
Colour viewing booth
- Width
490 mm
- Height
360 mm
- Length
665 mm
- Dim
(L x W x H) 665 x 490 x 360 mm
- Factory colour
Grey
- Packaging type
Carton
- Operating voltage
230 V AC
Documents & Downloads
Datasheet
Datasheet 3324677 PCE Instruments PCE-CIC 11-LED Colour viewing booth
User & Safety Instructions
User & Safety Instructions 3324677 PCE Instruments PCE-CIC 11-LED Colour viewing booth
Description
Colour illumination chamber for color comparison/for use in quality control/hour counter/large viewing area/easy-care interior/simulation of six types of light
The color pattern cabin is a simulation instrument, WAS is used primarily in quality control. The color pattern cabin correctly adjusts light types and thus enables direct comparison of products that have to have special color properties. The color pattern booth supports six possible light types. The color types "A/F", "D65", "TL84/F11", "UV", "CWF" and "TL83/U30" are supplied as standard.

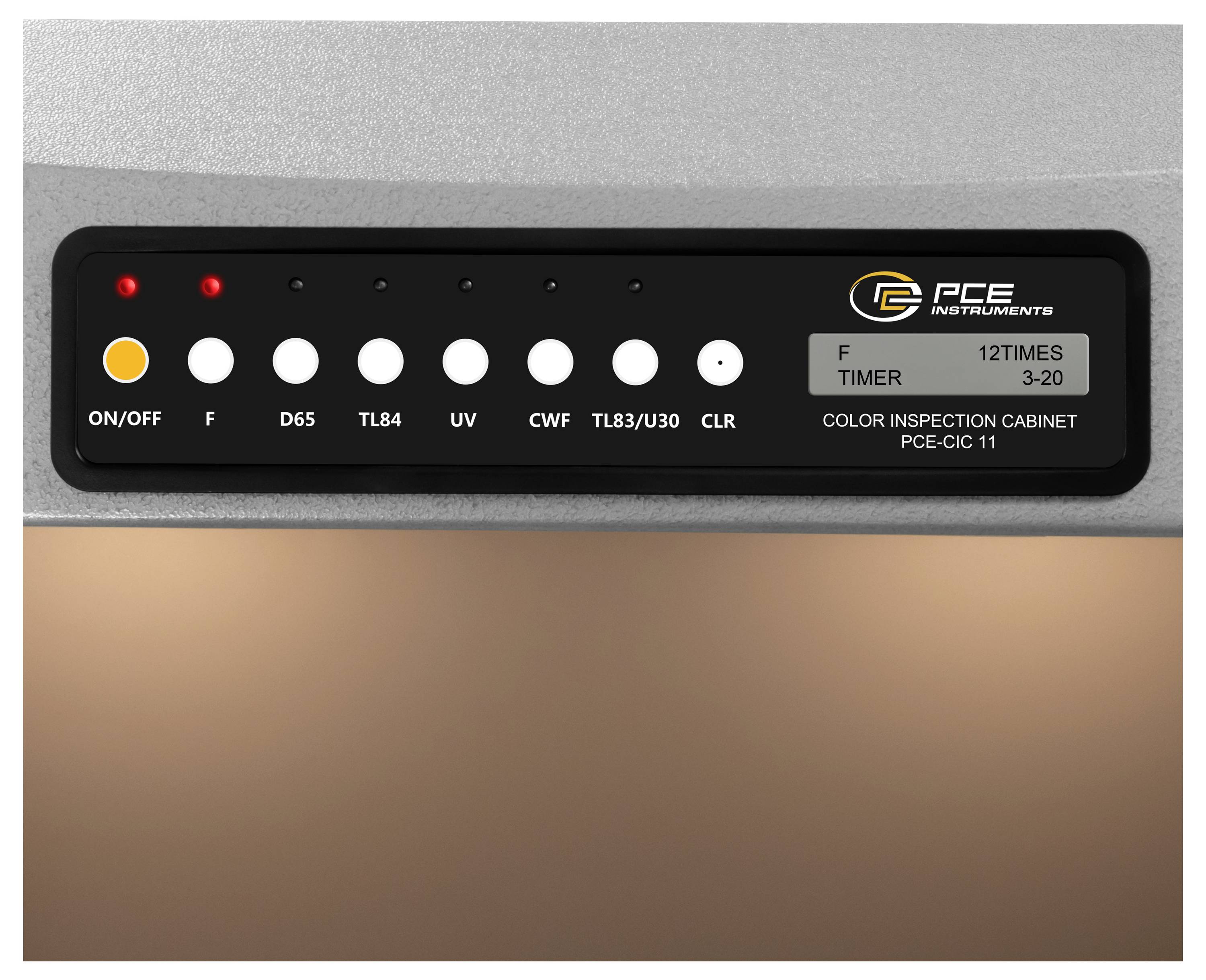

Metamery can thus be prevented by the use of a color pattern booth. An hour counter is installed on the color pattern cabin, which in addition to the hours also indicates the general use of the respective illuminant. This makes it easier for the user to adhere to the recommended runtime of the illuminant. The required type of light can be selected on the switch panel of the color pattern cabin. In addition to the single light, it is also possible to switch to the mixed light by simultaneously pressing the required buttons on the switch strip.
This text is machine translated.
The color pattern cabin is a simulation instrument, WAS is used primarily in quality control. The color pattern cabin correctly adjusts light types and thus enables direct comparison of products that have to have special color properties. The color pattern booth supports six possible light types. The color types "A/F", "D65", "TL84/F11", "UV", "CWF" and "TL83/U30" are supplied as standard.
Metamery can thus be prevented by the use of a color pattern booth. An hour counter is installed on the color pattern cabin, which in addition to the hours also indicates the general use of the respective illuminant. This makes it easier for the user to adhere to the recommended runtime of the illuminant. The required type of light can be selected on the switch panel of the color pattern cabin. In addition to the single light, it is also possible to switch to the mixed light by simultaneously pressing the required buttons on the switch strip.
This text is machine translated.
Features
- Various types of light
- Hour counter for each type of light
- Rapid warm-up time

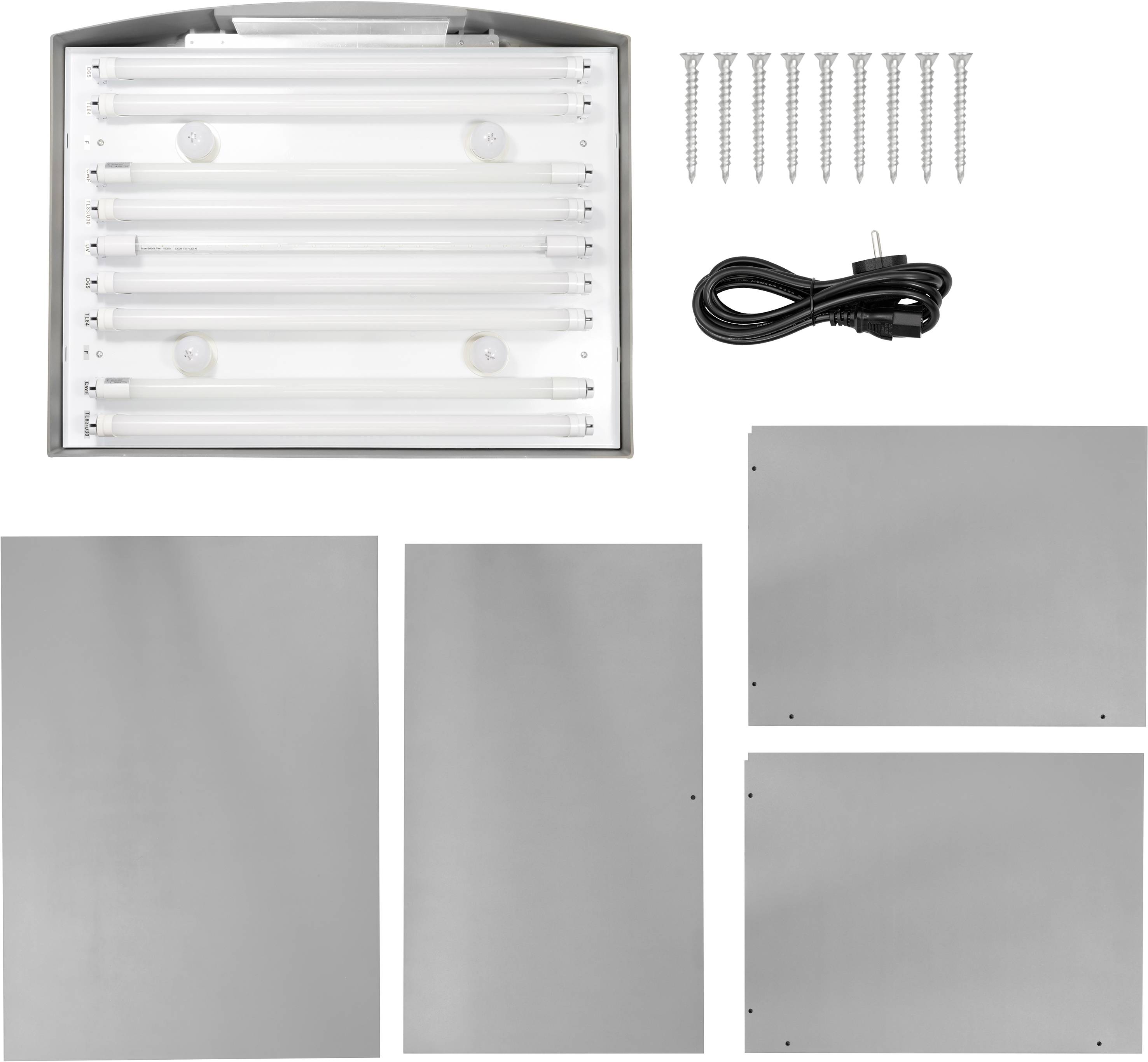

Scope of delivery
- 1 x color lighting chamber PCE-CIC 11-LED
- 1x user manual
