Buy PCE Instruments PCE-CL 20 Cable locator Cable tracking

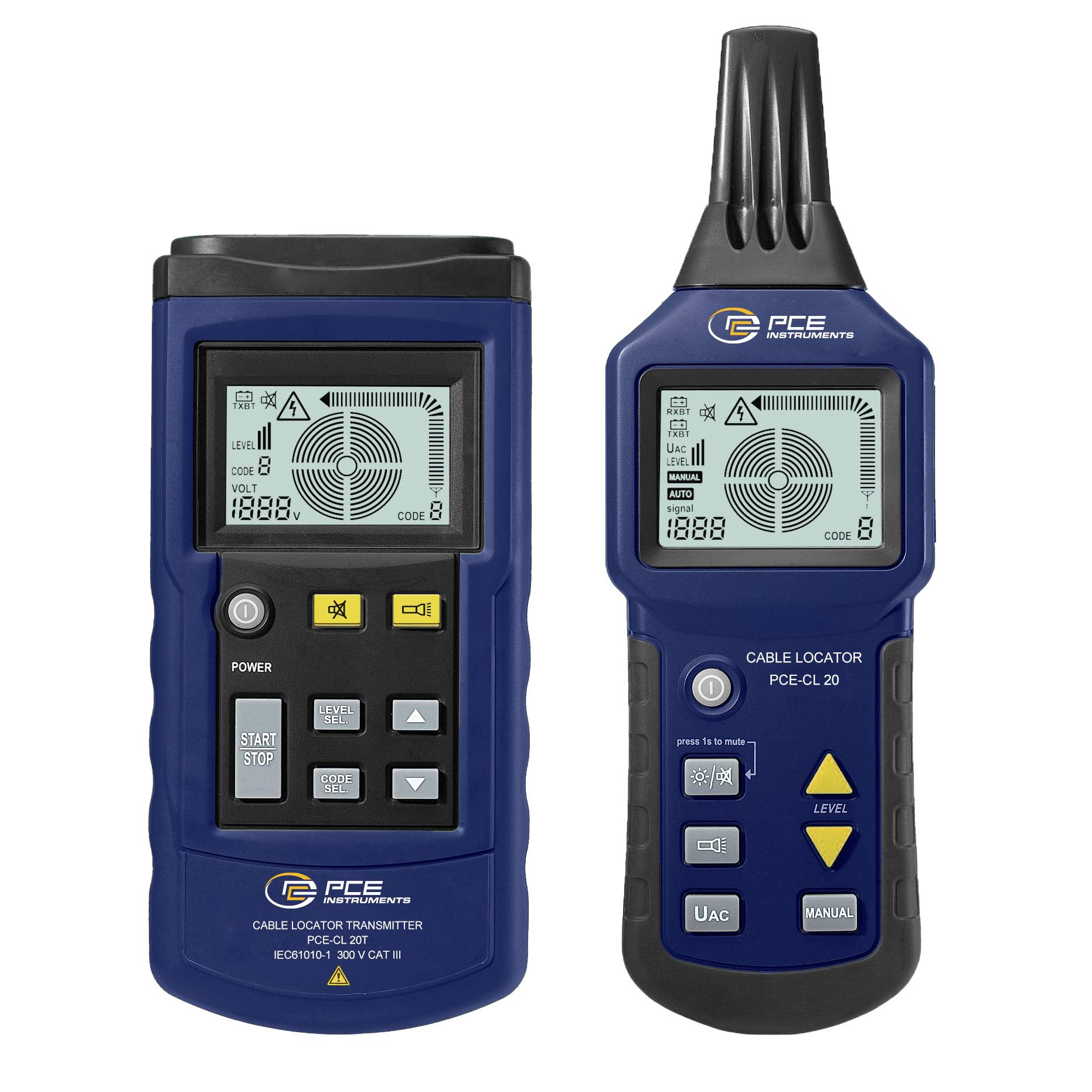

Two blue PCE Instruments cable locator devices shown side by side, a transmitter on the left and a locator receiver on the right with LCD screens and control buttons.

Datasheet (PDF)

Unavailable

20 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cable detector PCE-CL 20

Lighting function on both devices
Backlight on receiver unit
Acoustic signal for line detection
Easy detection of short circuits
Manual sensitivity adjustment
Supplied with earthing rod

Technical specifications

Output signal 125 kHz External voltage identification range DC 12 ... 400 V ±2.5 % AC 12 ... 400 V (50 ... 60 Hz) ±2.5 % Display LCD Maximum voltage max. 400 V AC/DC Overvoltage category CAT III 300 V Pollution degree 2 Power supply 9 V block battery Power consumption (minimum voltage) approx. 31 mA Power consumption (maximum voltage) approx. 115 mA Fuse F 0.5 A 500 V, 6.3 x 32 mm Operating conditions 0 ... +40 °C, RH < 80 % Storage conditions -20 ... +60 °C, rel. humidity < 80 % Dimensions 190 x 89 x 42.5 mm Weight approx. 420 g incl. Battery. Cable detector technical specification (receiver) Detection depth depends on material and application Single-pole application approx. 0 ... 2 m Two-pole application approx. 0 ... 0.5 m Single loop up to 2.5 m. Grid voltage detection approx. 0 ... 0.4 m Display LCD Power supply 6 x 1.5 V AAA batteries Power consumption (minimum voltage) approx. 32 mA Power consumption (maximum voltage) approx. 89 mA Ambient conditions 0 ... +40 °C, RH < 80 % Storage conditions -20 ... +60 °C, rel. humidity < 80 % Dimensions 241.5 x 78 x 38.5 mm Weight approx. 350 g including batteries.

Product type: Cable locator

Function: Cable tracking

Optical display: Yes

Acoustic signal: Yes

Display: LCD

Dim: (L x W x H) 190 x 89 x 42 mm

Weight: 420 g

Operating voltage: 9 V

Weight, information: Transmitter/receiver

Reading category: CAT III 300 V

Width: 89 mm

Height: 42 mm

Length: 190 mm

Type: PCE-CL 20

Documents & Downloads

Datasheet

Datasheet 2452309 PCE Instruments PCE-CL 20 Cable locator Cable tracking

User & Safety Instructions

User & Safety Instructions 2452309 PCE Instruments PCE-CL 20 Cable locator Cable tracking

Description

Cable detector PCE-CL 20 for single-pole or two-pole application / Lamp function on both devices / back-lit display on the receiver / for testing circuits and lines / exact localization of short circuits of the cable detector PCE-CL 20 enables the purging of live and voltage-free cables. In addition to electrical cables, the cable detector also detects gas or water pipes located in the wall or in the ground. This makes it possible to detect short circuits and fuses with the cable detector. This is the reason why the cable detector is well suited to inspect the corresponding wall before drilling to ensure that lines are not hit. The cable detector consists of two individual devices. Once there is the receiver unit and on the other hand the cable detector is supplied with a signal generator. In order to be able to work even in dark environments, both devices are equipped with a lighting function by the cable detector. Three LEDs provide for the perfect lighting on both devices. In addition to the illuminated function, the receiver unit also has the option of activating the background lighting.
