Buy PCE Instruments PCE-CM 41 Conductivity tester

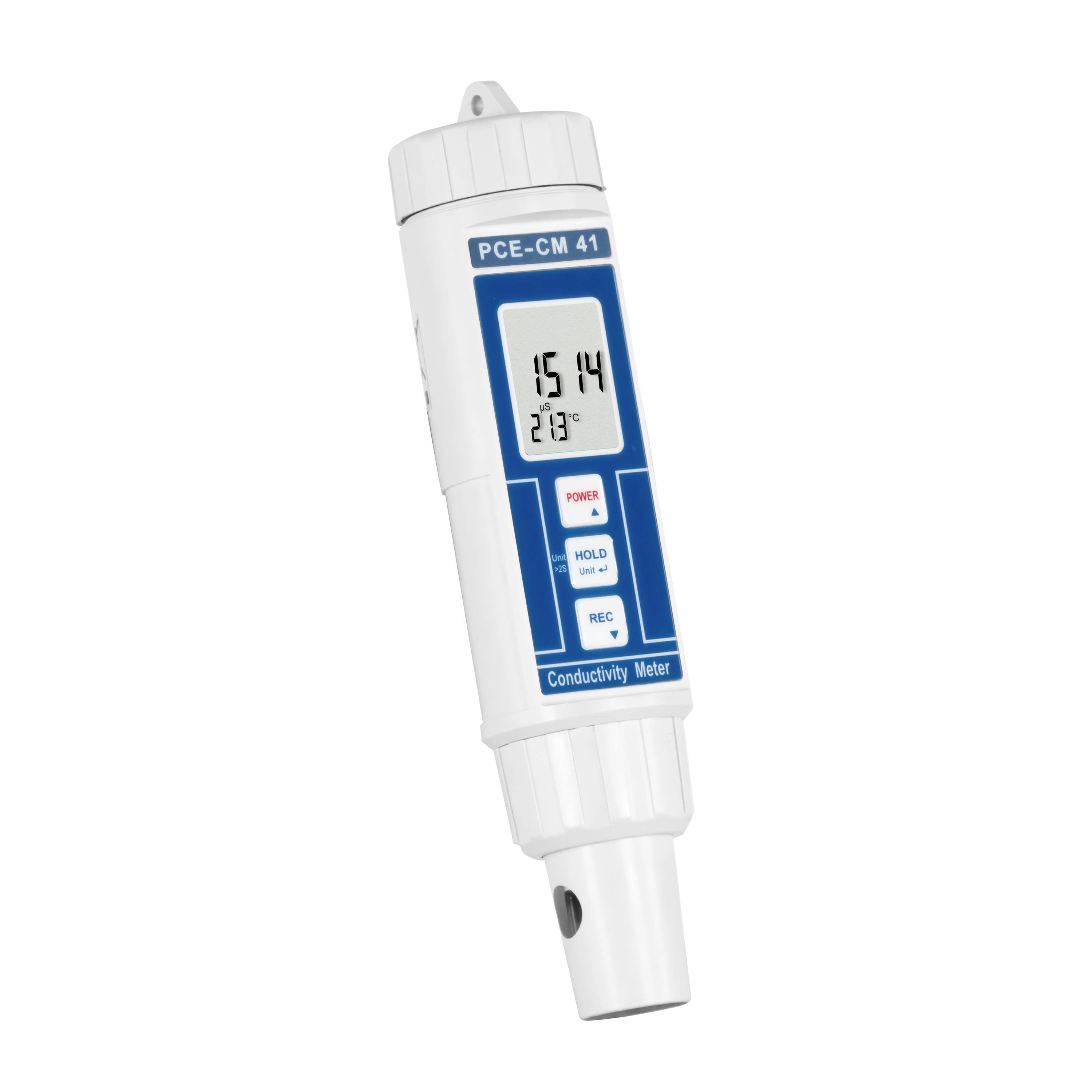

Handheld PCE-CM 41 conductivity meter shown on a white background, displaying readings of 1514 and 21.3°C.<br>

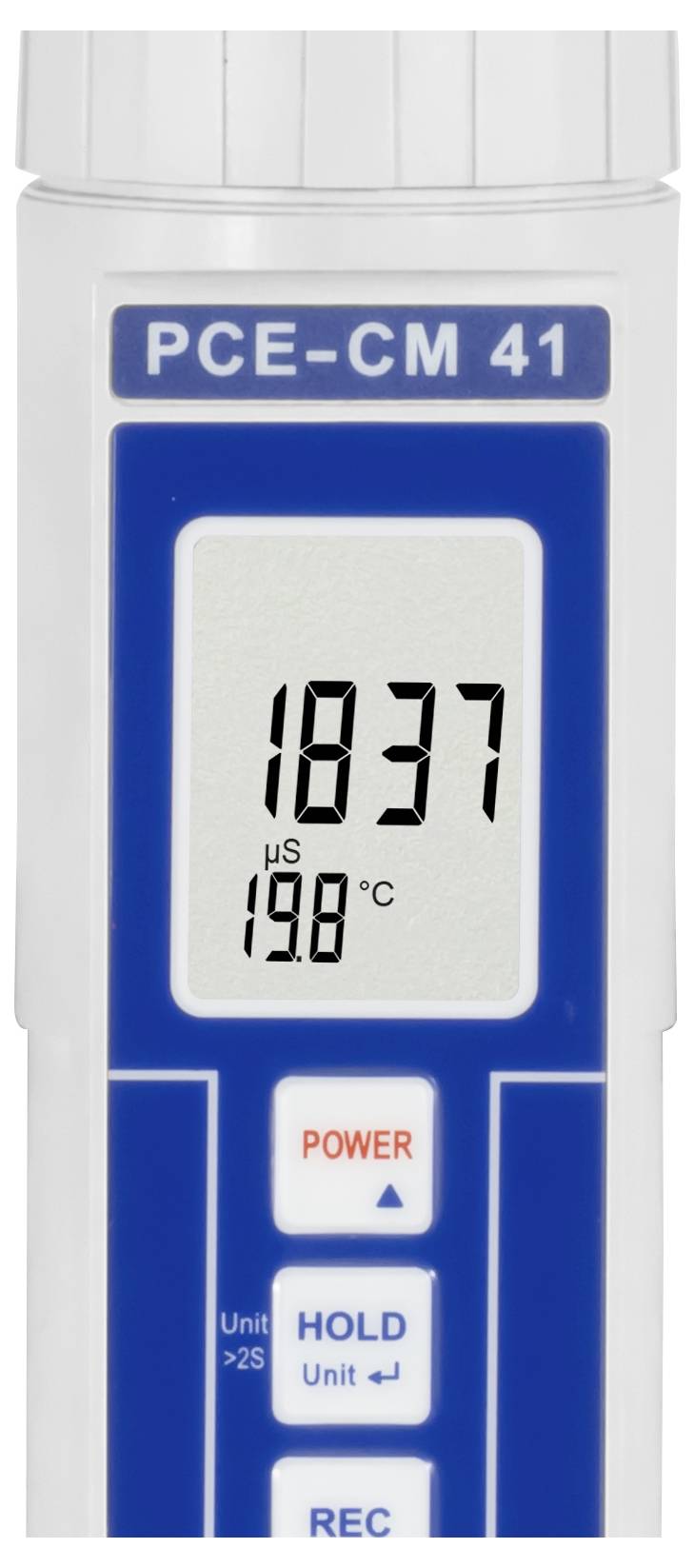

Handheld digital meter displaying 1837 µS and 19.8 °C, with 'POWER', 'HOLD', and 'REC' buttons visible.

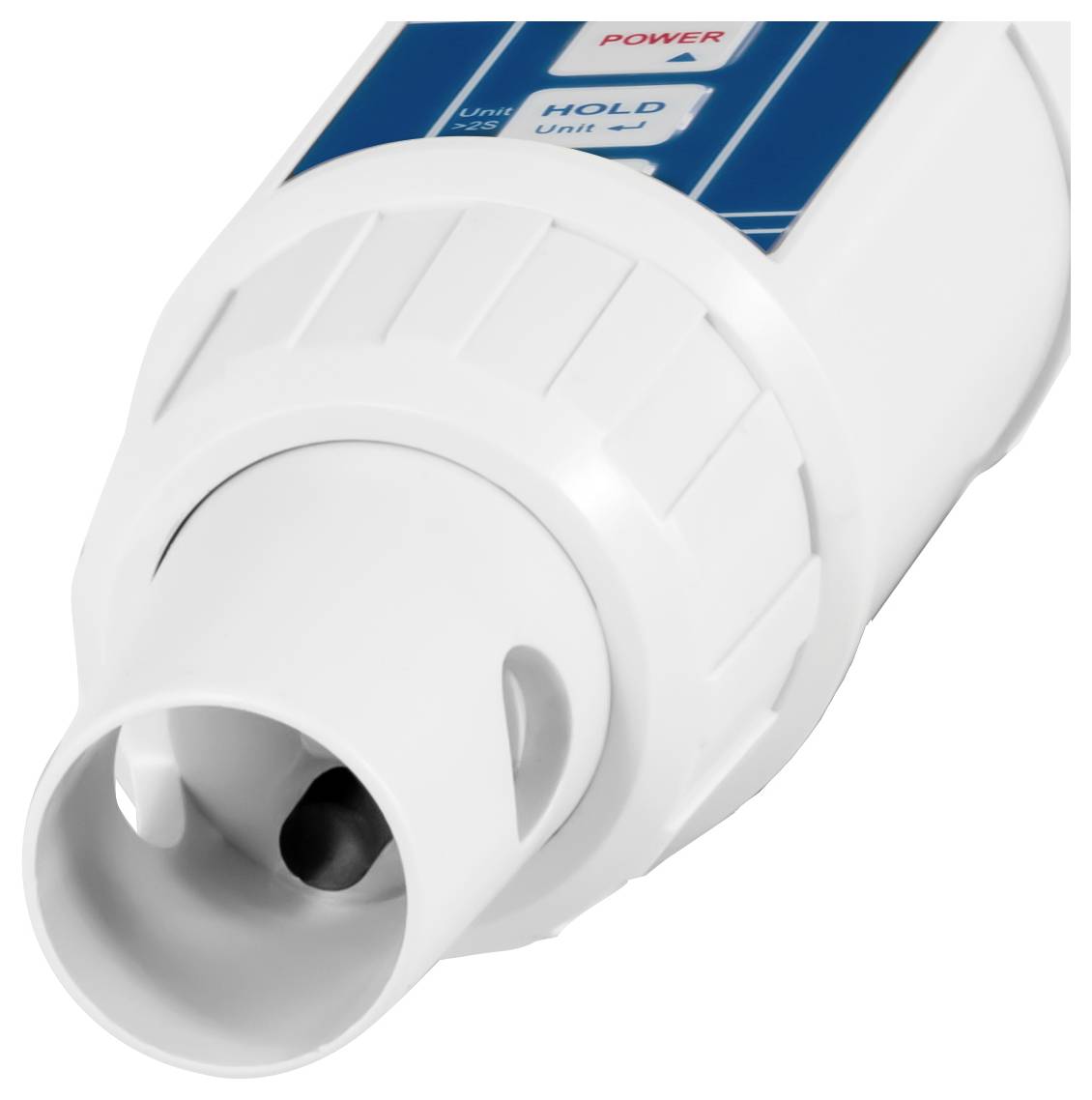

Close-up of a white handheld medical device with a blue display and 'POWER' and 'HOLD' buttons, shown angled on a white background.

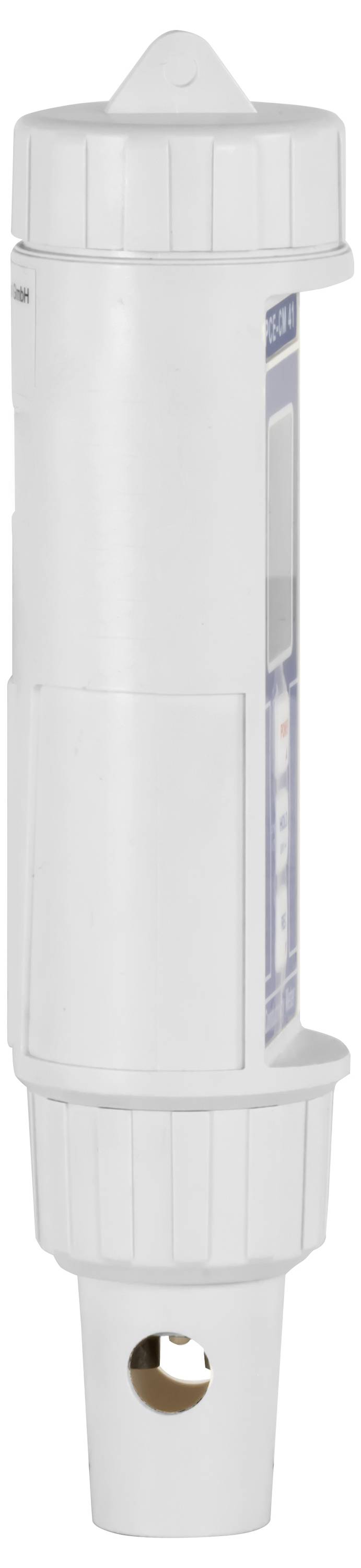

White cylindrical water filter cartridge with ribbed top and bottom, side label, and a mounting hole near the base.

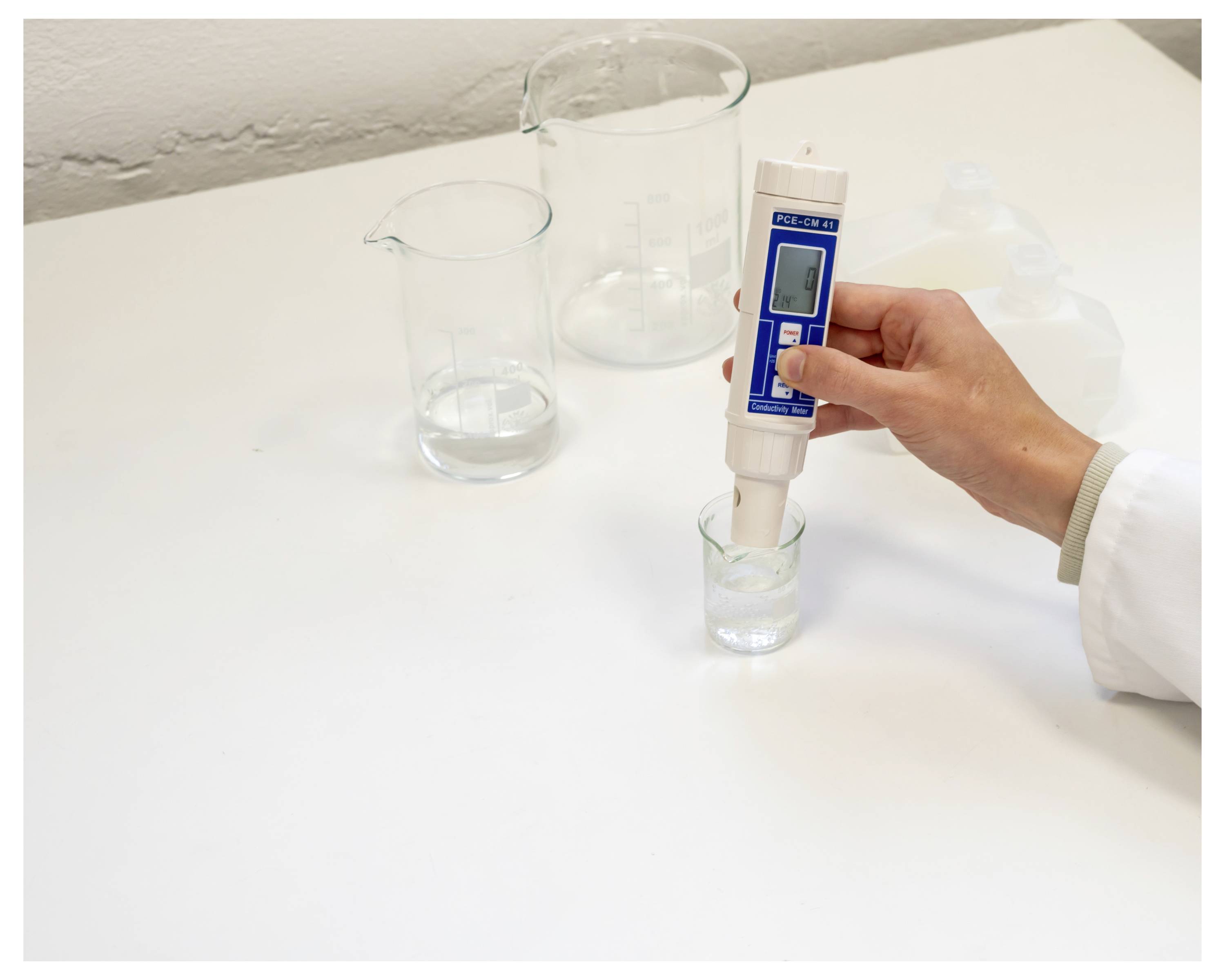

Hand holding a digital pH meter in a small glass of liquid on a lab bench, with two larger beakers of clear liquid in the background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Conductivity tester PCE-CM 41

Two ranges for high accuracy
Measures conductivity / TDS value and temp. (3 devices in one housing)
TDS factor can be selected
Automatic calibration: Saves time and provides high accuracy
Automatic switch-off: Saves batteries
Temperature display

Technical specifications

Conductivity reading range EC 0...2000 µs/cm, 0...20 MS/cm Conductivity resolution EC 1 µs/cm , 0.01 MS/cm Conductivity EC accuracy ± 1 % of the measuring range Measurement range salt content TDS 0...2000 mg/l (ppm), 20000 mg/l (ppm) Resolution Salt content TDS 1 ppm (< 1320 ppm)10 ppm ( > 1320 ppm) Accuracy of salt content TDS ±3 % of the measuring range Measurement range temperature 0.0...+60 °C. Resolution temperature: 0.1 °C Accuracy: Temperature ± 0.8 °C TDS 1 ppm (< 1320 ppm) 10 ppm ( > 1320 ppm) Calibration 1413 µs/cm Environment 0...+60 °C /< 80% RH Power supply 4 x 1.5 V batteries type AAA (included) Dimensions 186 x 40 mm (HxB) Weight 130 g

Product type: Conductivity tester

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452313 PCE Instruments PCE-CM 41 Conductivity tester

User & Safety Instructions

User & Safety Instructions 2452313 PCE Instruments PCE-CM 41 Conductivity tester

Description

Conductivity tester for EC and TDS (sum of dissolved salts or solids) of the PCE-CM 41 conductivity tester offers the option of measuring the conductivity value, the sum of all dissolved solids or salts (TDS / Total Dissolved Solids) and the temperature. This conductivity tester can be easily transported in your pocket. The waterproof casing protects the tester's electronics optimally (also against dust). The EC and TDS conductivity measurement is naturally automatically temperature-compensated. The area of application of the conductivity tester is wide spread across all industries, fish farming, horticulture and many other areas.

This text is machine translated.
