PCE Instruments PCE-CM 41-ICA Conductivity tester Calibrated to (ISO standards) TDS, Conductivity, Temperature
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments conductivity tester PCE-CM 41-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-cm 41-ICA
- Two ranges for high accuracy
- Measures conductivity / TDS value and temperature. (3 devices in one housing)
- TDS-factor can be selected
- Automatic calibration: Saves time and ensures high accuracy
- Automatic power off
- Temperature display °C, °F
- Protection class device IP67
- Field of application
- Water treatment
- Fish breeding
- Aquarium
- Garden pond
- Quality control
- Landscaping and Gardening
- Hydroculture
- Cooling towers
- Steam and heating boiler
- Wastewater
- Incl. ISO calibration certificate
Technical specifications
- Conductivity
- Measuring range 0 ... 2000 µS
- Resolution 1 µS
- Accuracy ±(3 % FS +1 digit)
- Conductivity
- Measuring range 2 ... 20 MS
- Resolution 0.01 mS
- Accuracy ±(3 % FS +1 digit)
- TDS
- Measuring range 0 ... 1320 ppm
- Resolution 1 ppm
- Accuracy ±(3 % FS +1 digit)
- TDS
- Measuring range 1320 ... 13200 ppm
- Resolution 10 ppm
- Accuracy ±(3 % FS +1 digit)
- Temperature
- Measuring range 0 ... 60 °C
- Resolution 0.1 °C
- Accuracy: ±0.8 °C
- Temperature
- Measuring range 32 ... 140 °F
- Resolution 0.1 °F
- Accuracy 1.5 °F
- General Technical Data
- MEASUREMENT FUNCTIONS MIN, MAX, HOLD
- Temperature compensation Automatic temperature compensation from 0-60°C ( 32-140°F)

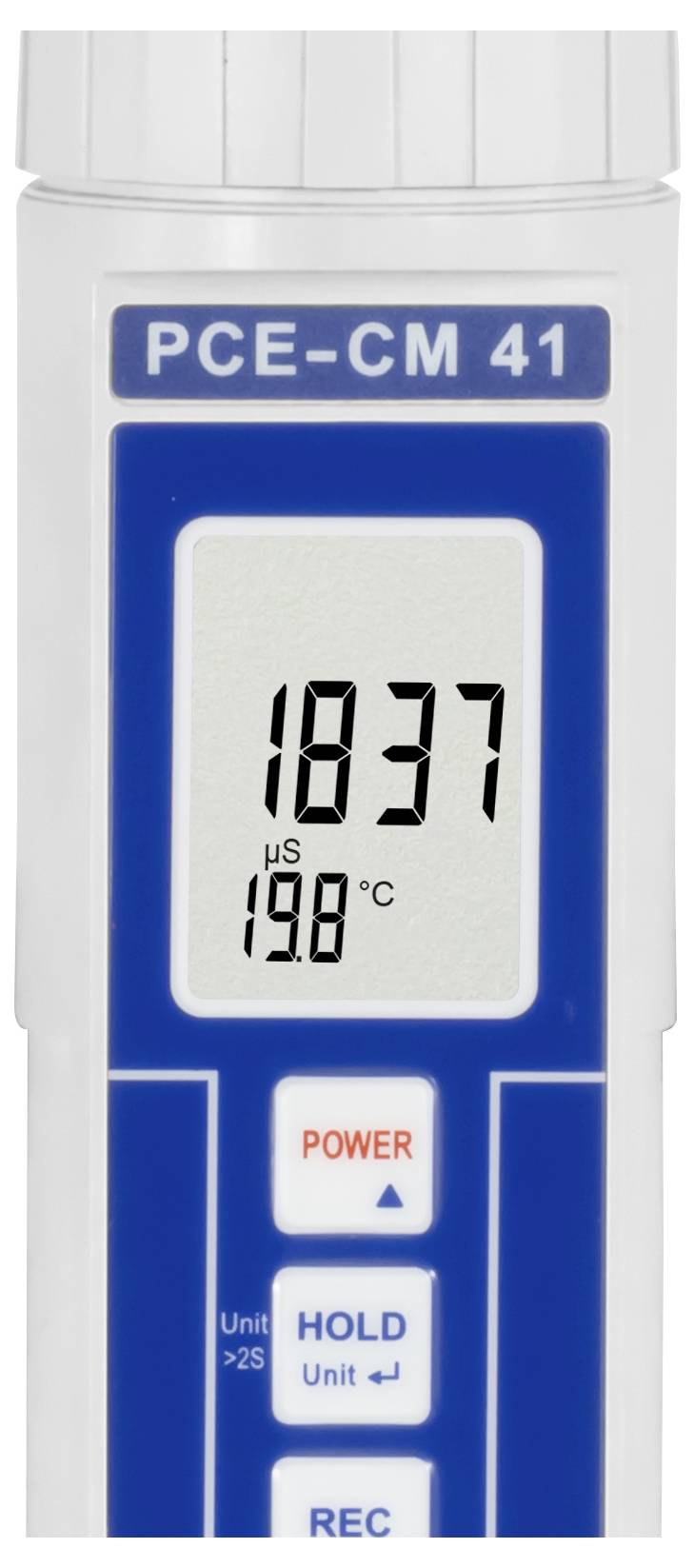

- Display type LCD
- Display size 1.3 inches
- Automatically switches off approx. 10 min.
- Menu language English (US), English (GB)
- IP67 protection (device)

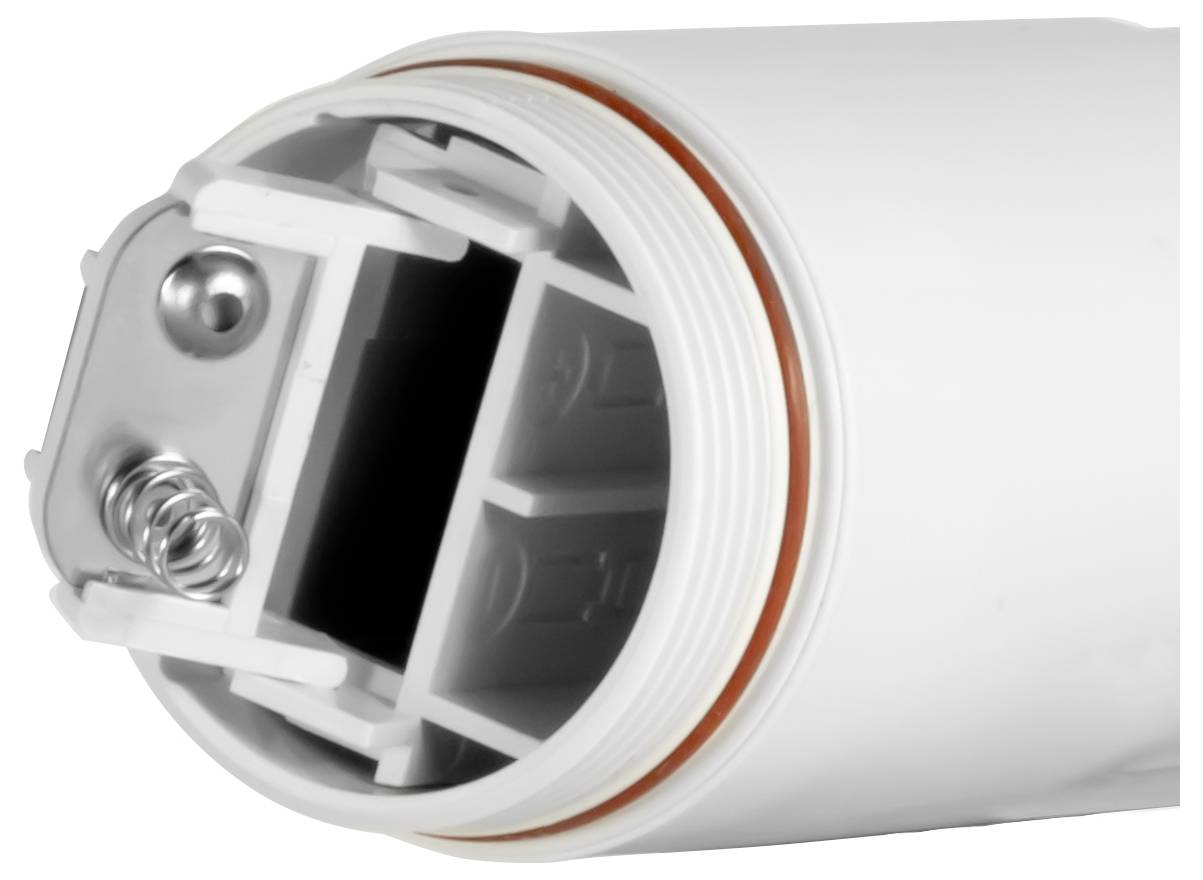

- Battery 4 x 1.5 V AAA battery , alkaline-manganese
- Capacity 1200 mAh
- Operating conditions 0 ... 60 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 60 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 200 x 40 x 40 mm
- Weight 124 g.
- Product type
Conductivity tester
- Reading type
TDS
Conductivity
Temperature
- Accuracy
3 %
- Display
LCD
ISO standards
- Automatic temperature compensation
Yes
- Operating temperature
-0 - +60 °C
- Resolution
0.01 MS
- Power supply (details)
6 V
- Dim
(L x W x H) 200 x 40 x 40 mm
- Weight
124 g/m
- Conductivity reading range
0 - 2000 µS
- Conductivity reading range (max.)
2000 µS
- Conductivity reading range (min)
0 µS
- TDS reading range
0 - 1320 ppm
- TDS reading range (max.)
1320 ppm
- TDS reading range (min.)
0 ppm
- Temperature reading range
0 up to 60 °C
- Temperature reading range (max.)
60 °C
- Temperature reading range (min.)
0 °C
- Width
40 mm
- Height
40 mm
- Length
200 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812453 PCE Instruments PCE-CM 41-ICA Conductivity tester Calibrated to (ISO standards) TDS, Conductivity, Temperature
User & Safety Instructions
User & Safety Instructions 3812453 PCE Instruments PCE-CM 41-ICA Conductivity tester Calibrated to (ISO standards) TDS, Conductivity, Temperature
Description
The conductivity tester gives you the option to measure conductivity, the sum of all dissolved solids and salts (TDS / Total Dissolved Solids) and temperature. This conductivity tester can be easily transported in the trouser pocket. The waterproof casing optimally protects the electronics of the tester (also against dust). The EC and TDS conductivity measurement is naturally automatically temperature compensated. The field of application of the conductivity tester is wide-spread across all industries, fish farming, gardening and many other areas.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x conductivity tester PCE-CM 41-ICA

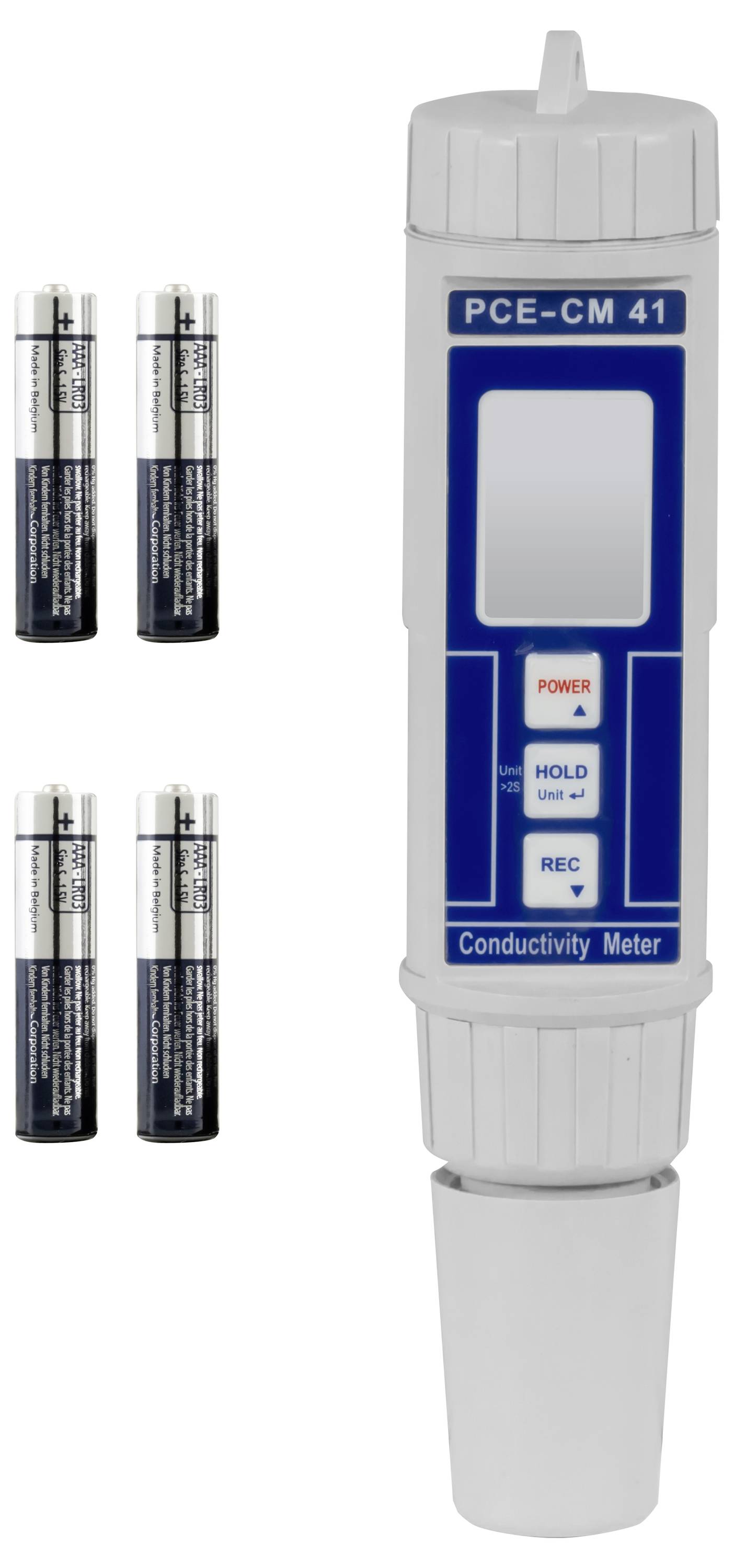

- 4 x 1.5 V AAA batteries
- 1x user manual

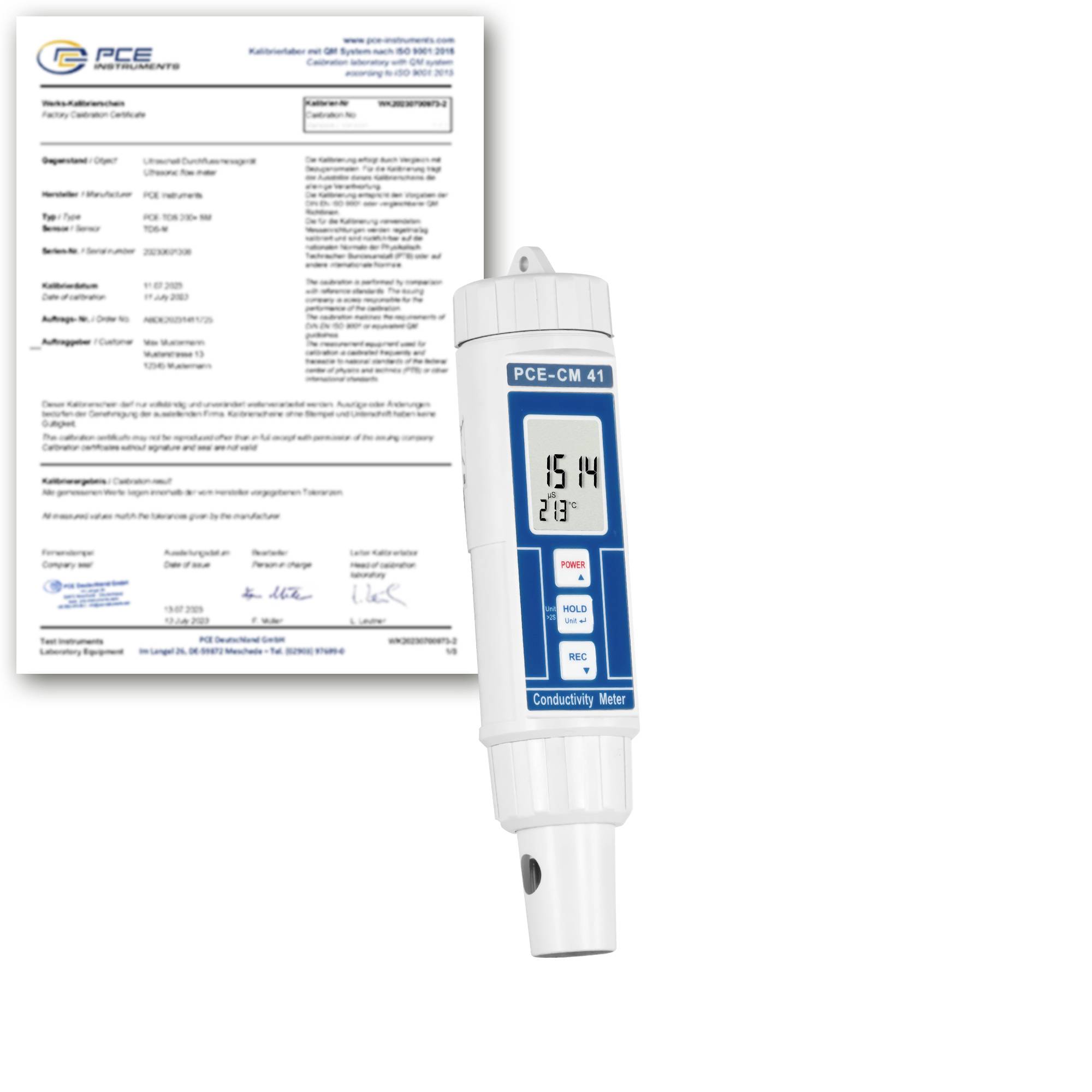

- 1 x ISO calibration certificate
