Buy PCE Instruments PCE-COG 10 CO2 detector 0 - 9999 ppm Thermometer, Datalogger function, USB interface Calibrated to Manuf

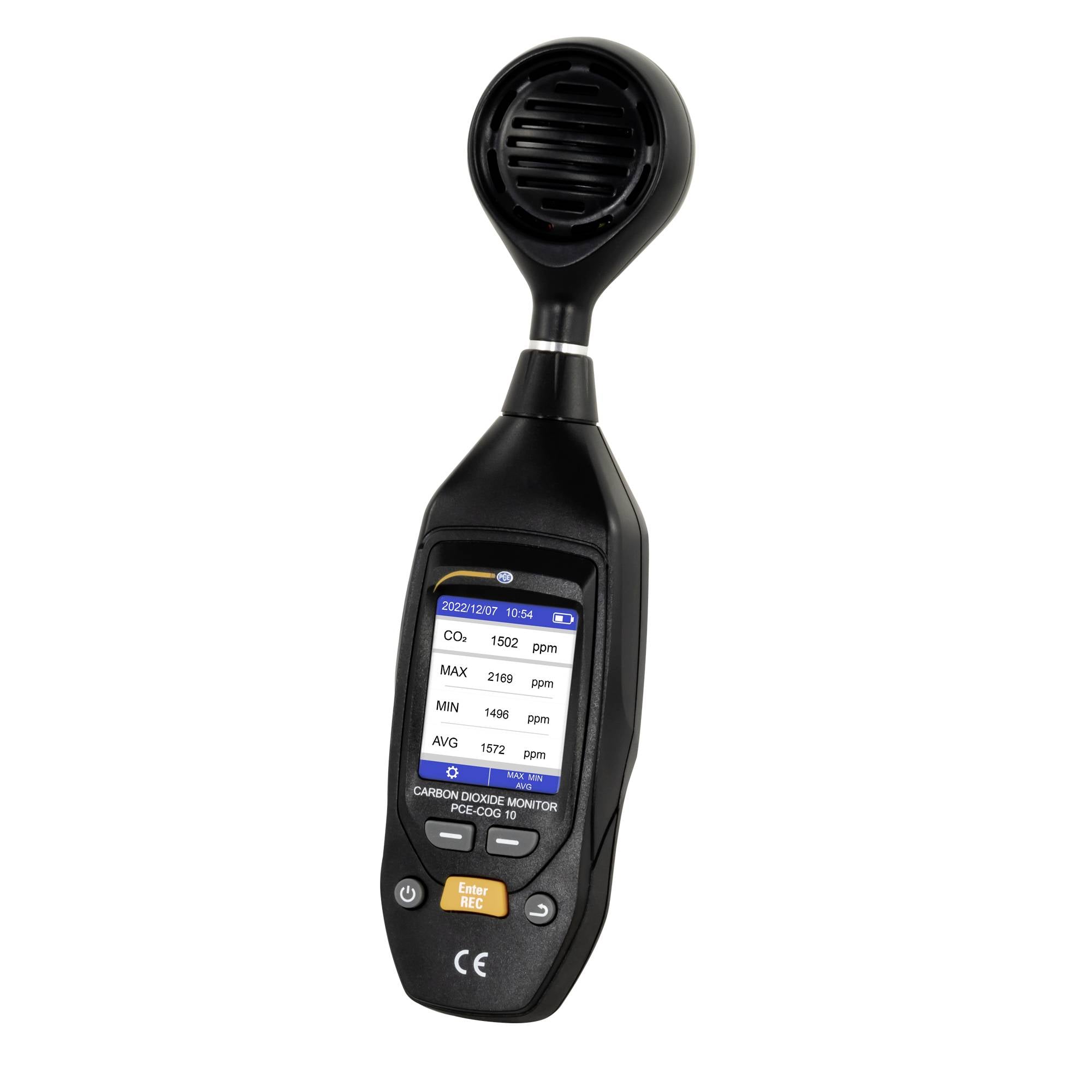

Handheld carbon dioxide monitor with built-in sensor head and screen displaying CO2 readings, max, min, and average values.

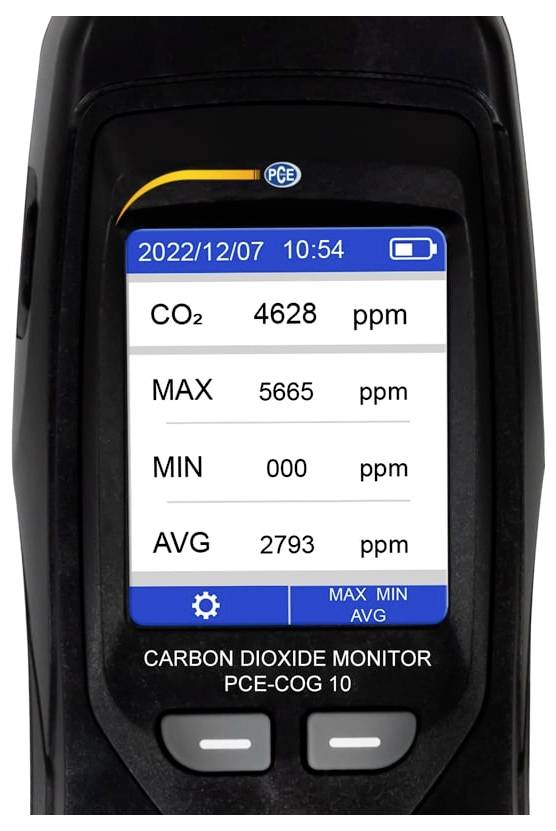

Handheld carbon dioxide monitor showing CO2 level 4628 ppm, with max 5665, min 000, and average 2793 ppm on screen.

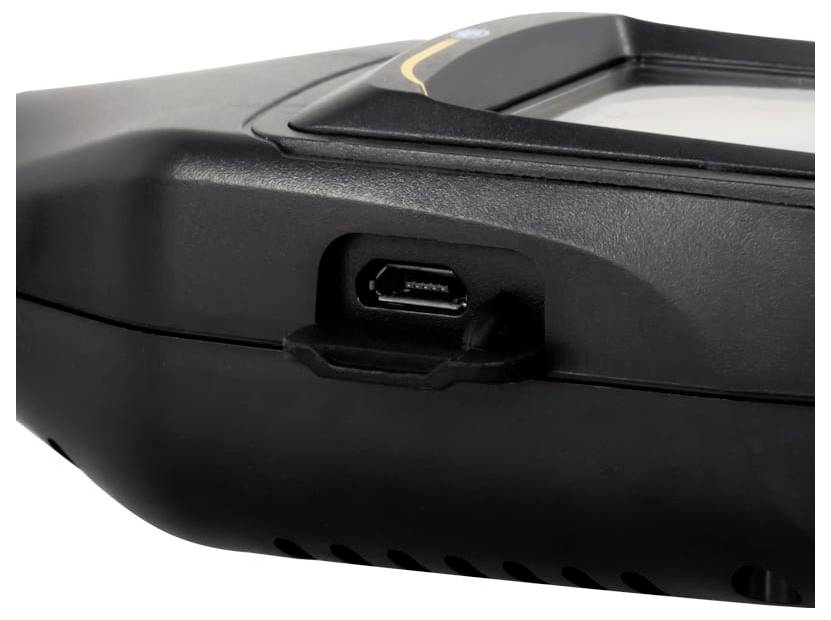

Close-up of a black device showing a micro-USB charging port recessed in a side cutout.

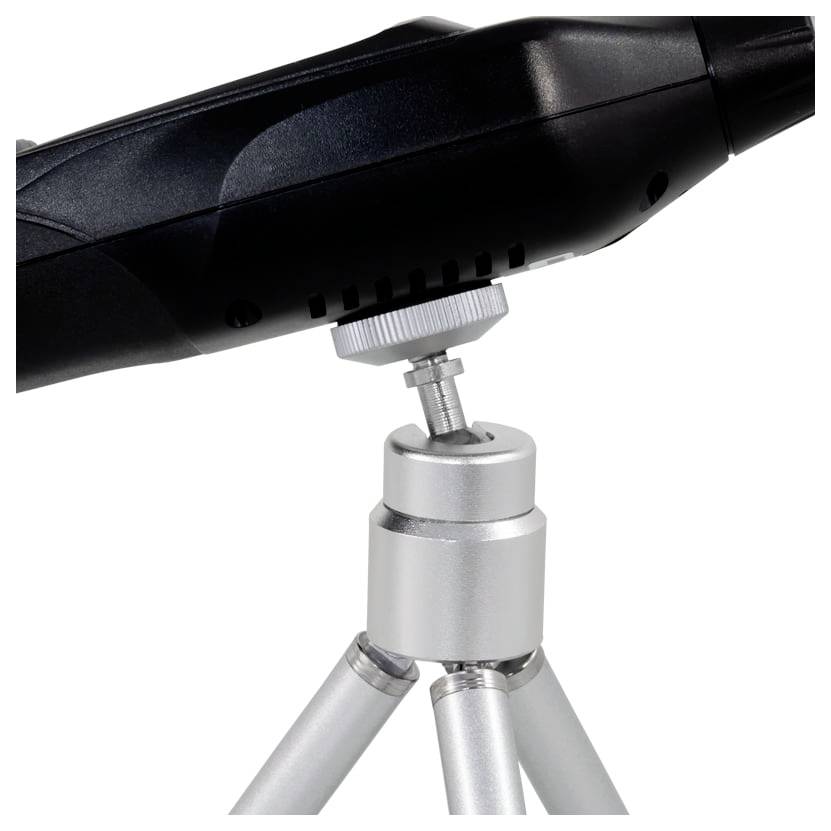

Close-up of a black device mounted on a silver adjustable tripod head, showing the mounting screw and tripod legs.

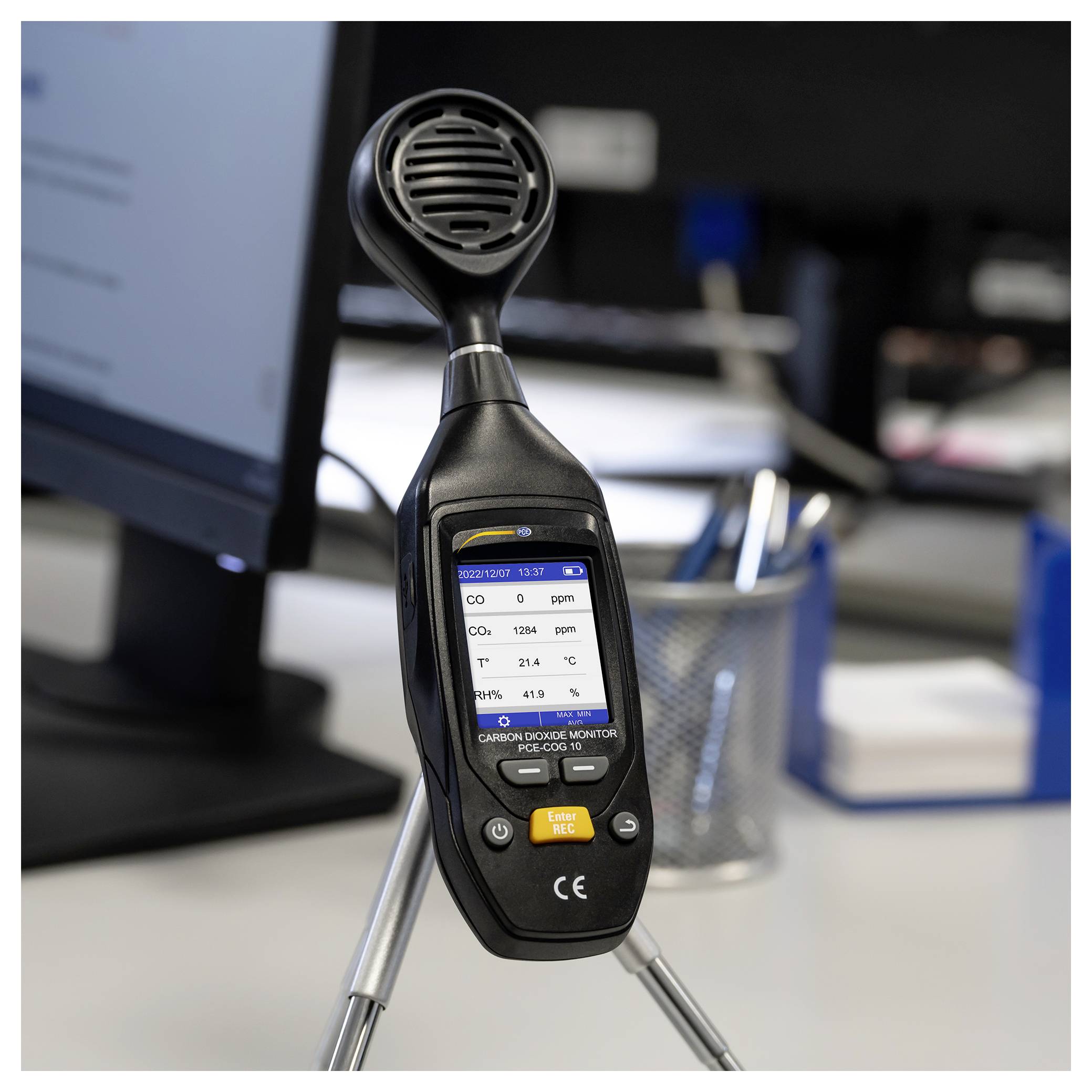

Handheld carbon dioxide monitor on a tripod displays CO2, temperature, and humidity readings in an office-like setting.

1/5

Datasheet (PDF)

Unavailable

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-COG 10

CO2 carbon dioxide and CO carbon monoxide meter with data memory for 5000 measurement points
Carbon monoxide (CO): 0 … 1000 ppm
Carbon dioxide (CO2): 0 … 9999 ppm
Including temperature and humidity measurement
Data export CSV
Battery and mains operation
1/4 inch tripod mount

Technical specifications

Carbon monoxide (CO)
Measuring range* 0 … 1000 ppm
Resolution 1 ppm
Accuracy ±5 % from MB.
*The CO measurement refers to an environmental condition of
0 … 40 °C / 32 … 104 °F, 15 … 95 % RH, non-condensing
Carbon dioxide (CO2)
Measuring range* 0 … 9999 ppm
Resolution 1 ppm
Accuracy ±3 % from MW. ± 75 ppm
*The CO2 measurement refers to an environmental condition of
0 … 50 °C / 32 … 122 °F, 0 … 85 % RH, non-condensing
Temperature
Measuring range 0 … 50 °C, 32 … 122 °F
Resolution 0.1 °C/°F
Accuracy ±2 °C / ±4 °F
Moisture
Measuring range 0 … 100 % r.F.
Resolution 0.1 % r.
Accuracy ±5 % between 0 … 20 % RH, ±3.5 % between 20 … 80 % RH, ±5 % between 80 … 100 % RH
Humidity refers to a wind speed of 1 m/s.
Accuracy is maintained after 30 minutes of acclimatization.
Other specifications
Display 2 " LC display
Measurement rate 1 Hz
Memory for 5000 measurement points
Memory rate 1 minute, 15 minutes, 1 hour
Units temperature: °C, °F, CO / CO2: Ppm
Visual and acoustic alarm when the limit has been exceeded
Data export CSV
Connection 1/4 " tripod socket
Interface Micro-USB for charging the rechargeable batteries and for data transfer
Power supply (rechargeable battery) 3.7 V, 1500 mAh
Power supply (power supply unit) Primary: 100 … 240 VAC, 50 / 60 Hz, 0.25 A, Secondary: 5 VDC, 1 A.
Operating conditions 0 … 45 °C, <95 % RH, non-condensing
Storage conditions -10 … 55 °C, <95 % RH, non-condensing
Dimensions 54 x 215 x 34 mm
Weight 154 g.

Product type: CO2 detector

Reading range: 0 - 9999 ppm

Accuracy: 3 %

Dim: (L x W x H) 215 x 54 x 34 mm

Resolution: 1 ppm

Features: Thermometer
Datalogger function
USB interface

Accuracy: 3 ppm

Weight: 154 g

Weight, information: without PSU

Reading range (max.): 9999 ppm

Reading range (min.): 0 ppm

Width: 54 mm

Height: 34 mm

Length: 215 mm

: IP42

Power supply (details): 3.7 V

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 3192914 PCE Instruments PCE-COG 10 CO2 detector 0 - 9999 ppm Thermometer, Datalogger function, USB interface Calibrated to Manuf

User & Safety Instructions

User & Safety Instructions 3192914 PCE Instruments PCE-COG 10 CO2 detector 0 - 9999 ppm Thermometer, Datalogger function, USB interface Calibrated to Manuf

Description

The CO2/carbon dioxide measuring device has a measuring range of 0 ... 9999 ppm In addition to the carbon dioxide measurement, the CO2/carbon dioxide meter also has a carbon monoxide (CO) sensor with a measurement range of 0 … 1000 ppm and a temperature and humidity sensor. Thus, the CO2/carbon dioxide meter covers a large range of measurement tasks. The CO2/carbon dioxide measuring instrument is thus used for occupational health and safety, for example, in order to check the climatic conditions in office workplaces.

During the measurement, the measured values are saved on the CO2/carbon dioxide measuring device. To do this, you can save up to 5000 measurement points on the CO2/carbon dioxide meter. The CO2 and CO content as well as the temperature and humidity are stored in the CO2/carbon dioxide meter per storage point. After a measuring run, the saved measured values can be viewed directly on the CO2/carbon dioxide measuring device.

For further processing, the measured values recorded by the CO2/carbon dioxide measuring device can be transferred to a computer. Transmission is performed via the micro-USB interface from the CO2/carbon dioxide meter. When the CO and CO2 meter is connected to a computer, it is detected as a mass storage device. The saved measured values are saved in the CSV file format by the CO2/carbon dioxide meter and can thus be processed directly.

The built-in 1500 mAh rechargeable battery in the CO2/carbon dioxide meter allows a mobile application. In order to charge the battery, the CO2/carbon dioxide measuring device can be connected to a 5 VDC power supply via the micro-USB interface. The CO2/carbon dioxide meter can still be used during the charging process. To perform measurements. For an optimal and longer-lasting measurement of the CO2/carbon dioxide measuring device, a 1/4 inch connection is provided on the rear side. Using this connection, the CO2/carbon dioxide meter can be attached to a tripod and aligned.

This text is machine translated.
