PCE Instruments PCE-CP 30 Multi tester pH, Alkalinity, Cyanuric acid, Chlorine, Calcium hardness, Total hardness, Bromid
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

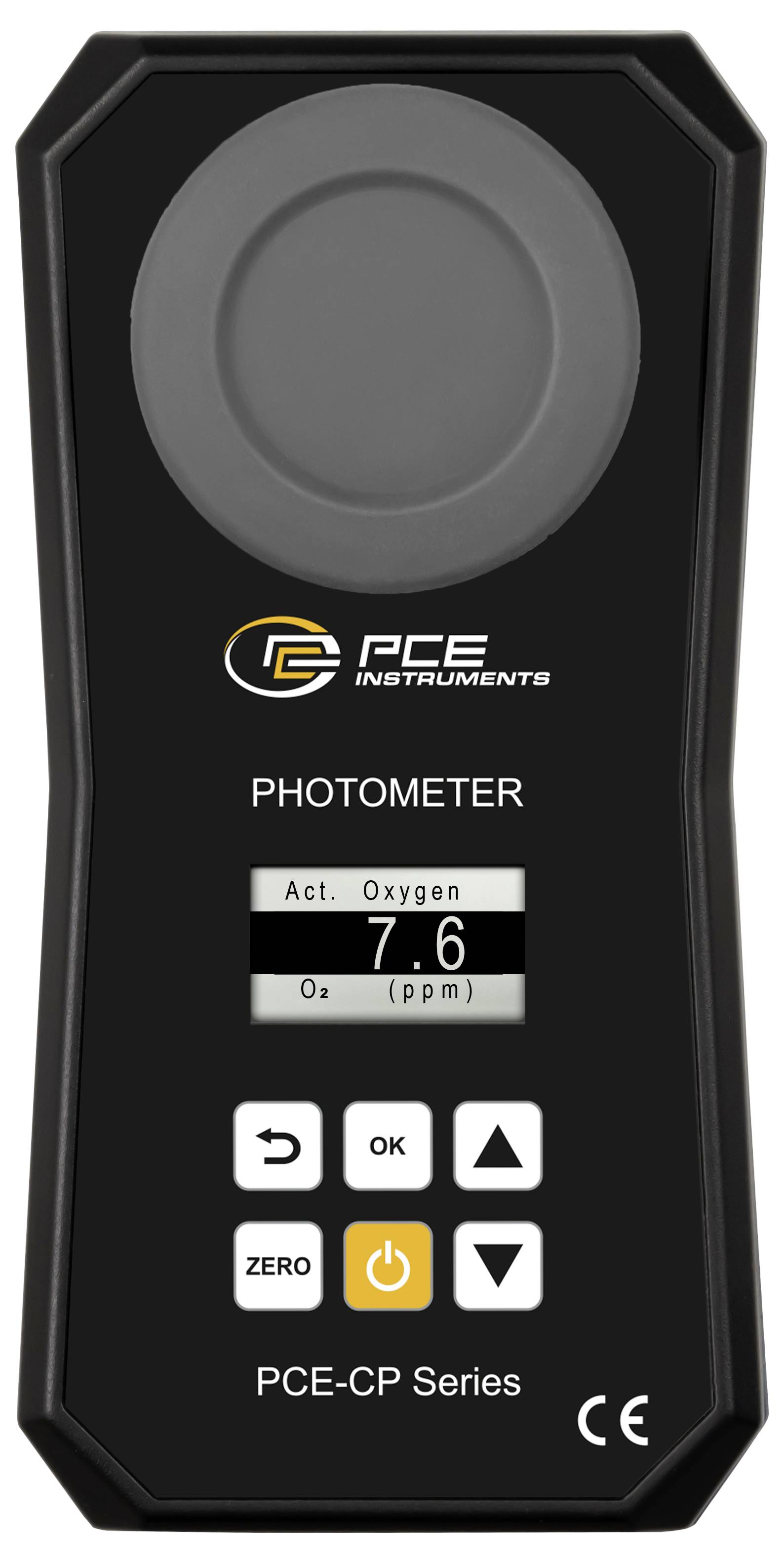

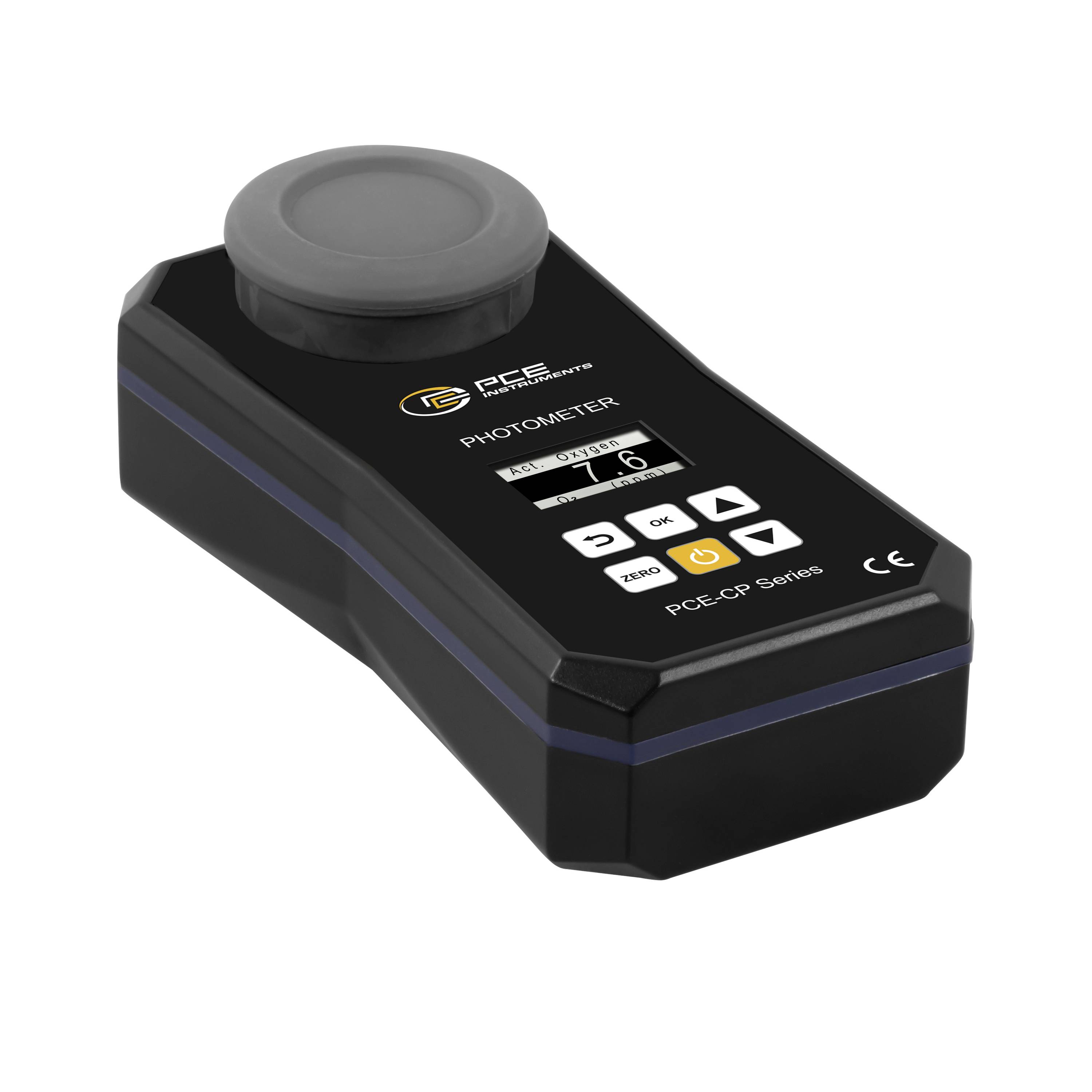

Photometers PCE-CP 30
- Up to 13 selectable parameters
- Bluetooth connection app

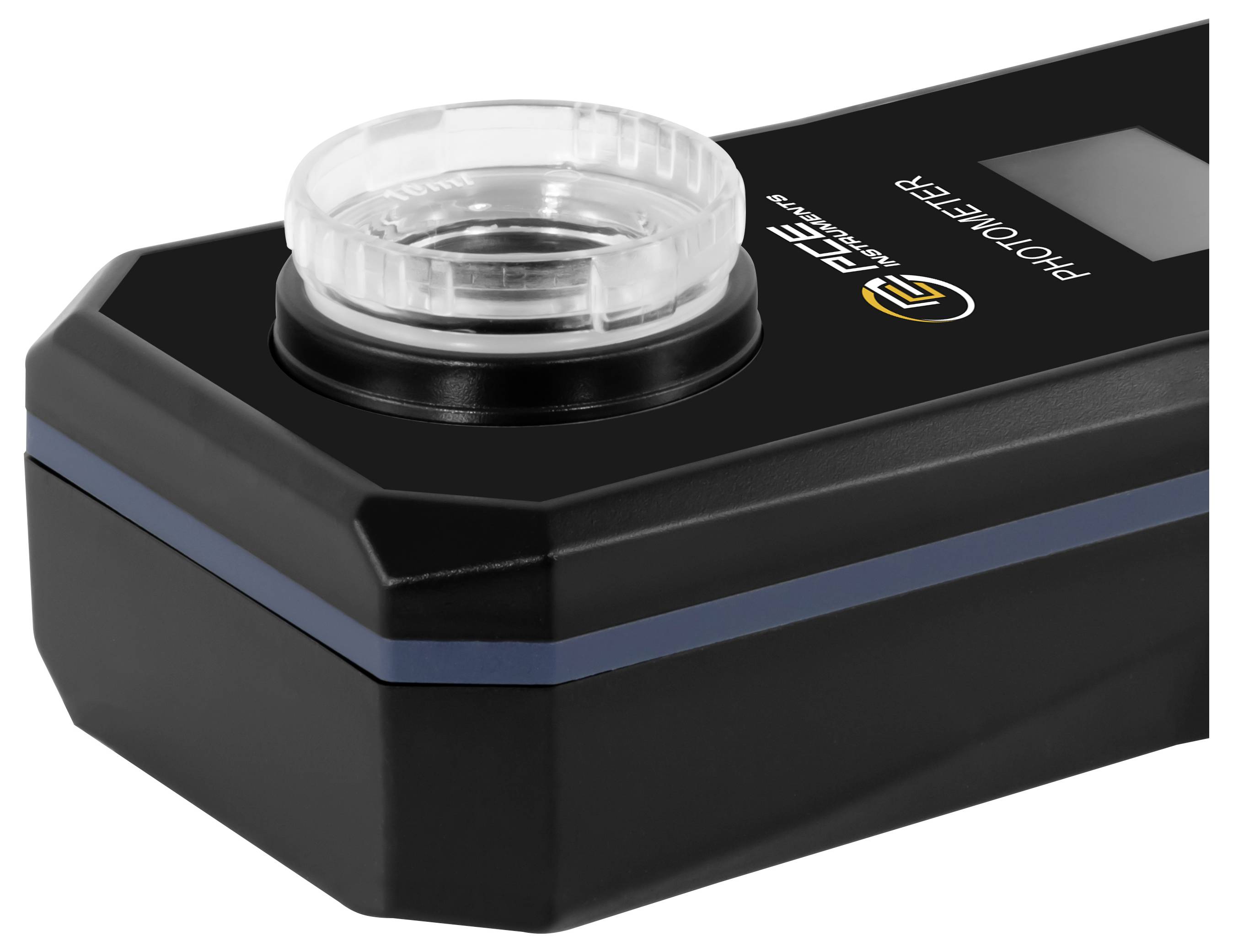

- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic switch-off during inactivity
- Many different menu languages
- Light detector: Photodiode
Technical specifications
- Alkalinity measuring range 0 … 30 mg/l 30 … 60 mg/l 60 … 100 mg/l 100 … 200 mg/l Accuracy 3 mg/l 7 mg/l 12 mg/l 18 mg/l Resolution 1 mg/l Chlorine measurement range 0.00 … 2.00 mg/l 2.00 … 3.00 mg/l 3.00 … 4.00 mg/l 4.00 … 8.00 mg/l Accuracy 0.10 mg/l 0.23 mg/l 0.75 mg/l 1.00 mg/l Resolution: 0.01 mg/l Cyanuric acid measuring range 0 … 15 mg/l 15 … 50 mg/l 50 … 120 mg/l 120 … 160 mg/l Accuracy 1 mg/l 5 mg/l 13 mg/l 19 mg/l Resolution: 1 mg/l PH Measurement range 6.50 … 8.40 pH Accuracy 0.11 pH Resolution 0.01 pH Total hardness Measuring range 0 … 30 mg/l 30 … 60 mg/l 60 … 100 mg/l 100 … 200 mg/l 200 … 300 mg/l 300 … 500 mg/l Accuracy 3 mg/l 5 mg/l 10 mg/l 17 mg/l 22 mg/l 58 mg/l Resolution 1 mg/l Calcium hardness measuring range 0 … 25 mg/l 25 … 100 mg/l 100 … 300 mg/l 300 … 500 mg/l Accuracy 8 mg/l 22 mg/l 34 mg/l 45 mg/l Resolution: 1 mg/l Active oxygen measurement range 0.0 … 5.0 mg/l 5.0 … 15.0 mg/l 15.0 … 25.0 mg/l 25.0 … 30.0 mg/l Accuracy 0.5 mg/l 1.3 mg/l 3.8 mg/l 5.0 mg/l Resolution: 0.1 mg/l Chlorine dioxide measuring range … 0.00 2.00 mg/l 2.00 … 6.00 mg/l 6.00 … 10.00 mg/l 10.00 … 11.40 mg/l Accuracy 0.19 mg/l 0.48 mg/l 1.43 mg/l 1.90 mg/l Resolution: 0.01 mg/l Bromine measuring range 0.0 … 2.5 mg/l 2.5 … 6.5 mg/l 6.5 … 11.0 mg/l 11.0 … 13.5 mg/l Accuracy 0.2 mg/l 0.6 mg/l 1.7 mg/l 2.3 mg/l Resolution: 0.1 mg/l Ozone measuring range 0.00 … 1.00 mg/l 1.00 … 2.00 mg/l 2.00 … 3.00 mg/l 3.00 … 4.00 mg/l Accuracy 0.07 mg/l 0.17 mg/l 0.51 mg/l 0.68 mg/l Resolution: 0.01 mg/l Hydrogen peroxide - small range (LR) Reading range 0.00 … 0.50 mg/l 0.50 … 1.50 mg/l 1.50 … 2.00 mg/l 2.00 … 2.90 mg/l Accuracy 0.05 mg/l 0.12 mg/l 0.36 mg/l 0.48 mg/l Resolution: 0.01 mg/l Hydrogen peroxide - large range (HR) Reading range 0 … 50 mg/l 50 … 110 mg/l 110 … 170 mg/l 170 … 200 mg/l Accuracy 5 mg/l 6 mg/l 11 mg/l 13 mg/l Resolution: 1 mg/l PHMB (Polyhexanide) Measurement range 5 … 60 mg/l Accuracy 5 mg/l Resolution: 1 mg/l Urea measurement range 0.00 … 0.30 mg/l 0.30 … 0.60 mg/l 0.60 … 1.00 mg/l 1.00 … 1.50 mg/l 1.50 … 2.50 mg/l Accuracy 0.05 mg/l 0.06 mg/l 0.09 mg/l 0.12 mg/l 0.19 mg/l Resolution: 0.01 mg/l Further specification Zero point calibration calibration Light source 503 nm / 570 nm / 620 nm LED Light detector photodiode Power supply 4 x 1.5V AA batteries Dimensions cuvette 36 x ø 21 mm (10ml) Menu languages English, German, French, Spanish and Italian memory Automatic measurement storage and reading Memory space 256 values Bluetooth interface Connection with app and PC software Automatic power off after 300 seconds of inactivity Operating conditions 5 … 45 °C, 20 ... 90 % RH non-condensing Storage conditions 5 … 45 °C, 20 ... 90 % RH non-condensing Dimensions 165 x 95 x 50 mm Weight 230 g
- Product type
Multi tester
- Reading type
pH
Alkalinity
Cyanuric acid
Chlorine
Calcium hardness
Total hardness
Bromide
Ozone
Hydrogen peroxide
Oxygen
Show more
- Display
LED
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 50 x 165 x 50 mm
- Weight
230 g
- Chlorine reading range
0 - 8 mg/l
- Chlorine reading range (max.)
8 mg/l
- Chlorine reading range (min.)
0 mg/l
- pH reading range
6.5 - 8.4 pH
- pH reading range (max.)
8.4 pH
- pH reading range (min.)
6.5 pH
- Width
165 mm
- Height
50 mm
- Length
50 mm
- Interfaces
Bluetooth®
Documents & Downloads
Datasheet
Datasheet 2452316 PCE Instruments PCE-CP 30 Multi tester pH, Alkalinity, Cyanuric acid, Chlorine, Calcium hardness, Total hardness, Bromid
User & Safety Instructions
User & Safety Instructions 2452316 PCE Instruments PCE-CP 30 Multi tester pH, Alkalinity, Cyanuric acid, Chlorine, Calcium hardness, Total hardness, Bromid
Description
Photometer Multi-parameter photometer with Bluetooth interface / PC software / Cloud Service / System-wide synchronization of the measured values / up to 13 selectable parameters / for measuring pH, alkalinity, chlorine, cyanuric acid / measurement storage The multi-parameter photometer is a mobile measuring instrument for liquid analysis. This allows a wide range of measurements to be made with the multi-parameter photometer. This multi-parameter photometer allows, for example, the determination of alkalinity, chlorine, cyanuric acid or also the pH value. In order to take a measurement with the multi-parameter photometer, a water sample of 10 ml must be given in a cuvette. The built-in LED in the multi-parameter photometer generates a test light on the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now detects the value to be measured based on the light transmission of the sample. Each measurement is automatically saved by the multi-parameter photometer. The stored measured values can then be read out via a mobile device, for example, via the Bluetooth interface installed on the multi-parameter photometer. A free app is available to analyze the measurements from the multi-parameter photometer. It is also possible to establish a Bluetooth connection between the multi-parameter photometer and a computer. A free software is also available to analyze the measured data. As a further special feature of the multi-parameter photometer, the measured data can be uploaded to a cloud via both variants and retrieved from her place. This service for the multi-parameter photometer is also free of charge.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Multi-Parameter-Photometer PCE-CP 30 incl. cuvette
- 1 x spare cuvette
- 1 x light protection cover
- 1 x microfiber cloth
- 1 x plunger
- 1 x 10 ml dosing pipette
- 4 x AA batteries
- 1 x Quick Start Guide
- 1 x service case
- 1 app free of charge
- 1 x free PC software
- 1 x free cloud service
- 1 x Reagents Starter Kit ( 20x pH, 20x free chlorine, 10 x bound/total chlorine, 10x alkalinity, 10 x cyanuric acid)
