PCE Instruments PCE-CR 10 PCE-CR 10 Amperage data logger

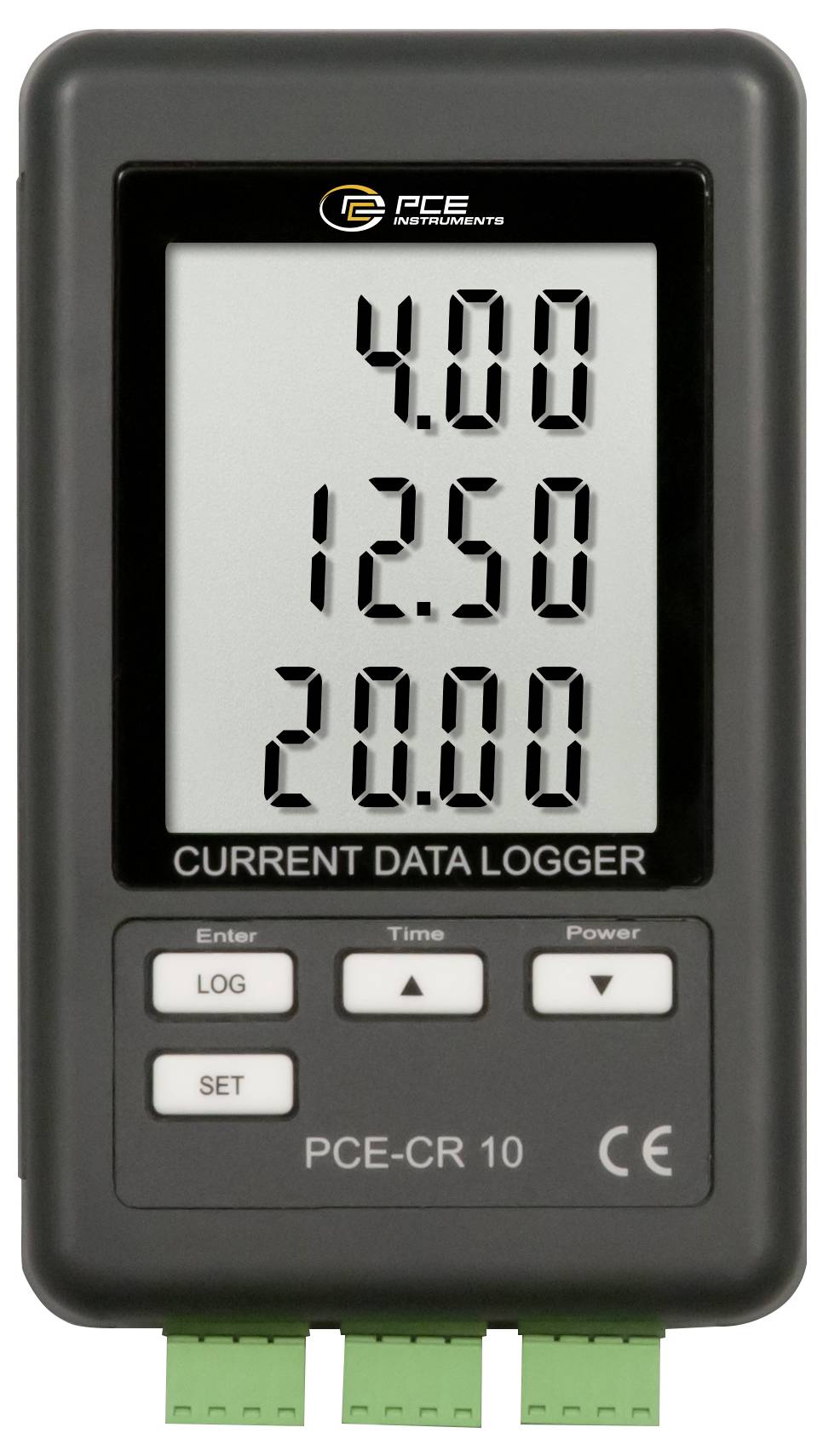

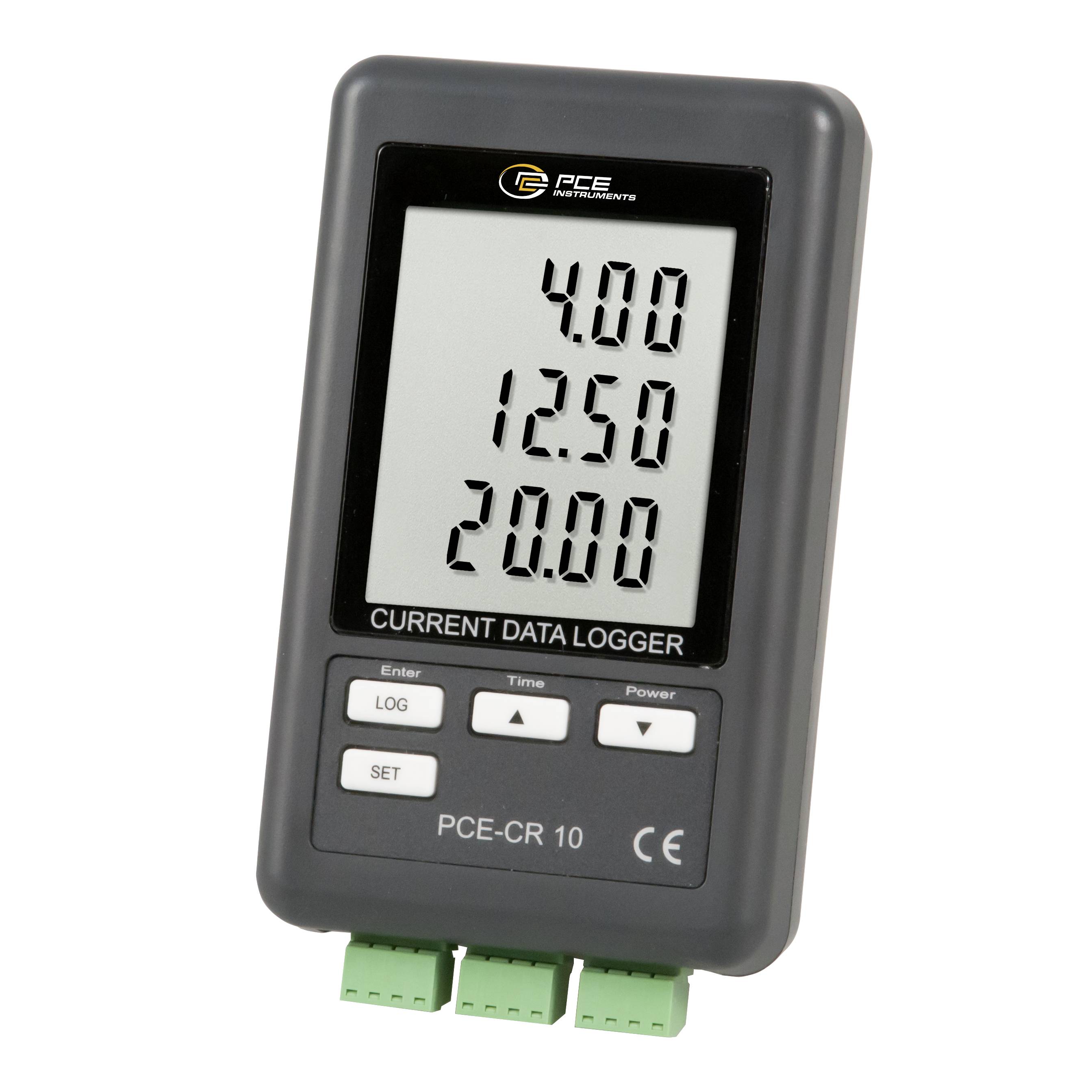

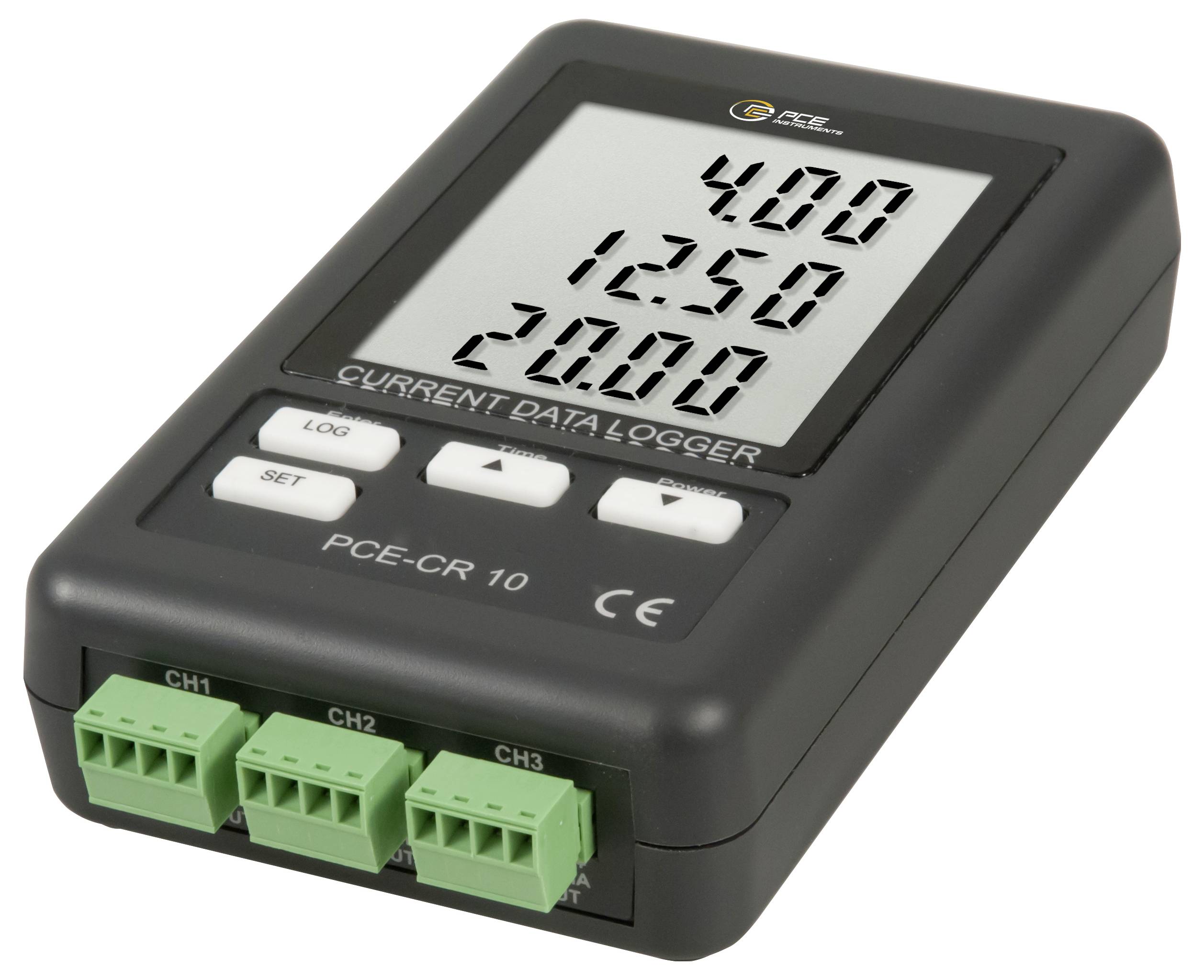

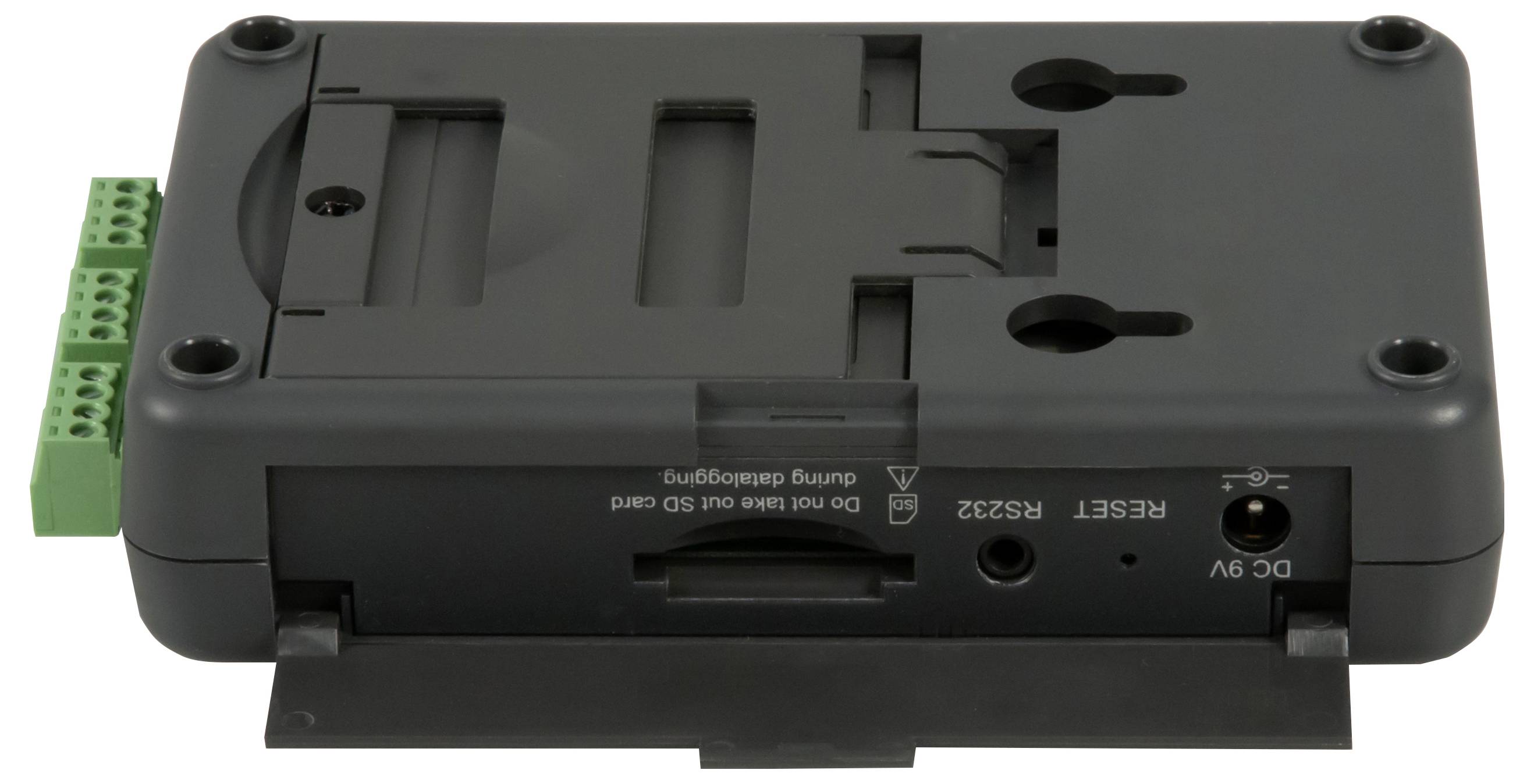

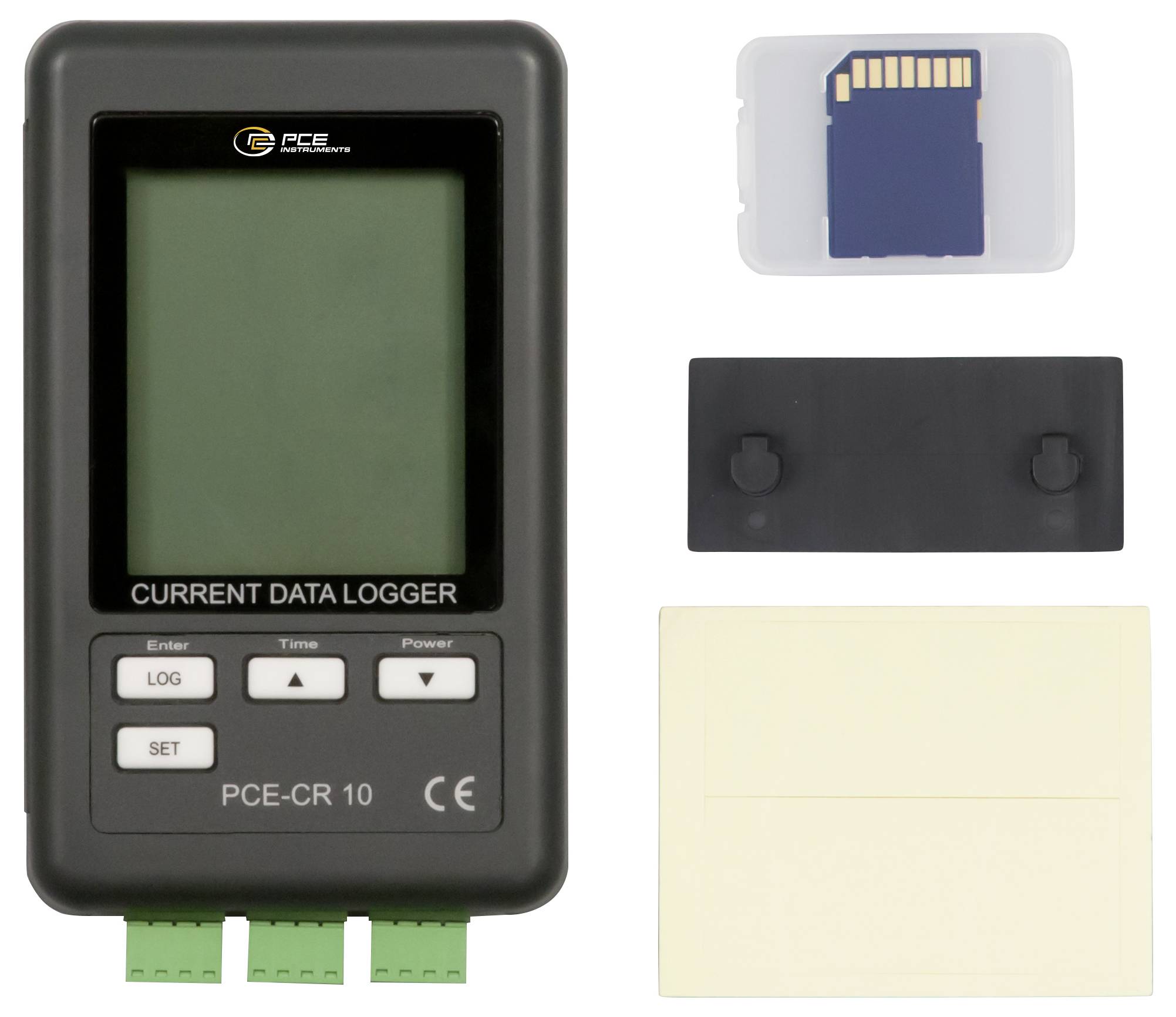

3-channel current data logger PCE-CR 10 current data logger for 0/4 ... 20 mA / 3 input channels / adjustable memory rate / illuminated LCD / SD cards memory / storage as XLS the current data logger is used to store up to three 0/4 ... 20 mA signals. The current data logger stores the measured process currents on an SD card in Excel format. In addition to storing the measured values, the current data logger displays these on the large display. The maximum resolution here is 0.01 mA. The measuring device is operated with 6 AA 1.5 V batteries or a power supply. To visualize the live measured values, this current data logger can be connected to the PC via the serial interface. The current signals are sent to the data logger via plug-in terminals. The plug-in terminals on the current data logger allow relatively fast and easy switching of connected sensors with mA output. This ensures that the current data logger can be used universally and flexibly in operation. It is not necessary to scale the measuring signal, since the measured values are stored directly as mA. In Excel, you can easily scale manually. Applications The current data loggers are used to record output signals of numerous 0/4 ... 20 mA sensors, for example for pressure measurement or for the tile speed monitoring. Monitoring, registration and evaluation of e.g. temperature, humidity, pressure, flow rate, pH value ... at production plants with standardized output signals 0 ... 20 mA can be done easily and accurately. Customers or suppliers often require proof of certain process parameters, which you as a manufacturer can conveniently store as a current signal on the machine. The PCE-CR 10 current data logger can be used almost anywhere where a stationary sensor or transmitter has to be tested temporarily. The current data logger can also be used on sensors that have been developed by the mechanical properties to be used mobile. Even as a manufacturer of products itself, essential information can be stored directly as a unit signal in the data logger during the operation of machines and later evaluated on a PC or laptop. Thus, the current data loggers are also used for machine monitoring or machine analysis. Adjustment / calibration of the current data logger PCE-CR 10 can be issued an ISO calibration certificate. It is recommended that the data loggers be checked, adjusted and then calibrated as standard. The interval of the calibration of the current data logger is usually specified in the internal quality manual. This calibration of the current data logger is performed in the calibration laboratory of PCE Instruments.
