Buy PCE Instruments PCE-CRM 40 PCE-CRM 40 Lux meter 0.1 - 150000 lx

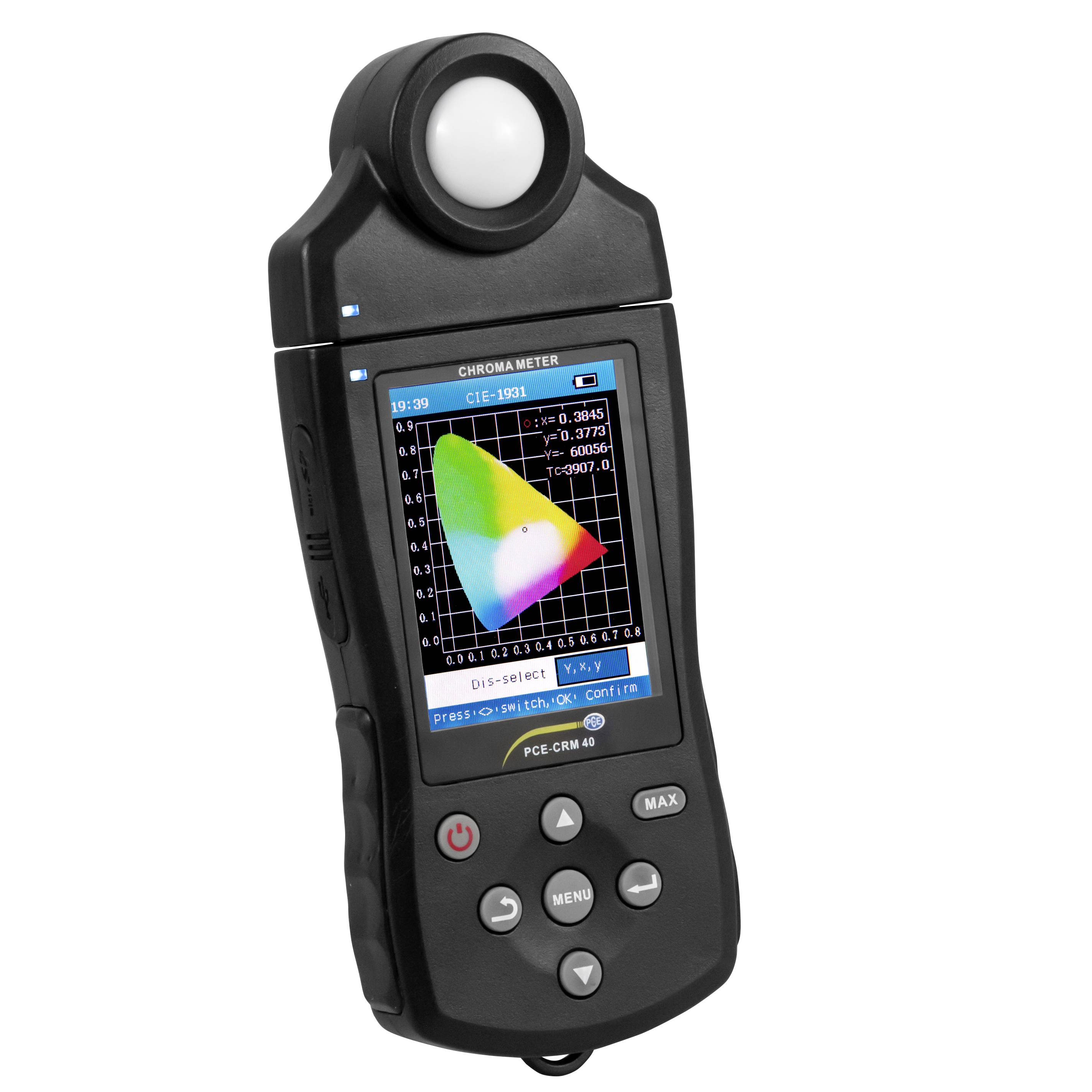

Handheld chroma meter displaying the CIE 1931 color gamut diagram and measurement readings on its screen.

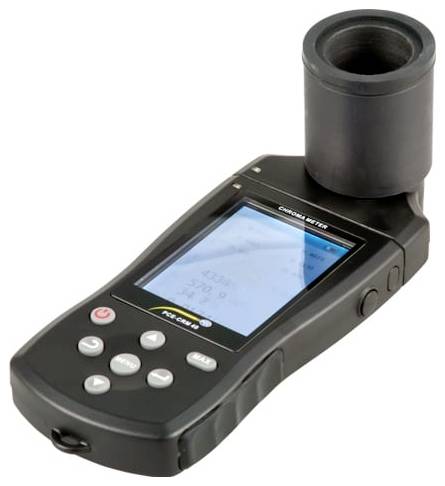

Handheld chroma meter with a screen and control buttons, fitted with a cylindrical sensor attachment for measuring color.

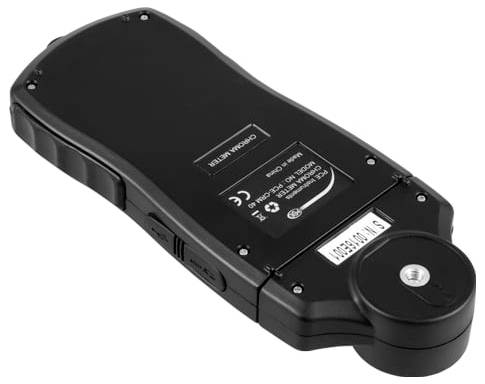

Black handheld electronic device with a large round end cap and label on the back, shown on a white background.

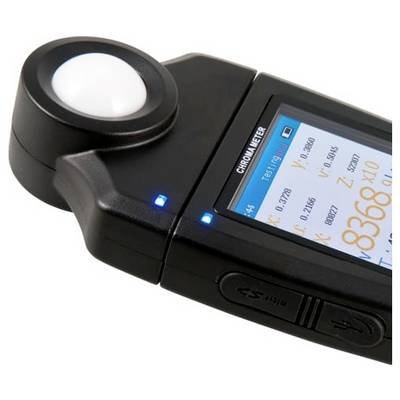

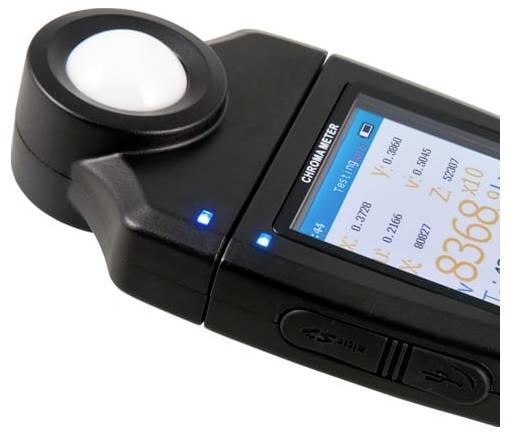

Handheld chromameter color meter with digital screen and measurement values displayed.<br>

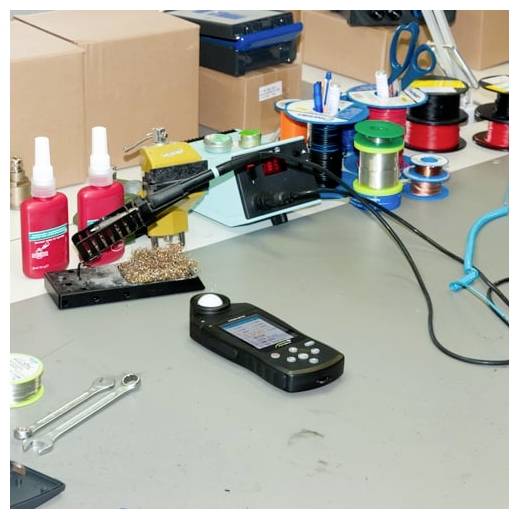

Electronics workbench with a soldering iron, solder reels, tools, and a handheld meter on a table.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Chromometer PCE-CRM 40

Measurement of color temperature
Lux measurement up to 150 Klux
Representation of tristimulus and RGB
ideal for LEDs
SD memory
Color LCD

Technical specifications

Measurement functions Tristimulus values: XYZ Chromaticity: EV xy, Ev u'v' Correlated color temperature: TC Color difference: Δ (XYZ), Δ (Evxy), Δ (Evuv), ΔEv ΔTc Δuv Chromaticity coordinates: ICE1931 (x, y), ICE1976 (u, v) Dominant wavelength: λd Color fastness: PE Luminous flux: φ RGB parameters, color board, maximum recording and display Reading range 0.1 ... 150,000 lx 0.01 ... 15000 fcd EV: 5 lx / 0.5 fcd or in four automatically selected ranges (lx or fcd can be switched) Speckra range 360 ... 780 nm Relative spectral sensitivity based on CIE standard X (λ), y (λ) and Z (λ) deviation below 6% (F1 ') of CIE spectral light yield V (λ) Cosine correction Ev:< 3 % (F2) Accuracy EV: ± 5 % ± 1 digit of the displayed value XY: ± 0.003 lx (at 500 lx, Standard-A) Repeatability EV ± 0.5% + 1 digit (2σ) xy: ± 0.0005 (at 500 lx, standard A measured) Temperature drift EV: ± 3% ± 1 digit of the displayed value xy: + -0.003 Response time 0.5 s (for continuous measurement) Sensor type: Silicon photocell Interface USB Slot for SD card Display 3.2" color LCD Operating conditions -10 ... 40 °C< 85% r.h. Storage conditions -20 ... 40 °C< 85% r.h. Power supply Li-ion battery 2200 mAh Operating time min. 12 h Dimensions 210 x 80 x 35 mm Weight 300 g. with {battery}

Product type: Lux meter

Reading type: Colour

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 210 x 80 x 35 mm

Display: LCD

Weight: 300 g

Features: Suitable for LED lighting
Data logger

Illuminance reading range: 0.1 - 150000 lx

Illuminance reading range (max.): 150000 lx

Illuminance reading range (min.): 0.1 lx

Width: 80 mm

Height: 35 mm

Length: 210 mm

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 2452318 PCE Instruments PCE-CRM 40 PCE-CRM 40 Lux meter 0.1 - 150000 lx

User & Safety Instructions

User & Safety Instructions 2452318 PCE Instruments PCE-CRM 40 PCE-CRM 40 Lux meter 0.1 - 150000 lx

Description

Chromometer PCE-CRM 40 with measurement range up to 150000 lx / measurement of color temperature CTT / standard color panel CIE1931 and CIE1976 / display of wavelength / display of tristimulus and RGB values / with data memory and software with the Chromometer PCE-CRM 40, important photometric values in the area of light measurement can be determined. These include the tristimulus values XYZ, the u´v´color location coordinates according to CIE1976 and the xy color location coordinates according to CIE1931. In addition, additional color measurements are measured as absolute values and differences. The dominant wavelength in the sensitivity range of the light color meter between 360 … 780 nm can be determined as well as the color density PE and the CTT color temperature in Kelvin. In addition, the light color meter can determine the illuminance in lux (lx) or foot-candle (fcd), display the luminous flux in lumen (lm) and display the color location in the RGB color space. Thanks to ergonomic one-handed operation, large display, memory, data interface and software, the measurements can be carried out quickly and reproducibly with the light color meter. The logged documentation of the measurement results using software is also possible. With these specifications, the Chromameter is ideally suited to classify and optimize lighting installations and lighting conditions in a wide range of applications

This text is machine translated.

Scope of delivery

1 x Chromometer PCE-CRM 40
1 x USB power supply
1x USB cable
1 x luminance resolution
1 x size USB-Stick batteries
1 x belt pouch
1 x carry strap
1 x carrying case
1x user manual
