Buy PCE Instruments PCE-CS 10000N Crane scales PCE-CS 10000N Weight range 10000 kg Readability 5000 g rechargeable Black

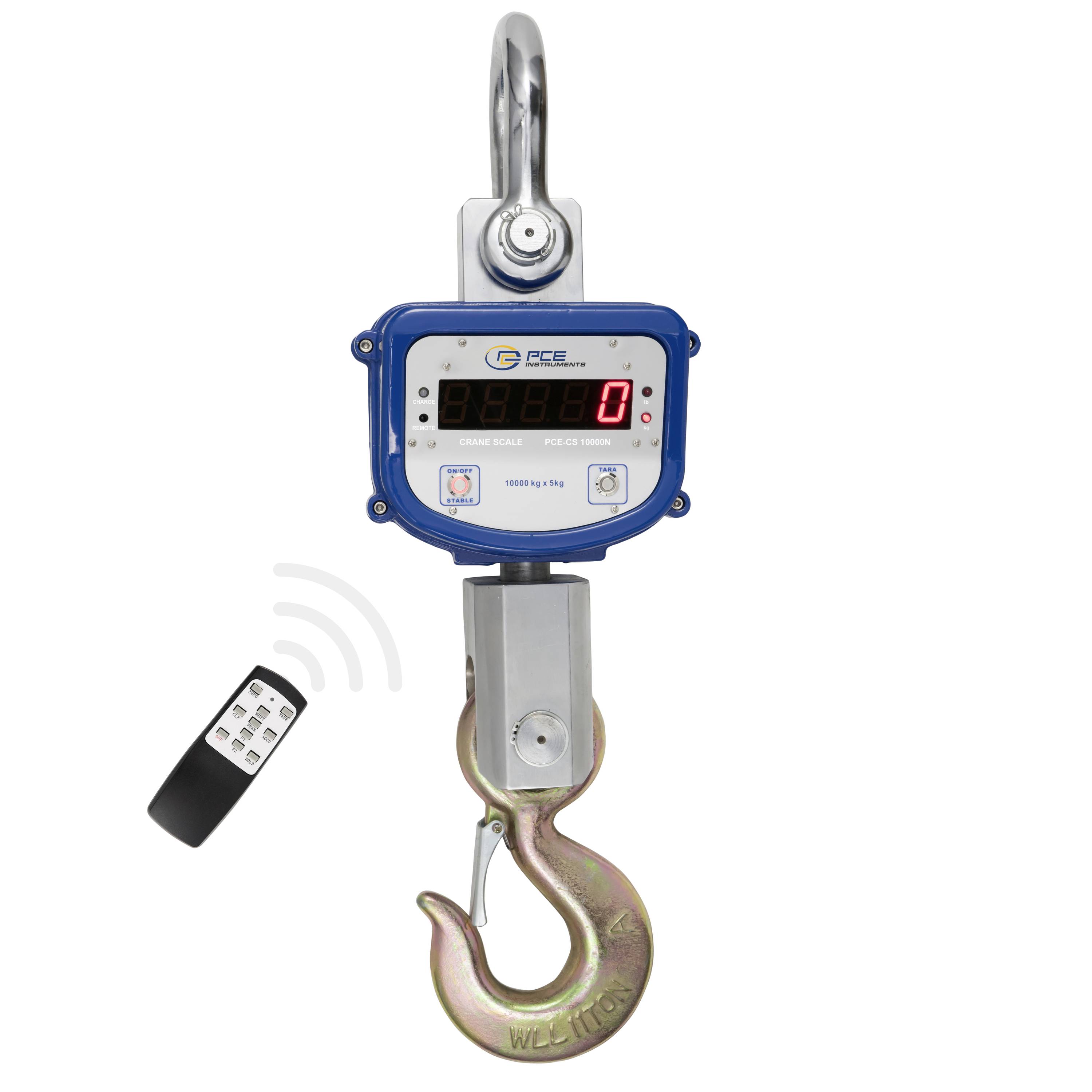

Digital crane scale with hook and remote control, displaying zero on a blue hanging load gauge.

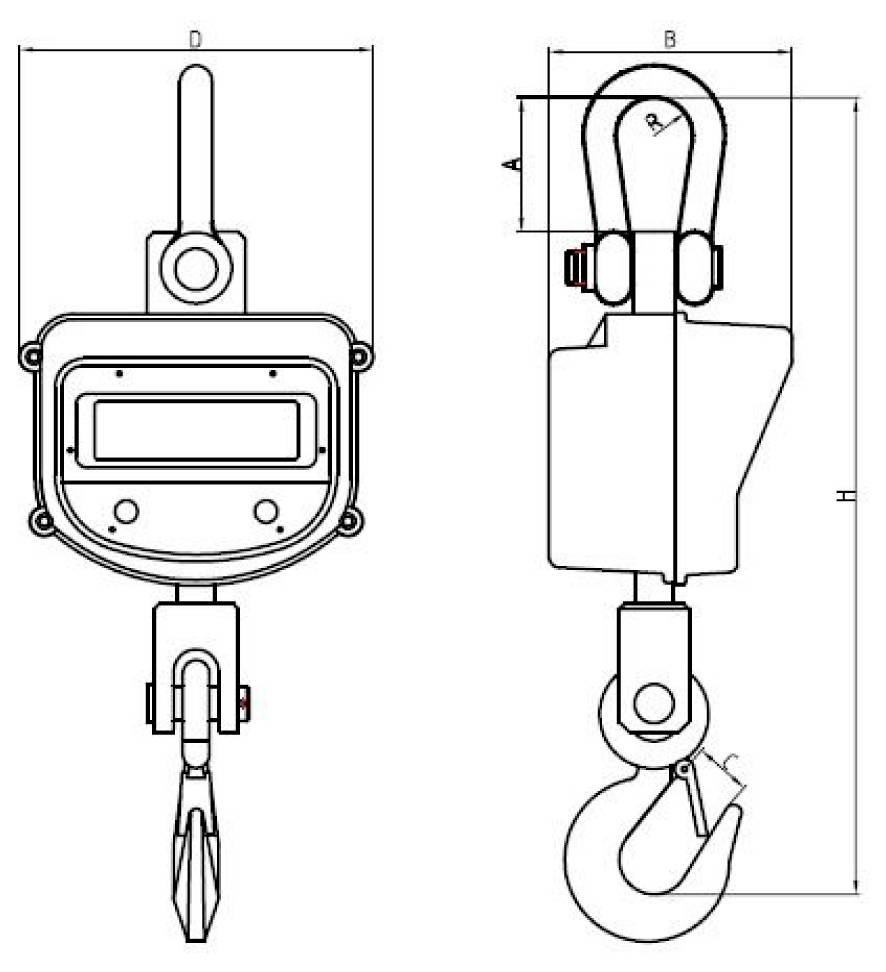

Technical line drawing of a digital hanging crane scale with hook, shown front and side views with labeled dimensions.

Digital crane scale display showing 10000 on a PCE Instruments hanging scale, with on/off and tare controls.

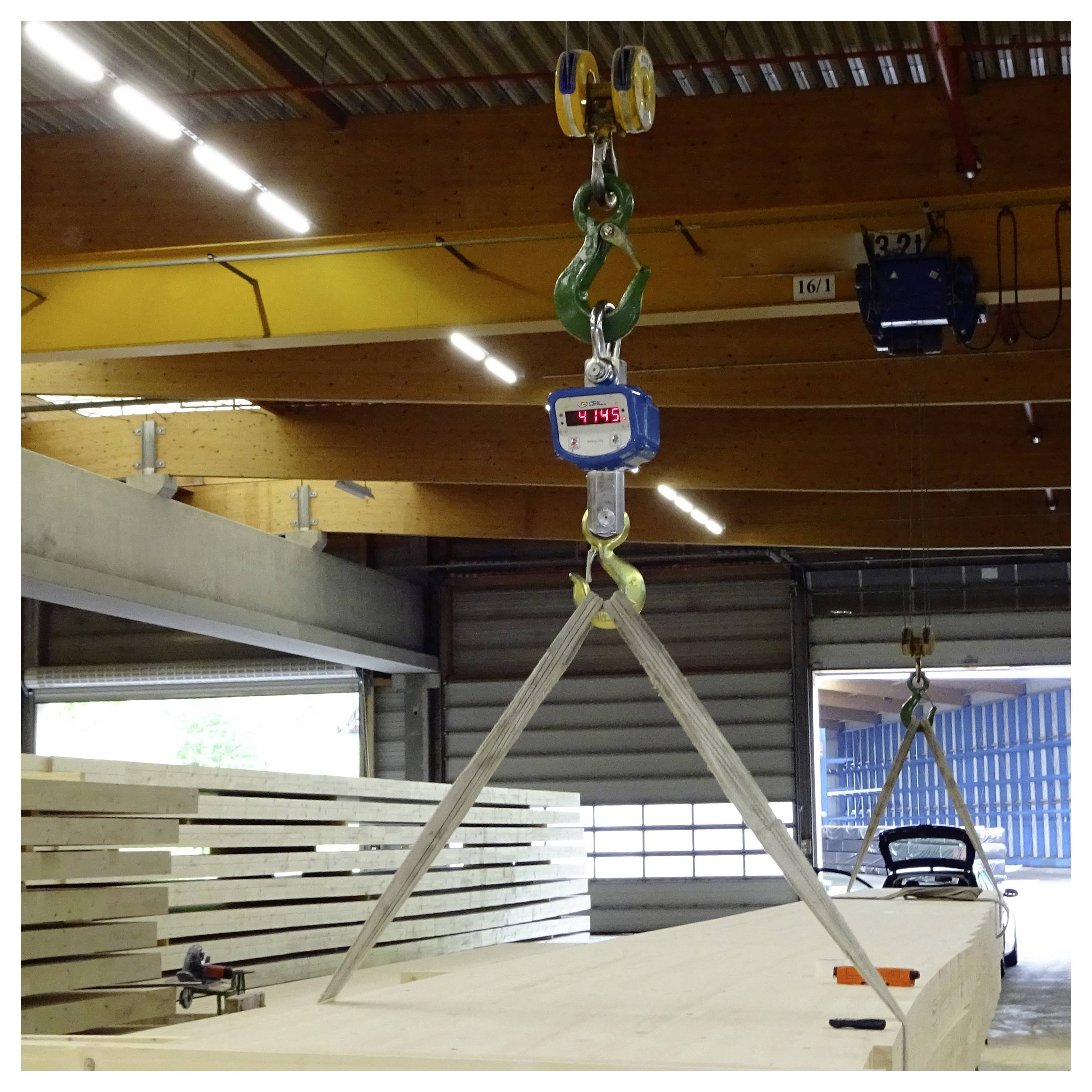

Overhead crane lifts a large timber beam with slings in a workshop, weight displayed on the hoist.

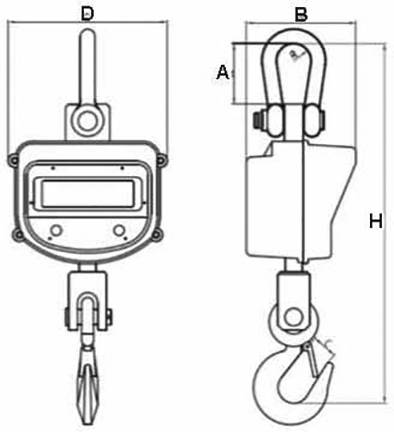

Technical drawing of a crane truck with a handle (D) attached at the top and a hook at the bottom. Side and front views showing dimensions A, B, H.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digital crane scale PCE-CS 10000N

Weighing range: 10,000 kg
Resolution 5 kg
Minimum load 100 kg
Control via remote control
Up to 50 hours operation time
Tare, hold and totalizing function
5-digit display with 30 mm digit height
simple operation

Technical specifications

Weighing range 10,000 kg Minimum load 100 kg. Resolution 5 kg Standards OIML Class III. Zero range 4 % of the weighing range Tare range 100 % of the weighing range Settling time ≤ 10 seconds Overload display 100 % of the weighing range + 9e Max. Safety load 125 % of the weighing range Limit load 400 % of the weighing range Display 5-digit LCD/LED, 30 mm digit height Battery fully sealed lead-acid battery, 6 V / 7 Ah Operating time ≥ 50 hours power supply 9 V DC / 1000 mA range Remote control 15 m Power supply remote control 2 x 1.5 V AAA batteries Operating temperature -10 ... +40 °C). Operating humidity ≤ 85 % r.h. at less than +20 °C. Weight 30 kg. Dimensions A 124 mm B 206 mm D 264 mm H 745 mm

Weight range: 10000 kg

Product type: Crane scales

Readability: 5000 g

Display: Digital

Power supply (LOV): rechargeable

: Manufacturer's standards (no certificate)

Factory colour: Black

Dim: (L x W x H) 745 x 264 x 206 mm

Weight: 30000 g

Weight resolution: 5 kg

Calibratable: Yes

Width: 264 mm

Height: 206 mm

Length: 745 mm

Type: PCE-CS 10000N

Features: Calibratable
Incl. hook

Documents & Downloads

Datasheet

Datasheet 2452319 PCE Instruments PCE-CS 10000N Crane scales PCE-CS 10000N Weight range 10000 kg Readability 5000 g rechargeable Black

User & Safety Instructions

User & Safety Instructions 2452319 PCE Instruments PCE-CS 10000N Crane scales PCE-CS 10000N Weight range 10000 kg Readability 5000 g rechargeable Black

Description

Digital crane scale PCE-CS 10000N weighing range 10 t / control via remote control / display with 30 mm digit height Hold, tare and summing function / integrated 7 Ah battery / operating time ≥ 50 h the digital crane scale PCE-CS 10000N was developed for internal weighing up to 10 t. For this purpose, the digital crane scale has a massive shackle on the top and a rotating hook with a fuse on the bottom. The digital crane scale is operated with the help of the provided infrared remote control. The 5-digit LED display has a digit height of approx. 30 mm, so that it is possible to read the measured values from a distance without any problems. The integrated rechargeable battery of the digital crane scales provides for an operating time of over 50 hours. The battery status can be queried at any time. If it is low, the display of the digital crane scale also starts to flash, so that it is easy for the operator to recognize when the battery needs to be charged. The digital crane scale also offers further useful functions. The tare function allows the tare of weights (such as harnesses such as ropes, chains, etc.). If the weight of the objects to be tarted is known, this can also be entered manually in advance. A further useful function of the digital crane scale is the summing function. Several weights can be added and the sum can be read out. The display hold function can also be used to freeze measured values on the display.
