Buy PCE Instruments PCE-CS 1000N Crane scales PCE-CS 1000N Weight range 1000 kg battery-powered Black

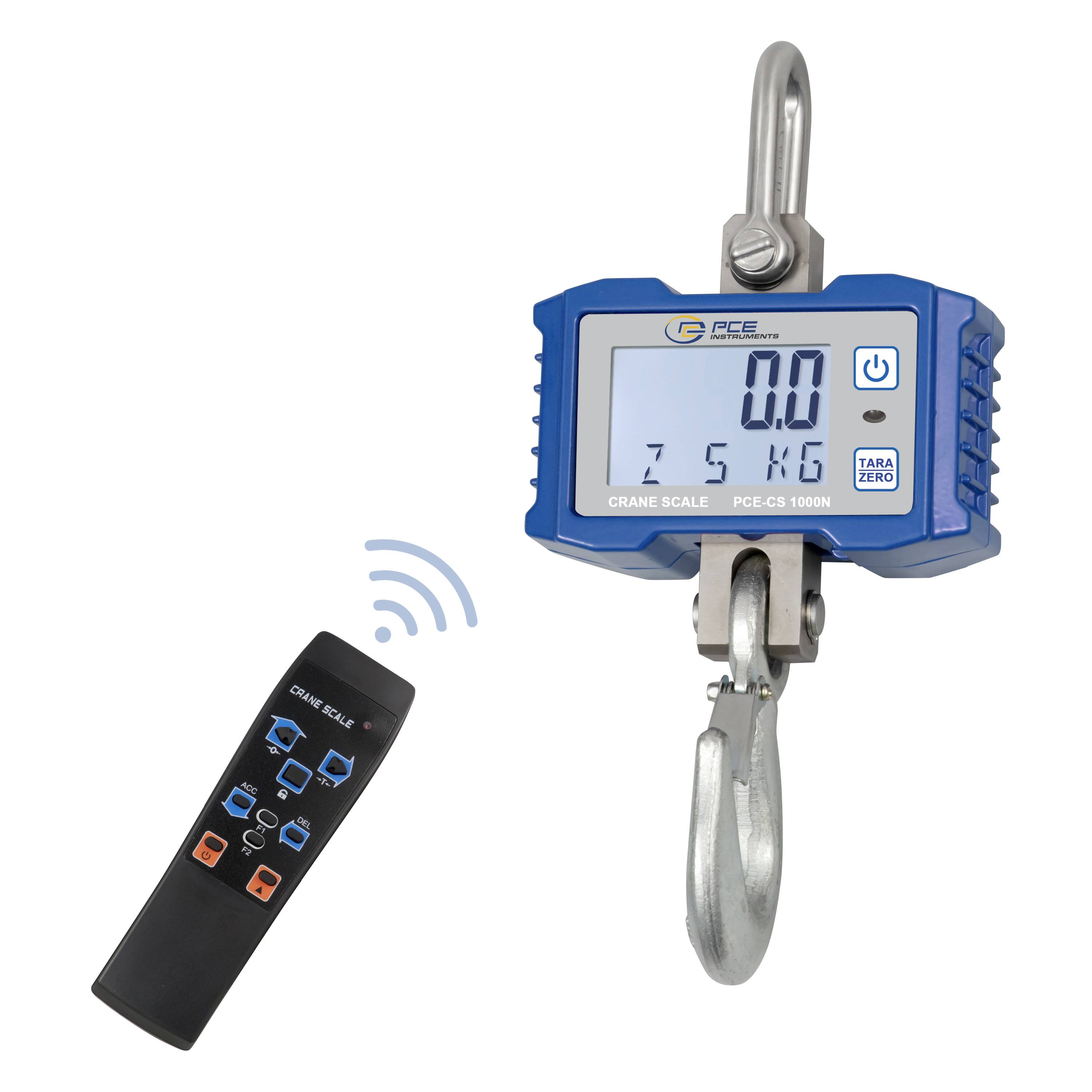

Blue digital hanging crane scale with hook and remote control, showing a wireless display with power and tare buttons.

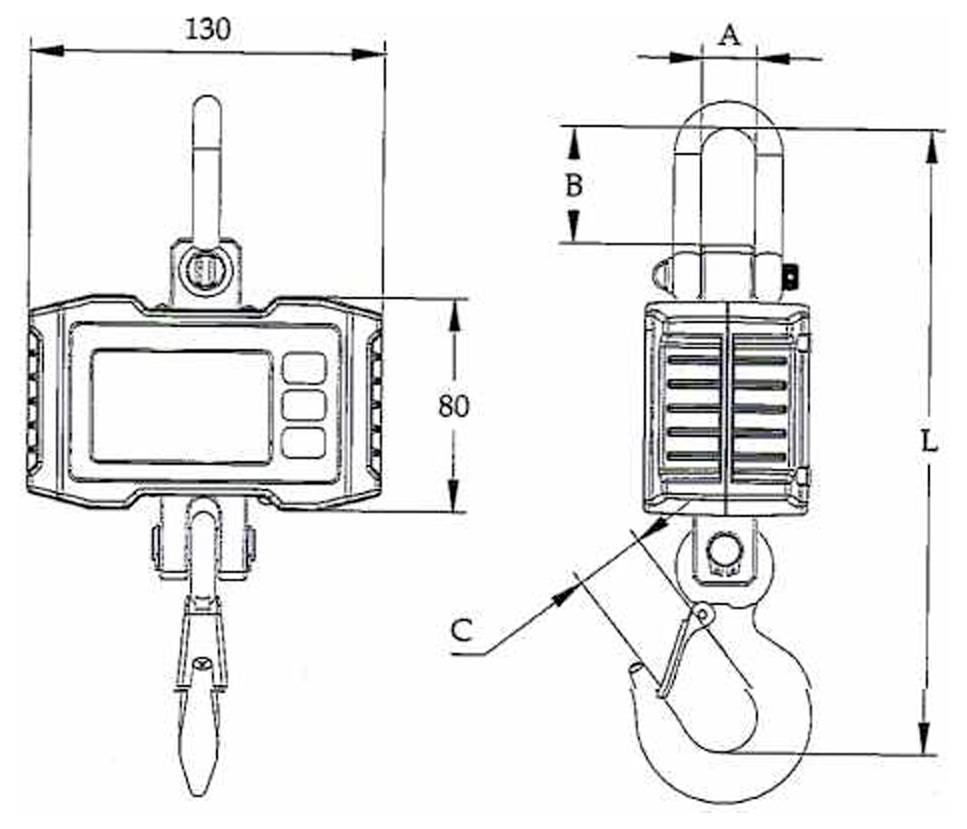

Technical line drawing of a digital hanging crane scale with hook and shackle, showing front and side views with dimensions labeled 130, 80, A, B, C, and L.

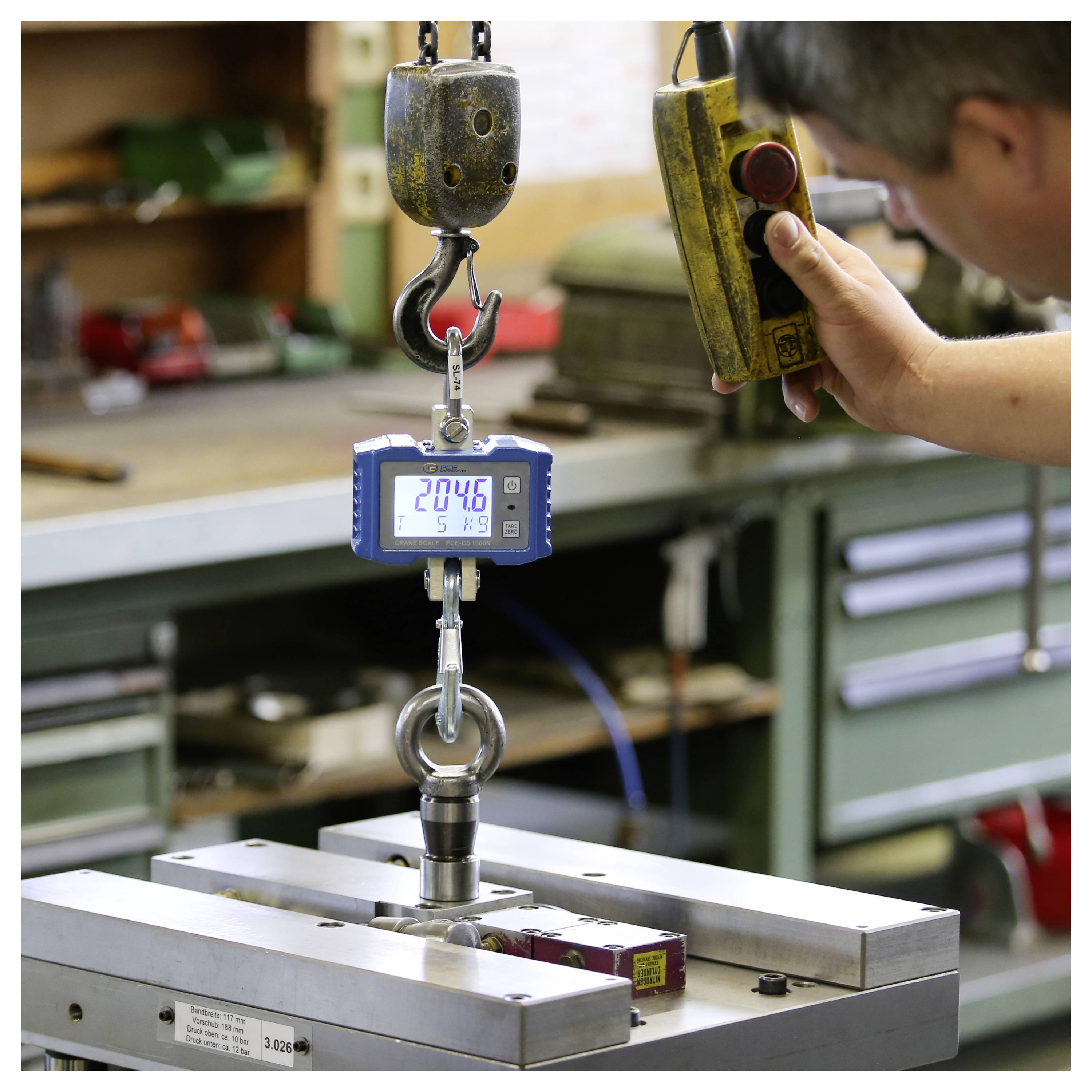

Worker uses a handheld remote to test a hanging digital force gauge lifting a metal part in a workshop.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

CRANE WEIGHER PCE-CS 1000N

Crane weigher up to 1 tons Measurement deviation of max. 1% possible Sum function Gross-, net-, weighing Freely adjustable measuring unit e.g. m³, etc. LCD display with 20 mm digits Battery operation up to 65 hours Compact dimensions Linear calibration is possible incl. super smash bros. Hook / shackle and remote control MODEL A B C L Weight PCE-CS 1000 20 mm 43 mm 27 mm 230 mm approx. 1.4 kg

Technical specifications

Weighing range (Max) 1,000 kg Resolution (d) 0.2 kg Minimum load (min) 10 kg Measuring tolerance ± 1% of measuring range Tara multi-tare across the entire range Display LCD with background lighting digits height 20 mm Environmental conditions -10 ... +40 °C). Power supply 3 x 1.5 V AA batteries Operating time approx. 65 hours with backlight Weight approx. 1.4 kg incl. Batteries/hooks and shackles

Weight range: 1000 kg

Product type: Crane scales

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Black

Dim: (L x W) 230 mm x 130 mm

Weight: 1400 g

Weight resolution: 0.2 kg

Type: Lightweight crane scale for internal useSum functionHold functionGross - Net weighingFreely adjustable weighing unitWeighing ranges up to 1,000 kg

Width: 130 mm

Length: 230 mm

Type: PCE-CS 1000N

Features: Calibratable
Incl. hook

Documents & Downloads

Datasheet

Datasheet 2813568 PCE Instruments PCE-CS 1000N Crane scales PCE-CS 1000N Weight range 1000 kg battery-powered Black

User & Safety Instructions

User & Safety Instructions 2813568 PCE Instruments PCE-CS 1000N Crane scales PCE-CS 1000N Weight range 1000 kg battery-powered Black

Description

The crane scale PCE-CS 1000N is a compact, mobile crane scale for in-house applications. The robust aluminum housing of this crane scale even allows the use in the rough industrial everyday life. The crane scale is operated with three standard 1.5 V AA batteries that allow a permanent operating time of approx. 65 hours. The display of the crane scale is a backlit LCD display with a digit height of 20 mm. The background lighting of the crane scale can be regulated and thus helps to extend the operating time. Other functions of the crane scale are: Gross/net weighing, summing function, hold function, Auto Zero OFF function as well as the possibility of having a user-adjustable measuring unit displayed. That means that the user can store an conversion factor in the crane scale and this will not display the weighed product in kg but e.g. in meters (1 kg = 1.25 m). The crane scale enables a linear calibration and can thus guarantee especially high accuracy.

This text is machine translated.
