Name: PCE Instruments PCE-CS 1T-ICA Crane scales PCE-CS 1T-ICA Calibrated to (ISO standards) Weight range 1000 kg Readability
Brand: PCE Instruments
SKU: 3812462

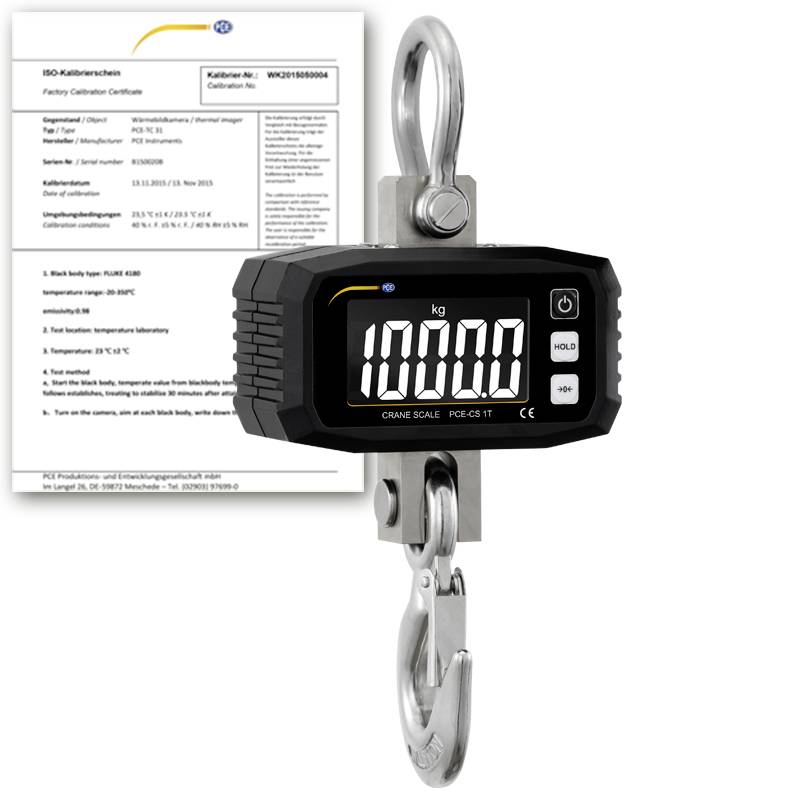

Digital crane scale hanging between metal hooks, showing 10000 kg on the display, with a calibration certificate in the background.

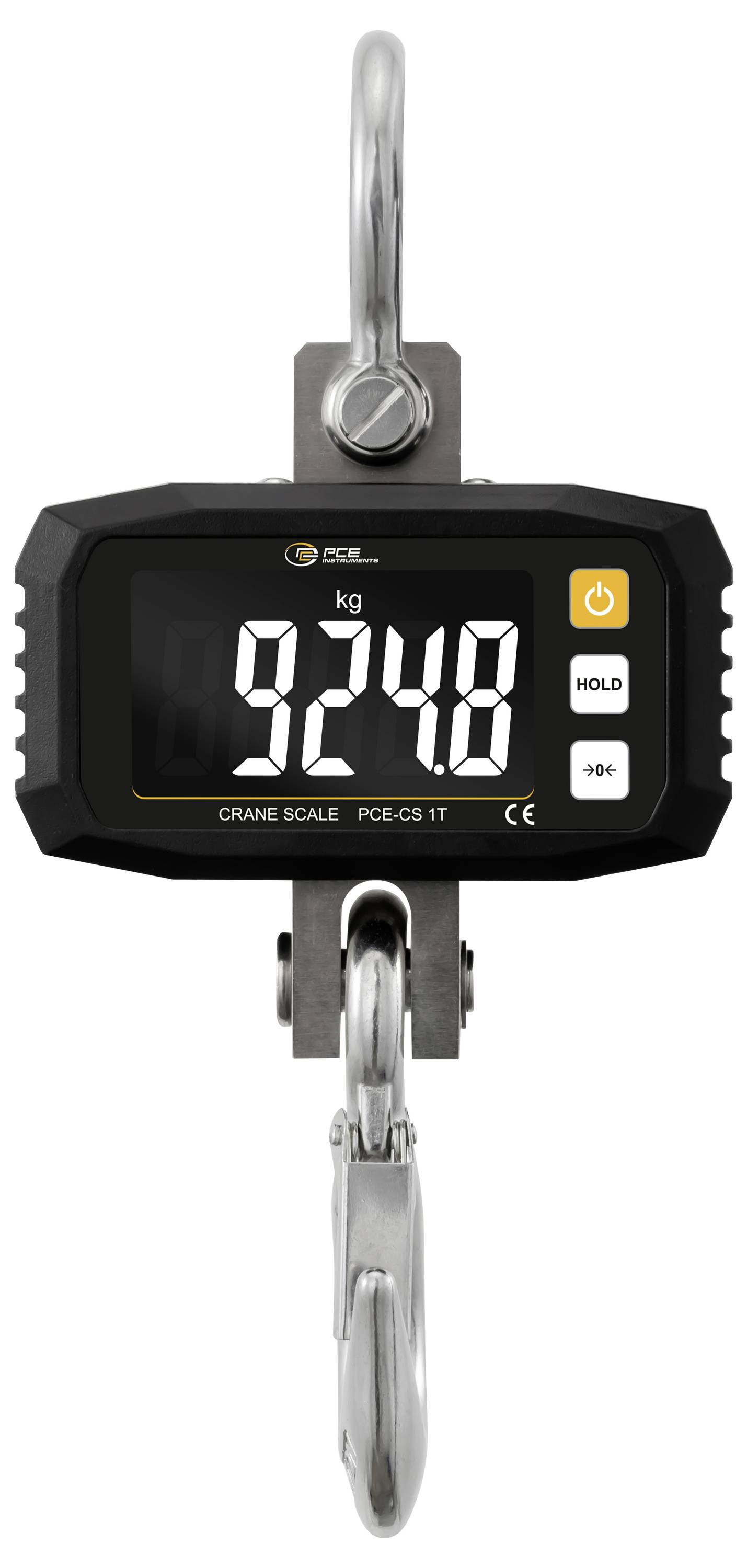

Digital crane scale displaying 9248 kg, with hook and shackle attached above and below the black device.

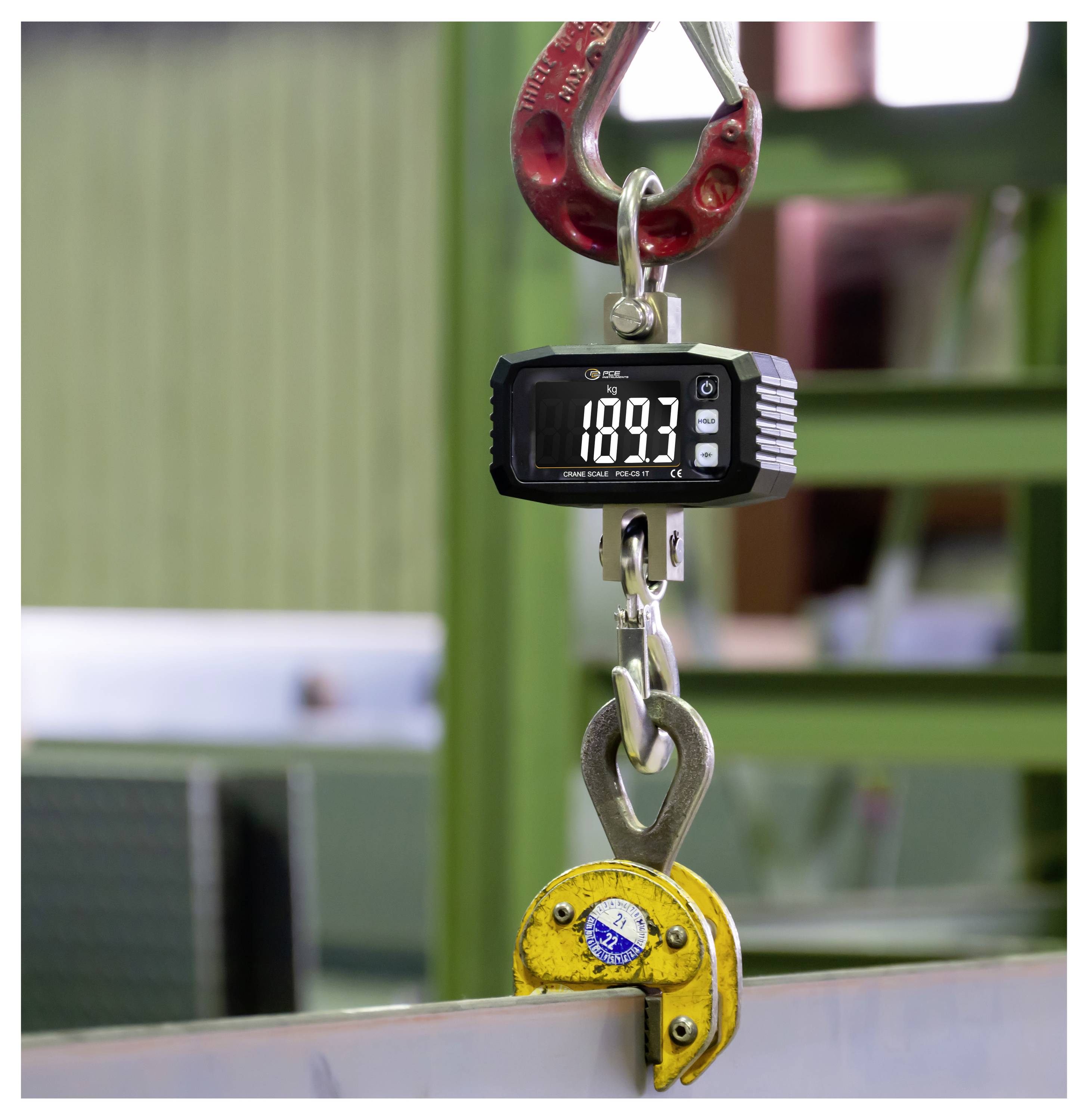

Digital hanging scale on a crane hook shows a load of 1893, attached to a metal lifting clamp on a beam.<br>

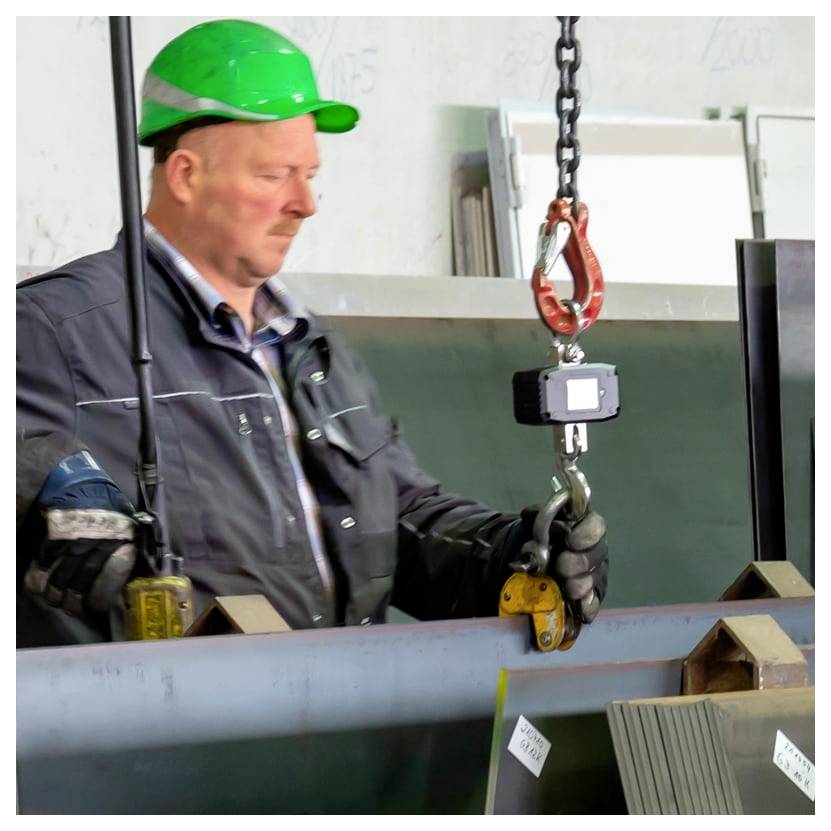

Worker in a green hard hat uses a chain hoist to lift a steel beam in an industrial workshop.

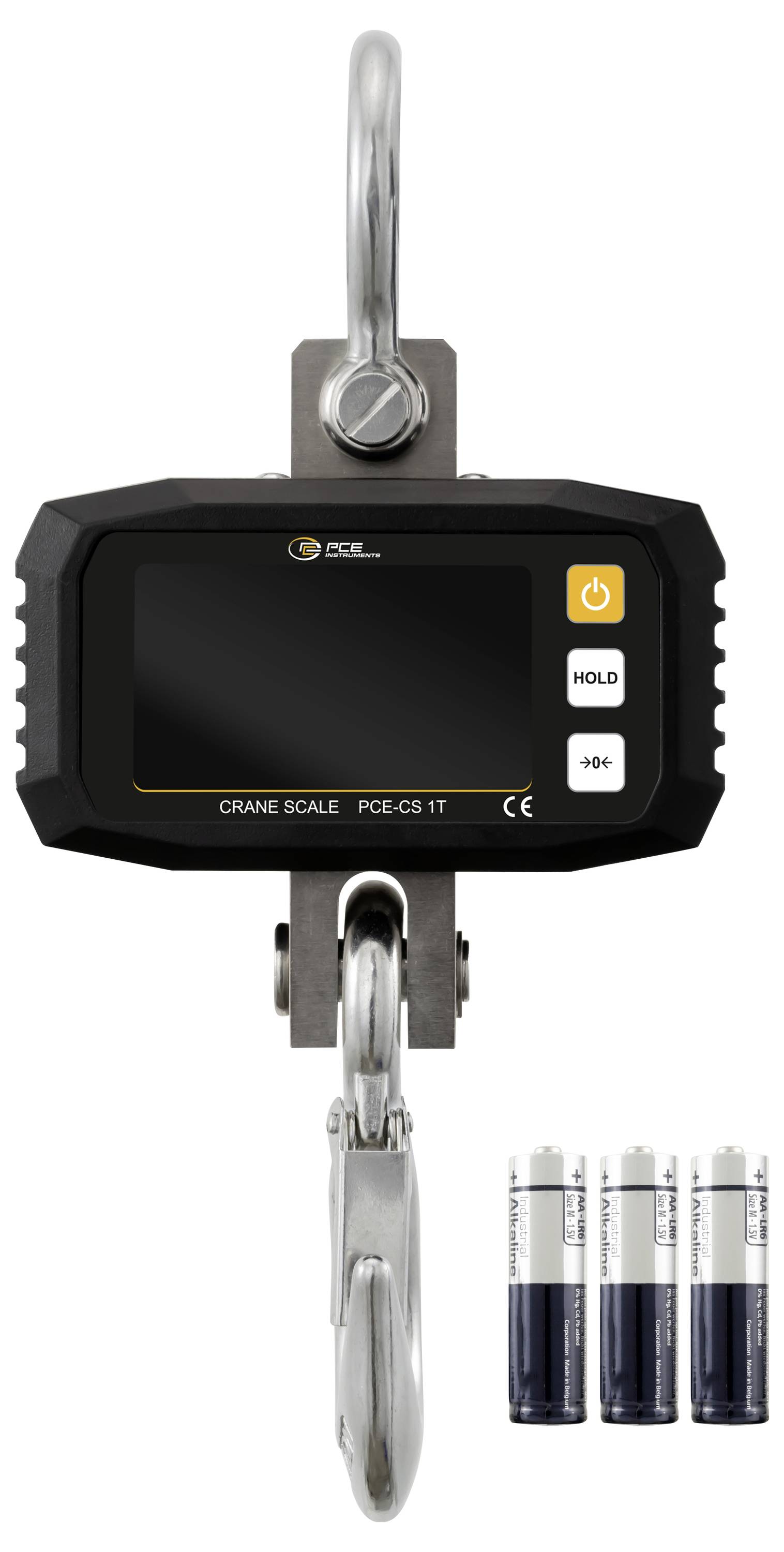

Digital crane scale with hook and hanging shackle, shown with three AA batteries beside it.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments crane scales PCE-CS 1T-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CS 1T-ica
Measuring range 0 ... 1000 gram
Adjustable units kg, lb, N
"Hold", "Tara" and "MAX" functions
Optionally with ISO calibration certificate
Backlight
Robust metal casing
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 1000 kg
Resolution [d] 0.1 kg
Accuracy 1% from MB.
General Technical Data
Measuring functions MAX, HOLD
Unit(s) kg, N, lb
Display type LCD with lighting
Digit size [WxH] 11x30 mm
Housing: metal
Minimum load [Min] 0.5 kg
Dimensions shackle opening: Ø 40 mm, hooks opening: 20 mm
Menu language English (US), English (GB)
Protection class (device) IP42
Battery 3 x 1.5 V AA battery , alkaline-manganese
Capacity: 3000 mAh
Operating conditions 5 ... 35 °C , 0 ... 90 % r.F.
Storage conditions 5 ... 35 °C , 0 ... 90 % r.F.
Dimensions ( L x W x H ) 130 x 60 x 270 mm
Weighs 1295 g.

Weight range: 1000 kg

Product type: Crane scales

Readability: 1000 g

Display: Digital

: ISO standards

Factory colour: Black

Power supply (details): 5.5 V

Dim: (L x W x H) 130 x 260 x 60 mm (Casing)

Weight: 1320 g

Weight resolution: 0,1 kg

Type: Crane weigher/hanging scale with shackle and hook, robust metal casing

Calibratable: Yes

Calibration service: Test points, distributed over the entire measurement range up to 1000 kg, incl. ISO calibration certificate

Dim. (add. text): Casing

Width: 260 mm

Height: 60 mm

Length: 130 mm

Reproducibility: 0.1 kg

Type: PCE-CS 1T-ICA

Features: Incl. hook

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812462 PCE Instruments PCE-CS 1T-ICA Crane scales PCE-CS 1T-ICA Calibrated to (ISO standards) Weight range 1000 kg Readability

User & Safety Instructions

User & Safety Instructions 3812462 PCE Instruments PCE-CS 1T-ICA Crane scales PCE-CS 1T-ICA Calibrated to (ISO standards) Weight range 1000 kg Readability

Description

The crane scale has a measuring range of 0 … 1000 kg and a resolution of 0.1 kg. With an accuracy of 1 % of the measuring range the crane scale is also a precise measuring instrument. This is why the crane scale is used, for example, in the weighing of raw materials. The backlit LC-display in crane scale has a digit height of 30 mm and can be read well from a large distance. In addition to the kg display, the crane scale can also show the suspended weight in lb and in N.

The robust metal housing of the crane scale allows use in the rough industrial day. The crane scale is powered by three 1.5 V AA batteries. Via the "MAX" function of the crane scale only the largest weighed load is displayed and maintained. With the "Tare" function the displayed measuring value can be shown in the crane scale. This function takes effect when, for example, measuring equipment is attached. The "Hold" function of the crane scale makes it possible to hold a displayed measurement value. Optionally, PCE Instruments offers an ISO calibration certificate for the crane scale.

This text is machine translated.
