Buy PCE Instruments PCE-CS 300 Crane scales PCE-CS 300 Weight range 300 kg Readability 0.05 g battery-powered Black

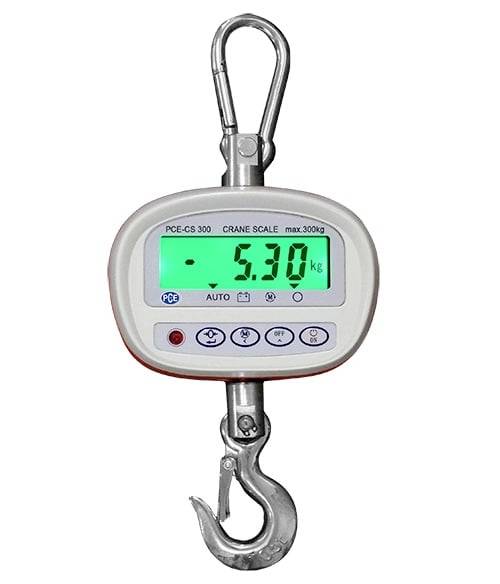

Digital hanging crane scale displaying 5.30 kg with top loop and bottom hook on a white background.

Hanging digital crane scale with a green-lit display suspended from an overhead beam in an industrial setting.

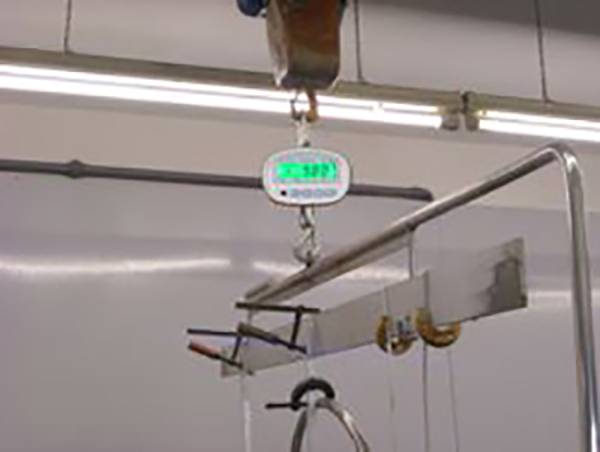

An industrial weighing device hangs from a hook and displays the weight of an object attached to a metal rod.

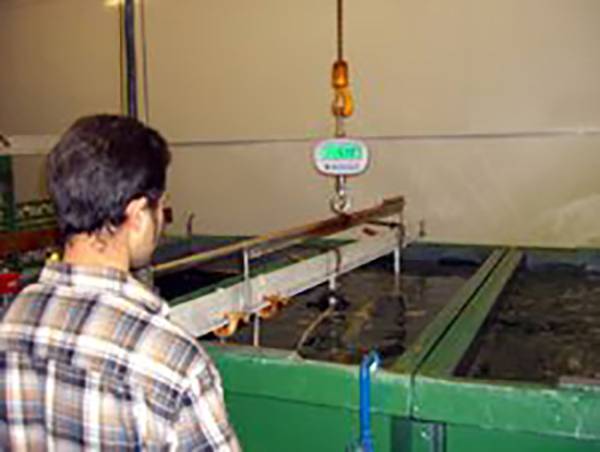

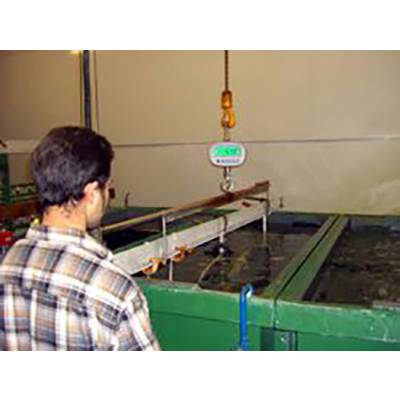

Man in a checked shirt supervising an industrial lifting procedure in a factory environment. A weight is hanging from a hook above a tank.

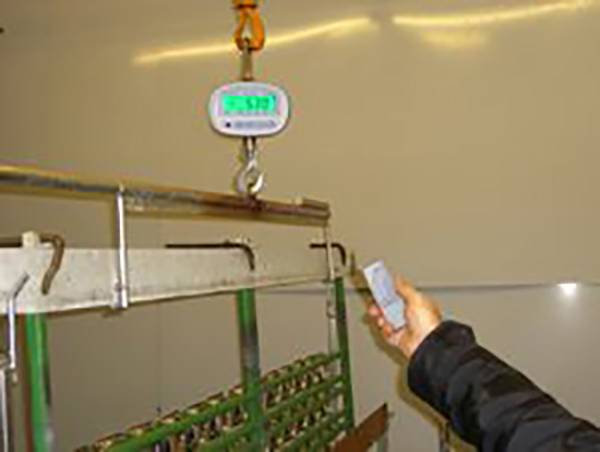

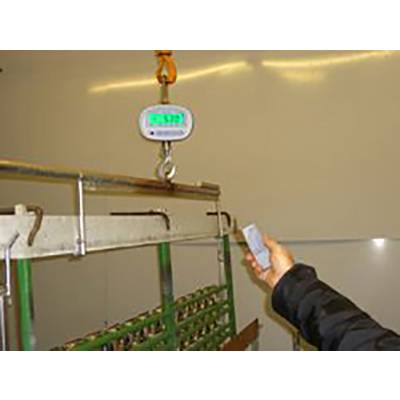

A person is operating a digital hanging scale with a remote control in a storage room. The number displayed on the scale is '82.00'.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Crane scales PCE-CS 300

Backlit LCD display with easy-to-read, high digits
Infrared remote control (can be used up to a maximum distance of 10 m to the crane scale)
Protection Class IP 54 .
Power supply via standard batteries 1.5V
Stainless steel shackle
Galvanized hook

Technical specifications

Max. range 300 kg Min Weight 2 kg Readability 0.05 kg Reproducibility 0.1 kg Net weight 1.2 kg Protection IP 54 (dust and splash proof) TARA yes, over the full range Stabilization time < 10 s Max. Overload 150% Display 20 mm LC display Power supply crane scale 4 x AA batteries 1.5V Remote control for all functions

Weight range: 300 kg

Product type: Crane scales

Readability: 0.05 g

Display: Digital

Power supply (LOV): battery-powered

: Manufacturer's standards (no certificate)

Factory colour: Black

Weight: 1200 g

Weight resolution: 0.05 kg

Calibratable: Yes

Width: 36.75 mm

Reproducibility: 100 g

Type: PCE-CS 300

Features: Calibratable
Incl. hook

Documents & Downloads

Datasheet

Datasheet 2452320 PCE Instruments PCE-CS 300 Crane scales PCE-CS 300 Weight range 300 kg Readability 0.05 g battery-powered Black

User & Safety Instructions

User & Safety Instructions 2452320 PCE Instruments PCE-CS 300 Crane scales PCE-CS 300 Weight range 300 kg Readability 0.05 g battery-powered Black

Description

Economical, light-weight crane scale for internal application / weighing range up to max. 300 kg (+ overload) a crane scale for internal control weighing. The power supply of the crane scale is provided by standard batteries. This crane scale has a maximum weighing range of 300 kg. For exact dosing, the crane scale has a tare function. The crane scale is supplied in a box including hooks, shackles and remote control. The very robust design allows the use in rough industrial everyday life but also in the areas of trade, food, transport ... The scale is factory-adjusted upon delivery. For compliance with the ISO 900x, it can also be delivered with ISO-certificate in laboratory-calibrated form (optionally at an additional cost). All around: A crane scale for the practitioner on site / in operation.

This text is machine translated.
