Buy PCE Instruments PCE-CS 3000N Crane scales PCE-CS 3000N Weight range 3000 kg Readability 500 g rechargeable Black

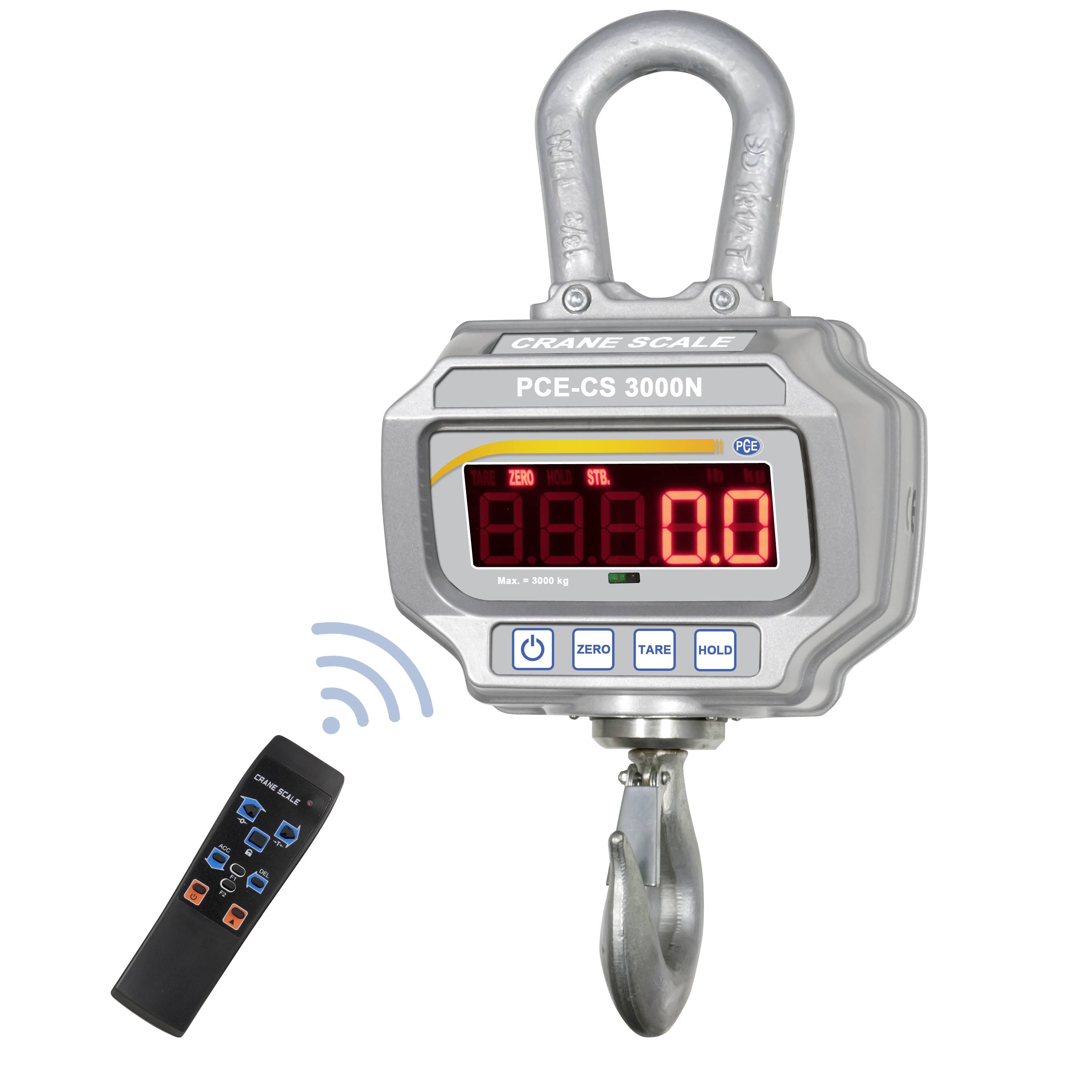

Wireless crane scale with digital display and hanging hook, shown with a remote control for lifting and weighing loads.

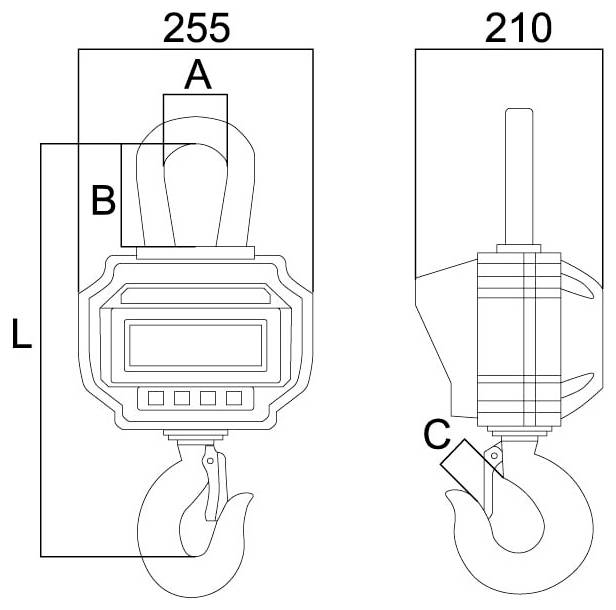

Technical drawing of a crane scale with hook, shown in front and side views, labeled with dimensions 255 and 210.

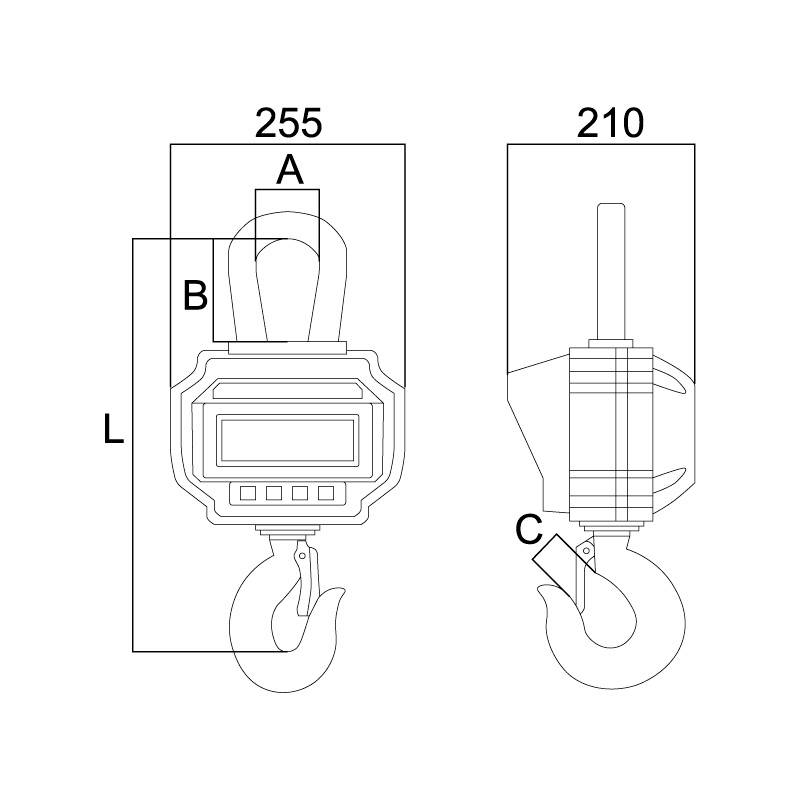

'Diagram shows a hook scale in two views with dimensions: 255 length, 210 width. Labels: A, B, C mark parts of the scale.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

CRANE SCALES PCE-CS 3000N

Measurement range up to 3000 kg
Resolution 0.5 kg
Large LED display
Digit height 35 mm
Aluminium enclosure
Battery operation up to 200 hours
Totalizing function
Hook and swivel (rotatable)
Incl. shackle (fixed)
Remote control included

Technical specifications

Weighing range 3000 kg Resolution / measurement uncertainty 0.5 kg / ± 2 kg Range over full range Settling time 5 sec. weighing units kg / lb Aluminium casing Display / digit height LED red / 35 mm Operating temperature - 10 °C ... 40 °C Power supply 6 V - 4 Ah internal rechargeable battery / BAT-6V-4.5Ah Battery life up to 200 hours Dimensions (top, sketch) A 68 mm B 112 mm C 33 mm L 420 mm Weight approx. 11 kg

Weight range: 3000 kg

Product type: Crane scales

Readability: 500 g

Display: Digital

Power supply (LOV): rechargeable

: Manufacturer's standards (no certificate)

Factory colour: Black

Dim: (L x W x H) 420 x 255 x 210 mm

Weight: 11000 g

Weight resolution: 0.5 kg

Width: 255 mm

Height: 210 mm

Length: 420 mm

Type: PCE-CS 3000N

Features: Calibratable
Incl. hook

Documents & Downloads

Datasheet

Datasheet 2452321 PCE Instruments PCE-CS 3000N Crane scales PCE-CS 3000N Weight range 3000 kg Readability 500 g rechargeable Black

User & Safety Instructions

User & Safety Instructions 2452321 PCE Instruments PCE-CS 3000N Crane scales PCE-CS 3000N Weight range 3000 kg Readability 500 g rechargeable Black

Security datasheet

Security datasheet 2452321 PCE Instruments PCE-CS 3000N Crane scales PCE-CS 3000N Weight range 3000 kg Readability 500 g rechargeable Black

Description

Inexpensive crane scales up to 3,000 kg / resolution 0.5 kg / battery operation / incl. remote control, rotating hooks and shackles / aluminum die-cast housing The crane scales are a revised crane scales of our successful series PCE-CS HD. This crane scale has a robust aluminum casing which is best suitable for the rough industrial use. In order to simplify the reading of the crane scale, the hanging scale has an adjustable LED display with a digit height of 35 mm. The internal battery of the crane scale provides for a long working time of up to 200 hours. Functions such as TARA, ZERO, Summation and Auto-Off make it very easy to operate the crane scale. The crane scale has a fixed shackle on the top side as well as a rotating load hook with a fuse mounted on the bottom side.

This text is machine translated.
