Name: PCE Instruments PCE-CS 3000N-ICA Crane scales PCE-CS 3000N-ICA Calibrated to (ISO standards) Weight range 3000 t Readabi
Brand: PCE Instruments
SKU: 3812463

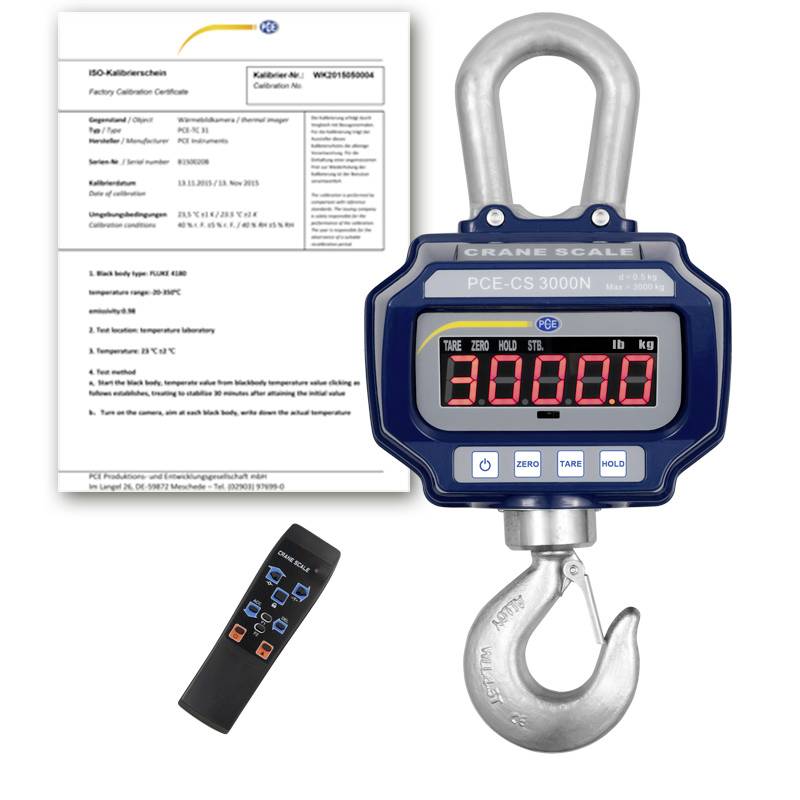

Digital crane scale with hook, remote control, and calibration certificate; display reads 000.0 and shows lb/kg units.

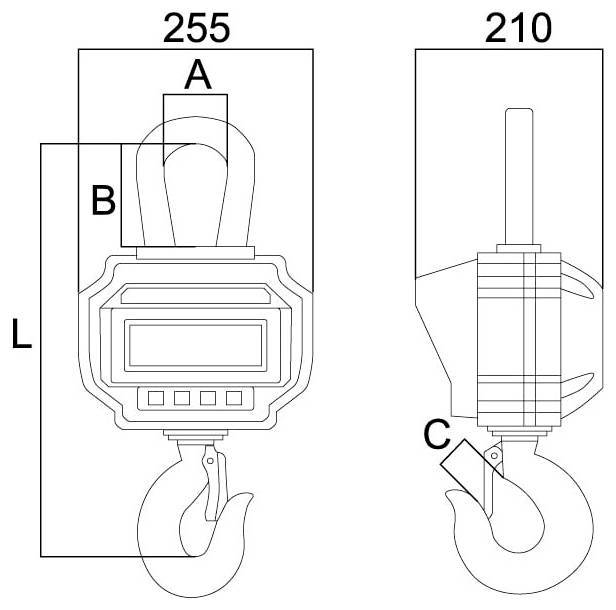

Technical line drawing of a hook scale, showing front and side views with dimensions 255, 210, and labeled parts A, B, C, and L.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments crane scales PCE-CS 3000N-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE CS 3000N-ica
Measuring range up to 3000 kg
Resolution 0.5 kg
Large LED display
Digit height 35 mm
Aluminium enclosure
Battery operation up to 200 hours
Sum function
Hook (swivel)
Shackle (fixed)
Remote control included
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 3000 kg
Resolution [d] 0.5 kg
Accuracy ±2 kg
General Technical Data
Measurement functions (additional information) Summing function
Unit(s) kg, lb
Display type LED
Digit size [WXH] height: 35 mm
Operating time 200 h
Aluminium casing
Tare area Over the full measuring range
Dimensions of shackle opening: 68 mm, hooks opening: 33 mm
Start-up time 5 s.
Protection class (device) IP60
Power supply 100 ... 220 V AC 50/60 Hz
Connector type Euro plug
Battery/battery 1 x 6 V internal , lead acid
4500 mAh capacity
Operating conditions -10 ... 40 °C , 20 ... 90 % r.F.
Storage conditions -10 ... 40 °C , 20 ... 90 % r.F.
Dimensions ( L x W x H ) 420 x 255 x 210 mm
Weight 11000 g.

Weight range: 3000 t

Product type: Crane scales

Readability: 500 g

Display: Digital

Power supply (LOV): rechargeable

: ISO standards

Factory colour: Blue

Power supply (details): 6 V

Dim: (L x W x H) 255 x 210 x 420 mm

Weight: 11 kg

Weight resolution: 500 g

Type: Digital crane scale with permanently mounted shackle and swiveling load hook

Calibratable: Yes

Calibration service: Inclusive ISO calibration certificate

Width: 210 mm

Height: 420 mm

Length: 255 mm

Type: PCE-CS 3000N-ICA

Features: Incl. hook

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812463 PCE Instruments PCE-CS 3000N-ICA Crane scales PCE-CS 3000N-ICA Calibrated to (ISO standards) Weight range 3000 t Readabi

User & Safety Instructions

User & Safety Instructions 3812463 PCE Instruments PCE-CS 3000N-ICA Crane scales PCE-CS 3000N-ICA Calibrated to (ISO standards) Weight range 3000 t Readabi

Description

This crane scale is a revised crane scale of our success series PCE CS HD. This crane scale has a robust aluminum casing, which is best suited for the rough industrial applications The hanging scale has an adjustable LED display with a digit height of 35 mm to facilitate reading the crane scale.

The internal battery of the crane scale works for a long working time of up to 200 hours. Functions such as TARE, ZERO, summation and Auto-off make it very easy to operate the crane scale. The crane scale has a fixed shackle on the upper side and a swiveling load hook with locking on the lower side.
