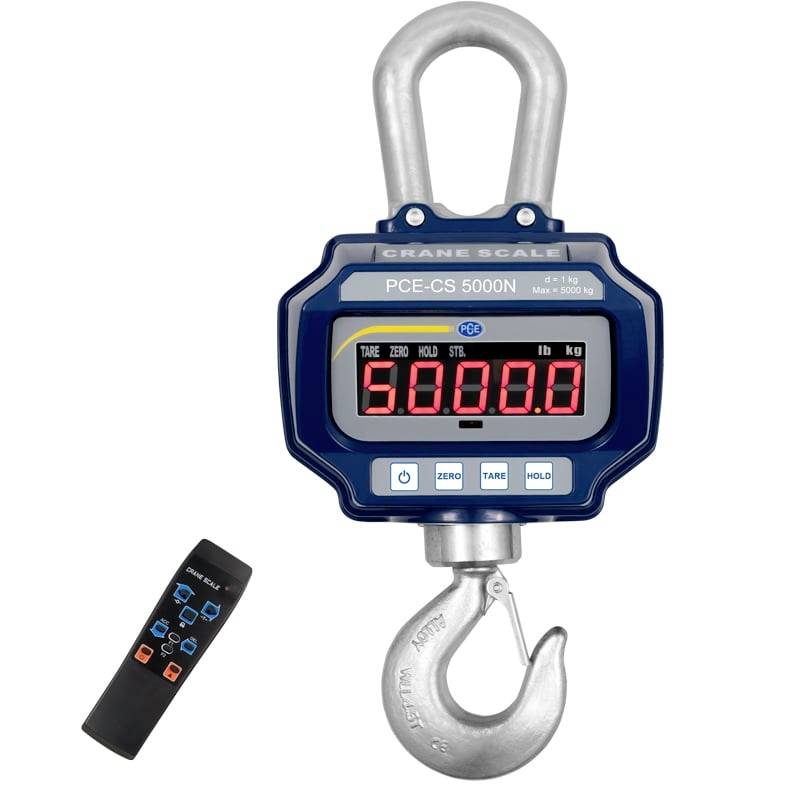

Digital crane scale labeled 'PCE-CS 5000N' shows 5000.0 on red LED display, with top loop, hanging hook, and remote control beside it.<br>

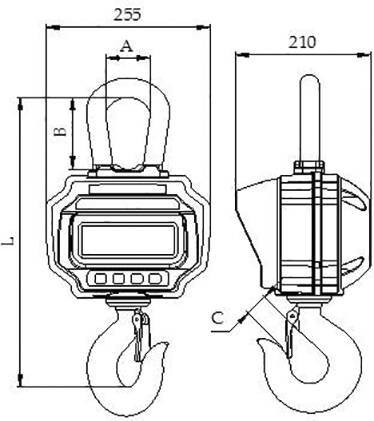

Dimensioned technical drawing of a hanging crane scale with hook, showing front and side views and measurements labeled A, B, C, L, 255, and 210.

'Technical drawing of a crane scale with hook representation. Left: top view with dimensions A, B and L; right: side view with dimension C.'

1/3

Datasheet (PDF)

Unavailable

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Digital - Crane weigher PCE-CS 5000N

Measurement range up to 5000 kg
Resolution 1 kg
Large LED display
Digit height 35 mm
Aluminium enclosure
Battery operation up to 200 hours
Totalizing function
Hook and swivel (rotatable)
Incl. shackle (fixed)
Remote control included

Technical specifications

Weighing range 5000 kg Resolution / measurement uncertainty 1 kg / ± 4 kg Taring range over the full measuring range Settling time 5 sec. Weighing units kg / lb Aluminium casing Display / digit height LED red / 35 mm Operating temperature - 10 °C ... 40 °C Power supply 6 V - 4 Ah internal rechargeable battery / BAT-6V-4.5Ah Battery life up to 200 hours Dimensions A = 68 mm B = 112 mm C = 36 mm L = 450 mm Weight approx. 12.5 kg

Weight range: 5000 kg

Product type: Crane scales

Readability: 1000 g

Display: Digital

Power supply (LOV): rechargeable

: Manufacturer's standards (no certificate)

Factory colour: Black

Dim: (L x W x H) 450 x 210 x 255 mm

Weight: 12500 g

Weight resolution: 1 kg

Width: 210 mm

Height: 255 mm

Length: 450 mm

Type: PCE-CS 5000N

Features: Calibratable
Incl. hook

Documents & Downloads

Datasheet

Datasheet 2452322 PCE Instruments PCE-CS 5000N Crane scales PCE-CS 5000N Weight range 5000 kg Readability 1000 g rechargeable Black

User & Safety Instructions

User & Safety Instructions 2452322 PCE Instruments PCE-CS 5000N Crane scales PCE-CS 5000N Weight range 5000 kg Readability 1000 g rechargeable Black

Description

Low-cost digital crane scales up to 5,000 kg / resolution 1 kg / battery operation / incl. remote control, rotating hooks and shackles / aluminum die-cast housing the digital crane scales is a revised digital crane scale of our successful PCE-CS HD series. This digital crane scale has a robust aluminum housing which is best suited for harsh industrial use. In order to simplify the reading of the digital crane scale, the digital crane scale has an adjustable LED display with a digit height of 35 mm. The internal rechargeable battery of the digital crane scales provides for a long working time of up to 200 hours. Functions such as TARA, ZERO, Summation and Auto-Off make the operation of the digital crane scale very easy. The crane scale has a fixed shackle on the top side as well as a rotating load hook with a fuse mounted on the bottom side.
