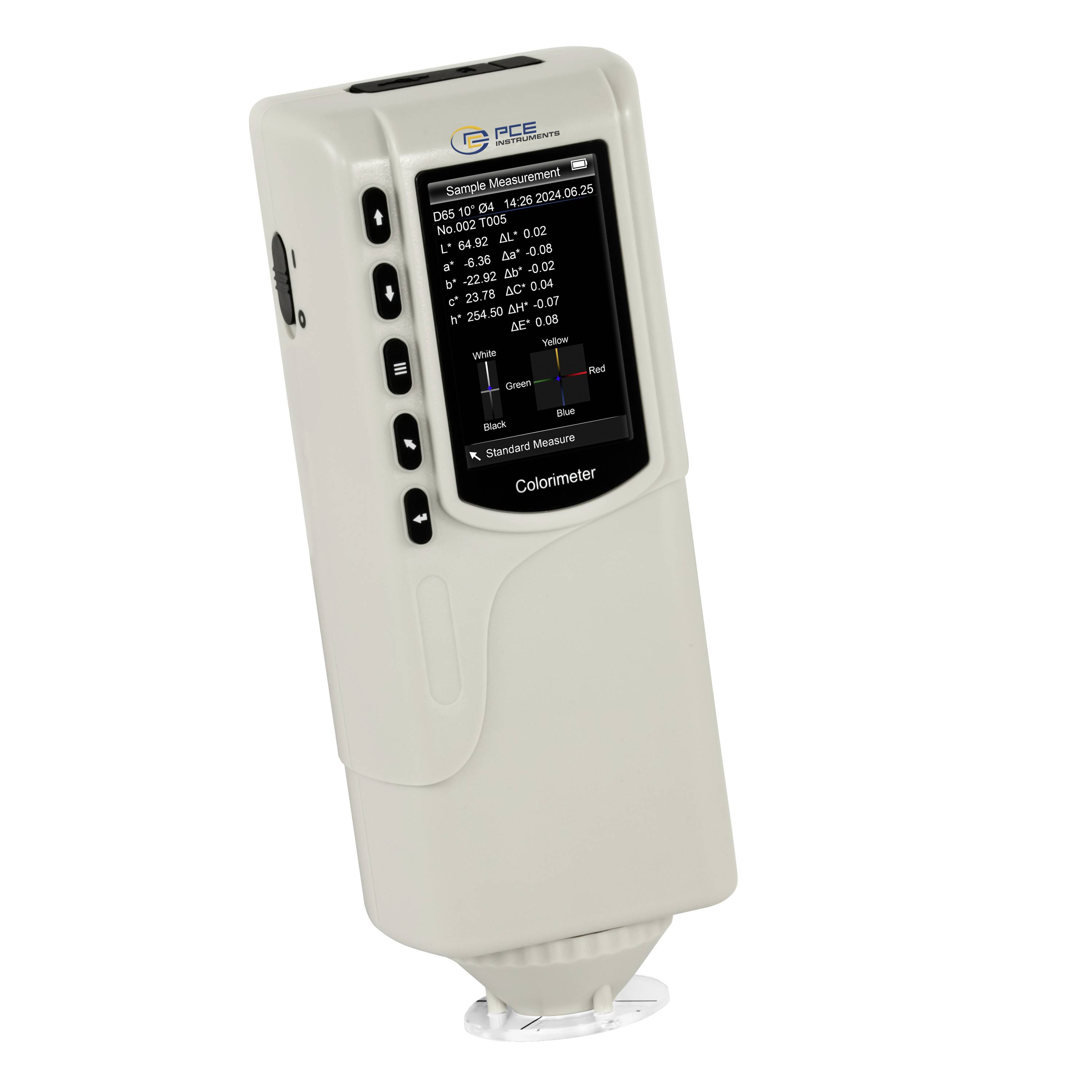

PCE Instruments PCE-CSM 1 Colorimeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Colorimeter PCE-CSM 1
- Supports VESA standards up to
Technical specifications

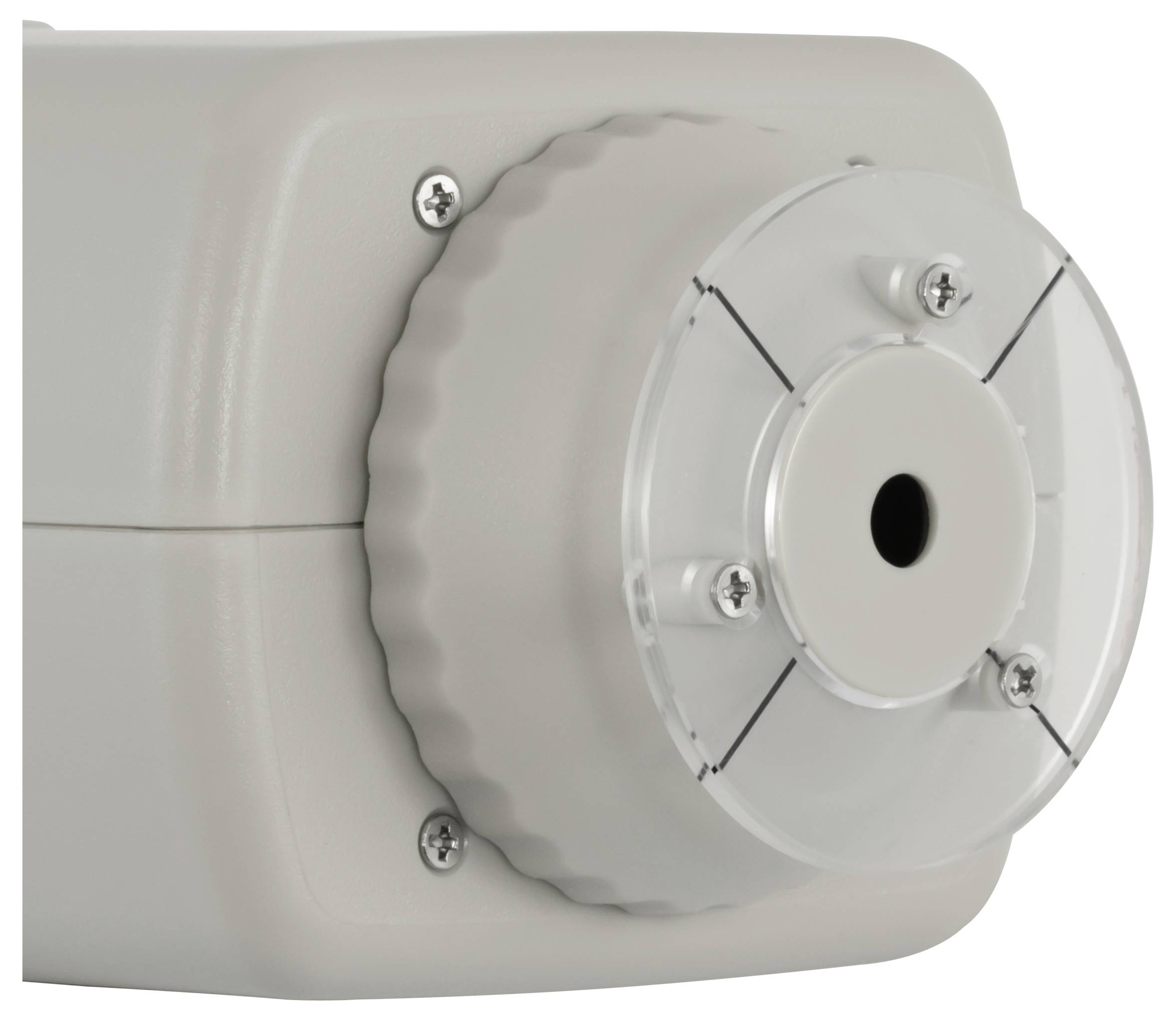

- Technical specifications Measurement openings Ø 4 mm Sensor silicon photodiode Color spaces CIEL*a*b*C*h. CIEL a* b* CIEXYZ Formula for color inequality ΔE*from ΔL*from ΔE*C*H. Light source D65 Type of light source LED Memory 100 standards, 20000 samples Error between different equipment ≤0,50ΔE*ab Repeatability average of 30 measurements with a standard white plate Standard deviation within ΔE*from 0.08 Power supply rechargeable lithium-ion battery 3.7 V at 3200 mAh Charging time 8 hours Battery life approx. 5000 measurements Lamp lifetime 5 years, more than 1.6 million measurements Temperature range 0 ... +40 °C Relative humidity 0 ... 85%, non-condensing Dimensions 205 x 67 x 80 mm Weight 500 g.
- Product type
Colorimeter
- Width
67 mm
- Height
80 mm
- Weight
500 g
- Dim
(L x W x H) 205 x 67 x 80 mm
- Length
205 mm
Manufacturer's standards (no certificate)
- Display
LCD
- Interfaces
USB
- Features
Data logger
- Reading type
Colour
Documents & Downloads
Datasheet
Datasheet 2452323 PCE Instruments PCE-CSM 1 Colorimeter
User & Safety Instructions
User & Safety Instructions 2452323 PCE Instruments PCE-CSM 1 Colorimeter
Description

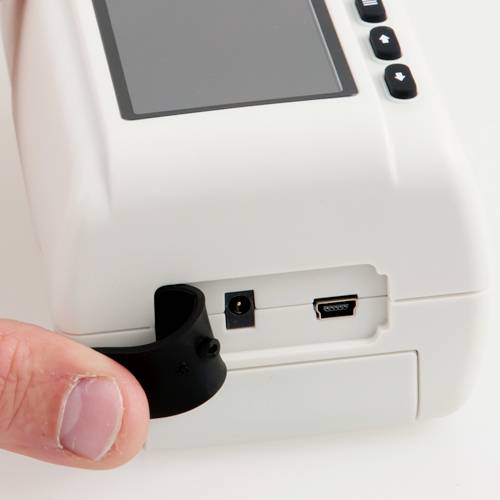

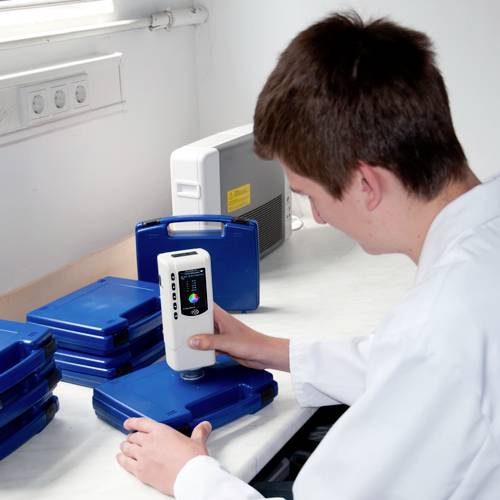

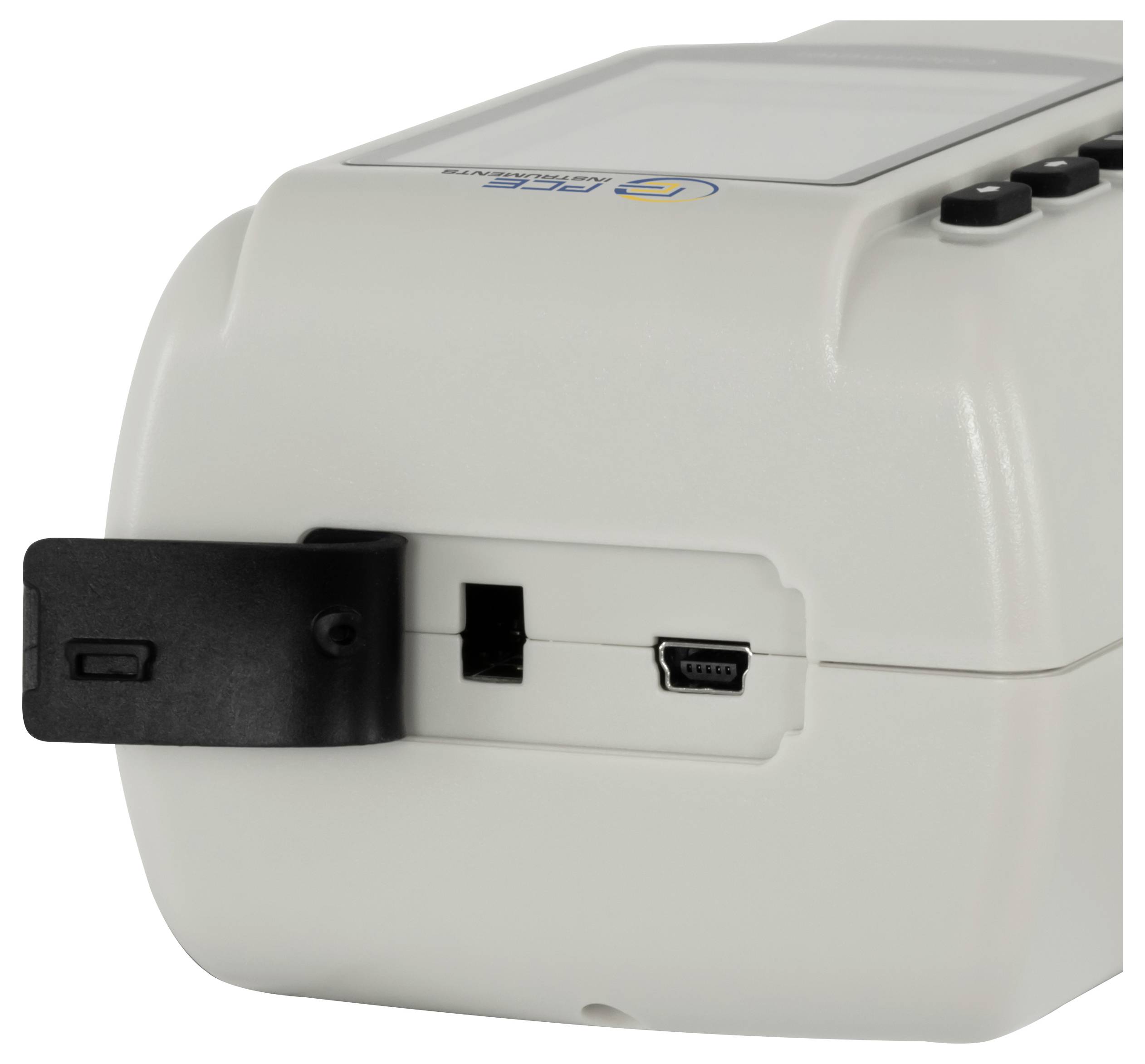

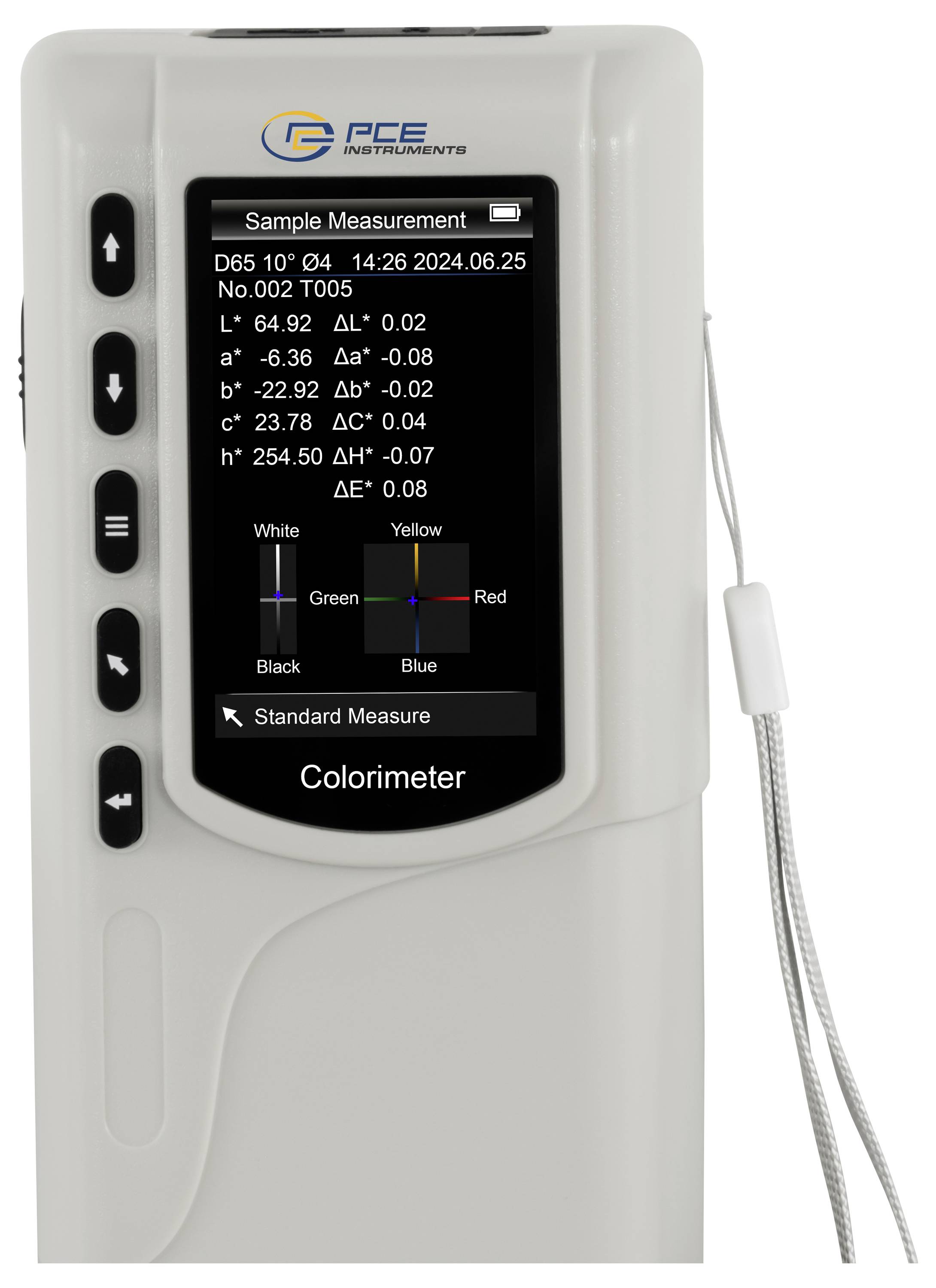

Colorimeter for quality control / PC software included / Li-ion battery / Black and white calibration possible / different color spaces / determination of reference values and samples The colorimeter PCE-CSM 1 was developed especially for quality assurance and offers a high accuracy. The colorimeter allows you to select different color spaces for measurements (CIEL*a*b*C*h, CIEL a* b* and CIEXYZ). After a measurement, the result can be used as a reference value and further samples can be obtained using the colorimeter. In addition to the actual measurement result, the deviation from the reference value is displayed. The measured values are automatically saved by the colorimeter. Up to 100 reference values and up to 20000 random samples can be stored. In addition, it is possible to transfer the stored values to a PC via the USB interface. A special PC software is included in the delivery.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x colorimeter PCE-CSM 1
- 1 x USB cable
- 1 x battery
- 1 x power supply unit
- 1 x wristband
- 1 x calibration plate white
- 1 x PC software
- 1x user manual
