PCE Instruments PCE-CSM 10 Colorimeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

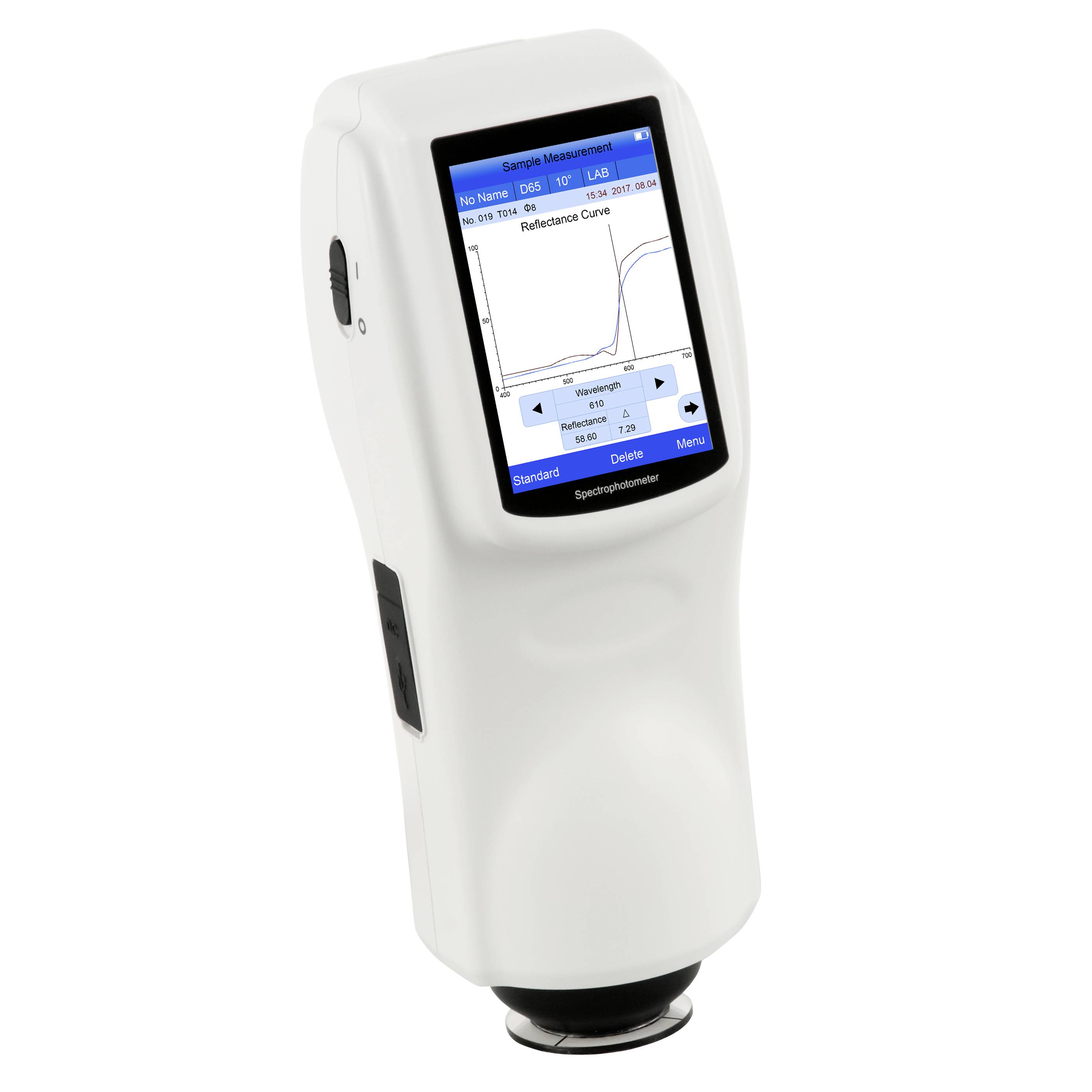

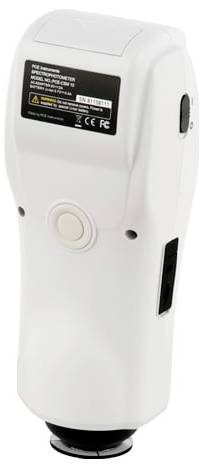

Colorimeter PCE-CSM 10
- Supports VESA standards up to
Technical specifications

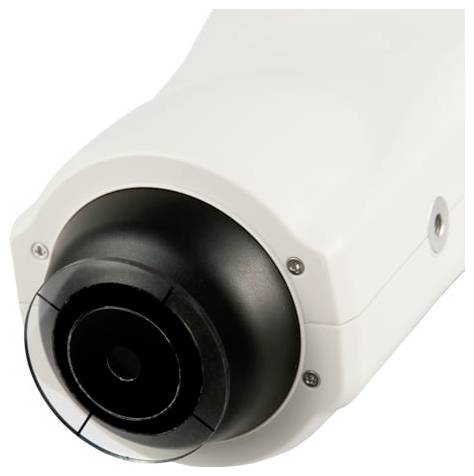

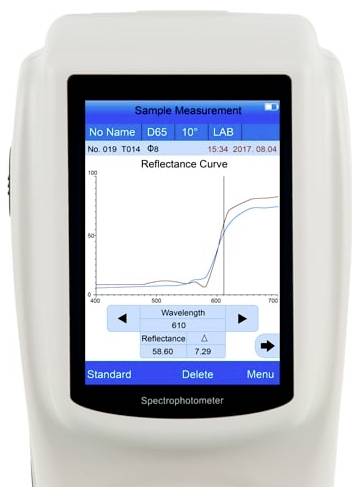

- Technical specifications Illumination/observation geometry 8°/d. Measurement aperture Ø 8 mm Integrating sphere Ø 58 mm Sensor silicon photodiode Light source combined LED sources LIGHT TYPE D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10(TPL5), F11(TL84) F12(TL83/U30) Wavelength range 400 ... 700 nm Reflectance range 0 ... 200 % Color spaces CIE LAB, XYZ, Yxy, LCH, CIE LUV, LAB & WI & YI Formula for color inequality ΔE*from ΔE*uv ΔE*94 ΔE*cmc (2:1) ΔE*cmc (1:1) ΔE*cmc (l:c) CIE2000 ΔE*00 ΔE (h) Other Chromazity Data WI (ASTM E313, CIE/ISO, AATCC, HUNTER) YI (ASTM D1925, ASTM 313) TI (ASTM E313, CIE/ISO) Metameriindex (Mt) Color spot thickness Color fastness Observer 2° / 10° Measuring time 1.2 seconds Repeatability Sprektal Reflection: Standard deviation within 0.1 % (400 ... 700 nm: within 0.2%) Colorimetric values: Standard deviation within ΔE*from 0.04 Device match within ΔE*from 0.2 Display functions spectral value, spectral graph, color measurement value, color difference value, color difference graph, PASS / FAIL function display, offset printing, color simulation, color index settings(ΔE*94, ΔE*cmc, ΔE*2000), setting the error limitTime configurationLanguage settingRestore default settings Memory 1000 standard values, 25000 sample values Interface USB / RS-232 Display 3.5" TFTCapacitive touch screen Power supply Rechargeable lithium-ion battery 3.7 V at 3200 mAh lifetime of the lamp 5 years, more than 1.6 million measurements Operating conditions 0 ... +40 °C). Storage conditions -20 ... +50 °C Dimensions 90 x 77 x 230 mm Weight 600 g
- Product type
Colorimeter
- Width
90 mm
- Height
77 mm
- Weight
600 g
- Dim
(L x W x H) 230 x 90 x 77 mm
- Length
230 mm
Manufacturer's standards (no certificate)
- Display
LCD
- Interfaces
USB
- Features
Data logger
- Reading type
Colour
Documents & Downloads
Datasheet
Datasheet 2452324 PCE Instruments PCE-CSM 10 Colorimeter
User & Safety Instructions
User & Safety Instructions 2452324 PCE Instruments PCE-CSM 10 Colorimeter
Description

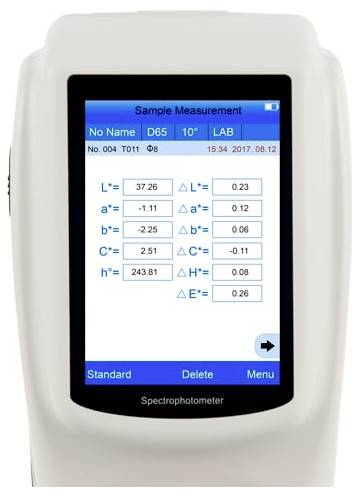

Colorimeter for quality control / PC software included / Li-ion battery / high accuracy / white calibration possible / different color spaces / determination of reference values and sample values / touch screen display The colorimeter PCE-CSM 10 was developed especially for quality assurance and has a high accuracy. The colorimeter allows products to be tested for their color properties at any time. The colorimeter provides the ability to select different color spaces for measurements (CIE LAB, XYZ, Yxy, LCH, CIE LUV, LAB &WI &YI). After a measurement, the result can be used as a reference value and further sample values can be determined with the colorimeter. In addition to the actual measurement result, the deviation from the reference value is displayed. The measured values are automatically saved by the colorimeter. Up to 1000 reference values and up to 25,000 sample values can be stored. In addition, it is possible to transfer the stored values to a PC via the USB interface. A special PC software is included in the delivery.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x colorimeter PCE-CSM 10
- 1 x battery
- 1 x carrying case
- 1 x data cable
- 1 x calibration plate white
- 1 x calibration plate black
- 1 x protective cover
- 1 x wristband
- 1 x PC software
- 1x user manual
