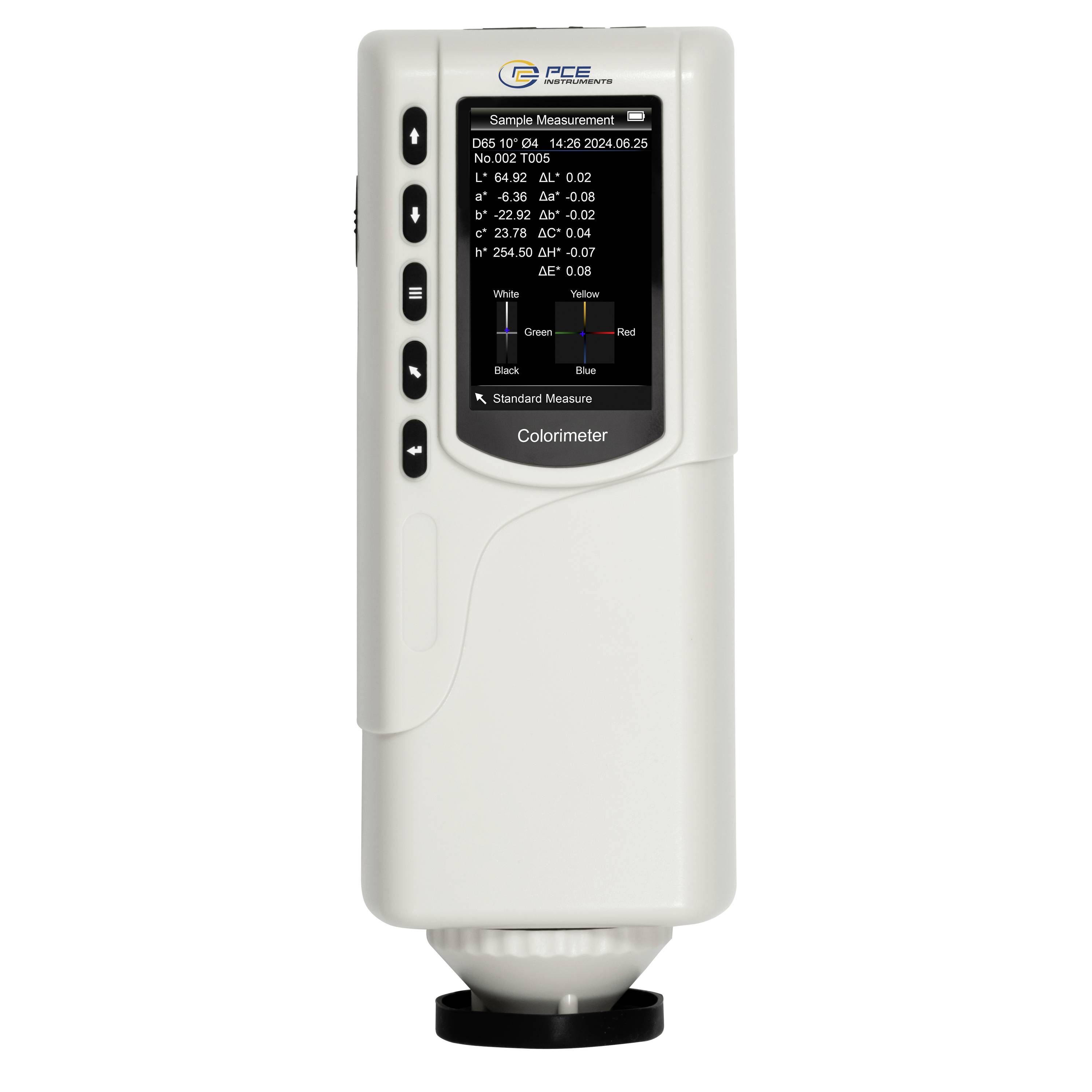

Handheld colorimeter displaying sample measurement results on a screen, with side buttons and a white body on a plain background.

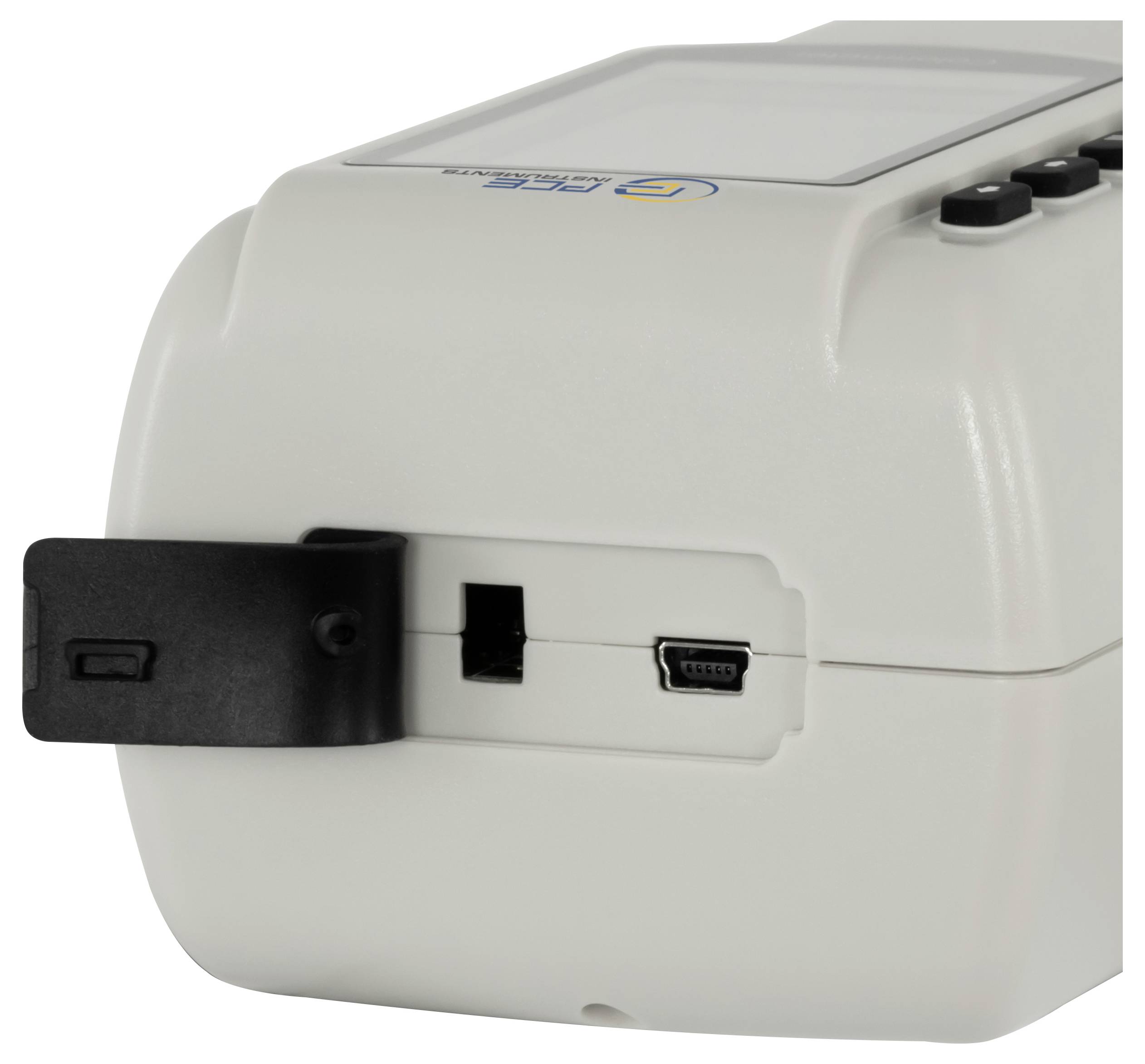

Close-up of a white portable device with a black side flap, showing a small rectangular port and a USB port.

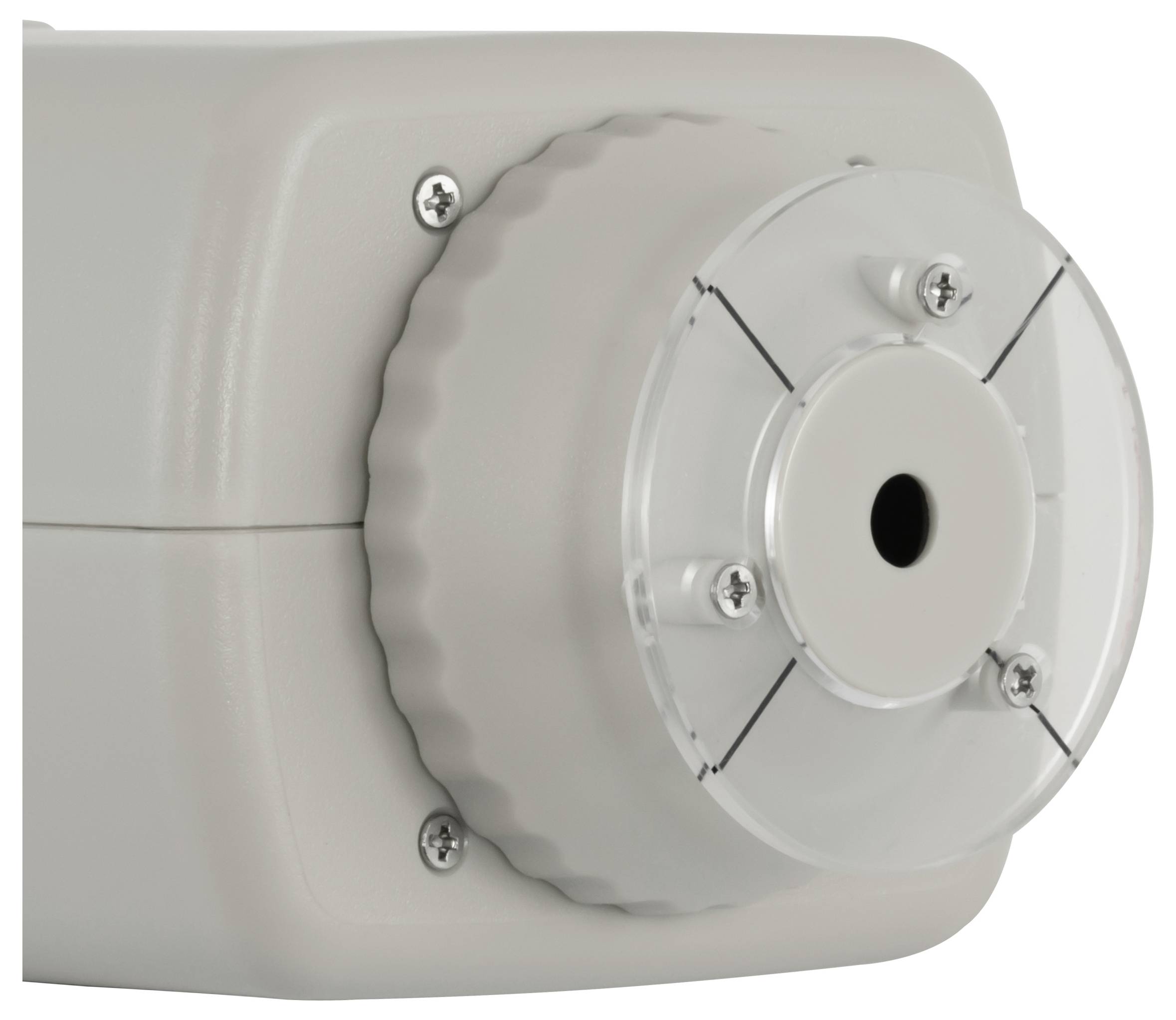

Close-up of a beige wall-mounted industrial device housing with a clear circular front cover and center opening.<br>

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Colorimeter PCE-CSM 5

CIE LAB, XYZ, LCH, RGB, LUV
White calibration
Determination of reference values and samples
Changeable measuring attachments (Ø4 mm, Ø8 mm)
High accuracy
Application on many surfaces
Simple user interface
Supplied software

Technical specifications

Technical specifications Illumination/observation geometry 8°/d. Measurement aperture Ø 4 mm, Ø 8 mm (replaceable) Sensor silicon photodiode COLOR SPACES CIE LAB, XYZ, LCH, CIE RGB, CIE LUV Formula for color inequality ΔE*, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00 Additional color parameters WI ( E313，CIE, AATCC，Hunter )，Yi ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCII Observation angle CIE 10° LIGHT SOURCE D65，A，C，D50，F2，F6，F7，F8，F10，F11，F12 Data on the display Colorimetric value Color difference (value/graph) PASS/FAIL result Color offset Measurement time 0.4 s. Repeatability ΔE* from 0. 03 Lamp life 5 yearsMore than 1.6 million measurements Memory 100 reference values, 20000 random samples Interfaces USB / RS 232 TFT 2.8 " display (16:9) Power supply Rechargeable lithium-ion battery 3.7 V at 3200 mAh Operating temperature 0 ... +40 °C). Storage temperature -20 ... +50 °C Dimensions 205 x 67 x 80 mm Weight 500 g.

Product type: Colorimeter

Reading type: Colour

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 205 x 67 x 80 mm

Display: LCD

Weight: 500 g

Features: Data logger

Width: 67 mm

Height: 80 mm

Length: 205 mm

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 2452331 PCE Instruments PCE-CSM 5 PCE-CSM 5 Colorimeter

User & Safety Instructions

User & Safety Instructions 2452331 PCE Instruments PCE-CSM 5 PCE-CSM 5 Colorimeter

Description

Colorimeter for quality control / PC software included / Li-ion battery / high accuracy / white calibration possible / different color spaces / determination of reference values and samples / changeable measuring attachments (Ø8 mm, Ø4 mm) The colorimeter PCE-CSM 5 was developed especially for quality assurance and has a high accuracy. The colorimeter provides the ability to select different color spaces for measurements (CIE LAB, XYZ, LCH, RGB, LUV). In addition, the PCE-CSM 5 colorimeter has two exchangeable measuring attachments with measuring openings of 4 or 8 mm diameter. After a measurement, the result can be used as a reference value and further sample values can be determined with the colorimeter. In addition to the actual measurement result, the deviation from the reference value is displayed. The measured values are automatically saved by the colorimeter. Up to 100 reference values and up to 20000 random samples can be stored. In addition, it is possible to transfer the stored values to a PC via the USB interface. A special PC software is included in the delivery.

This text is machine translated.
