PCE Instruments PCE-CSM 6 Colorimeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

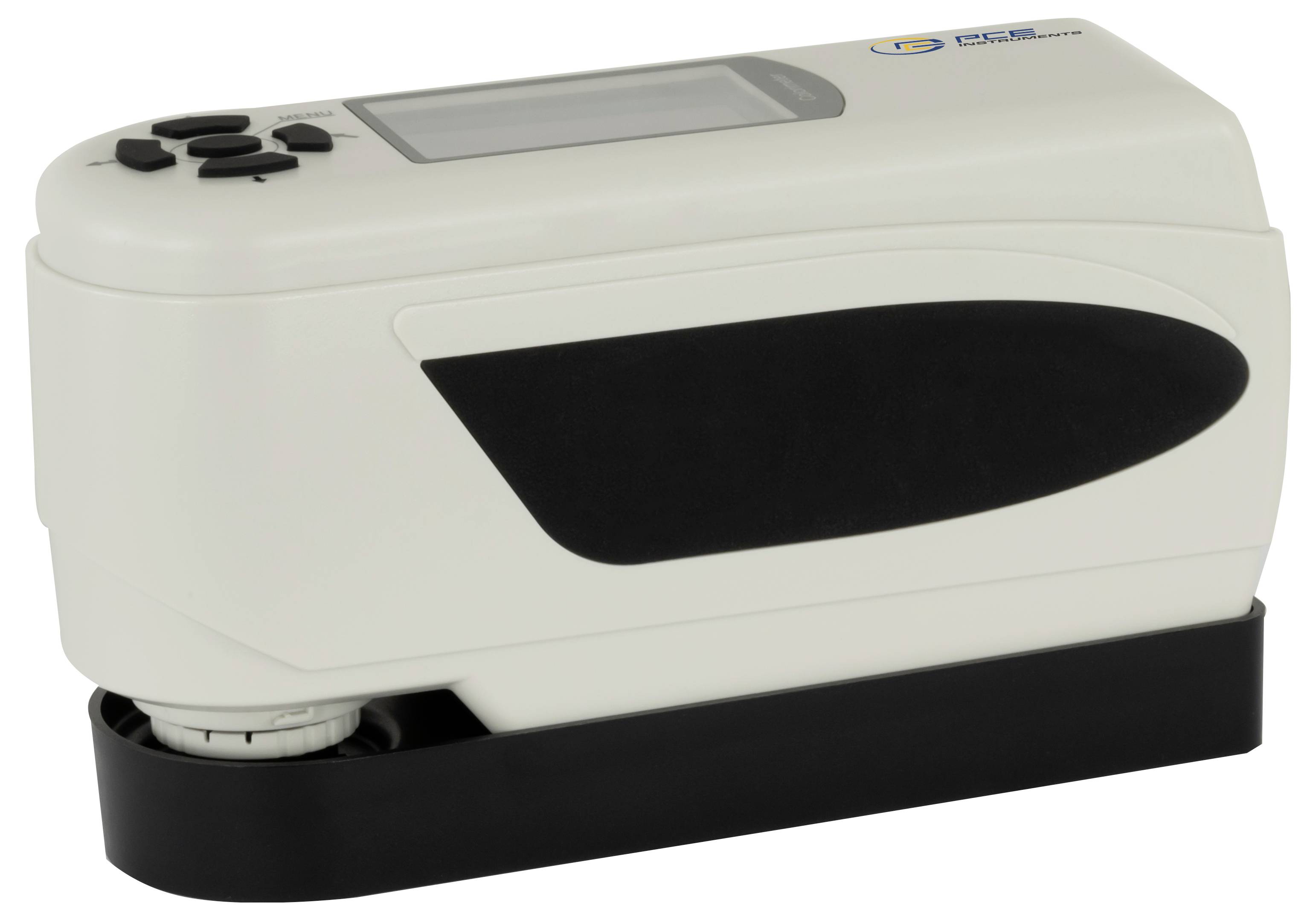

Colorimeter PCE-CSM 6
- Supports VESA standards up to
Technical specifications

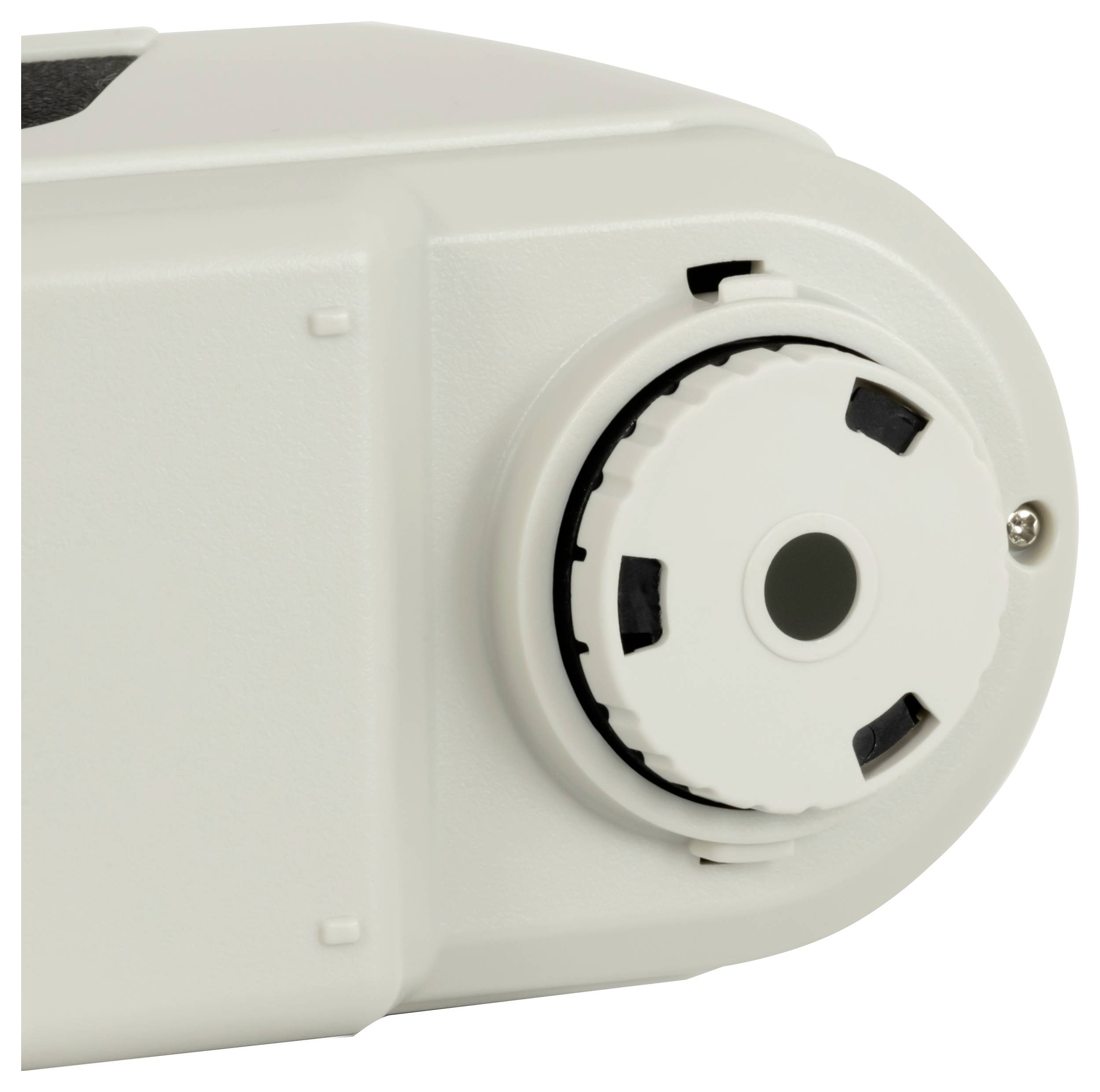

- Technical specifications Illumination/observation geometry 8°/d. Measurement aperture Ø 8 mm Sensor silicon photodiode Color spaces CIE L*a*b, CIE L*a*b*C*h Formula for the Color imbalance ΔE*from ΔL*a*b ΔE*C*H Light source D65 Type of light source LED with blue excitation light Memory 100 default values, 20000 samples Standard deviation within ΔE*from 0.07 Repeatability average of 30 measurements with a standard white plate Power supply Rechargeable lithium-ion battery 3.7 V at 3200 mAh Charging time 8 hours Battery life approx. 3000 measurements Lamp lifetime 5 yearsMore than 1.6 million measurements Temperature range 0 ... +40 °C Relative humidity 0 ... 85%, non-condensing Dimensions 205 x 70 x 100 mm Weight 500 g.
- Product type
Colorimeter
- Width
70 mm
- Height
100 mm
- Weight
500 g
- Dim
(L x W x H) 205 x 70 x 100 mm
- Length
205 mm
Manufacturer's standards (no certificate)
- Display
LCD
- Interfaces
USB
- Features
Data logger
- Reading type
Colour
Documents & Downloads
Datasheet
Datasheet 2452332 PCE Instruments PCE-CSM 6 Colorimeter
User & Safety Instructions
User & Safety Instructions 2452332 PCE Instruments PCE-CSM 6 Colorimeter
Description

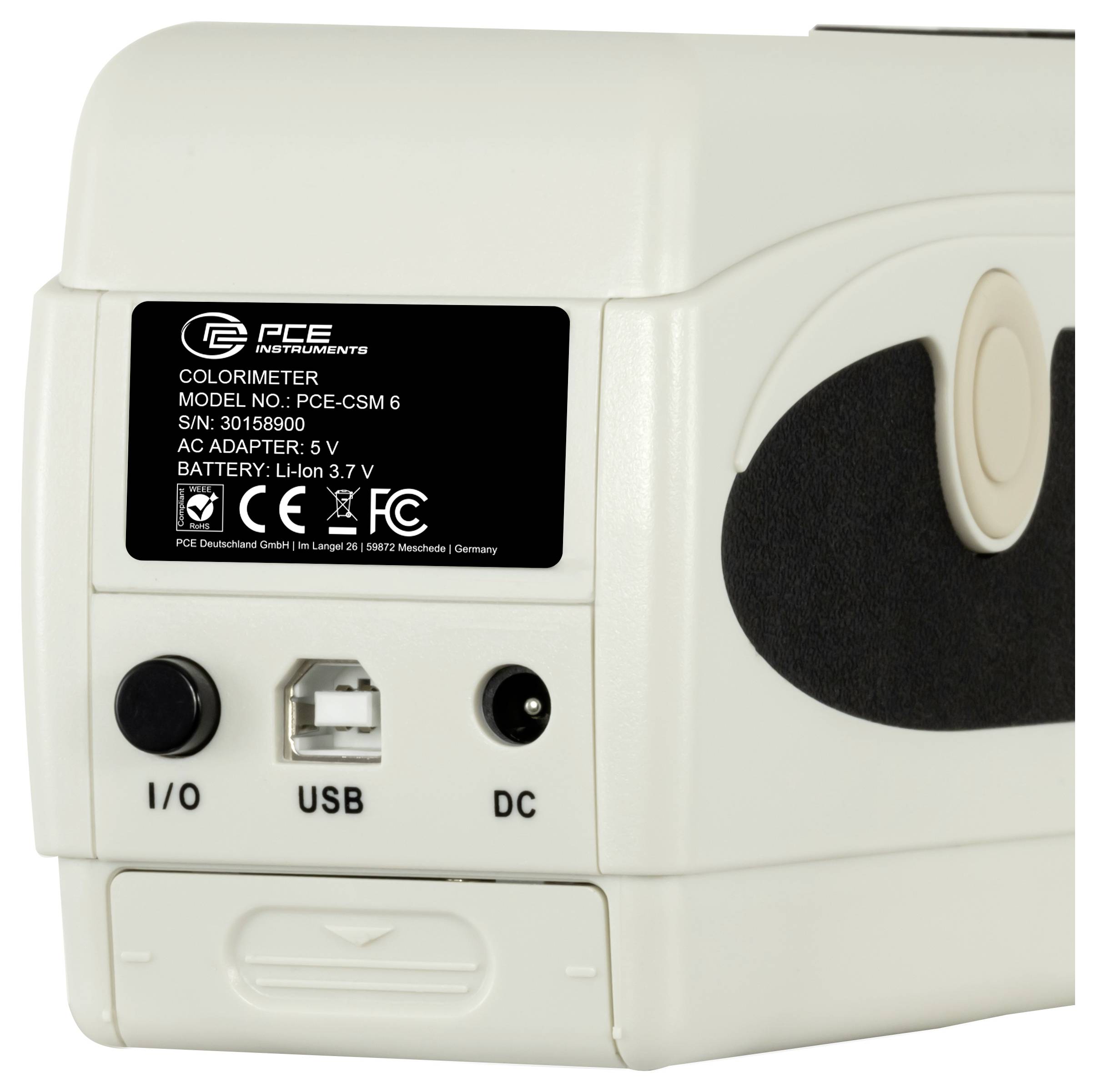

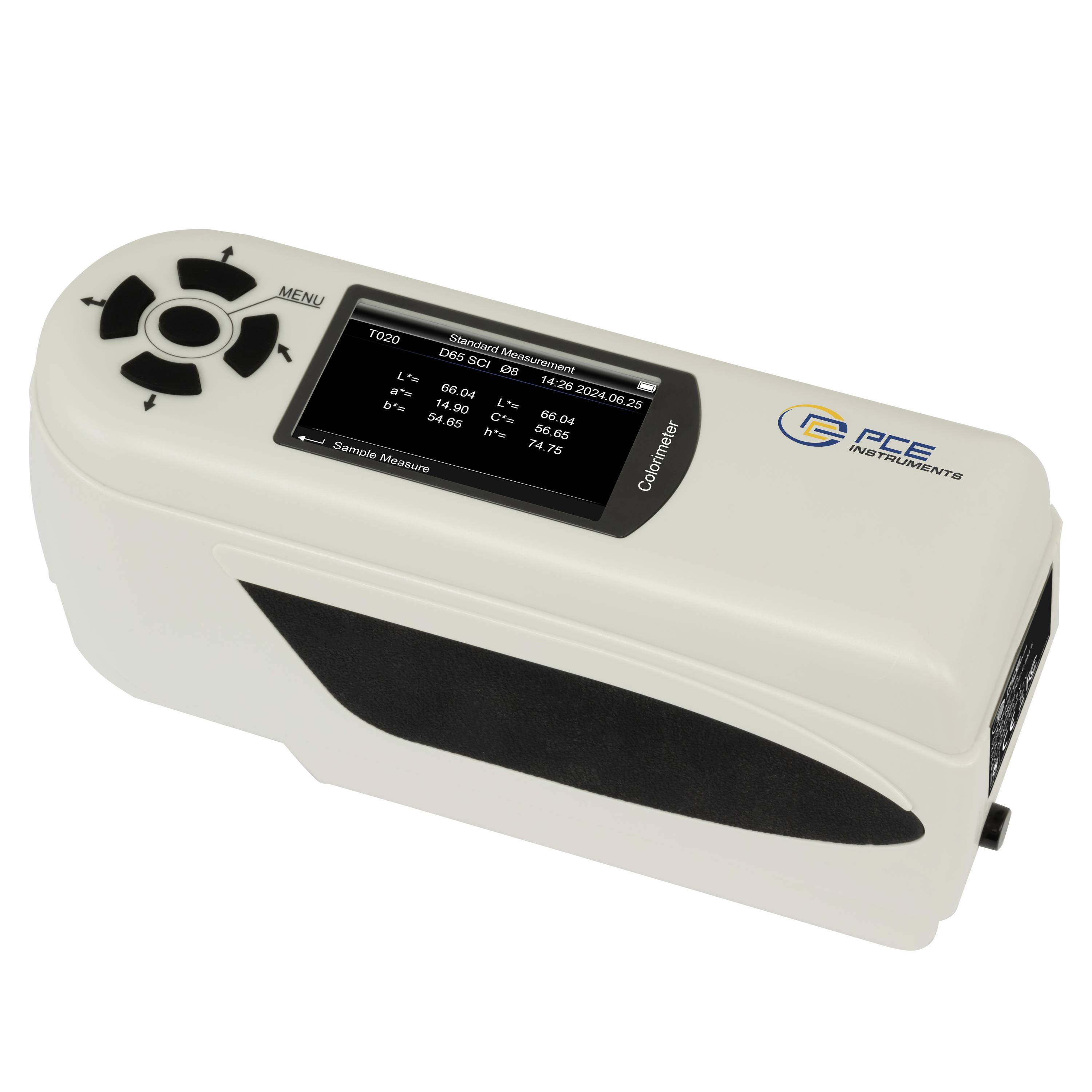

Colorimeter for quality control / PC software included / Li-ion battery / high accuracy / white calibration possible / different color spaces / determination of reference values and sample values / measuring aperture Ø8 mm The colorimeter PCE-CSM 6 was developed especially for quality assurance and has a high accuracy. With the colorimeter, products can be tested for their color properties at any time. The colorimeter allows you to select different color spaces for measurements (CIE L*a*b, L*a*b*C*h). After a measurement, the result can be used as a reference value and further samples can be obtained using the colorimeter. In addition to the actual measurement result, the deviation from the reference value is displayed. The measured values are automatically saved by the colorimeter. Up to 100 reference values and up to 20000 random samples can be stored. In addition, it is possible to transfer the stored values to a PC via the USB interface. A special PC software is included in the delivery.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x colorimeter PCE-CSM 6
- 1 x battery
- 1 x calibration plate white
- 1 x PC software
- 1x user manual
