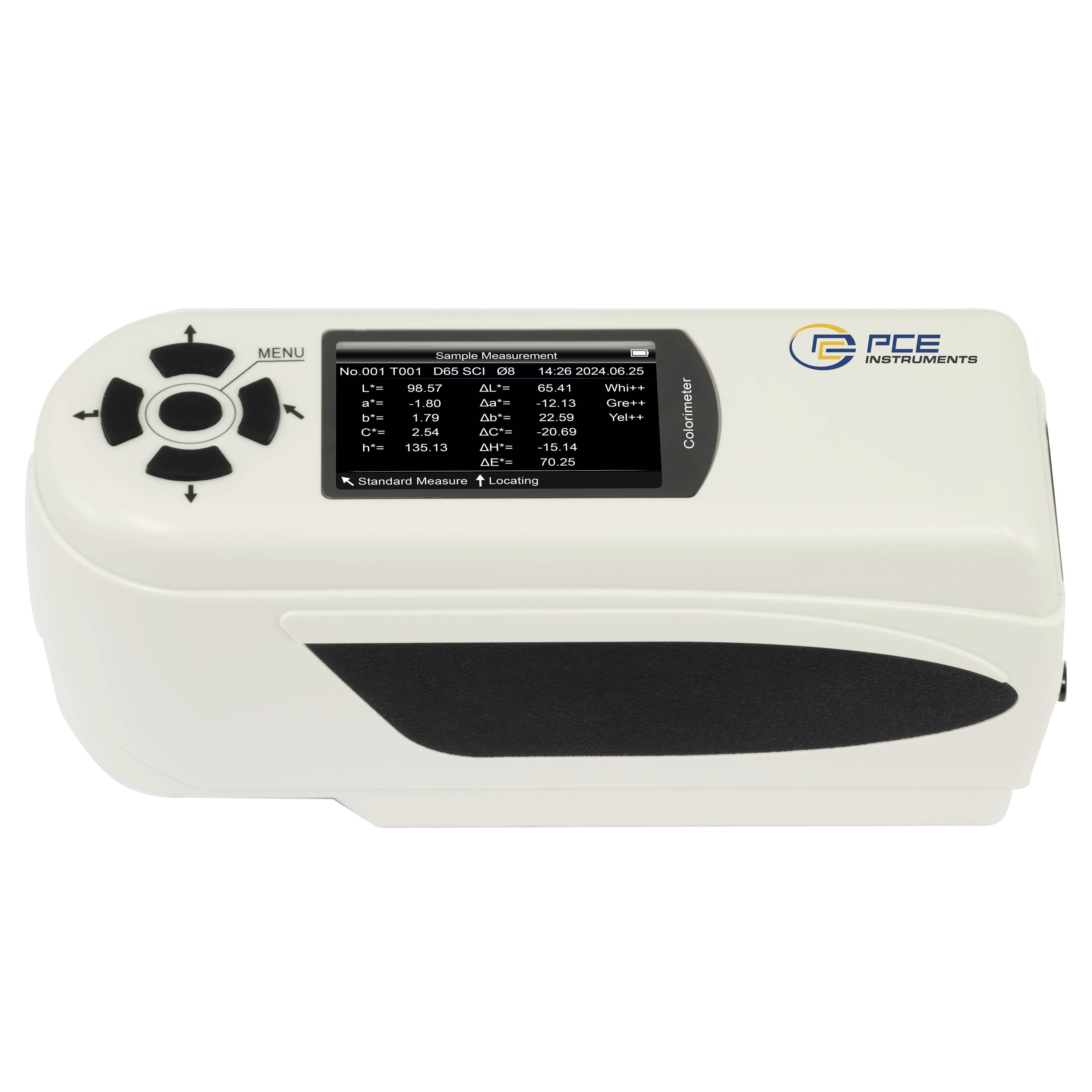

Portable ICE Instruments colorimeter with screen, directional control pad, and white casing for measuring color and appearance.<br>

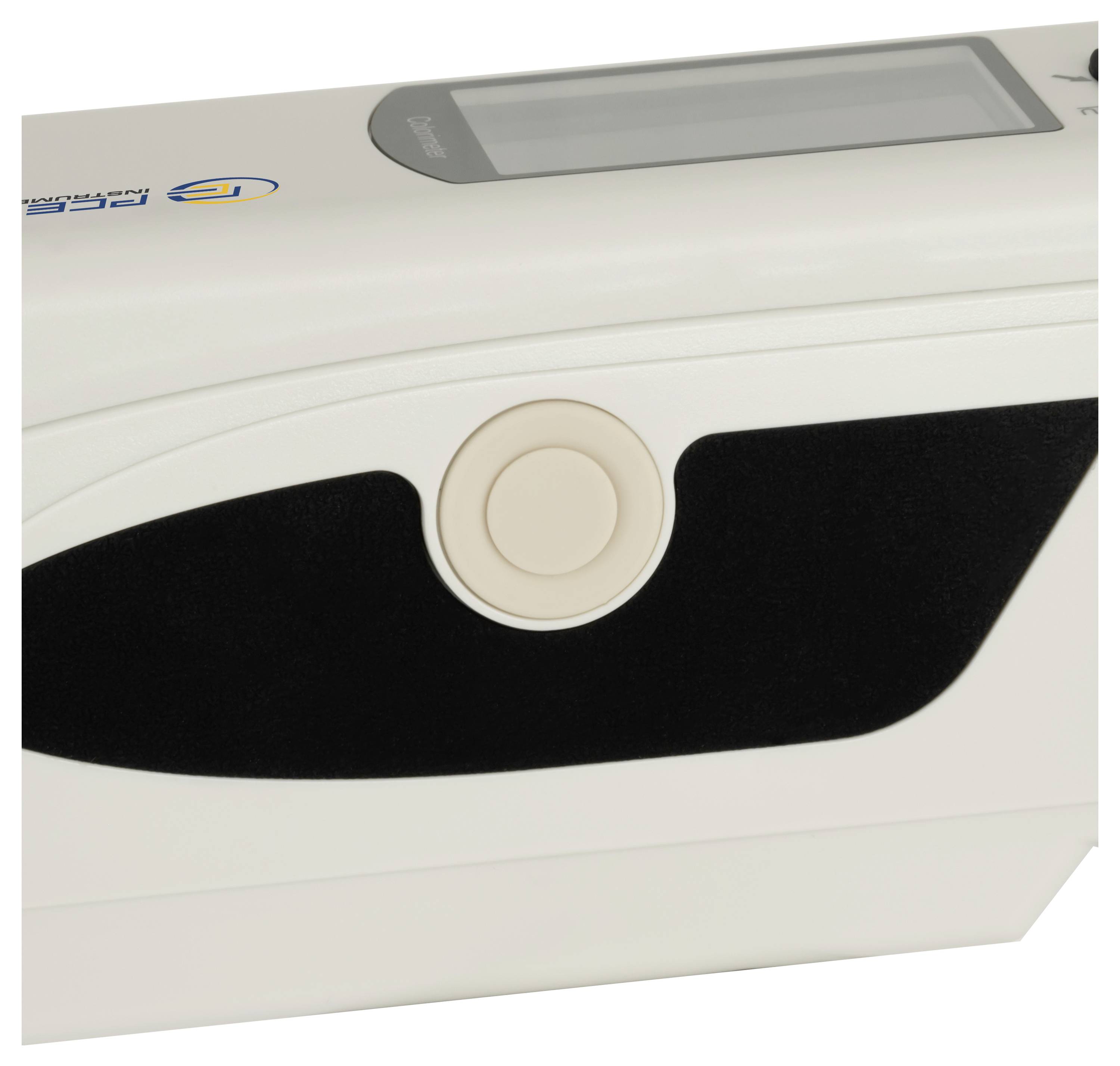

Close-up of a white plastic device with a rectangular display panel and circular button, showing a black front opening or vent.<br>

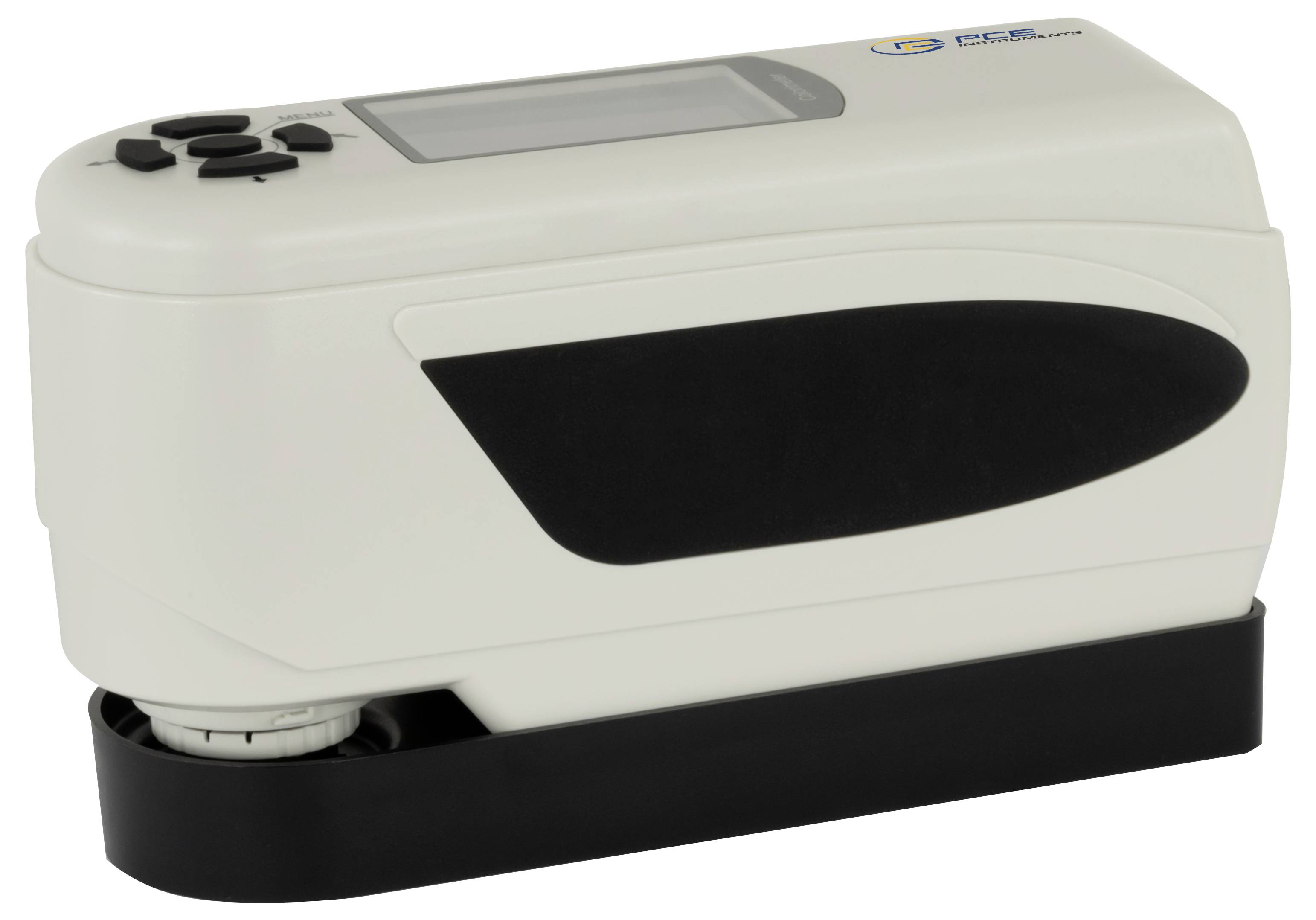

White benchtop lab instrument with a small display, control buttons, and a black base, shown in side view.<br>

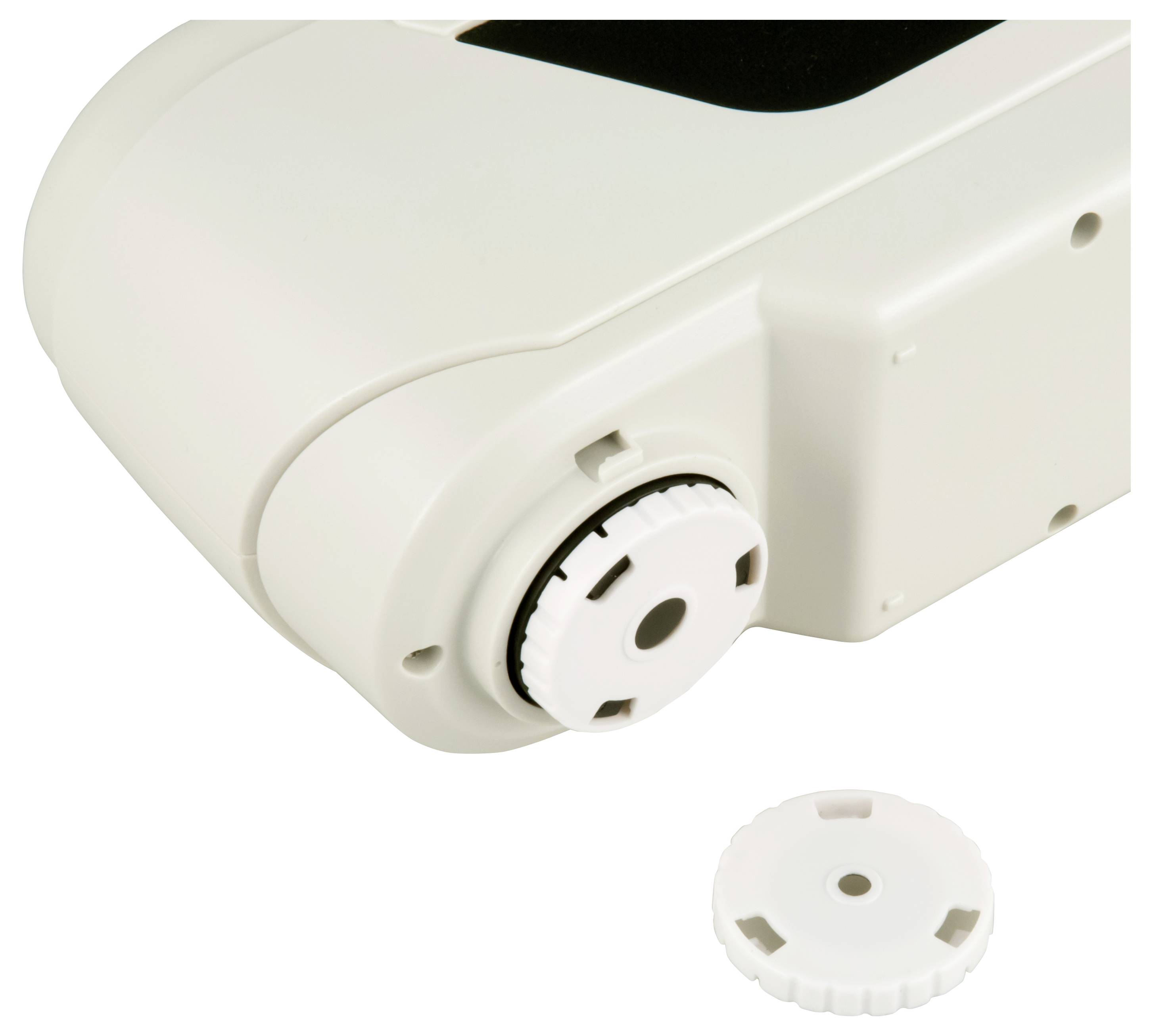

Close-up of a white plastic device corner with a circular adjustment knob; a separate matching cap lies below on a white background.

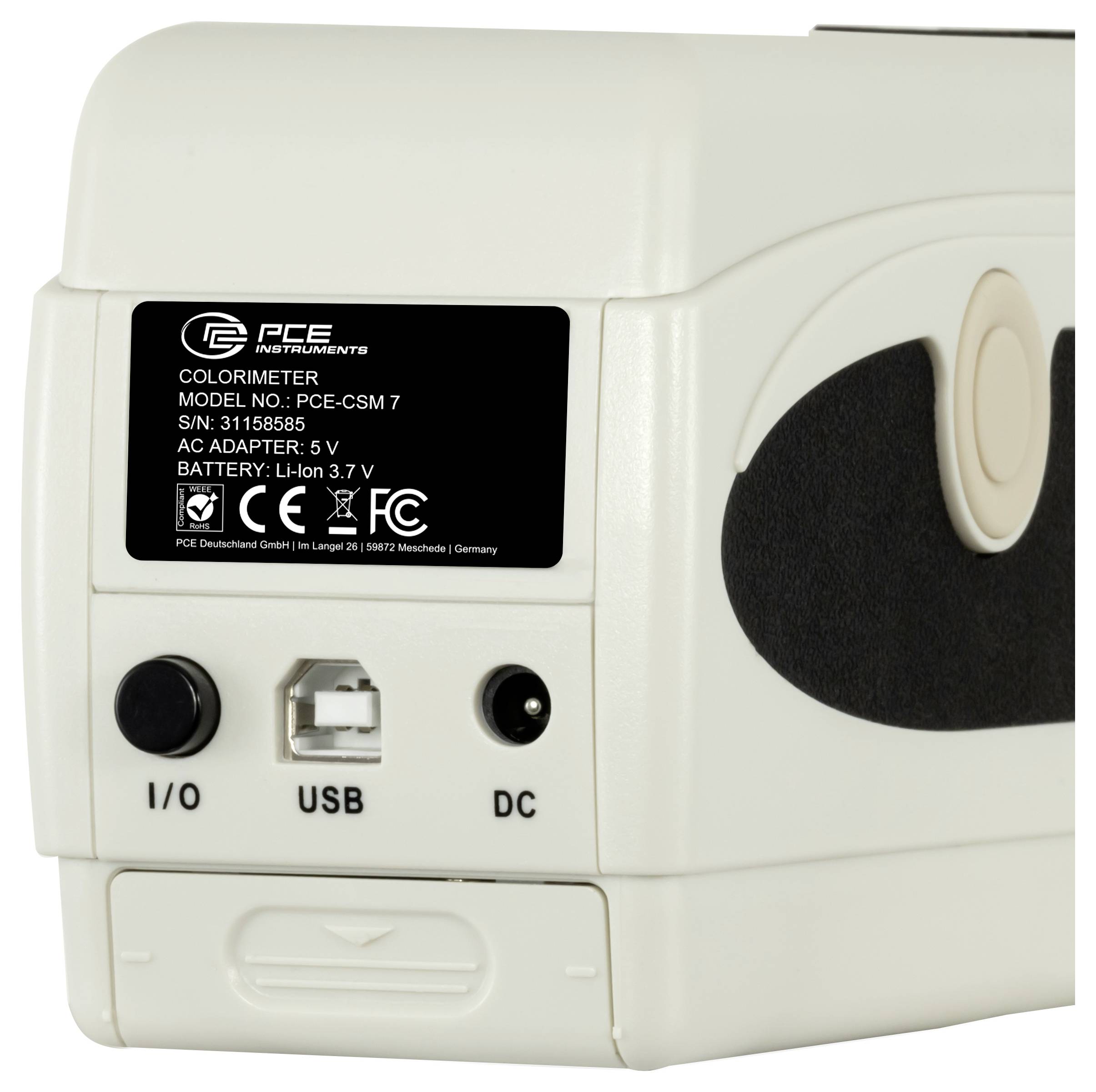

Close-up of a PCE Instruments colorimeter, model PCE-CSM 7, showing the power, USB, and DC ports on the device body.

A person is holding a portable measuring device with a display showing various numerical measurement values, positioned over a blue surface.

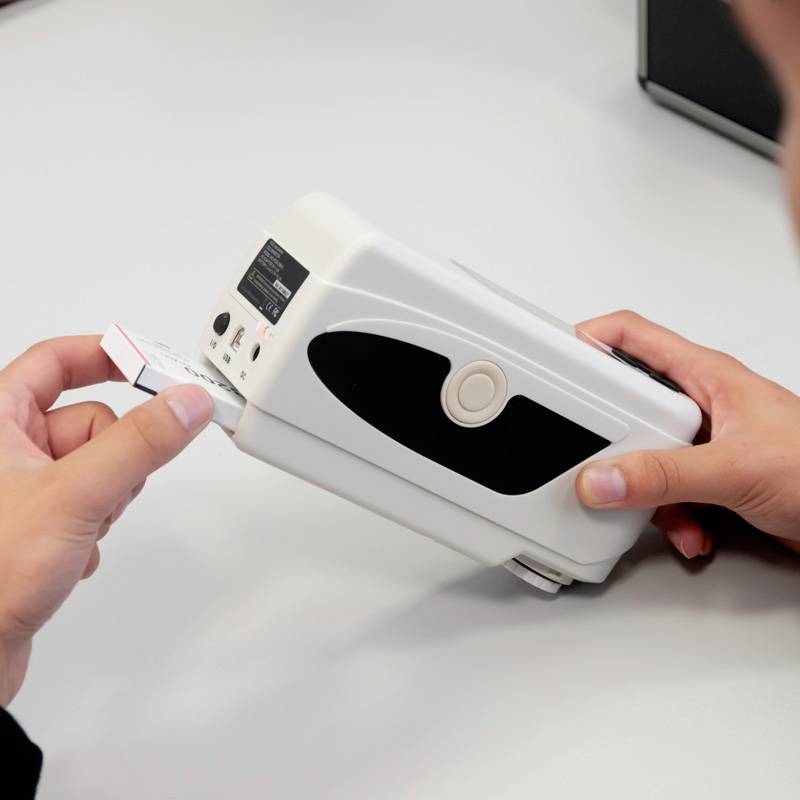

Two hands are operating a small electronic device. One hand is holding the device, while the other is inserting a card.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Colorimeter PCE-CSM 7

Rechargeable lithium-ion battery
automatic white black calibration
Consistent power - whiteness
Measurement of different colors
Application on many surfaces
Simple measuring steps
Yellowish

Technical specifications

Technical data Mounting geometry 8/d Measurement aperture Ø8 mm / Ø4 mm Sensor silicon photodiode Color spaces CIEL*a*b*C*h CIEL a* b* CIEXYZ CIERGB CIEL u* v* CIEL*C*h° Yellow and white degree determination Formula for color inequality ΔE*from ΔL*from ΔE*C*H ΔECIE94 ΔEHunter Light source D65, D50, A. Type of light source LED Memory 100 reference values, 20000 random samples Repeatability average of 30 measurements with a standard white plate Standard deviation within ΔE*from 0.07 Power supply Rechargeable lithium-ion battery 3.7 V at 3200 mAh Charging time 8 hours Battery life 3000 measurements Lamp lifetime 5 yearsMore than 1.6 million measurements Storage conditions Temperature -10 ... +40 °C Relative humidity 0 ... 85%, non-condensing Dimensions 205 x 70 x 100 mm Weight 500 g. Dimensions 205 x 70 x 100 mm

Product type: Colorimeter

Reading type: Colour

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 205 x 70 x 100 mm

Display: LCD

Weight: 500 g

Features: Data logger

Width: 70 mm

Height: 100 mm

Length: 205 mm

Interfaces: USB

Documents & Downloads

Datasheet

Datasheet 2452333 PCE Instruments PCE-CSM 7 PCE-CSM 7 Colorimeter

User & Safety Instructions

User & Safety Instructions 2452333 PCE Instruments PCE-CSM 7 PCE-CSM 7 Colorimeter

Description

Portable colorimeter for quality control / PC software included / Li-ion battery / black and white calibration / different color spaces selectable / white degree and yellow color / determination of reference values and samples The portable colorimeter PCE-CSM 7 is a versatile device, which was developed especially for quality assurance. The colorimeter allows you to measure various spectral parameters. The portable colorimeter performs an automatic white and black calibration when switched on. The PCE-CSM 7 is ergonomically designed and has an easy-to-use user interface. With its low measurement uncertainty, the colorimeter is suitable for professional use. Manufacturing companies in particular depend on the quality of their products to be consistent. In quality control, the colorimeter offers the best reliability when it comes to meeting and meeting optical requirements. The determined data is stored on the colorimeter and can also be transferred to a PC via the USB interface. With the help of the accompanying software, the results can be examined and archived there in greater detail.
