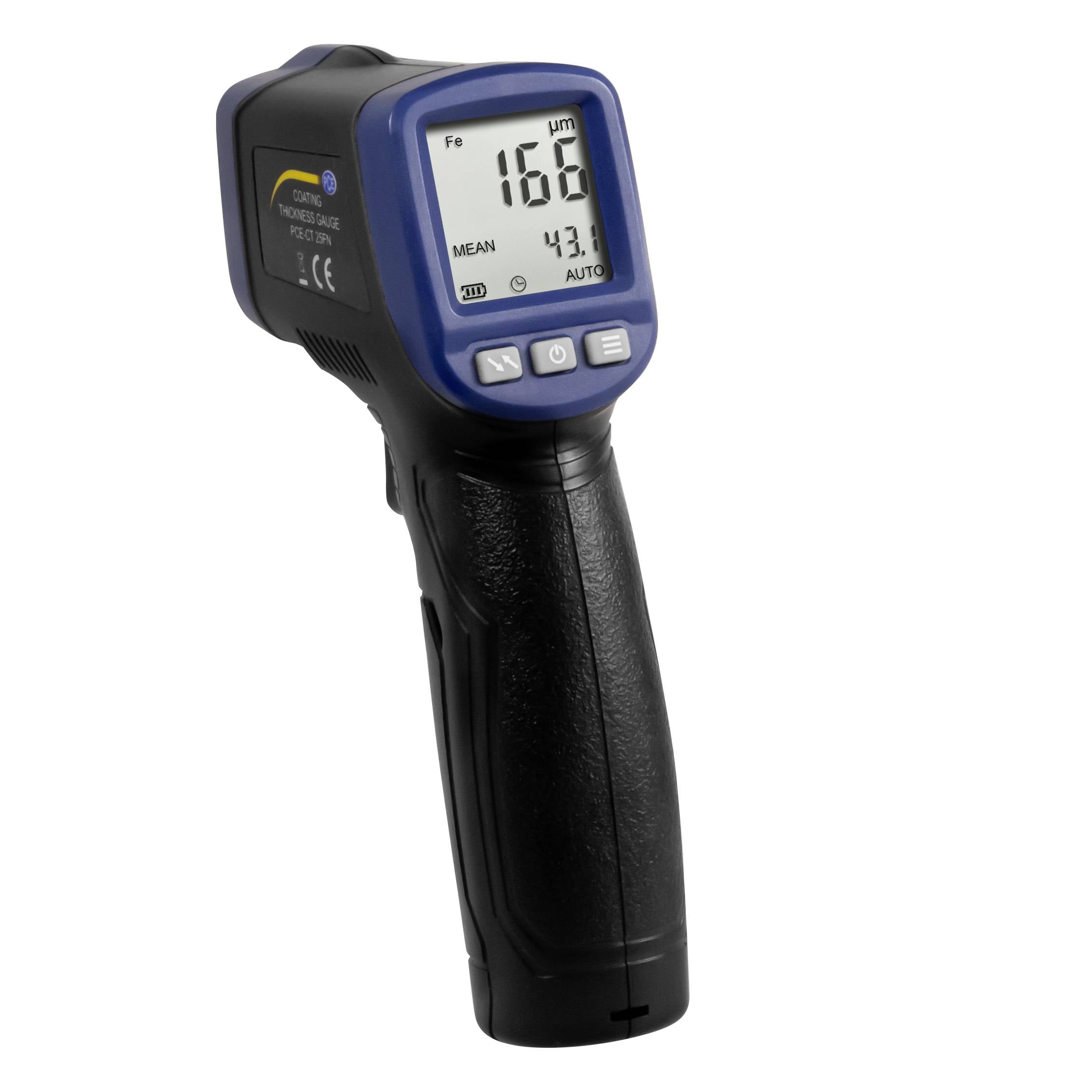

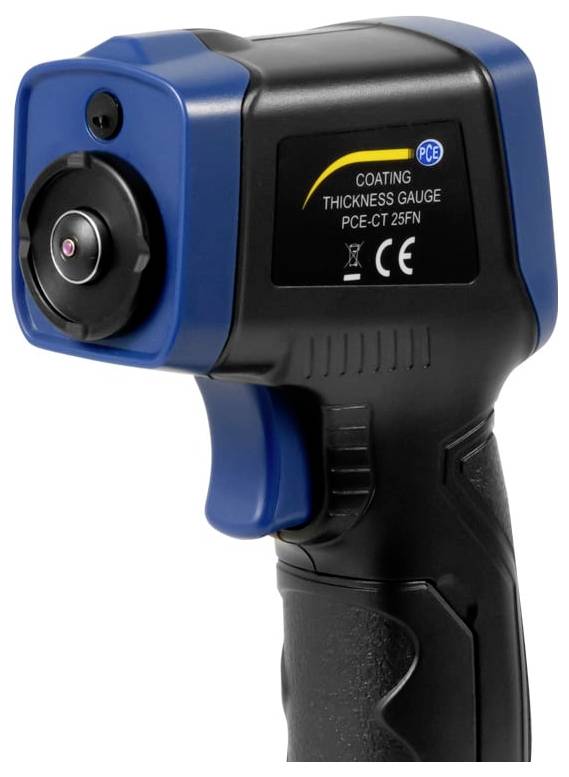

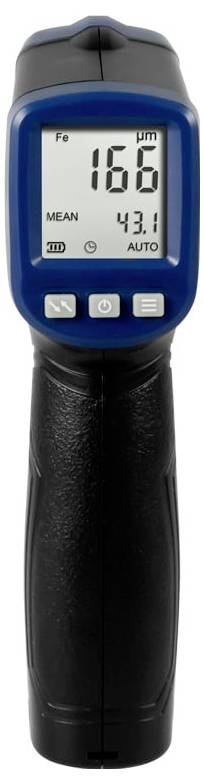

PCE Instruments PCE-CT 25FN Paint meter 0 - 1500 µm
EAN:
Part number:
Item no:
Technical specifications
- Measurement range 0 ... 1500 µm Accuracy ±(3% + 1 µm) Resolution 0.1 µm in measuring range 0 ... 100 µm 1 µm in the measurement range > 100 µm Units µm, mm, mils Minimum curve convex 5 mm, concave 25 mm Smallest measuring surface Ø 20 mm Minimum thickness of the substrate FE 0.3 mm NFe 0.05 mm Measurement rate max. 2 Hz Voltage supply with 9 V battery Operating conditions -10 ... 50 °C, 20 ... 90 % RH non-condensing Storage conditions -10 ... 60 °C, 20 ... 90 % RH non-condensing Dimensions 143 x 85 x 39 mm Weight approx. 100 g ABS casing material
- Product type
Paint meter
- Measuring type
Steel
Aluminium
Brass
Copper
Zinc
Ferrous substances
Non-ferrous substances
- Reading range
0 - 1500 µm
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 39 x 85 x 143 mm
- Weight
100 g
- Display
LCD
Digital
- Accuracy
3 %
- Content
1 pc(s)
- Reading range (max.)
1500 µm
- Reading range (min.)
0 µm
- Measuring type
Magnet
Eddy current
- Width
85 mm
- Height
143 mm
- Length
39 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452766 PCE Instruments PCE-CT 25FN Paint meter 0 - 1500 µm
Description
Layer thickness meter with comfortable one-handed operation / MIN MAX and MEAN display / battery display / different units / automatic switch-off / for ferrous and non-ferrous metals / small and compact design The layer thickness meter is used for fast and precise detection of layer thicknesses on metals. Compared to many other layer thickness measuring devices, this layer thickness measuring device does not need to distinguish between ferrous and non-ferrous metal. With the small and compact design of the layer thickness measuring device, one-handed operation is possible. Despite its small design, the layer thickness meter has a measuring range of 1500 µm and an accuracy of ±(3% + 1 µm). The displayed measured values can be output in µm, mm and mils with the slice thickness gauge. In addition to measuring the thickness of the slice, the thickness gauge can determine the smallest, largest and average values from a number of different measurements. The coating thickness gauge also has an automatic shut-off function.
This text is machine translated.
This text is machine translated.

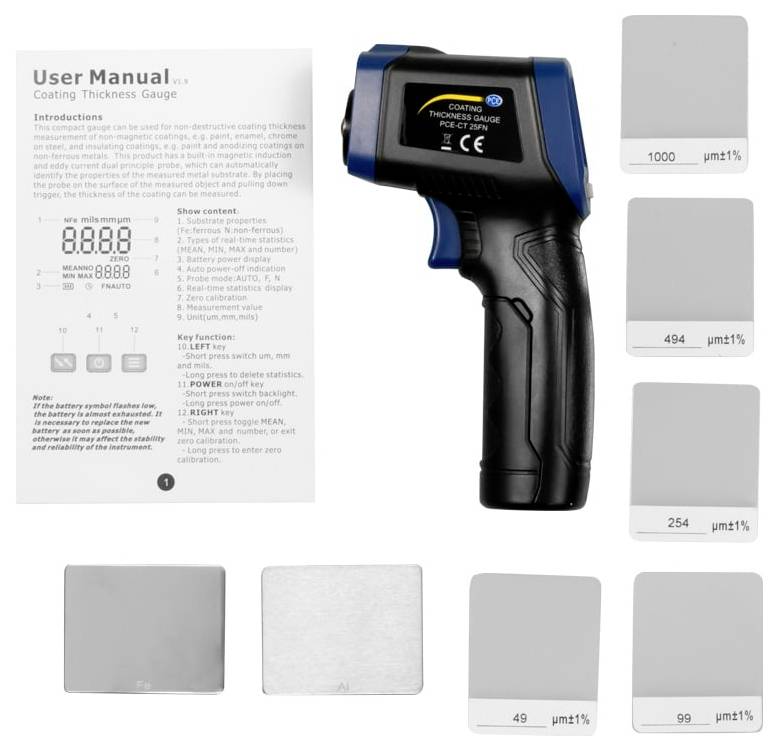

Scope of delivery
- 1 x PPCE-CT 25FN slice thickness meter
- 5 x calibration film reference
- 1 x Fe zero standard
- 1 x NFe zero standard
- 1 x 9 V battery
- 1x user manual
